Description

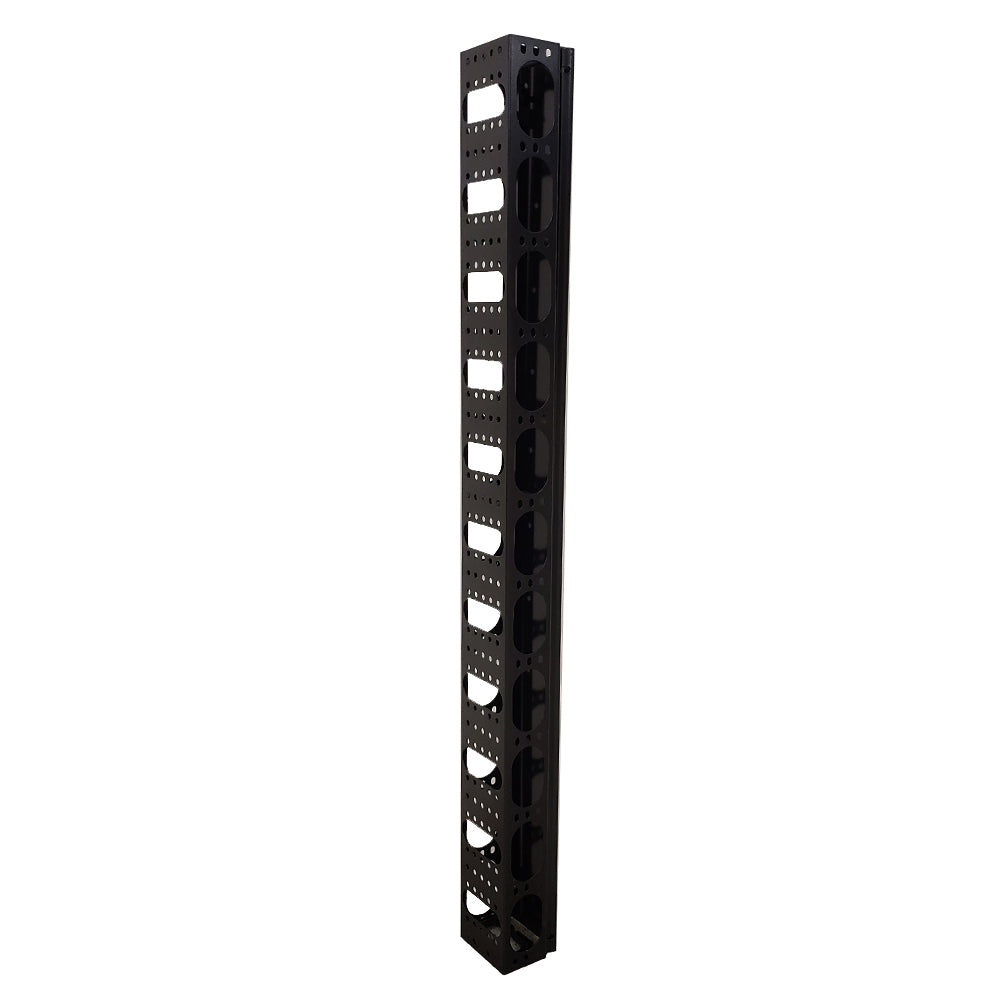

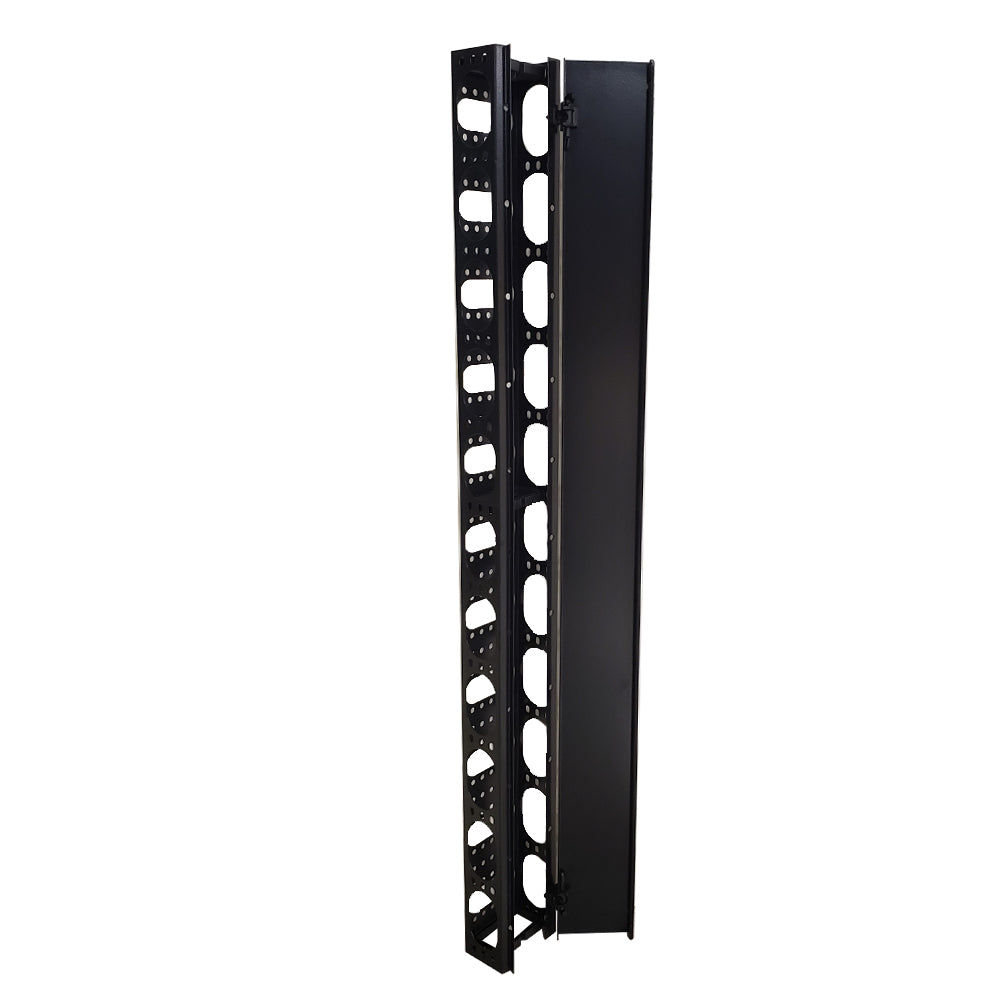

The vertical cable manager is 24U in height, has oval cable pass through openings and a hinged cover for easy access to cabling. It is typically used to organize cables running vertically on relay racks.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Cable Management Type | Duct |
| Finish | Powder Coated |
| Material | 1.5 mm Thick Steel |
| Height in Units | 24U |
| Width | 3.7 inches [94.4mm] |
| Depth | 3.1 inches [78.6mm] |
| Mounting Hardware | Included |
| Compatibility | |
| Compatible Racks | RM-130 - Four Post Relay Rack - 19 inch 26U, Square hole, Depth 24-36 inch |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware |
6 Pcs - M6 Screws – Black |
| Product Weight | 4.4 lbs |
| Box Dimensions in Inches | 40.5 x 4.7 x 3.9 |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| RM-450-24U | 9.0 lb |
