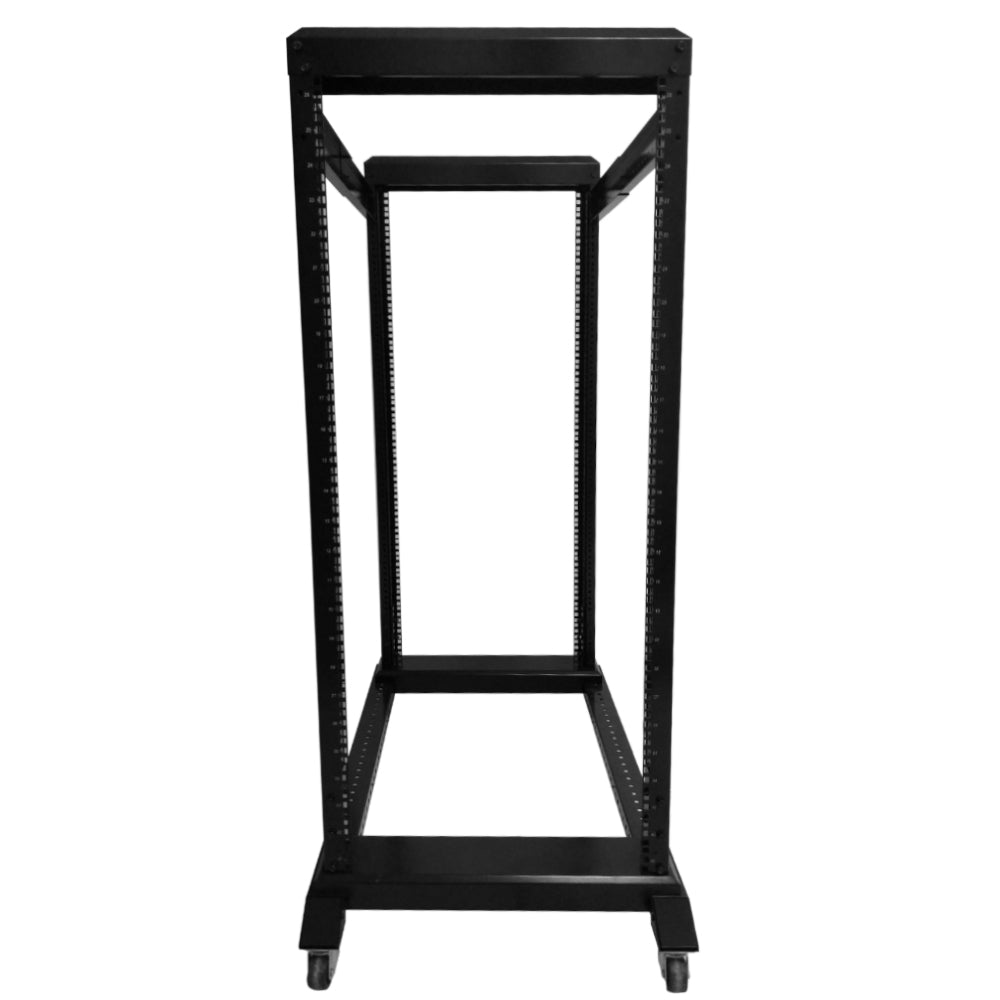

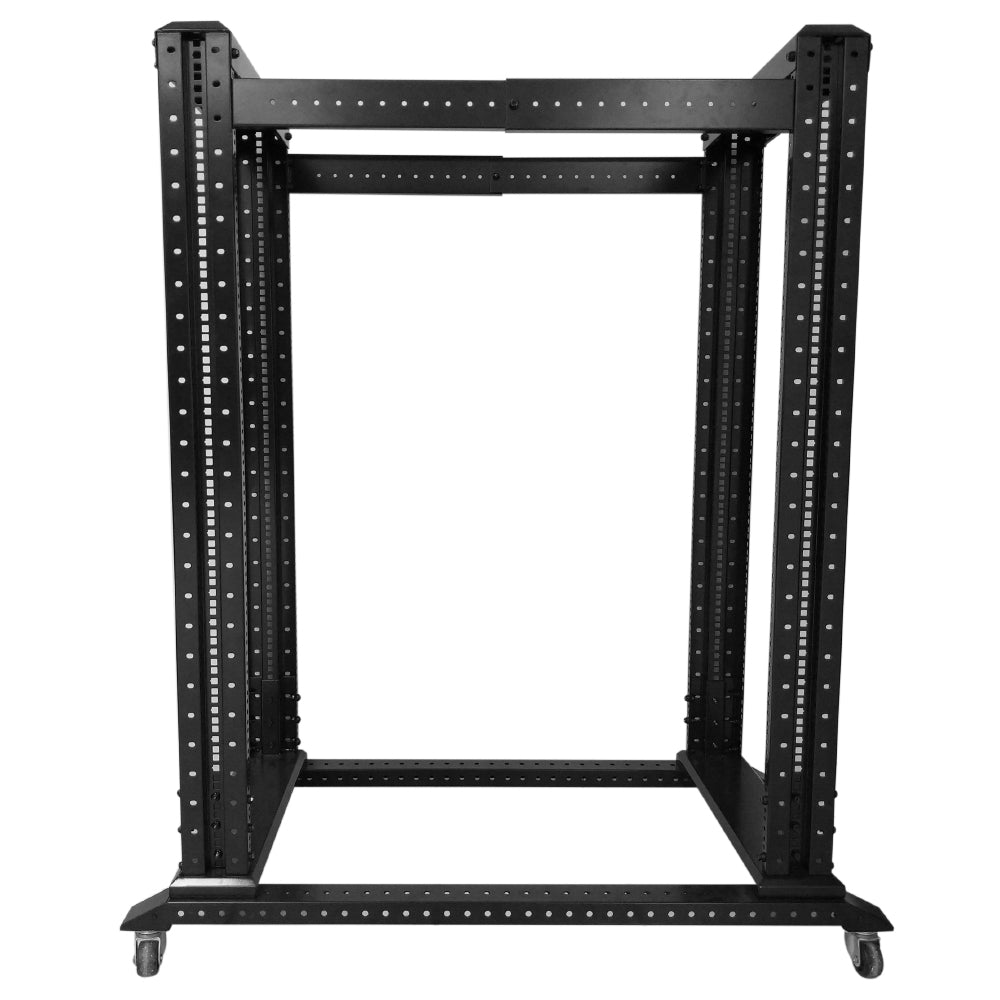

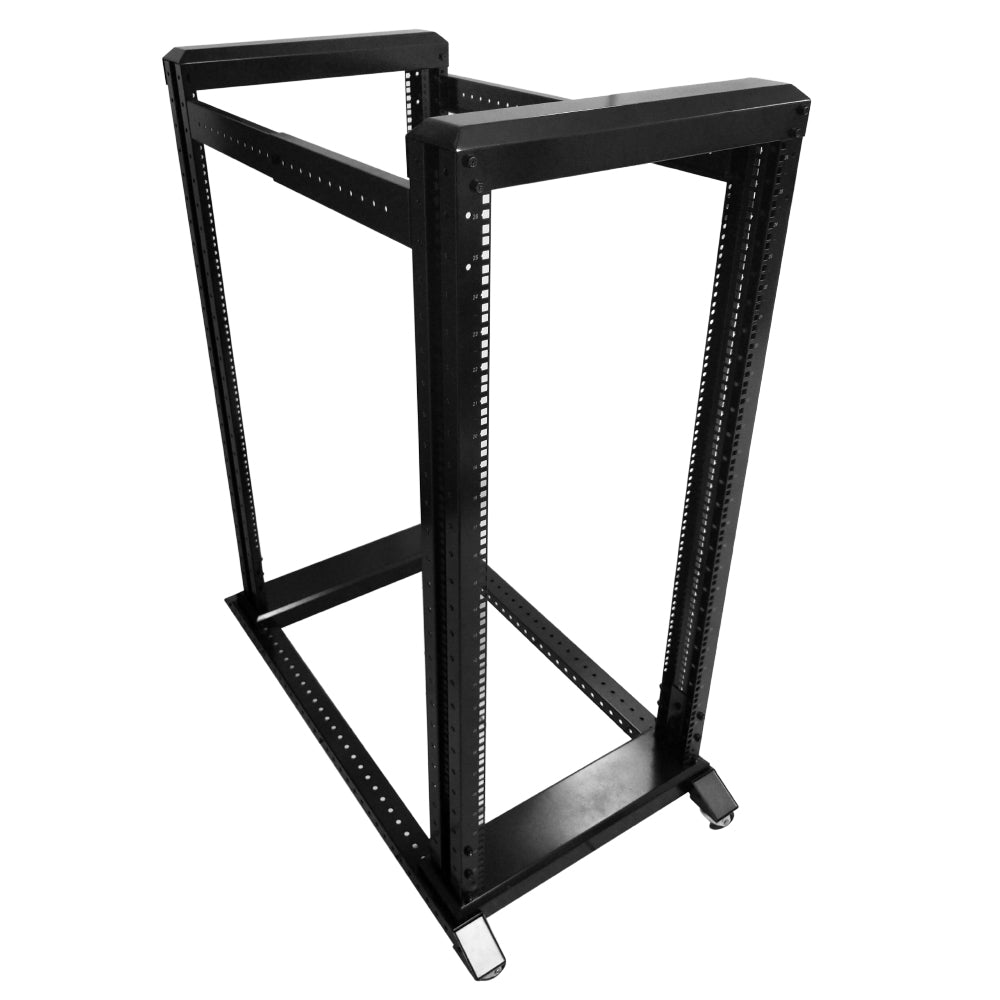

This 4-post relay rack is 19 inches wide, 26U in height and can be adjusted from 23 to 36 inches in depth. It is typically used to mount networking and audio/video rack mountable equipment.
Physical Characteristics |
Color |
Black - Powder Coated |
Material |
SPCC Cold Rolled Steel |
Loading Capacity |
Maximum 551 lbs [250 kg] |

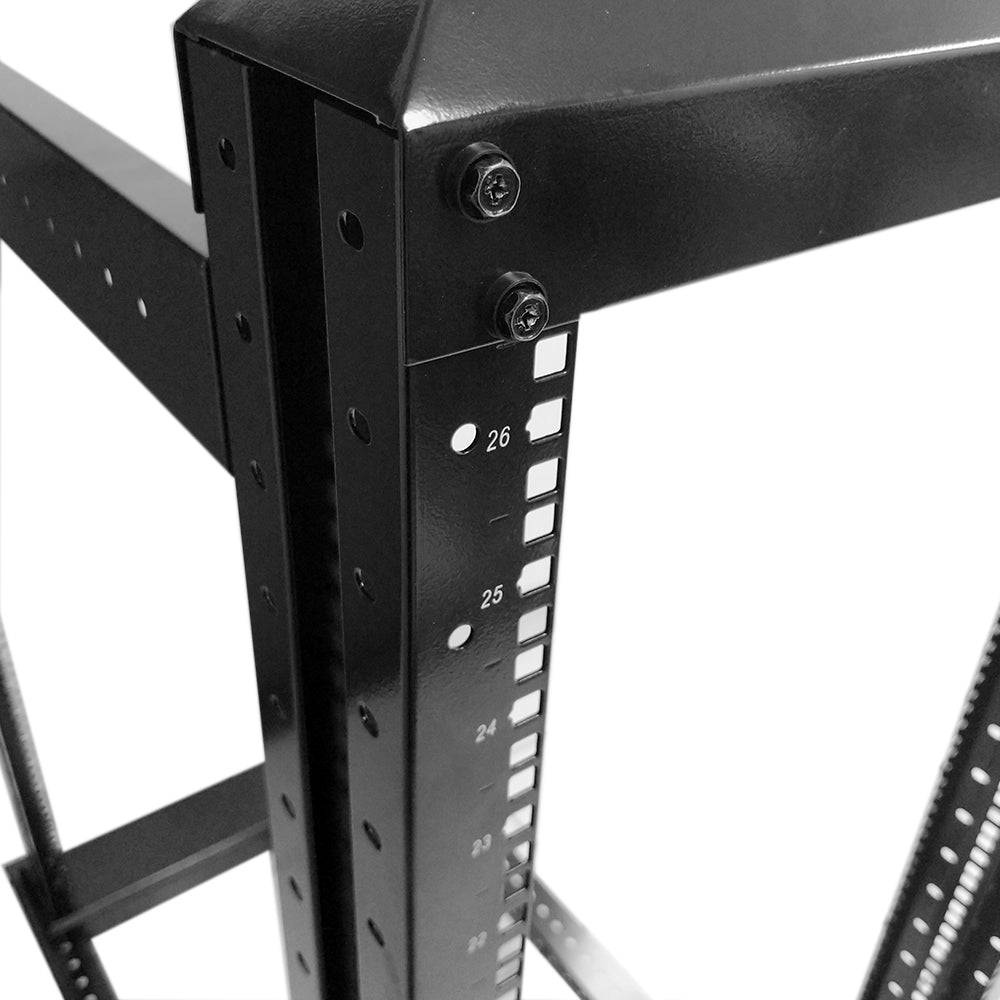

Mounting Rails |
2 Pairs of Square Hole Rails |
Mounting Rail Thickness |
1.7mm |

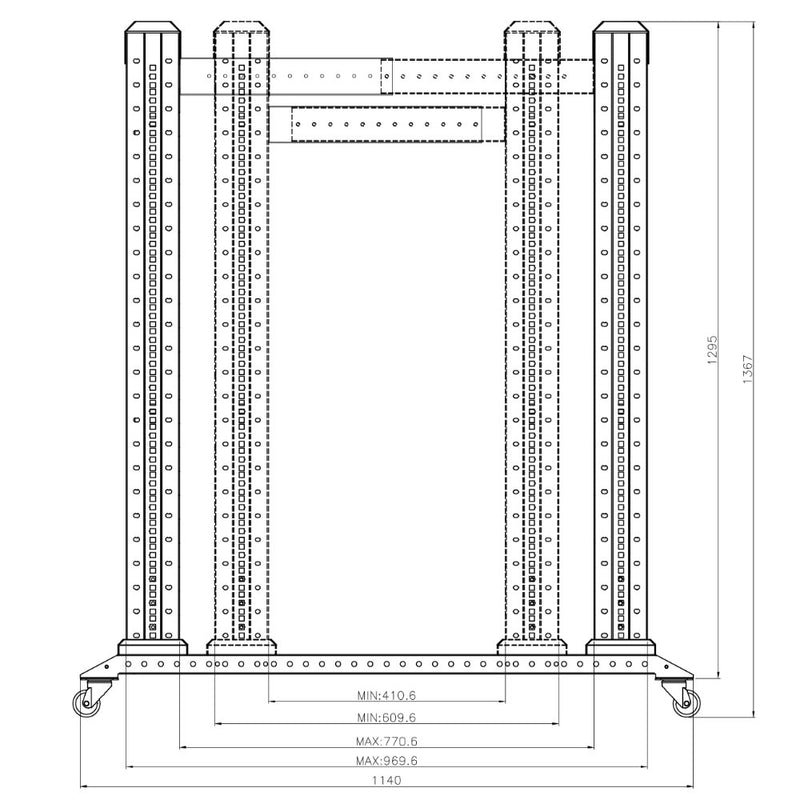

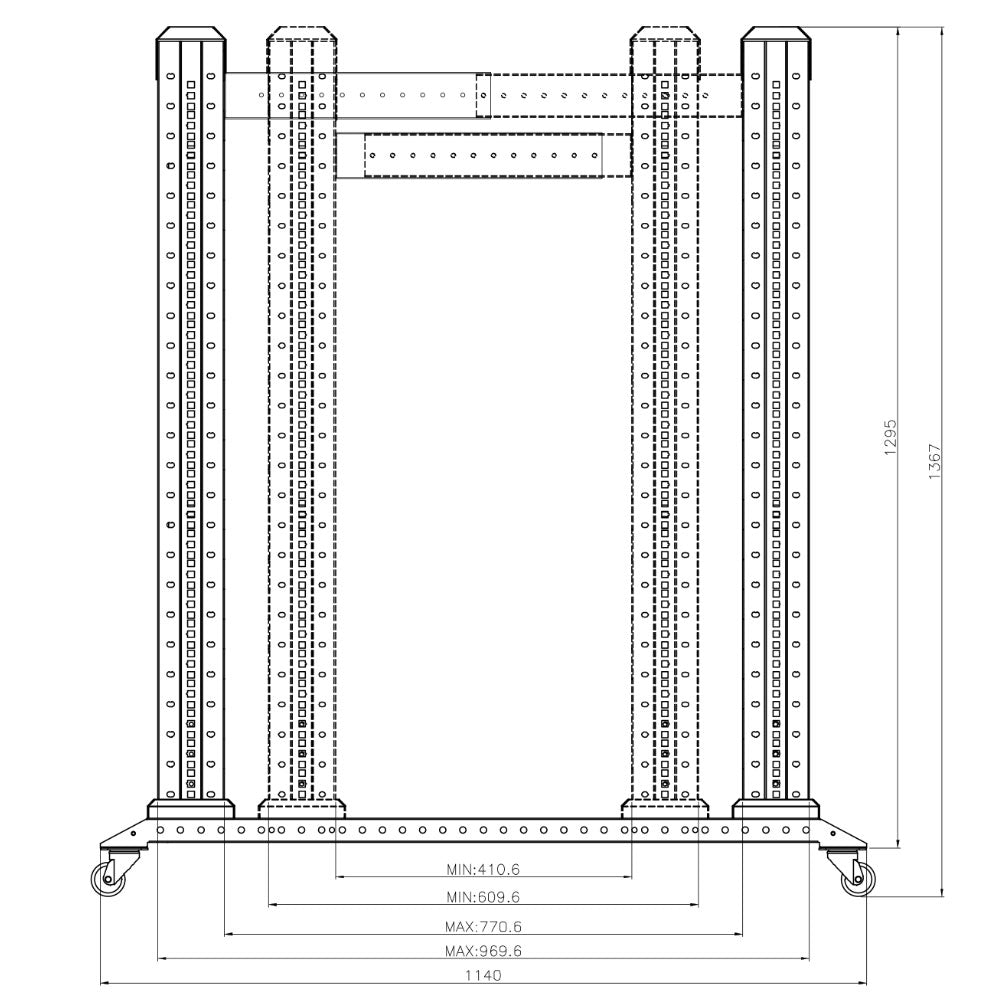

Product Dimensions
|
45.5 H, 23.6 W, Adjustable Depth from 24 to 36 inches [115 H, 60 W, 59 - 90 D cm] |
Usable Mounting Dimensions
|
26UH, 19" Wide, Adjustable Depth from 24 to 36 inches
|

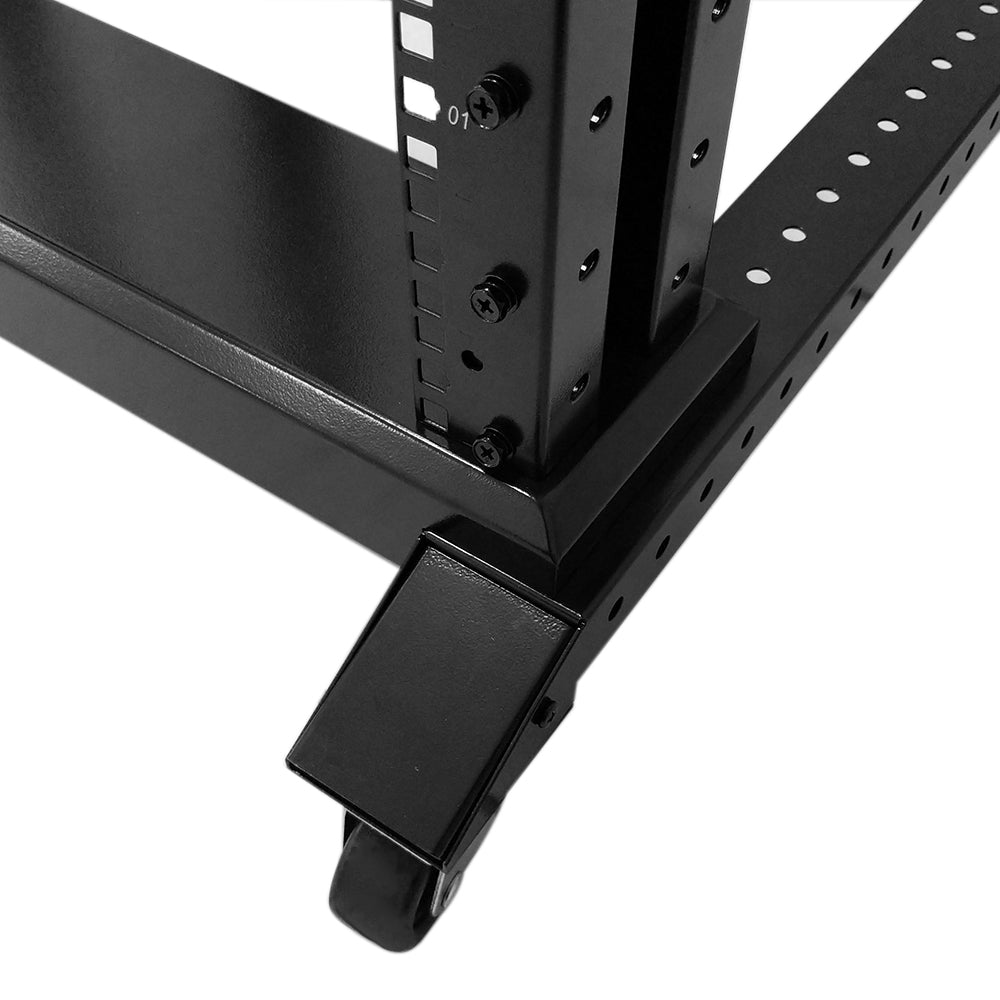

Casters |
Included - Optional Use
|
Compatibility |
Compatible Vertical Cable Managers |
RM-450-24U - Vertical Cable Manager for Relay Rack - 24U RM-455-26U - 26U Vertical Cable Manager - Front Facing
|
Approvals |
ANSI/EIA |
Yes |
RS-310-D |
Yes |
IEC60297-2 |
Yes |
DIN41494 |
Yes |
PART1 |
Yes |
PART7 |
Yes |
Environmental |
RoHS |
Yes |
Reach |
Yes |
Packaging Information |
Package Quantity |
1 - 4-post Relay Rack - 19in 26U (Unassembled) |
|
20 - M6 Screws and Cage Nuts |
|
Assembly Hardware
|
Product Weight |
66 lbs [30 kg] |
