Description

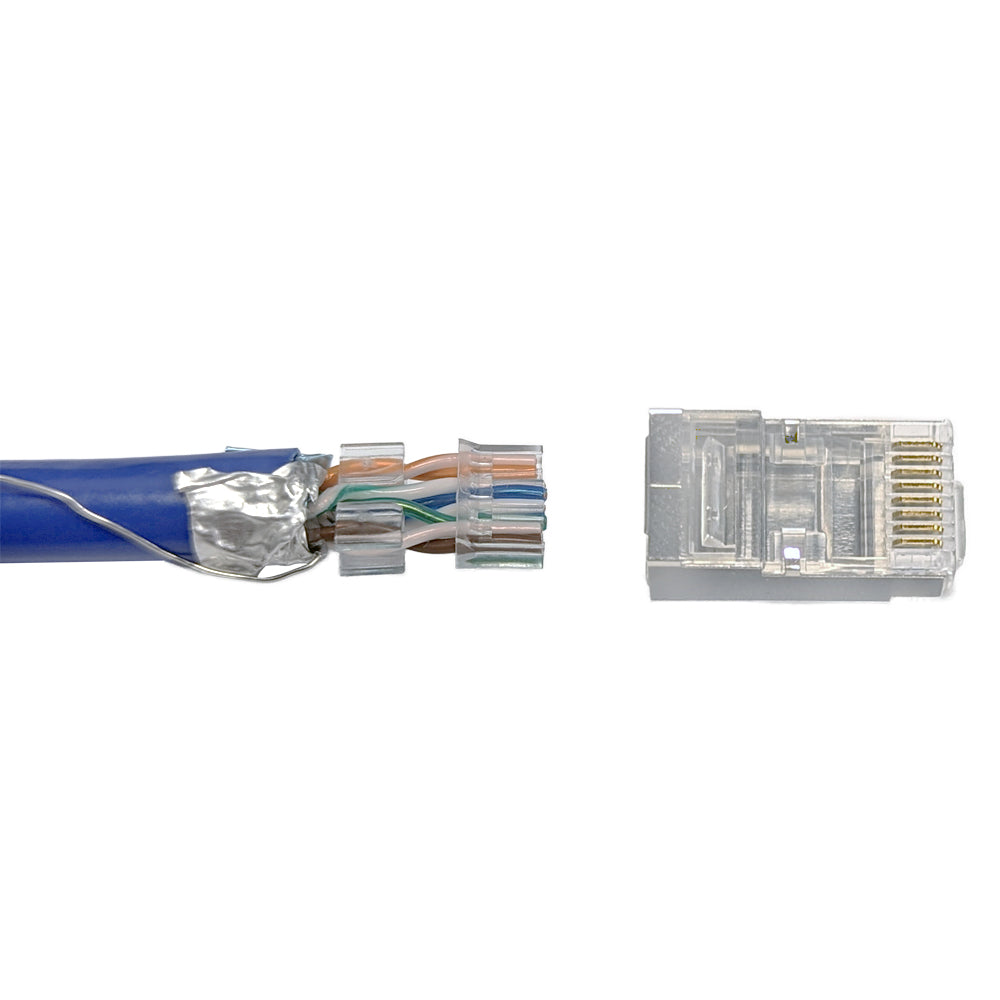

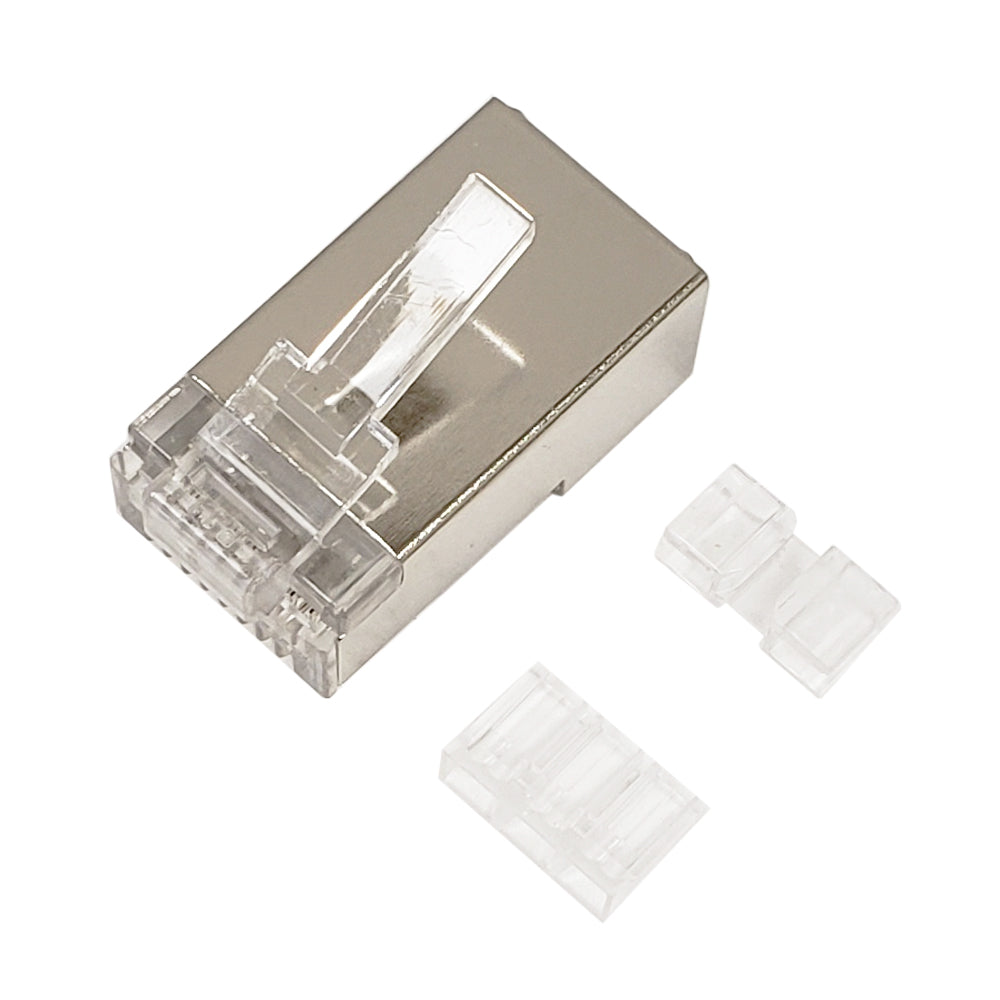

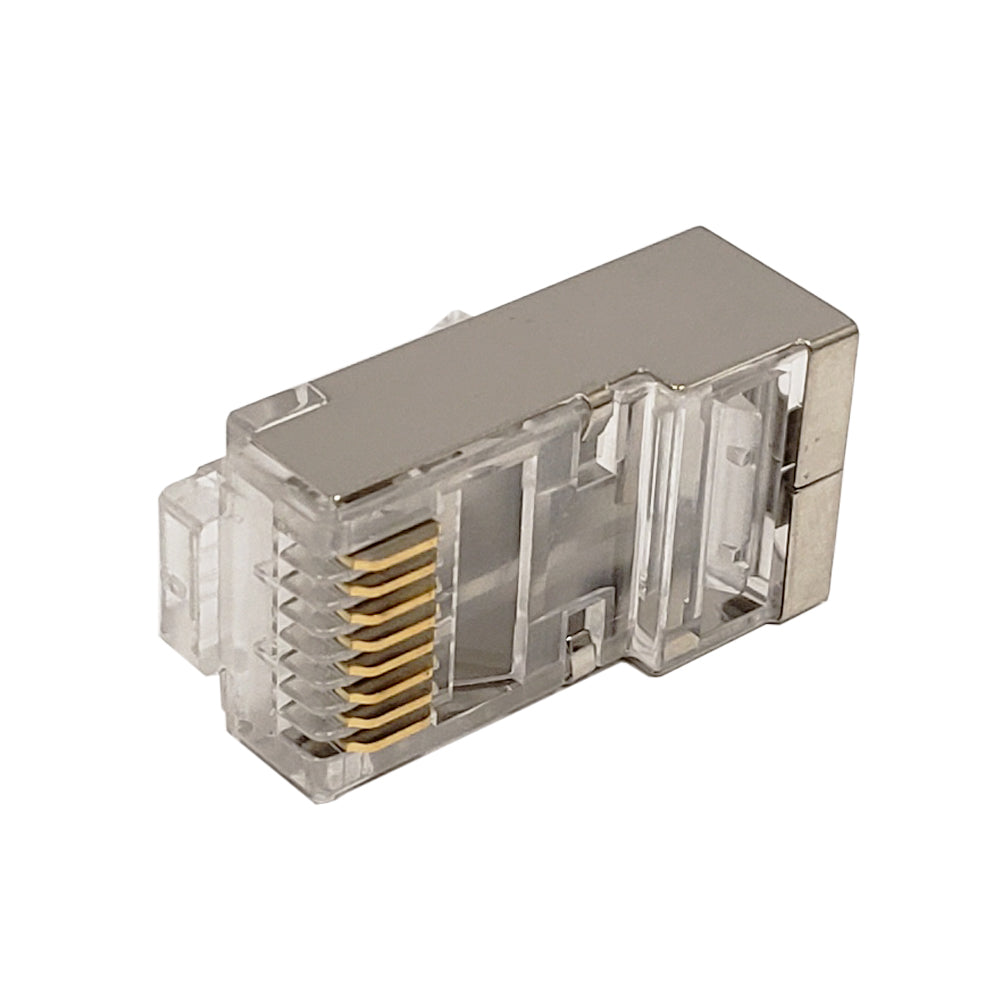

This modular RJ45 Cat6a shielded connector is an 8 position, 8 conductor plug. The plug is typically used to terminate shielded Cat6a solid or stranded cable.
| Physical Characteristics | ||
|---|---|---|
| Color | Transparent, Nickel | |
| Material | Polycarbonate | |
| Contacts | Gold | |
| Shielded | Compliant | |
| Cable Type | Round | |
| Number of Contacts | 8 | |
| Number of Positions | 8 | |
| Connector(s) | ||
| RJ45 Cat 6a (8P8C) | Male,23 - 26 AWG Round Solid or Stranded Cable | |
| Associated Products | ||
| CN-FOIL-TAPE | 50m Roll of Adhesive Mylar Foil Tape (6mm Width) | |
| Environmental | ||
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 50 | |
| Product Weight | 0.20 lbs [0.09 kg] | |
| Contents | ||
| Included in Package | 1 - Pack of 50 Connectors | |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| CN-RJ45C6A3-50 | 0.24 lb |
