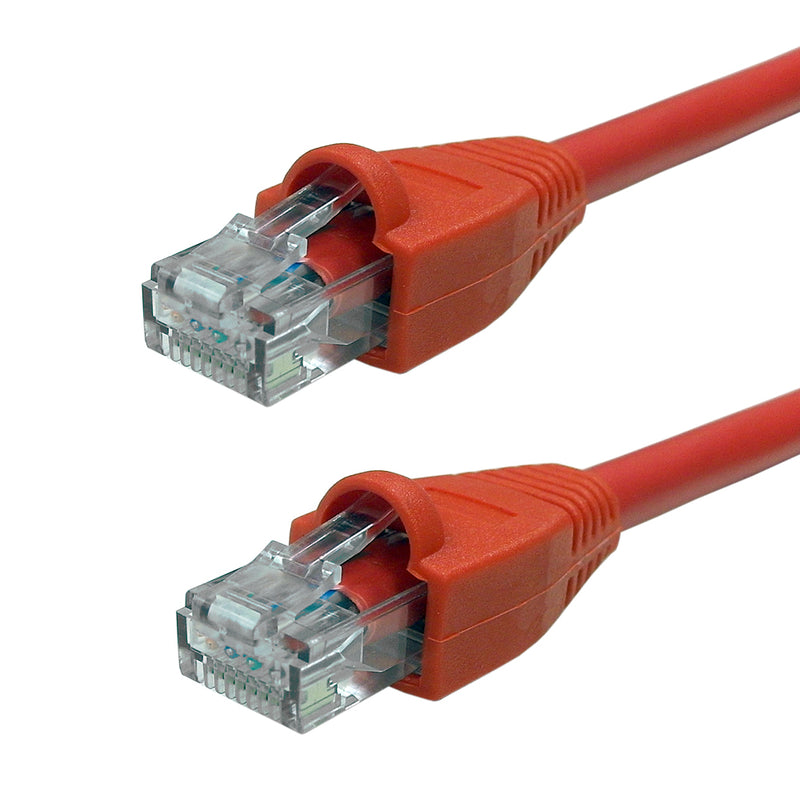

This custom Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
Physical Characteristics
|
Colors Available |
Black/Blue/Green/Grey/Orange/Pink/Purple/Red/White/Yellow
|
Connector Plating |
Gold Plated 50 Micron |
Cable Diameter |
5.5mm |
Wire Gauge |
24AWG Stranded
|
Shielding |
UTP (Unshielded) |
Pairs |
4 |
Fire Rating |
CMR (FT4 Riser Rated) |
Color Code |
568B |
Temperature Rating |
75 Deg C |
Jacket Type |
PVC |
Connector A |
RJ45 Long Body Male |
Connector B |
RJ45 Long Body Male |
Performance
|
Frequency |
350 MHz |
Approvals
|
c(UL)us |
Yes - Cable |
ETL Verified |
Yes |
ANSI/TIA - 568 - C.2 |
Yes |
ISO/IEC 11801 |
Yes |
EN 50173-1 |
Yes |
Environmental
|
RoHS |
Yes |
Reach |
Yes |
Conflict Materials |
Yes |
Package Information
|
Package Quantity |
1 |
Warranty Information
|
Warranty |
Limited Lifetime |
