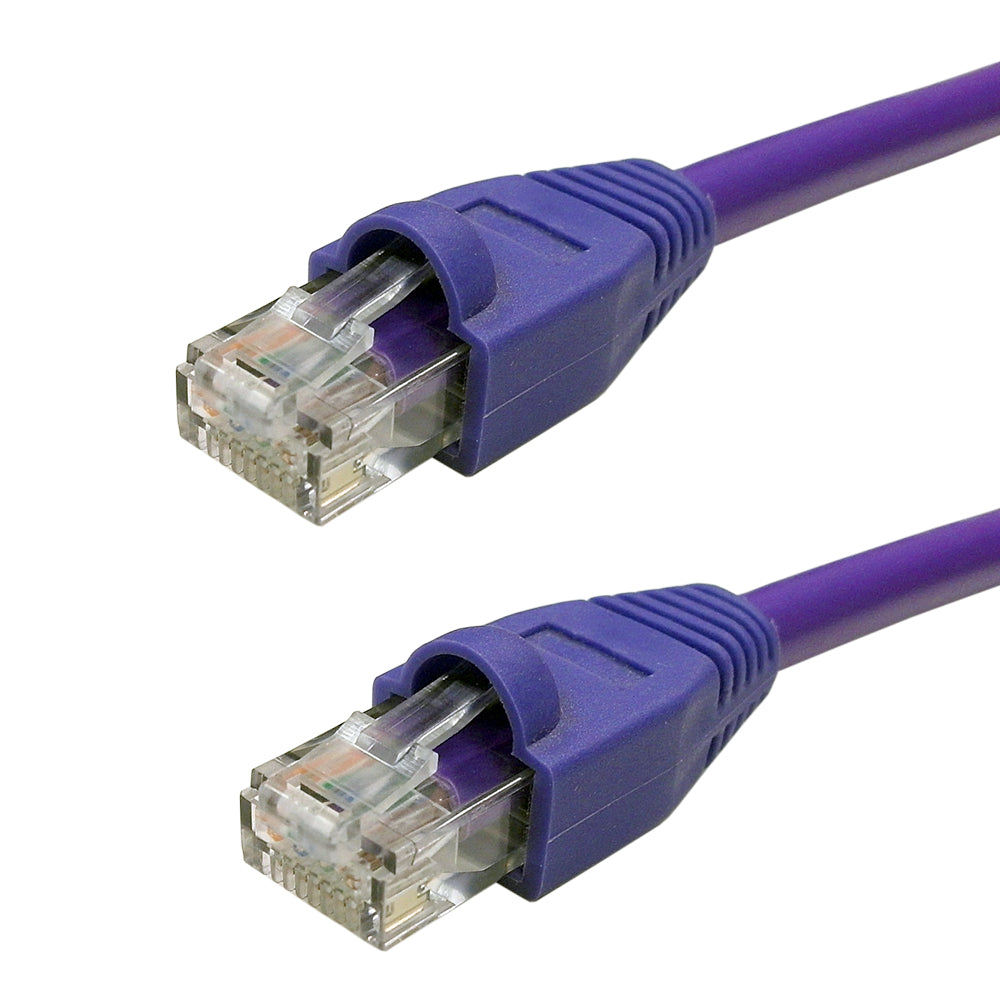

This custom Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
Physical Characteristics | |
---|---|
Colors Available | Black/Blue/Green/Grey/Orange/Pink/Purple/Red/White/Yellow |
Connector Plating | Gold Plated 50 Micron |
Cable Diameter | 5.5mm |
Wire Gauge | 24AWG Stranded |
Shielding | UTP (Unshielded) |
Pairs | 4 |
Fire Rating | CMR (FT4 Riser Rated) |
Color Code | 568B |
Temperature Rating | 75 Deg C |
Jacket Type | PVC | Connector A | RJ45 Long Body Male |
Connector B | RJ45 Long Body Male |
Performance | |
Frequency | 350 MHz |
Approvals | |
c(UL)us | Yes - Cable |
ETL Verified | Yes |
ANSI/TIA - 568 - C.2 | Yes |
ISO/IEC 11801 | Yes |
EN 50173-1 | Yes |
Environmental | |
RoHS | Yes |
Reach | Yes |
Conflict Materials | Yes |
Package Information | |
Package Quantity | 1 |
Warranty Information | |
Warranty | Limited Lifetime |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
SKU | Options | Weight |
CAT5ECR-0.8PR | 8 inch | 0.05 lb |
CAT5ECR-01PR | 1ft | 0.07 lb |
CAT5ECR-02PR | 2ft | 0.1 lb |
CAT5ECR-03PR | 3ft | 0.15 lb |
CAT5ECR-04PR | 4ft | 0.17 lb |
CAT5ECR-05PR | 5ft | 0.2 lb |
CAT5ECR-06PR | 6ft | 0.21 lb |
CAT5ECR-07PR | 7ft | 0.24 lb |
CAT5ECR-08PR | 8ft | 0.26 lb |
CAT5ECR-09PR | 9ft | 0.24 lb |
CAT5ECR-10PR | 10ft | 0.33 lb |
CAT5ECR-11PR | 11ft | 0.32 lb |
CAT5ECR-12PR | 12ft | 0.38 lb |
CAT5ECR-13PR | 13ft | 0.44 lb |
CAT5ECR-14PR | 14ft | 0.46 lb |
CAT5ECR-15PR | 15ft | 0.5 lb |
CAT5ECR-16PR | 16ft | 0.57 lb |
CAT5ECR-17PR | 17ft | 0.64 lb |
CAT5ECR-18PR | 18ft | 0.71 lb |
CAT5ECR-19PR | 19ft | 0.78 lb |
CAT5ECR-20PR | 20ft | 0.63 lb |
CAT5ECR-21PR | 21ft | 0.7 lb |
CAT5ECR-22PR | 22ft | 0.71 lb |
CAT5ECR-23PR | 23ft | 0.72 lb |
CAT5ECR-24PR | 24ft | 0.74 lb |
CAT5ECR-25PR | 25ft | 0.77 lb |
CAT5ECR-30PR | 30ft | 0.95 lb |
CAT5ECR-35PR | 35ft | 1.1 lb |
CAT5ECR-40PR | 40ft | 1.33 lb |
CAT5ECR-45PR | 45ft | 1.4 lb |
CAT5ECR-50PR | 50ft | 1.55 lb |
CAT5ECR-75PR | 75ft | 2.26 lb |
CAT5ECR-100PR | 100ft | 3.0 lb |
