Description

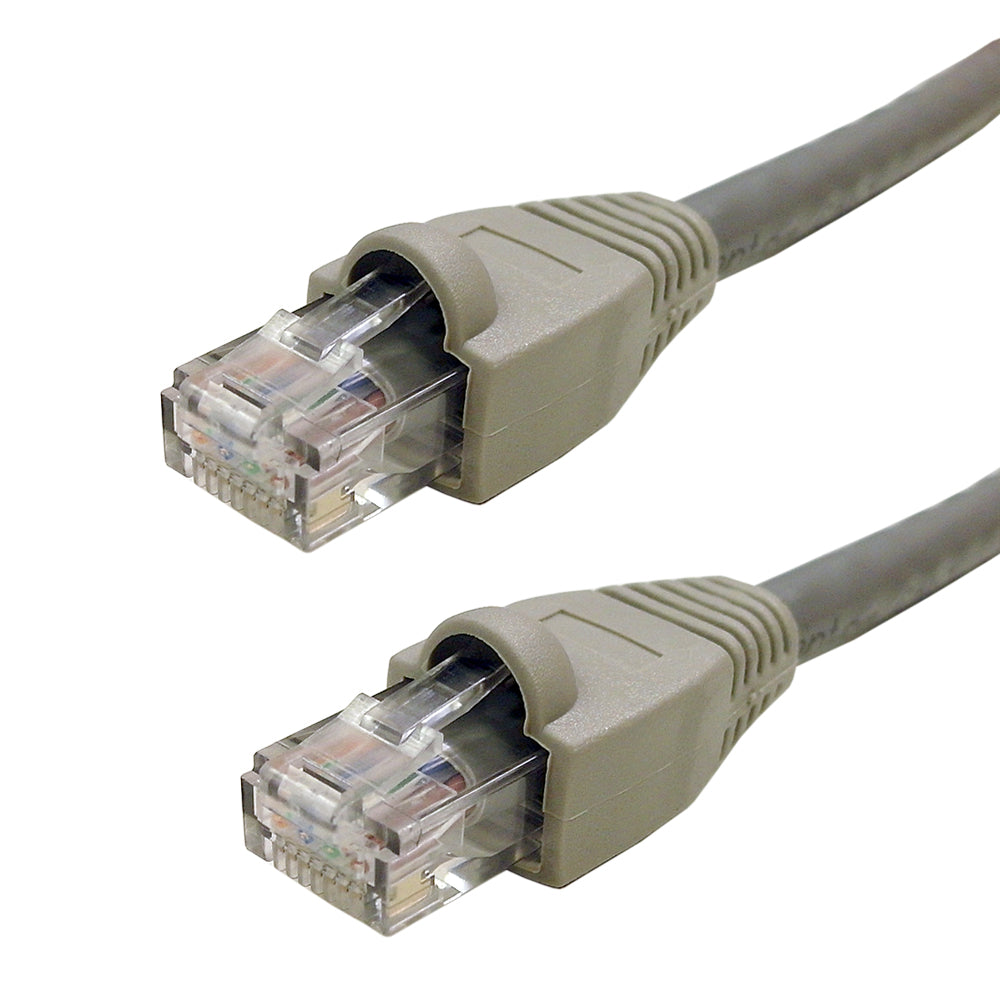

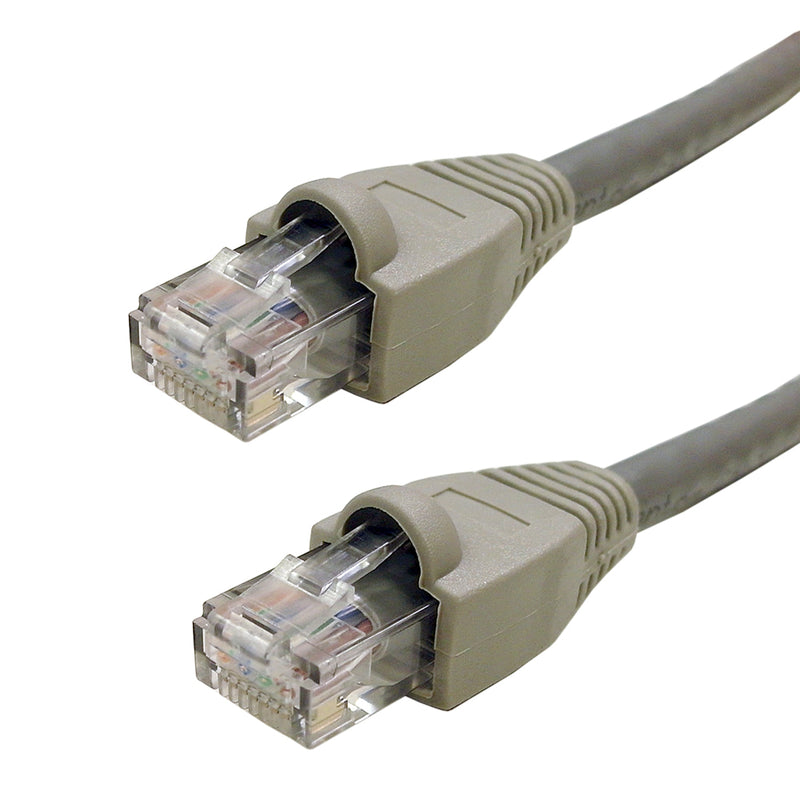

This custom Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
| Physical Characteristics | |
|---|---|
| Colors Available | Black/Blue/Green/Grey/Orange/Pink/Purple/Red/White/Yellow |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 5.5mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Temperature Rating | 75 Deg C |
| Jacket Type | PVC | Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Frequency | 350 MHz |
| Approvals | |
| c(UL)us | Compliant - Cable |
| ETL Verified | Compliant |
| ANSI/TIA - 568 - C.2 | Compliant |
| ISO/IEC 11801 | Compliant |
| EN 50173-1 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| CAT5ECR-0.8GY | 8 inch | 0.05 lb |
| CAT5ECR-01GY | 1ft | 0.07 lb |
| CAT5ECR-02GY | 2ft | 0.1 lb |
| CAT5ECR-03GY | 3ft | 0.15 lb |
| CAT5ECR-04GY | 4ft | 0.17 lb |
| CAT5ECR-05GY | 5ft | 0.2 lb |
| CAT5ECR-06GY | 6ft | 0.21 lb |
| CAT5ECR-07GY | 7ft | 0.24 lb |
| CAT5ECR-08GY | 8ft | 0.26 lb |
| CAT5ECR-09GY | 9ft | 0.24 lb |
| CAT5ECR-10GY | 10ft | 0.33 lb |
| CAT5ECR-11GY | 11ft | 0.32 lb |
| CAT5ECR-12GY | 12ft | 0.38 lb |
| CAT5ECR-13GY | 13ft | 0.44 lb |
| CAT5ECR-14GY | 14ft | 0.46 lb |
| CAT5ECR-15GY | 15ft | 0.5 lb |
| CAT5ECR-16GY | 16ft | 0.57 lb |
| CAT5ECR-17GY | 17ft | 0.64 lb |
| CAT5ECR-18GY | 18ft | 0.71 lb |
| CAT5ECR-19GY | 19ft | 0.78 lb |
| CAT5ECR-20GY | 20ft | 0.63 lb |
| CAT5ECR-21GY | 21ft | 0.7 lb |
| CAT5ECR-22GY | 22ft | 0.71 lb |
| CAT5ECR-23GY | 23ft | 0.72 lb |
| CAT5ECR-24GY | 24ft | 0.74 lb |
| CAT5ECR-25GY | 25ft | 0.77 lb |
| CAT5ECR-30GY | 30ft | 0.95 lb |
| CAT5ECR-35GY | 35ft | 1.1 lb |
| CAT5ECR-40GY | 40ft | 1.33 lb |
| CAT5ECR-45GY | 45ft | 1.4 lb |
| CAT5ECR-50GY | 50ft | 1.55 lb |
| CAT5ECR-75GY | 75ft | 2.26 lb |
| CAT5ECR-100GY | 100ft | 3.0 lb |
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 2-4 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
