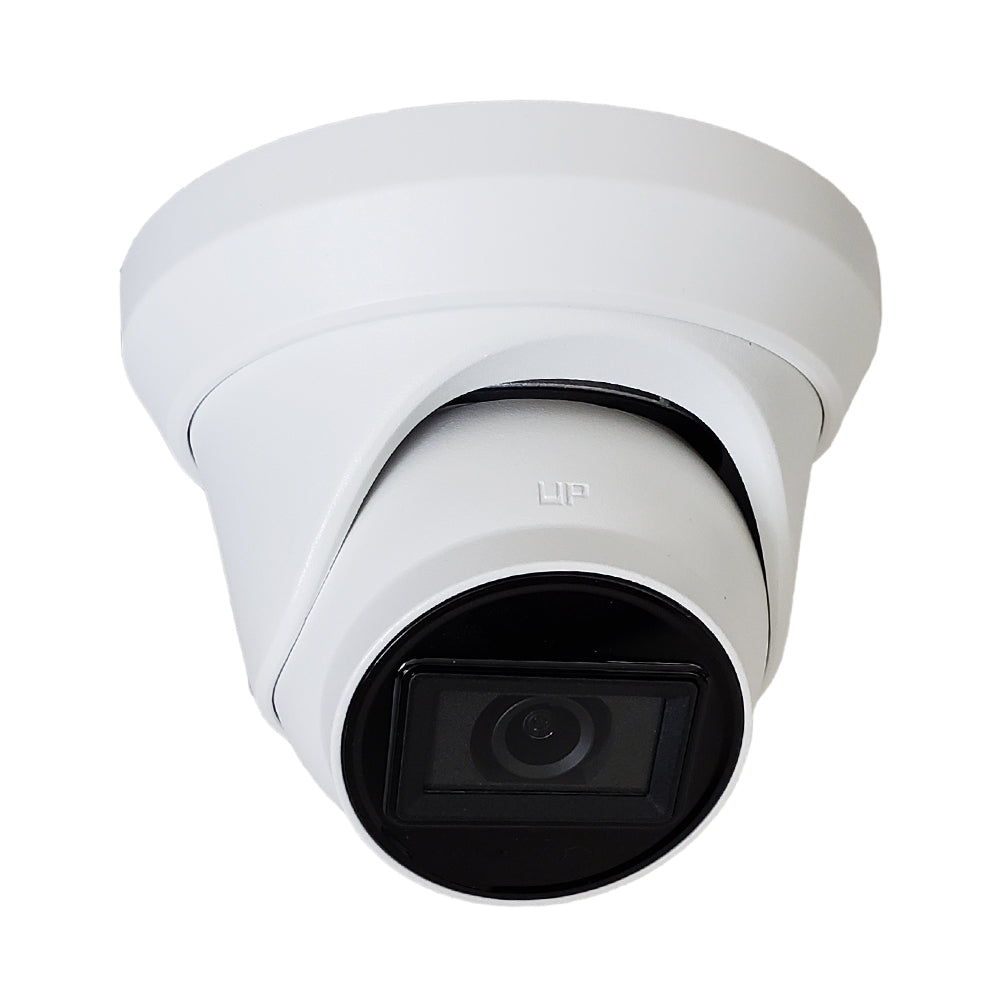

8MP Turret TVI, CVI, AHD, CVBS Camera - Fixed Lens - Smart IR with 60m Range - IP67 Rated

Analog Cameras & RecordersSKU: CA-AC318-FD4-2WH

Size: 2.8mm Lens
Color: White
Sale price$147.00 CAD

Contact sales to place an order, 1-866-207-6442 or sales@infinitecables.com.



This 8MP indoor/outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with a 2.8mm or 3.6mm fixed lens which delivers a 102.2° or 79° horizontal field of view respectively. Its maximum resolution is 3840 x 2160p at 15 fps. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use.


  • 8MP High Performance CMOS Sensor
  • EXIR 2.0
  • 60m IR
  • 0.01 Lux/F1.2
  • 12 VDC
  • Smart IR
  • Up the Coax (UTC-C)
  • DWDR
  • IP67
  • 2.8mm/3.6mm Lens



Image Sensor 8.29 MP progressive scan CMOS
Signal System PAL/NTSC
Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 5MP@20fps
CVBS: 960H P/N
Resolution 3840 (H) x 2160 (V)
Minimum Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm fixed lens
3.6mm fixed lens
Horizontal Field of View
102.2° (2.8mm)
79° (3.6mm)
Lens Mount M16
Day and Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
DWDR 105 dB
AGC Supported
Day and Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Backlight Compensation Supported
Digital Wide Dynamic Range Supported
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
Operating Conditions -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ± 25%
Power Consumption Maximum 5.3 W
Ingress Protection IP67
Material Enclosure: Plastic
Main Body: Metal
IR Range Up to 196 ft (60 m)
Communication Up the coax, Protocol: UTC-C (TVI output)

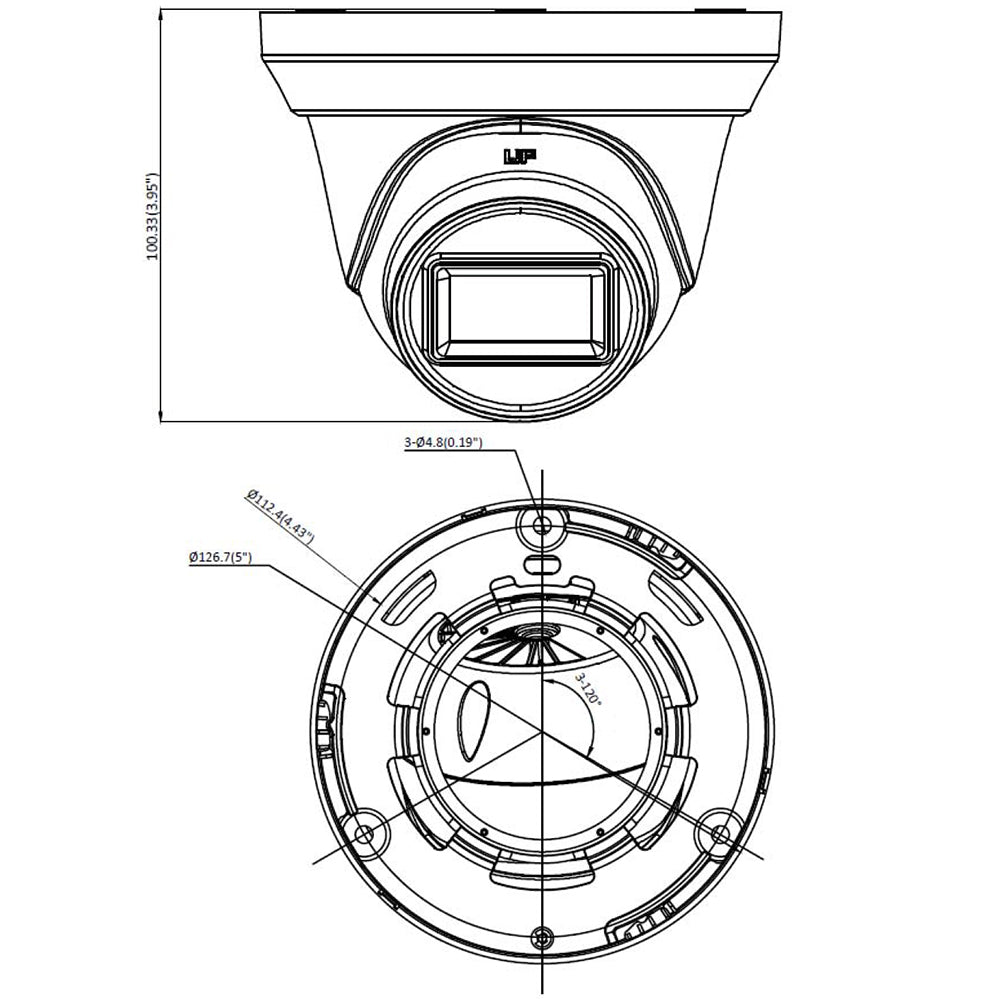

Dimensions ⌀ 4.32" x 3.6" (⌀ 109.82 mm x 91.03 mm)
Weight Approximately 0.71 lbs (320 g)
c(UL)us Yes
CE Yes


Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
