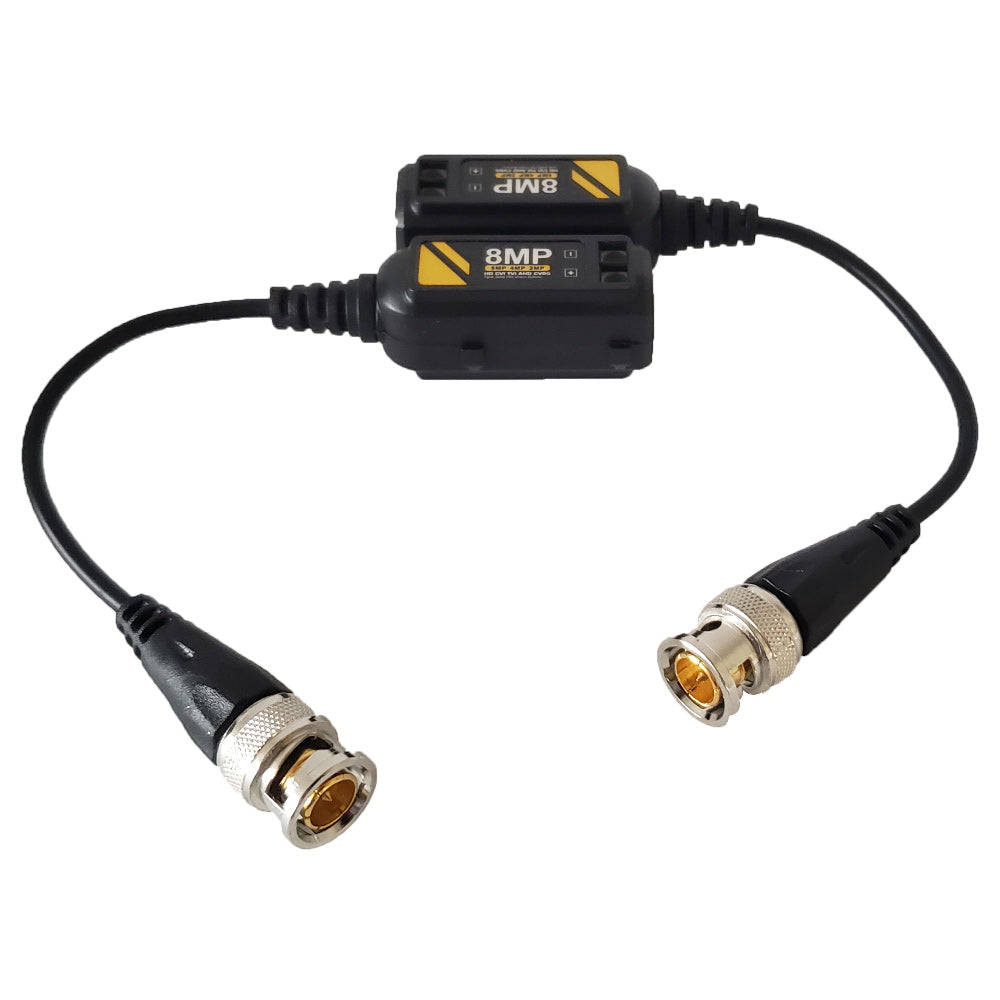

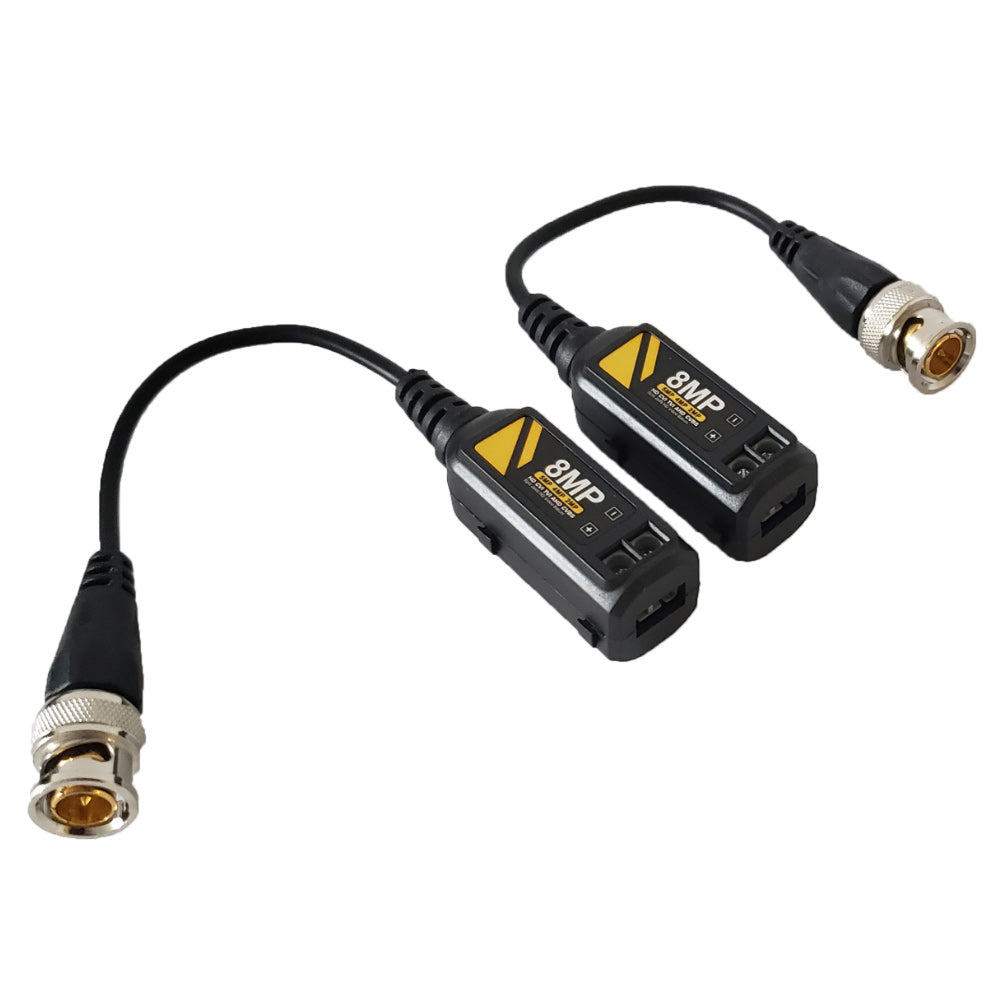

This BNC video extender over twisted pair cable consists of a transmitting and receiving unit. Each unit has BNC male connectors and screw-down terminals in it. It is used to extend a BNC composite signal over CAT5e/CAT6 cabling.
|Operating Temperature||-10℃ - +55℃|
|Storage Temperature||-20℃ - +70℃|
|Humidity||0 to 95%|
|Coaxial Video Connector||2 - BNC Male|
|Twisted-pair Video Connector||2 - Channel Punch Terminals|
|Impedance|| 75 Ohms - BNC
100 Ohms - UTP
|Transmission Signal||1 Channel|
|Compatible Format||HD-CVI, HD-TVI and HD-AHD
|Supported Video Formats||NTSC/PAL/SECAM|
|Transmission Distance||Up to 400m for 720p CVI cameras
UP to 250m for 1080p CVI cameras
Up to 200m for 4MP/5MP/8MP CVI Cameras
Up to 250m for 720p/1080p TVI Cameras
Up to 200m for 4MP/5MP/8MP TVI Cameras
Up to 350m for 720p AHD cameras
Up to 200m for 1080p/4MP/5MP/8MP AHD Cameras
|Frequency Response||DC to 60MHz|
|Product Weight||0.1 lbs [0.1kg]|
