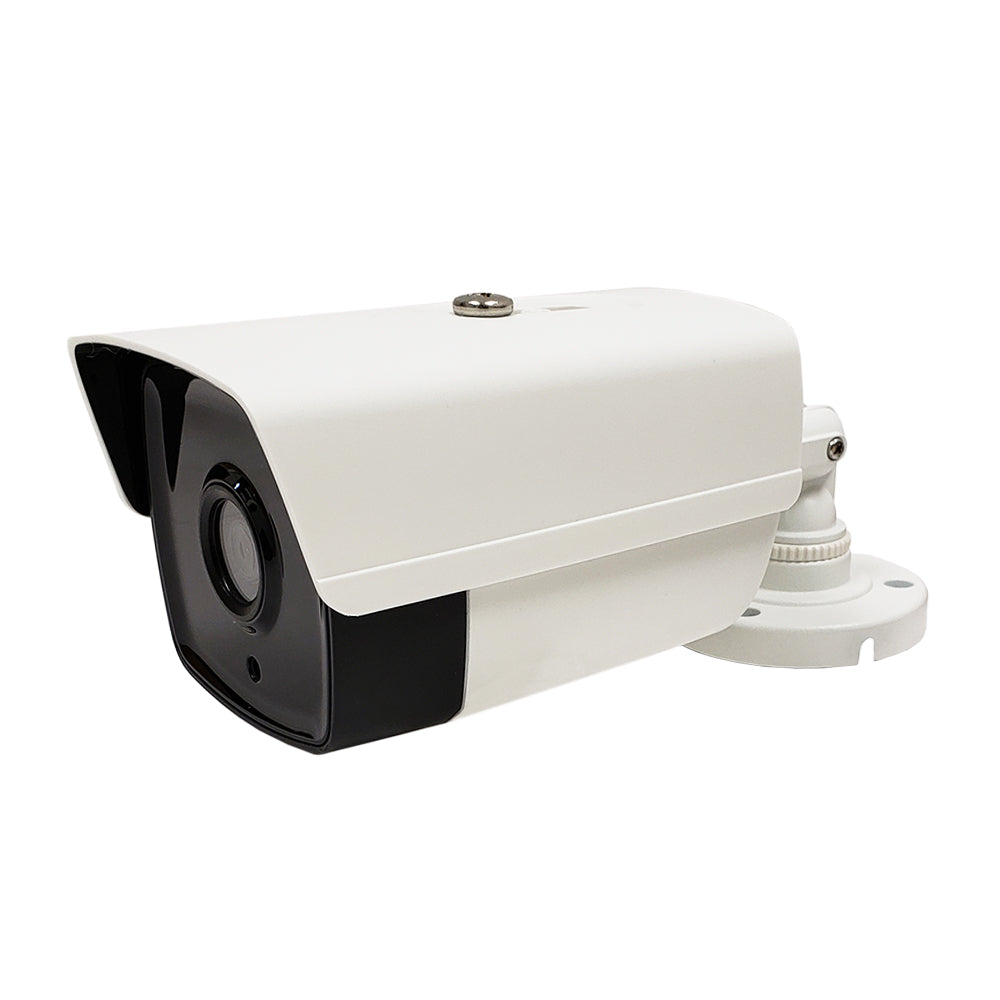

5MP Bullet TVI Camera - 2.8mm Fixed Lens - Ultra Lowlight IR with 130ft Range - IP67 Rated - White

Analog Cameras & RecordersSKU: CA-AC326-FB4-2WH

Price:
Sale price$64.80 CAD

Contact sales to place an order, 1-866-207-6442 or sales@infinitecables.com.



Description

Overview

This 5MP indoor/outdoor, TVI based bullet camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.7 mm fixed lens which delivers 85.5° horizontal field of view. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.

Features

  • 5 MP high performance COMS
  • 2560 — 1944 resolution
  • 2.8 mm fixed lens
  • EXIR 2.0, smart IR, up to 40 m IR distance
  • OSD menu, 2D DNR, DWDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
  • Up the coax (UTC-C)

Application

Specifications

Camera
Image Sensor 2.0 MP progressive scan CMOS
Signal System PAL/NTSC
Frame Rate PAL: 1080p @ 25 fps; NTSC: 1080p @ 30 fps
Resolution 1920 (H) x 1080 (V)
Minimum Illumination Color: 0.005 lux @ (ƒ/1.2, AGC on), 0 lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Slow Shutter Maximum 16 times
Lens 2.7 mm to 13 mm motorized vari-focal lens
Horizontal Field of View
32.1° to 103°
Lens Mount ⌀14
Day and Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt:0° to 90°, rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Supported
Day and Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English
Functions Brightness, sharpness, mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ± 25%, 24 VAC ± 25%
Power Consumption Maximum 9 W
Ingress Protection IP67
Material Metal and Plastic
IR Range Up to 130 ft (40 m)
Communication Up-the-Coax, Protocol: HIKVISION-C (TVI output)
Dimensions 3.62" x 3.5" x 3.34" (92 mm x 89 mm x 269.6 mm)
Weight Approximately 1.98 lbs (900 g)
Approvals
c(UL)us Yes
CE Yes
FCC Yes
ONVIF Yes
