Description

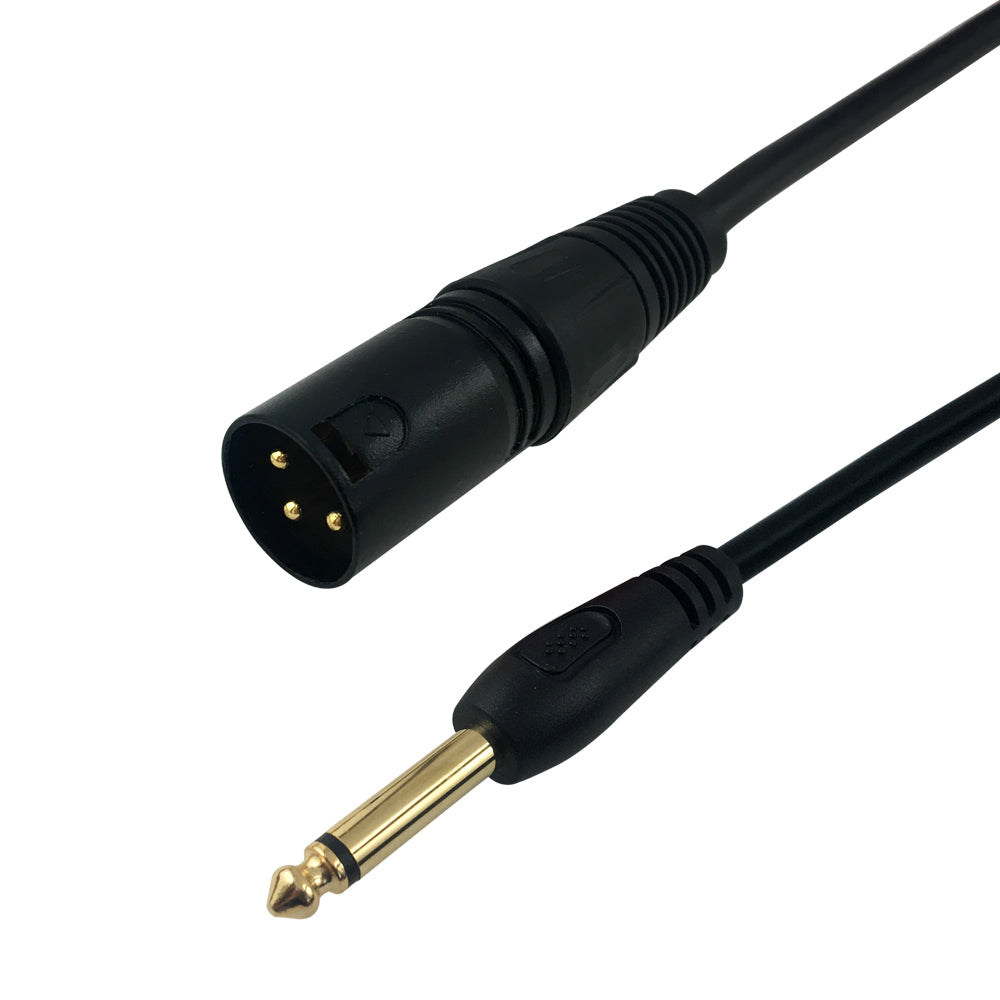

This unbalanced interconnect audio cable has a XLR male on one end and a TS male on the other. It is typically used to connect a XLR input to an unbalanced TS output.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating | Gold |
| Cable Diameter | 6.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 95% Copper Spiral |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | XLR Male |
| Connector B | TS Male |
| Approvals | |
| c(UL) | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft |
|---|---|---|---|---|
| 0.20 lbs | 0.40 lbs | 0.67 lbs | 1.00 lbs | 1.70 lbs |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| PAU-320-03 | 3ft | 0.15 lb |
| PAU-320-06 | 6ft | 0.21 lb |
| PAU-320-10 | 10ft | 0.33 lb |
| PAU-320-15 | 15ft | 0.5 lb |
| PAU-320-25 | 25ft | 0.77 lb |
