Overview

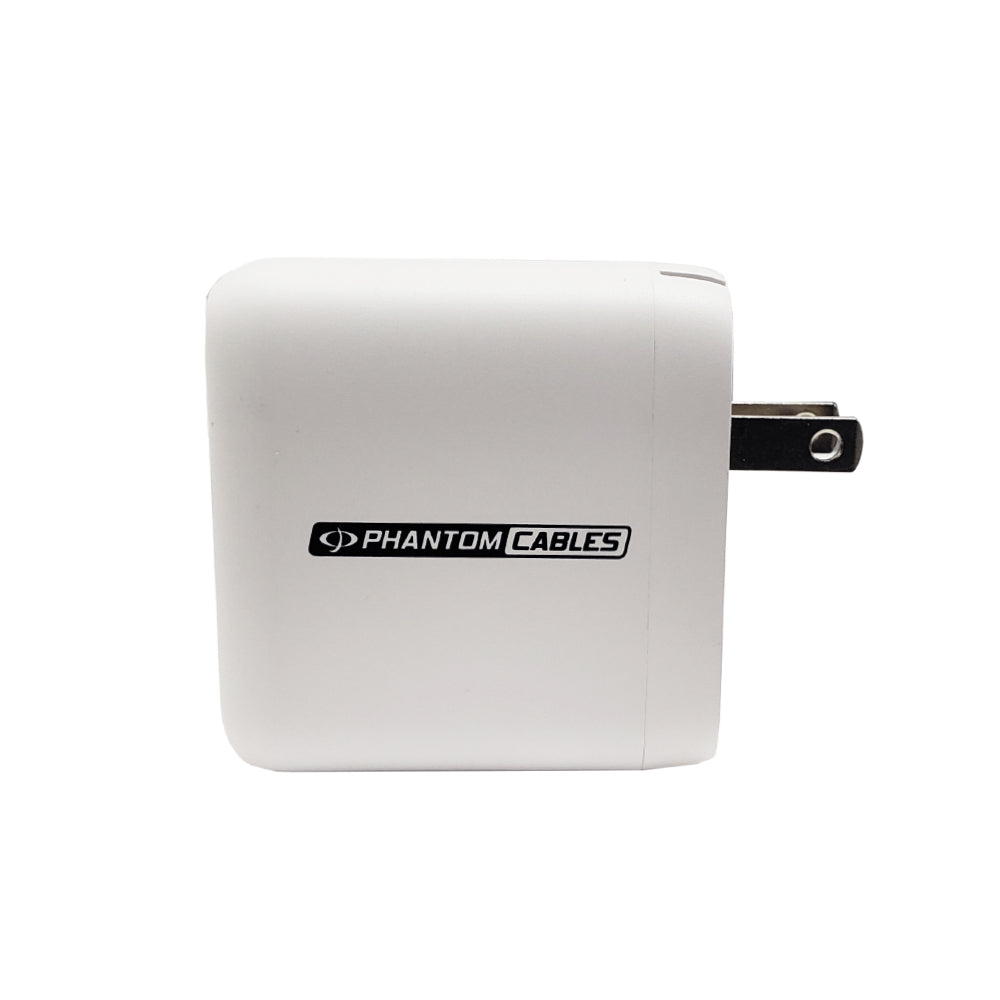

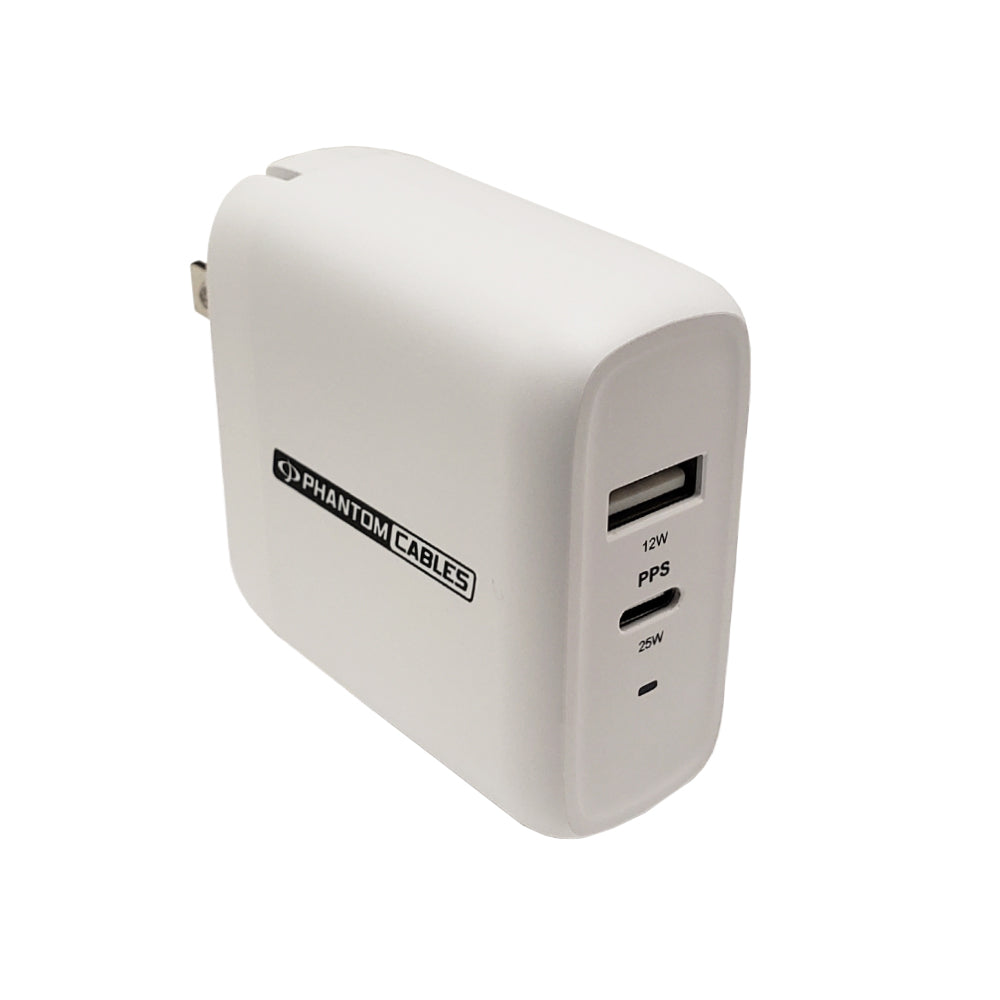

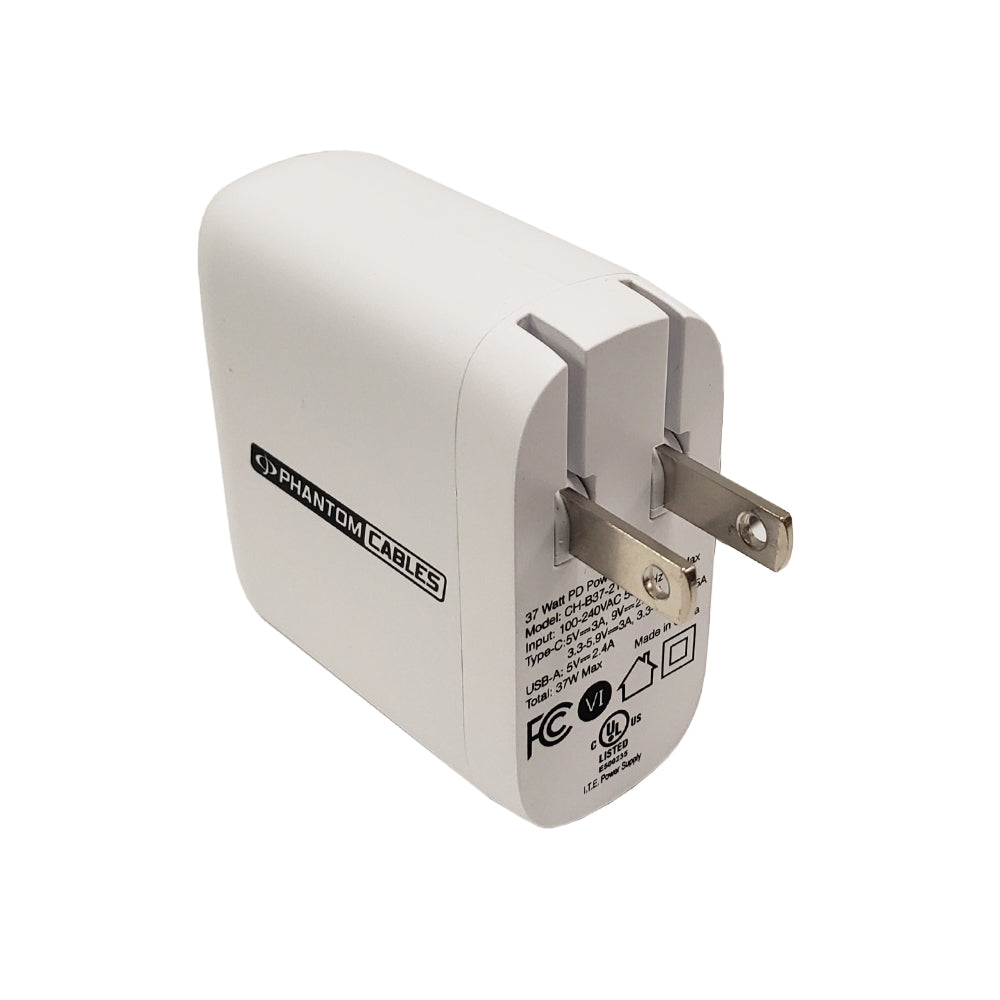

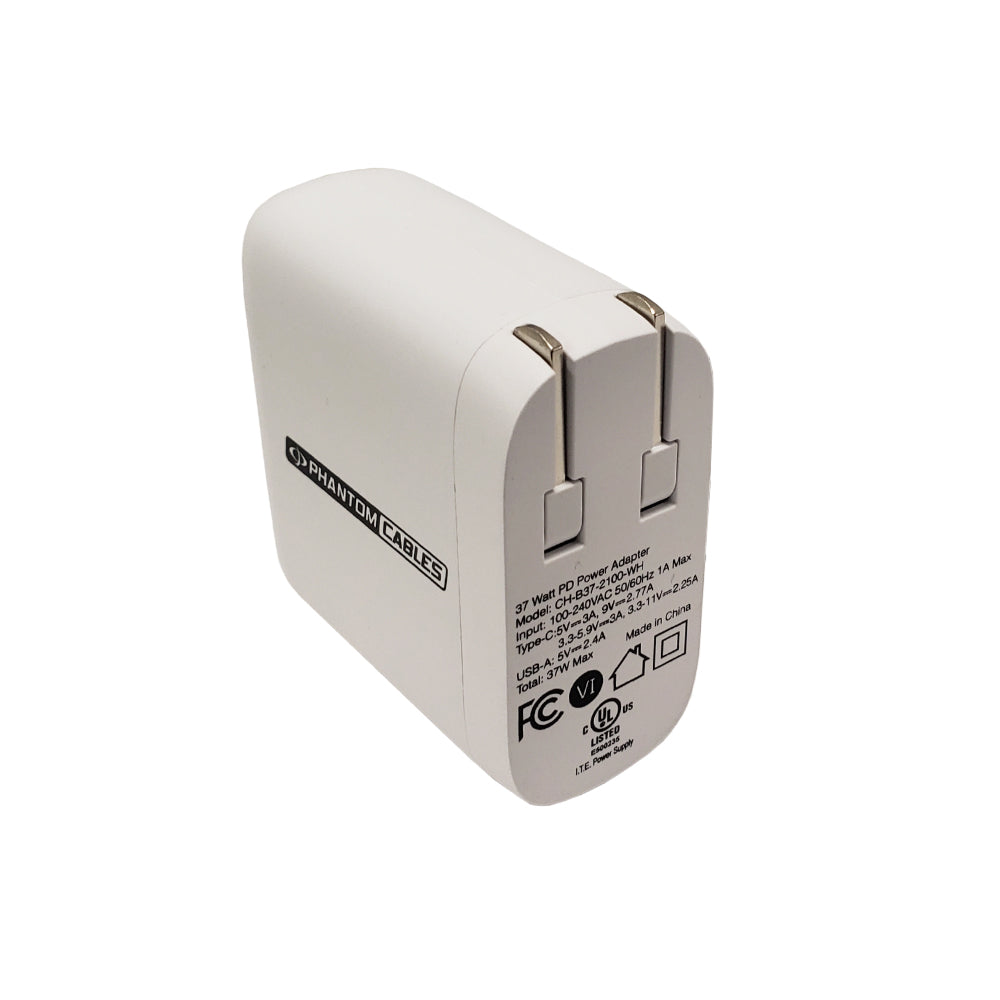

This USB wall charger consists of a USB Type-C female and a Type-A female on one end, and a 1-15P plug on the other end. It is used to charge USB Type-C compatible smart phones, notebooks or tablets (such as MacBook, Chromebook, iPhone, iPad, Blackberry, Samsung, LG,HTC and Android devices). The USB-C port supports USB power delivery charging technology which is designed to charge Type-C notebooks and outputs a maximum of 37 watts.
This charger is also incorporates PPS (programmable power supply) technology. It is compatible with PD3.0 and is also a significant update as PPS integrates two charging modes of high voltage & low current and low voltage & high current. PPS chargers have better compatibility and can support fast charging based on factors such as Qualcomm QC3.0/4.0 and HUAWEI super charge. PPS also reduces voltage adjustment in steps of 20mV, which is only one-tenth of the QC3.0 protocol, and allows a more precise adjustment of output voltage and current to shorten charging time and improve charging efficiency.
|
Compatible with smartphones, tablets & notebooksThis high performance charger allows charging for any smartphone, notebooks, or tablets (such as iPhone, iPad, Blackberry, Samsung, LG, HTC and Android devices). It delivers a maximum of 3A. Programmable Power SupplyThis charger is a PPS (Programmable Power Supply) allows for a precise adjustment of output voltage and current to shorten charging time and improve charging efficiency. Supports latest charging technologyThis charger supports Power Delivery charging protocol, which is designed to provide simple, efficient battery charging at speeds faster than conventional USB chargers.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | White |
| Molding | Fire Retardant Material |
| Dimensions | 39.5 x 27.5 x 34.5mm |
| Performance | |

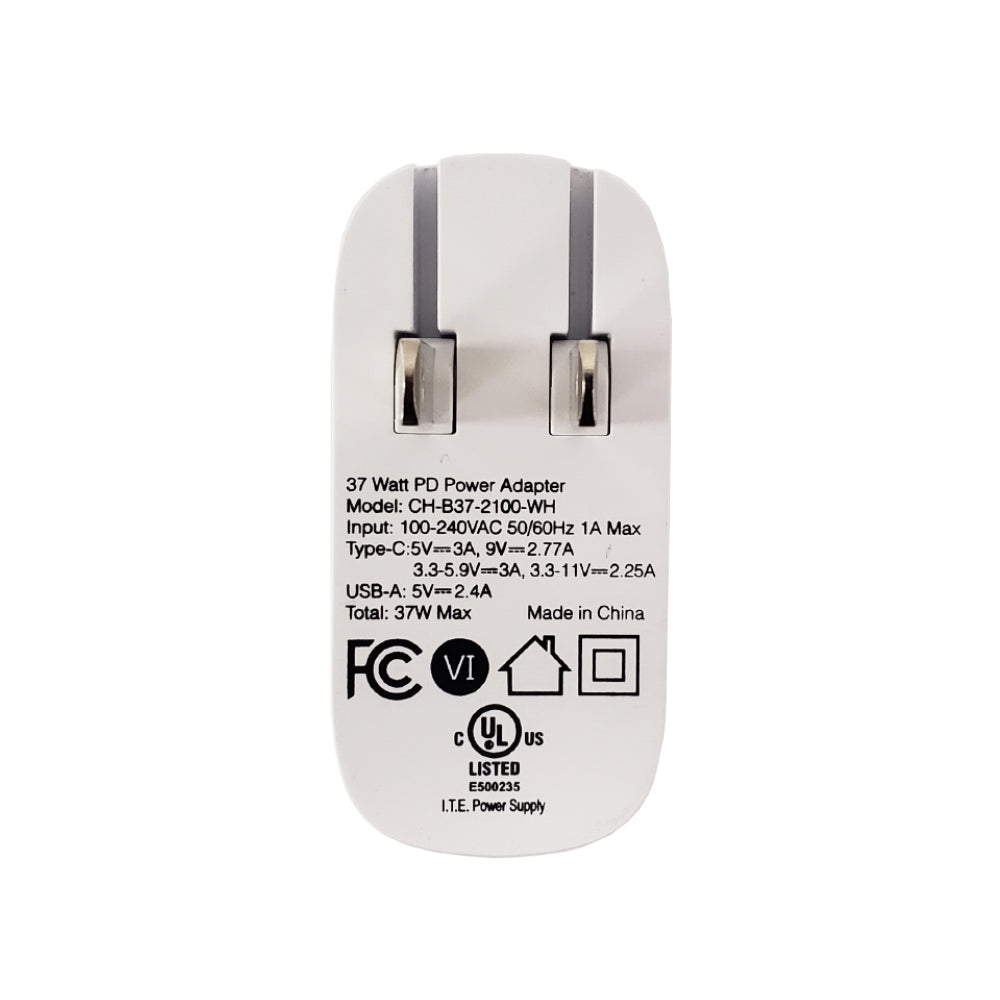

| Input | 100V-240VAC 50/60Hz, 1A Max. |
| Output |
Type-C: 5V/3A, 9V/2.77A, 3.3-5.9V/3A, 3.3-11V/2.25A USB-A: 5V/2.4A |
| Total Maximum Power | 37 Watts |
| Supports | Over Current Protection Over Voltage Protection Short Circuit Protection with Auto-Recovery Over Temperature Protection with Auto-Recovery |
| Connector(s) | |
| Connector A | USB Type-C Female USB Type-A Female |
| Connector C | 1-15P Male |
| Approvals | |
| c(UL)us |
Yes |
| FCC | Yes |
| Environmental | |
| RoHS | Yes |
| Warranty Information |
|
| Warranty |
1 Year |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.23 lbs |
1-YEAR WARRANTY
Infinite Cables Inc. offers a 1-year warranty on USB charger to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
