USB 3.1 Type-C to DisplayPort 8K@30Hz Adapter - DP 1.4 Alt Mode - Black

USB AdaptersSKU: AD-UC-DP03

Price:
Sale price$18.95 CAD
Stock:
In stock


Description

Overview

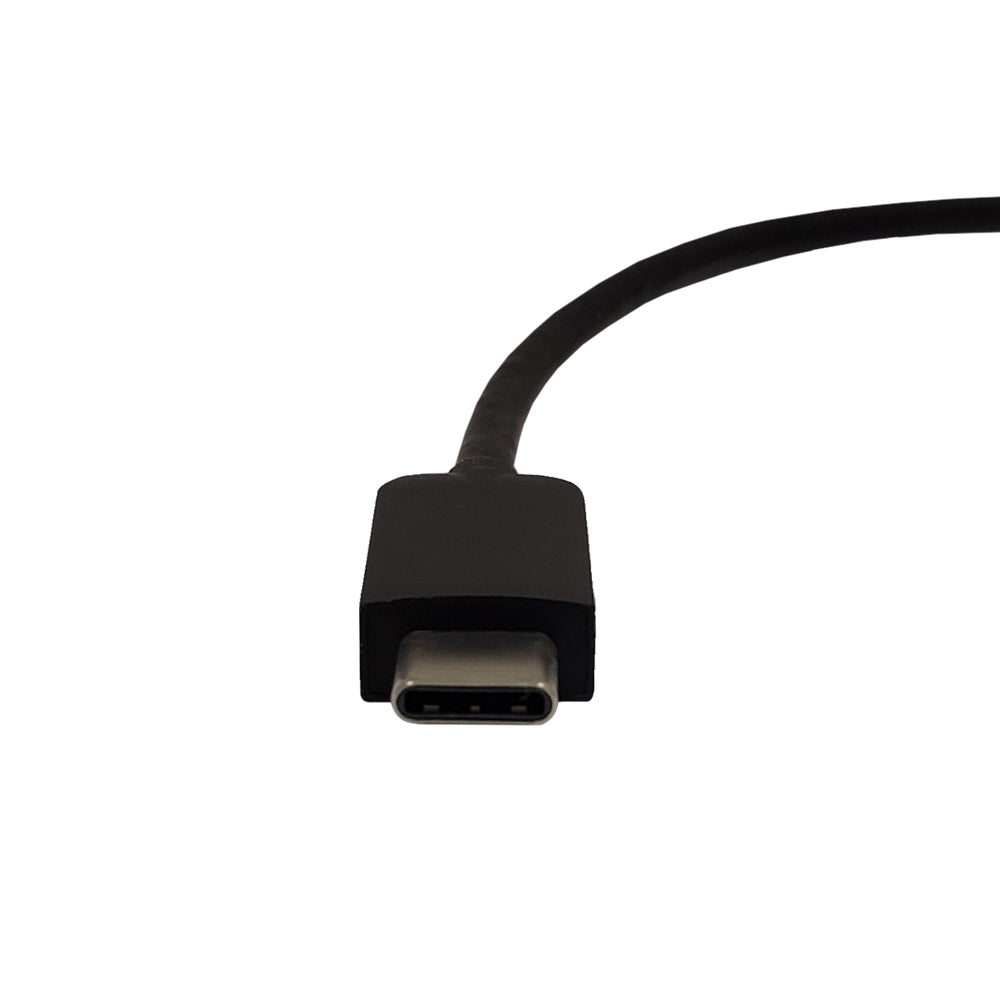

The USB Type-C to DisplayPort adapter consists of a USB 3.1 Type-C male on one end and a DisplayPort v1.4 female on the other end. It allows you to connect an extra display from your laptop's USB Type-C port. This adapter provides video output of 8K@30Hz resolution, high throughput using the USB 3.1 bus and supports high definition monitors. The adapter can either extend or mirror your source. It can work on all Type-C and Thunderbolt 3 hosts that support DP Alt mode (including DP1.4 and DP1.2 Alt mode).

High Performance and Quality Video Output

The DisplayPort output provides a simple Plug & Play connection to displays with an Ultra HD 8K resolution.

DisplayPort Alt Mode

This adapter works on all Type-C and Thunderbolt 3 hosts that support DP Alt mode (including DP1.2 and DP1.4 Alt mode).


Specifications

Physical Characteristics
Cable Length 6 inches
Color Black
Connector Plating Nickel
Connector(s)
Connector A USB 3.1 Type-C Male
Connector B DisplayPort v1.4 Female
Performance
Resolution Up to 8K (7680 x 4320) @ 30Hz
Speed Per lane data rates of 8.1Gbps (HBR3), 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
Version DisplayPort 1.4/1.2 Alt mode
Power Source USB Bus Power (No External Power Supply)
Compatibility
Operating System Windows Compliant
Mac Compliant
Certifications
FCC Yes
CE Yes
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Product Weight 0.06 lbs [0.02kg]
SKU Weight
AD-UC-DP03 0.06 lb
