- Spec Sheets

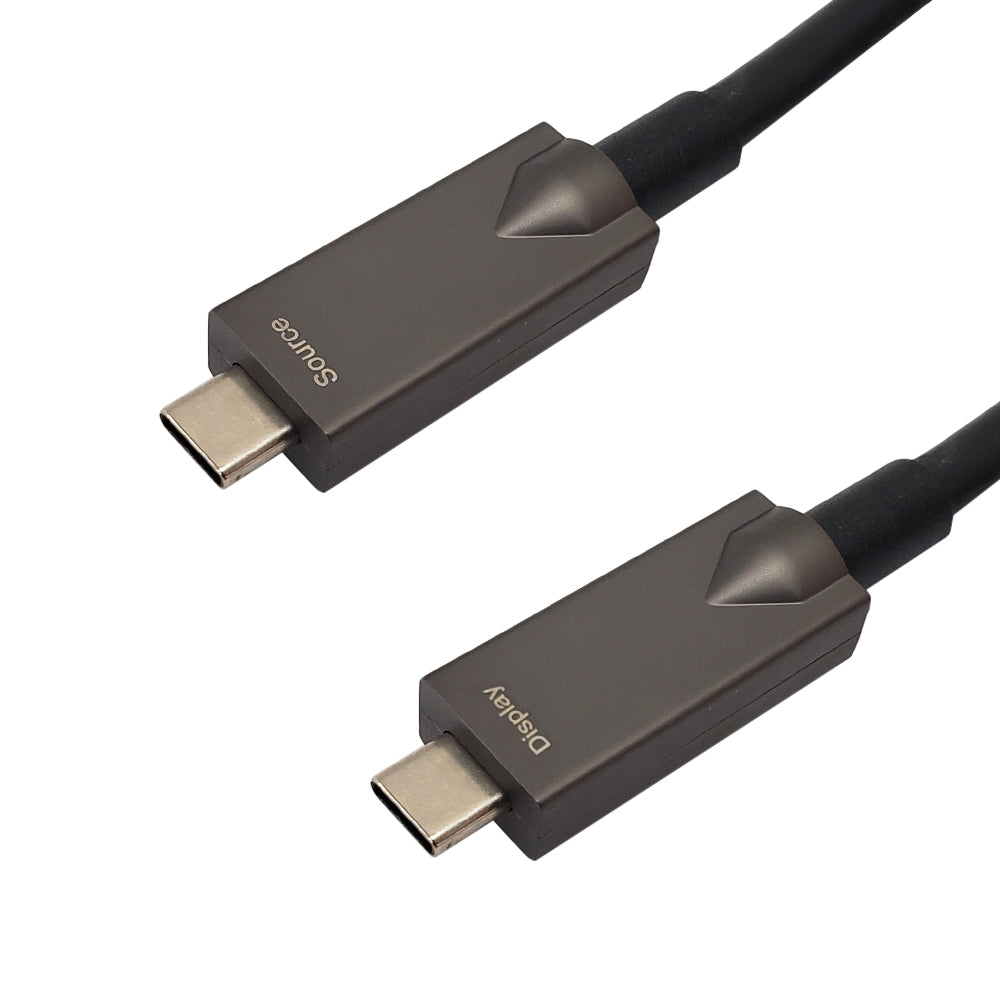

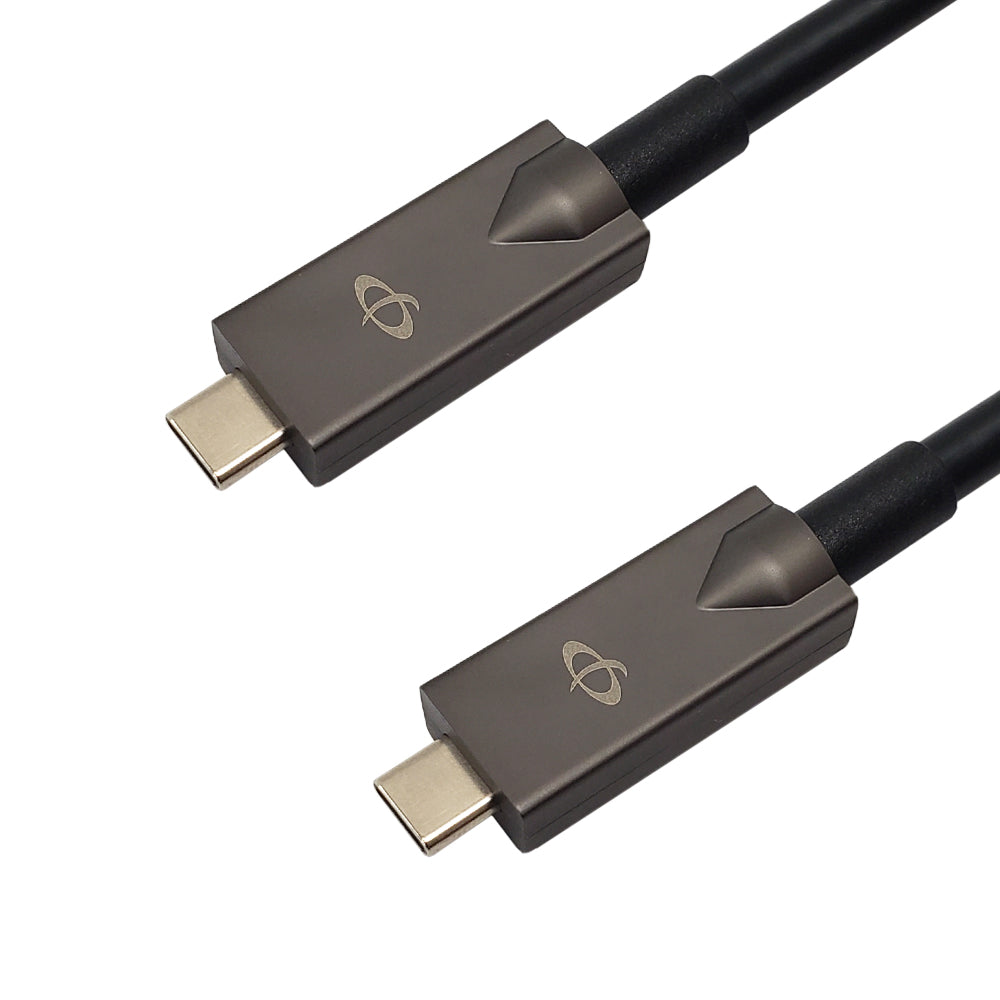

This active optical USB 3.1 cable consists of a USB type-C male on both ends. It is capable of transferring data at 10Gbps and is typically used to connect USB 3.1 peripherals as well as charge and sync USB Type-C mobile devices. USB 3.1 is backwards compatible with previous generation USB devices and is also compatible with Thunderbolt™ 3 ports.
- Supports DP 2 lane 4K@30Hz video transmission
- Supports USB 3.1 Gen 2 10Gbps data transmission
- Backwards USB 2.0 & USB 1.1
- Support PD 60W (20V 3A) Power Delivery
|Connector Plating||Nickel Plated
|Contact Plating||Gold Plated|
|Connector A||9-pin USB 3.1 Gen 2 Type-C SuperSpeed Male
|Connector B||9-pin USB 3.1 Gen 2 Type-C SuperSpeed Male
|Rating||USB 3.1 SuperSpeed – Gen 2
|Compatibility||Backwards Compatible Previous Generation USB (2.0 and 1.1)
|Power Delivery||Supported, PD 60W (20V 3A)|
|c(UL)||Yes - Cable|
|Warranty||2 Years Warranty
|0.75 lbs (0.34 kg)||1.09 lbs (0.49 kg)||2.64 lbs (1.2 kg)|
Infinite Cables Inc. offers a 2-year warranty on range of USB cables, HDMI cables, Display Port Cables and various adapters to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
