Description

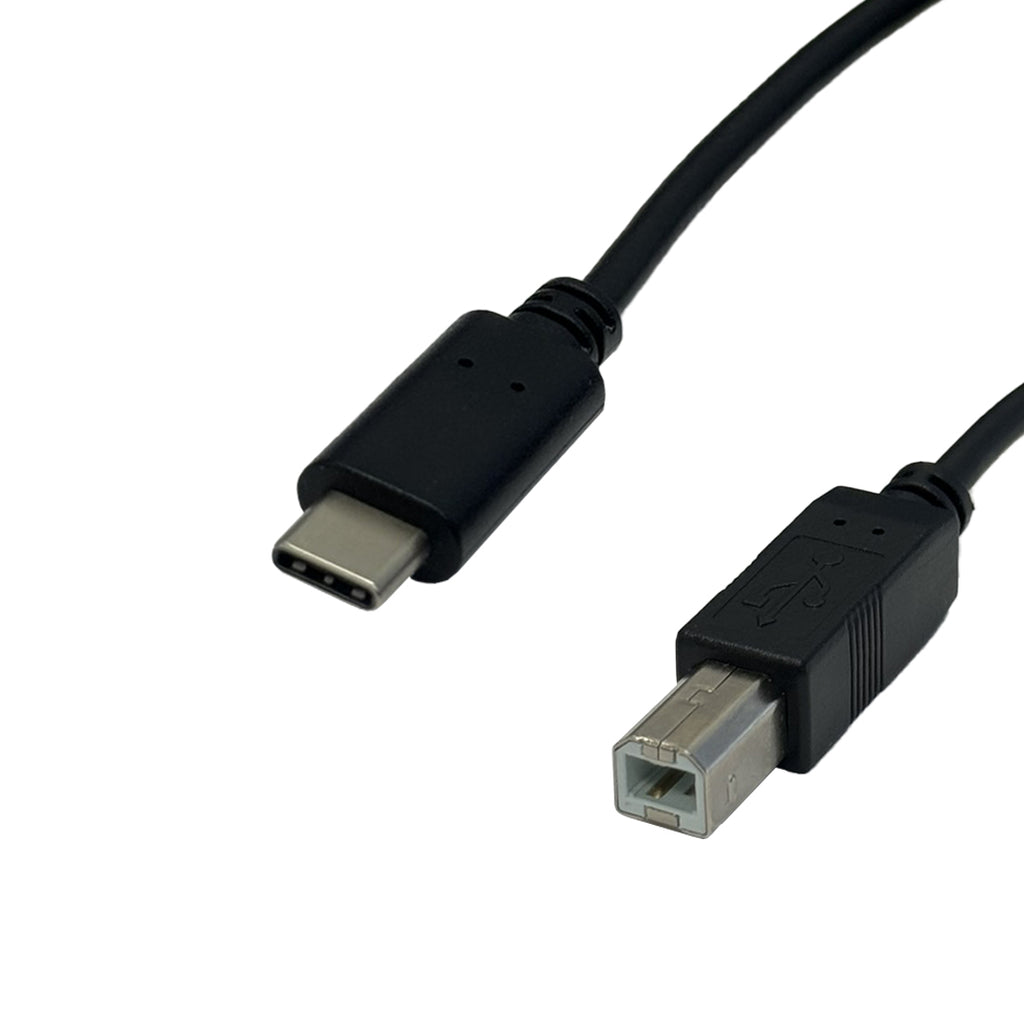

This USB 2.0 cable consists of a USB type-C male on one end and a USB B male on the other end. It is capable of transferring data at 480Mbps and is typically used to connect USB 2.0 peripherals as well as charge and sync USB Type-C mobile devices. USB 2.0 is backwards compatible with previous generation USB devices and is also compatible with Thunderbolt™ 3 ports.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Jacket Material | PVC - Polyvinyl Chloride |
| Strain Relief | Molded |
| Connector(s) | |
| Connector A | USB 2.0 Type-B Male |
| Connector B | USB 2.0 Type-C Male |
| Performance | |
| Rating | USB 2.0 |
| Speed | 480Mbps |
| Compatibility | Backwards Compatible Previous Generation USB |
| Power | 3 Amp |
| Support | DisplayPort, 4-Channel Audio, Thunderbolt™3, PCI Express |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft |
|---|---|---|---|
| 0.03 lbs | 0.06 lbs | 0.12 lbs | 0.13 lbs |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| USB-330-01.5 | 1.5ft | 0.07 lb |
| USB-330-03 | 3ft | 0.15 lb |
| USB-330-06 | 6ft | 0.21 lb |
| USB-330-10 | 10ft | 0.33 lb |
