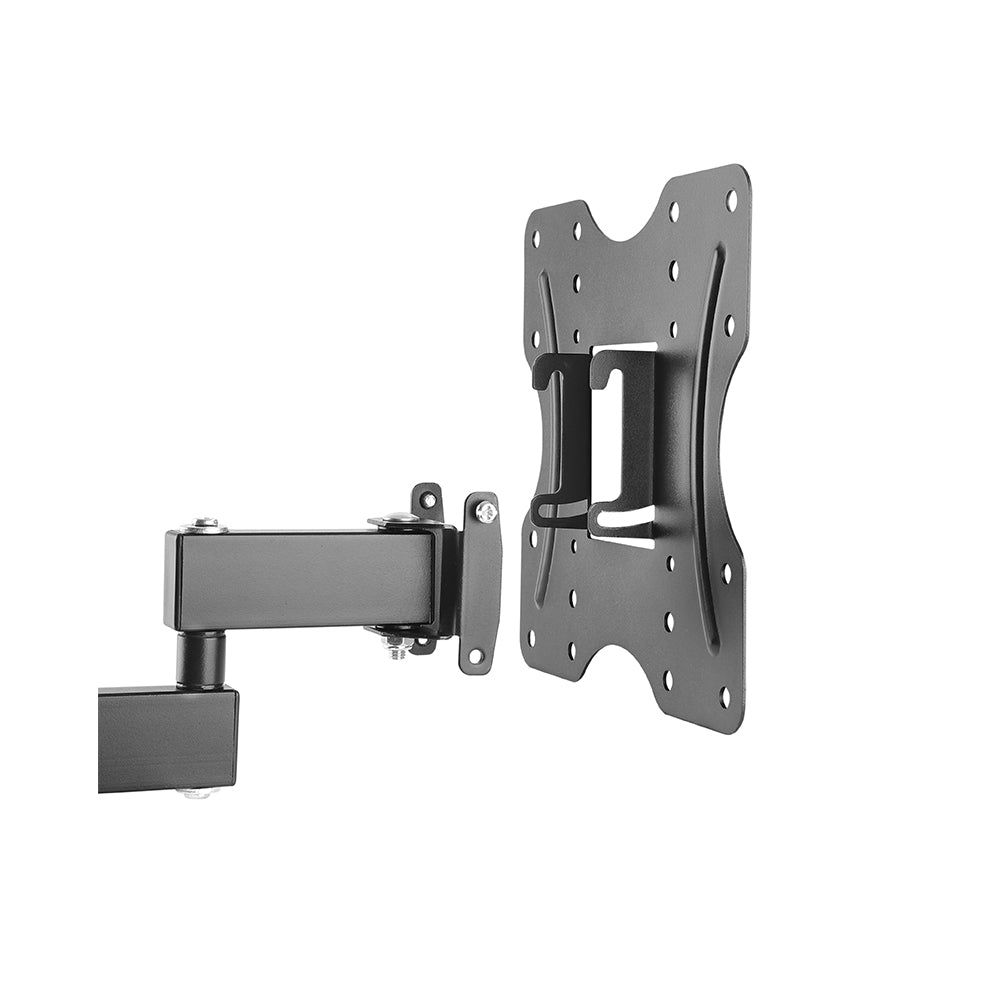

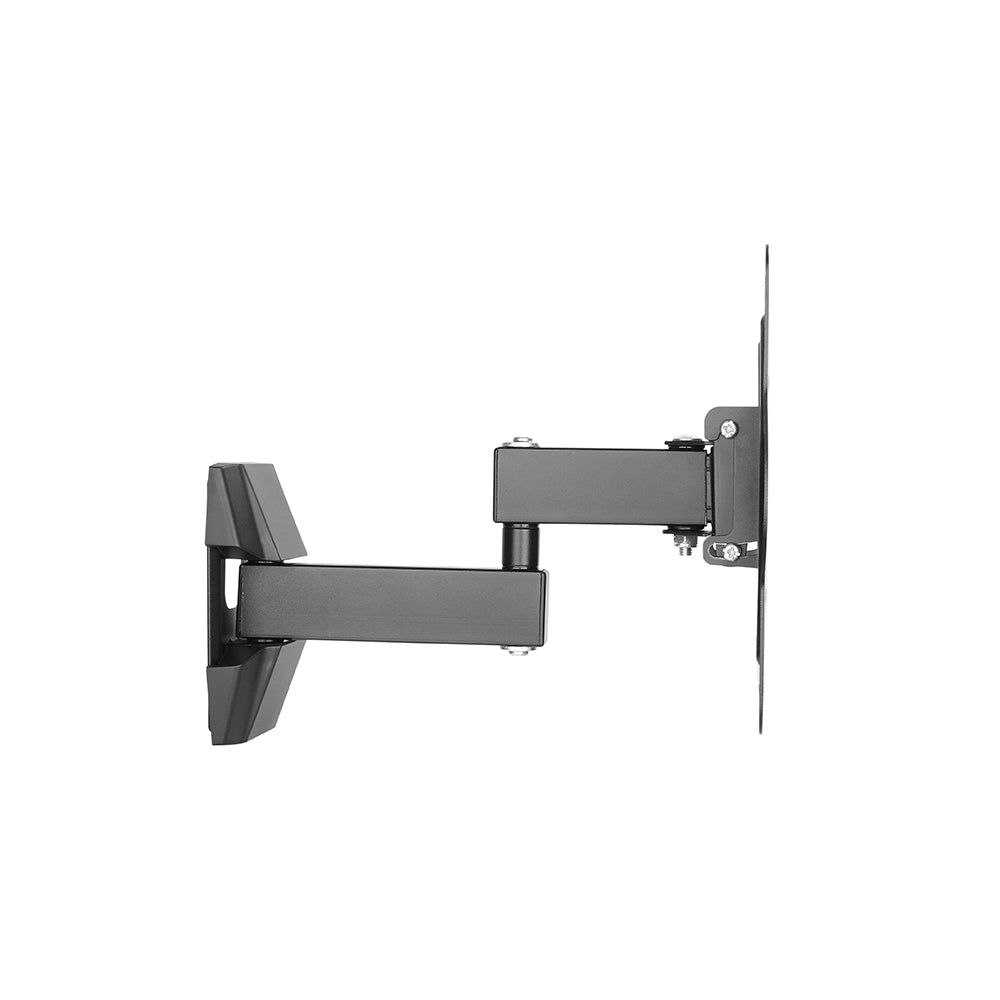

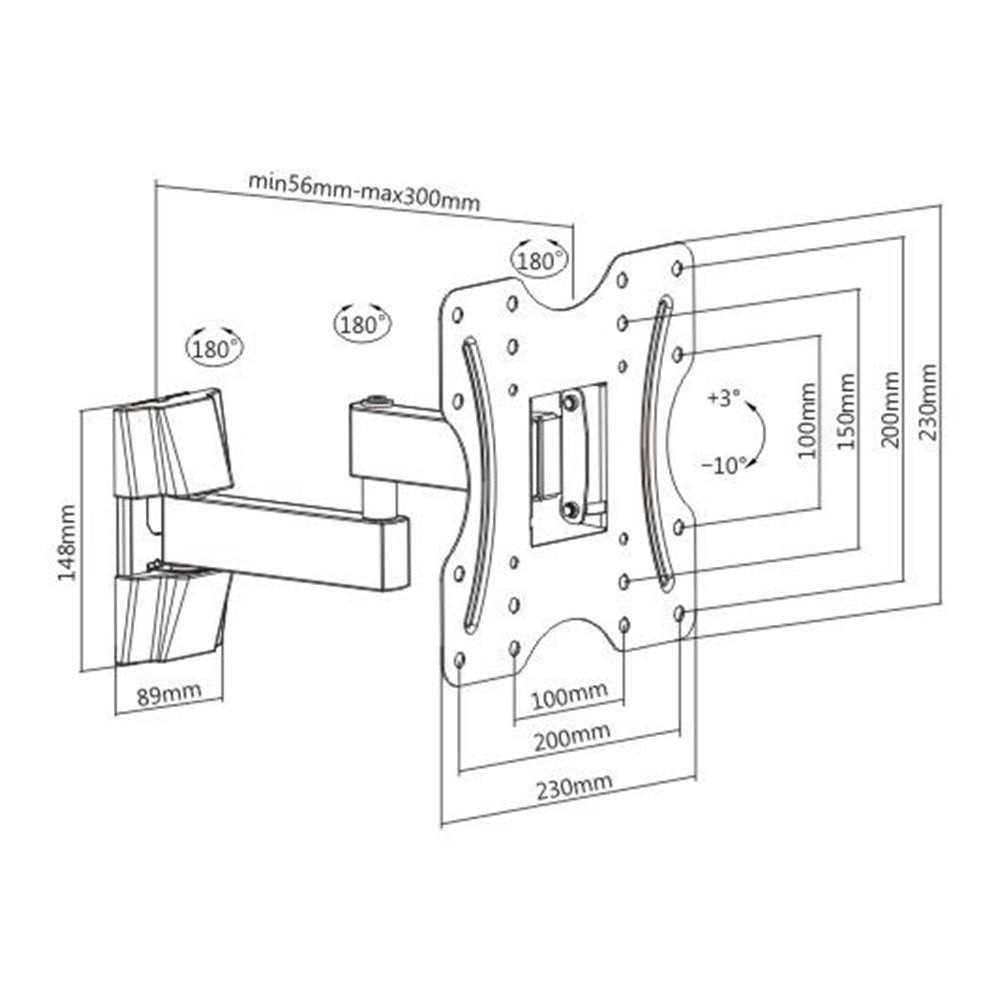

This swivel and tilting wall mount bracket is designed to hold most 23 inch to 42 inch flat screen displays with a maximum VESA hole pattern of 200x200. It offers a up to a -10° to +3° tilt and a -90° to +90° swivel. It can be used in both residential and commercial environments.
Full Motion Makes any Seat, the Best SeatThe tilt and swivel motion of the mount allows you to position your TV to the best viewing angle and maximize the viewing experience. This mount can swivel to the left or right direction at 90°and tilted at a range of -10° to +3°.
Level Adjustment is Easy on the EyesThe open architecture of this mount provides increased ventilation and easier access to wires.
|Mounting Style||Full Motion Wall Mount|
|Mounting Pattern||VESA 100x100,200x100,200x200|
|Screen Size||23 - 42 inches [58 - 107cm]|
|Weight Capacity||20kg (44lbs)|
|Tilt||-10° ~ +3°|
|Swivel||-90° ~ +90°
|Level Adjustment||-3° ~ +3°|
|Fit Curved TV||No|
|Mounting Hardware||4 - M4x14 Screws
4 - M5x14 Screws
4 - M6x14 Screws
4 - M8x20 Screws
4 - D5 Washers
4 - D8 Washers
8 - Small Spacers
3 - ST6.3x55 Screws
3 - Concrete Anchors
3 - D6 Washers
|Product Weight||5.1lbs [2.3kg]|
