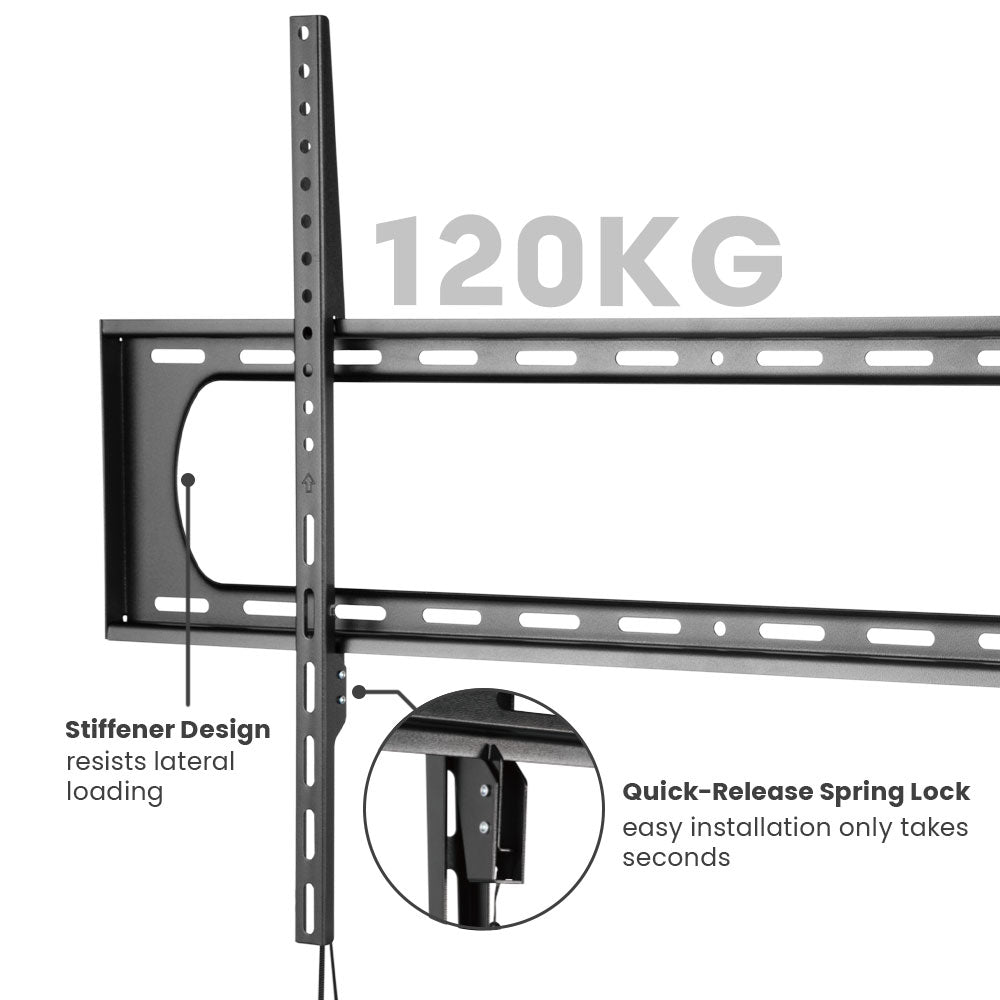

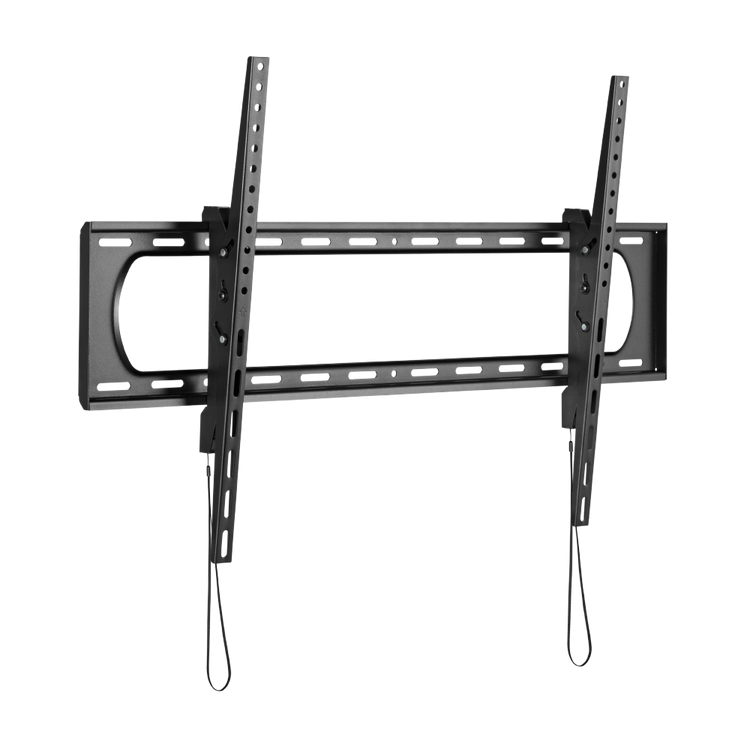

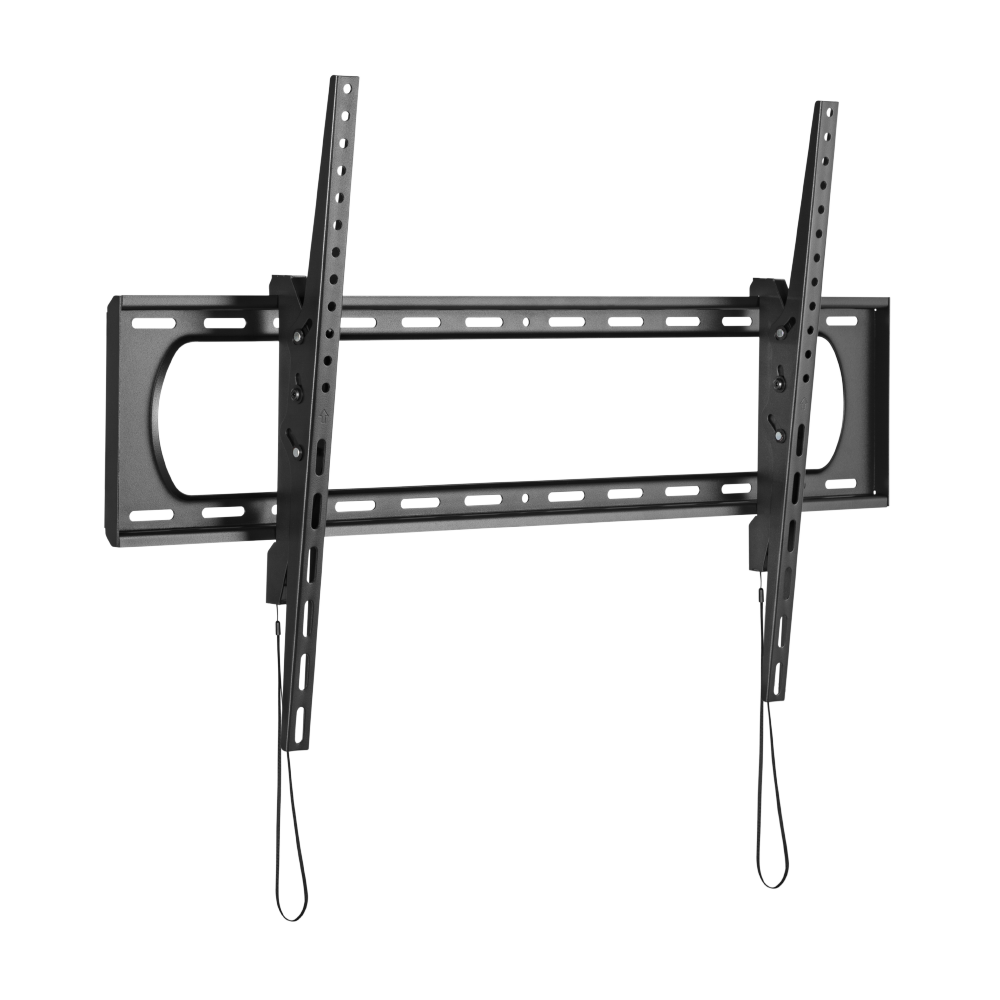

This LCD/LED tilting wall mount bracket is designed to hold most 60 inch to 120 inch LCD/LED displays with a maximum VESA hole pattern of 900x600. It offers up to a +10° to -10° tilt. Its easy to install and can be used in both residential and commercial environments.
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting Wall Mount |
| Color | Black |
| Material | Steel |
| Surface Finish | Powder Coating |

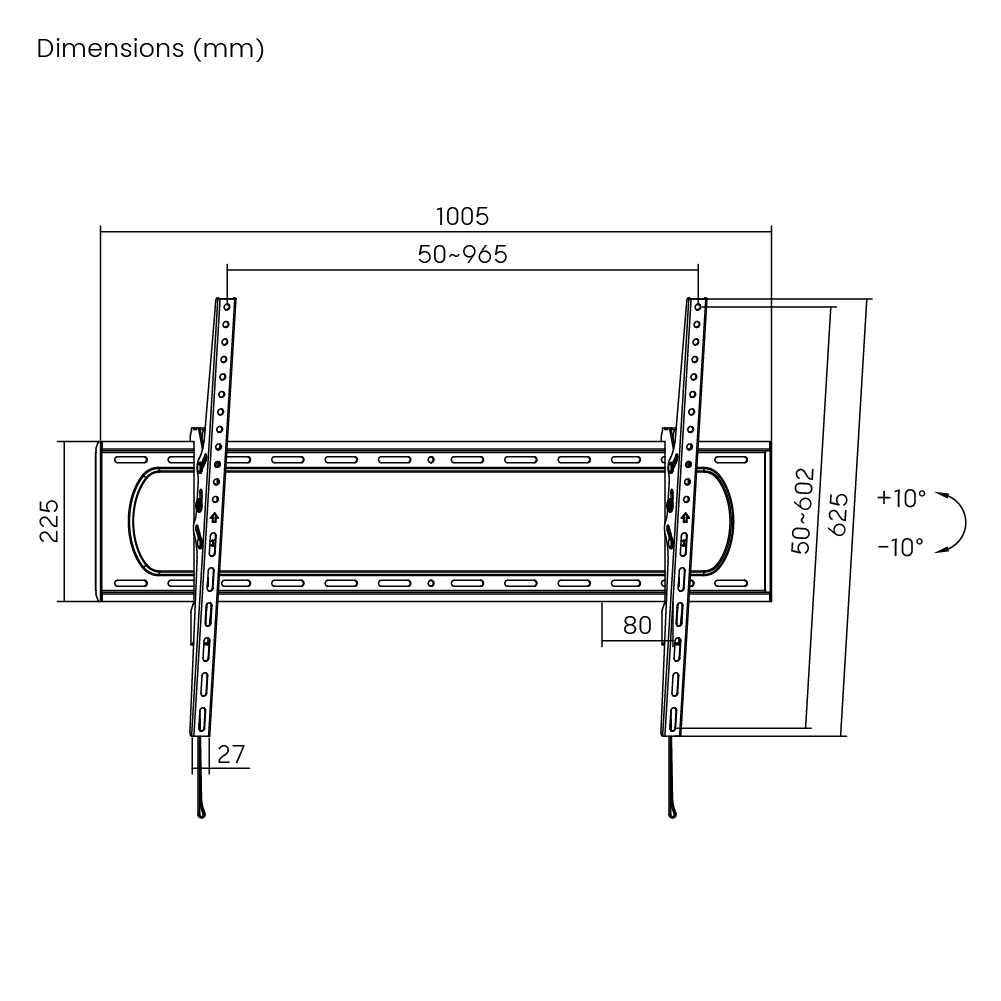

| Dimensions | 80x1005x602mm (3.1"x39.6"x23.7") |
| Mounting Pattern | VESA 50x50 ,75x75 ,100x100 ,100x150 ,150x100 ,100x200 ,200x100 ,150x150 ,200x200 ,200x300 ,300x200 ,200x400 ,400x200 ,300x300 ,300x400 ,400x300 ,600x200 ,400x400 ,600x300 ,400x600 ,600x400 ,700x400 ,800x400 ,600x600 ,800x500 ,800x600 ,900x600 |
| Screen Size | 60 - 120 inches |
| Weight Capacity | 120kg (264lbs) |
| Strength Tested | 4 Times Approved |

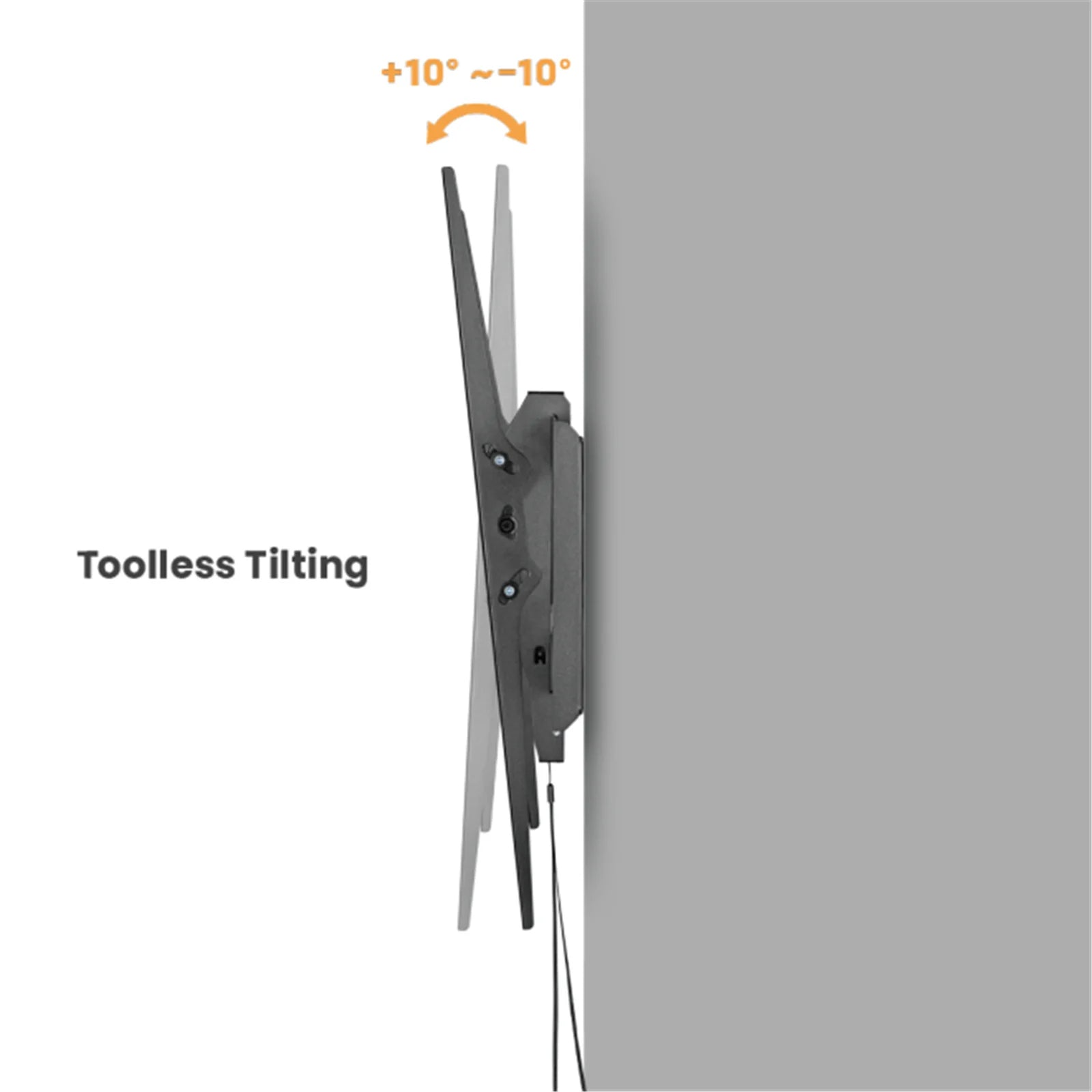

| Tilt | +10° to -10° |
| Profile | 80mm (3.1") |
| Screen Freely Tilting | Yes |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Installation | Solid Wall, Dual Stud(406mm/450mm/600mm) |

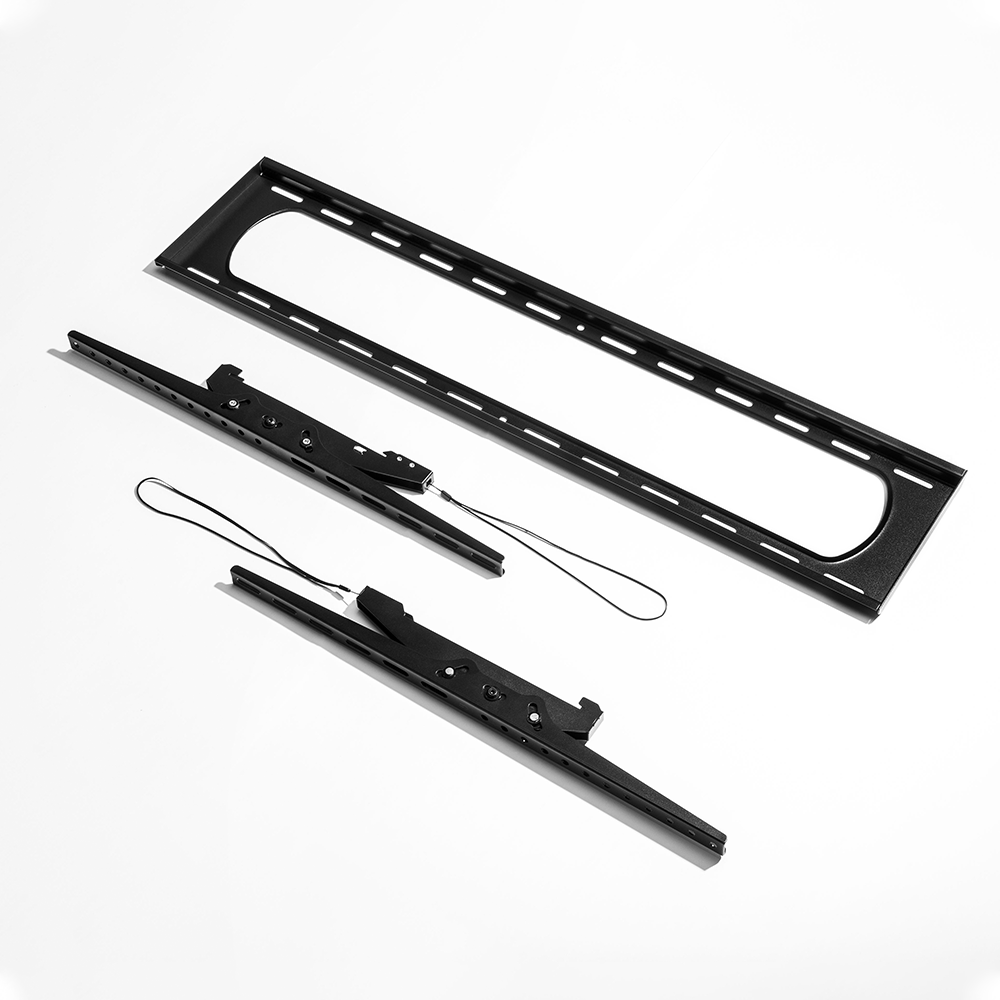

| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Approvals | |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x16 Screws 4 - M8x35 Screws 4 - Small Spacers 4 - Big Spacers 6 - ST8x90 Screws 6 - Concrete Anchors 4 - D8 Washers |
| Product Weight | 10.4 lbs [4.7kg] |
5-YEAR WARRANTY
Infinite Cables Inc. offers a 5-year warranty on this products to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
