Premium Phantom Cables T1 Straight Through DB15 Male to DB15 Female 2pr 100ohm

T1 CablesSKU: T1-301-03

Length: 3ft
Price:
Sale price$27.20 CAD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities ship out same day or next day. Contact us for details: sales@infinitecables.com



Description

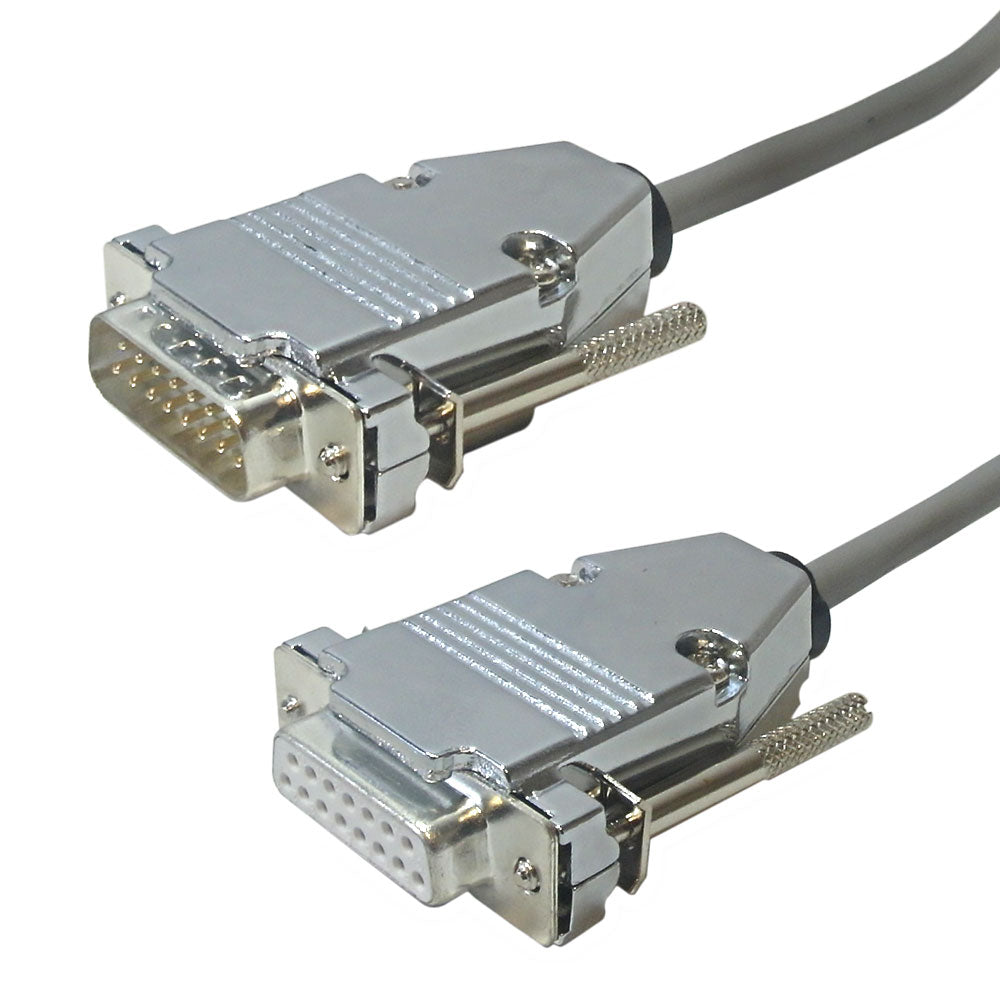

This T1 cable is constructed using two pair shielded T1 rated cable and consists of DB15 male connector on one end and a DB15 female on the other. It is designed to be used specifically for T1 telecommunication applications where straight through wiring is required.

Physical Characteristics
Color Grey
Shielded Yes
Cable Rating T1
Wire Gauge 24 AWG
Impedance 100 Ohm
Wiring Straight Through
Connectors
Connector A DB15 male
Connector B DB15 female
Pin-outs

DB15 Male

DB15 Female

11

Black

11

3

White

3

4

Drain W/B

4

9

Red

9

1

Green

1

2

Drain R/G

2

Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime

Cable Weights
3ft 7ft 10ft 15ft 25ft 50ft 75ft 100ft 125ft 150ft
0.20lbs 0.50lbs 0.70lbs 0.90lbs 1.60lbs 3.20lbs 4.80lbs 6.40lbs 8.00lbs 9.60lbs

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

Product Weight

3ft
T1-301-03
0.15 lb
7ft
T1-301-07
0.24 lb
10ft
T1-301-10
0.33 lb
15ft
T1-301-15
0.5 lb
25ft
T1-301-25
0.77 lb
50ft
T1-301-50
1.55 lb
75ft
T1-301-75
2.26 lb
100ft
T1-301-100
3.0 lb
125ft
T1-301-125
5.0 lb
150ft
T1-301-150
6.2 lb
