Description

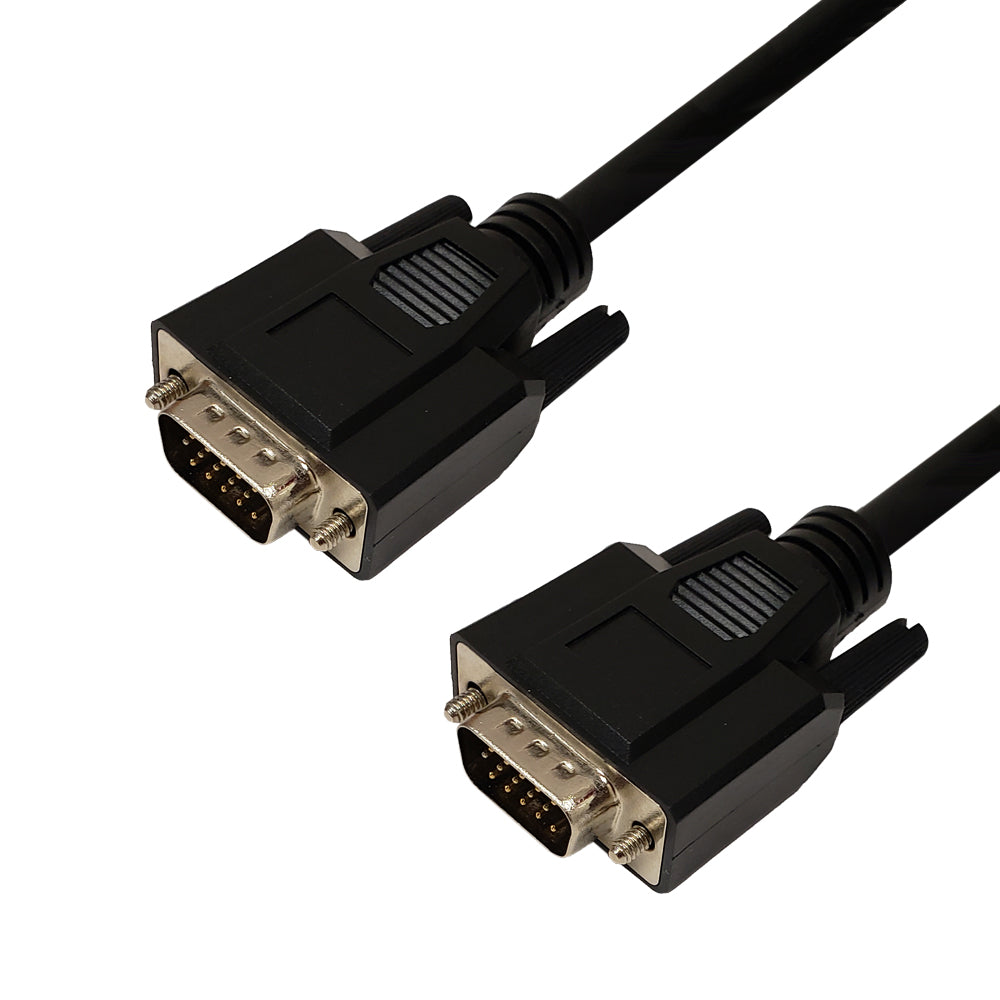

This SVGA/UXGA plenum rated cable consists of a HD15 VGA male on one end and a HD15 VGA male on the other end. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as monitors/projectors.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge - Coax | 3 - 28AWG Mini-Coax |
| Wire Gauge - Conductors | 4 - 28AWG Pairs, 4 - 28AWG Conductors |
| Cable Diameter | 8.5 mm |
| Shielding | Copper Braid, 100% Mylar Foil |
| Jacket Fire Rating | CMP - Plenum Rated |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | SVGA HD15 Male |
| Connector B | SVGA HD15 Male |
| Performance | |
| Resolution | 1600 x 1200px |
| Impedance | 75 ohm |
| Approvals | |
| c(ETL)us | Approved Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Contents | |
| Included in Package | 1 - Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|
| 2.04 lbs | 3.37 lbs | 4.65 lbs | 6.80 lbs | 8.25 lbs |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| SVGA1-25PL | 25ft | 0.77 lb |
| SVGA1-35PL | 35ft | 1.1 lb |
| SVGA1-50PL | 50ft | 1.55 lb |
| SVGA1-75PL | 75ft | 2.26 lb |
| SVGA1-100PL | 100ft | 3.0 lb |
