Description

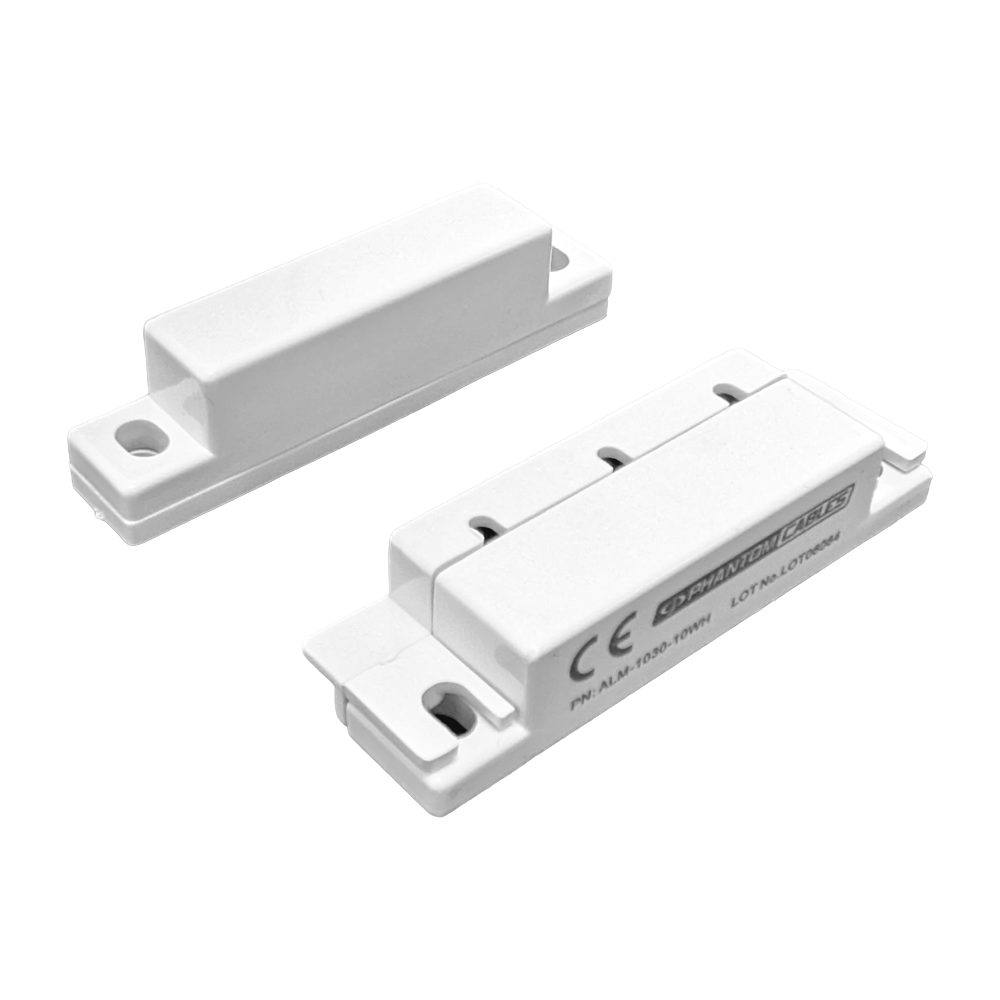

This surface mounted contact sensor is a hardwired security solution designed to provide simple and reliable protection for commercial and residential spaces.
This sensor operates on a Single Pole Double Throw (SPDT) reed switch configuration for both loop-type closed and open security systems, allowing the circuit to be wired as either normally closed or normally open depending on your panel's requirements, and triggering an alarm instantly if the state is interrupted.
Features:

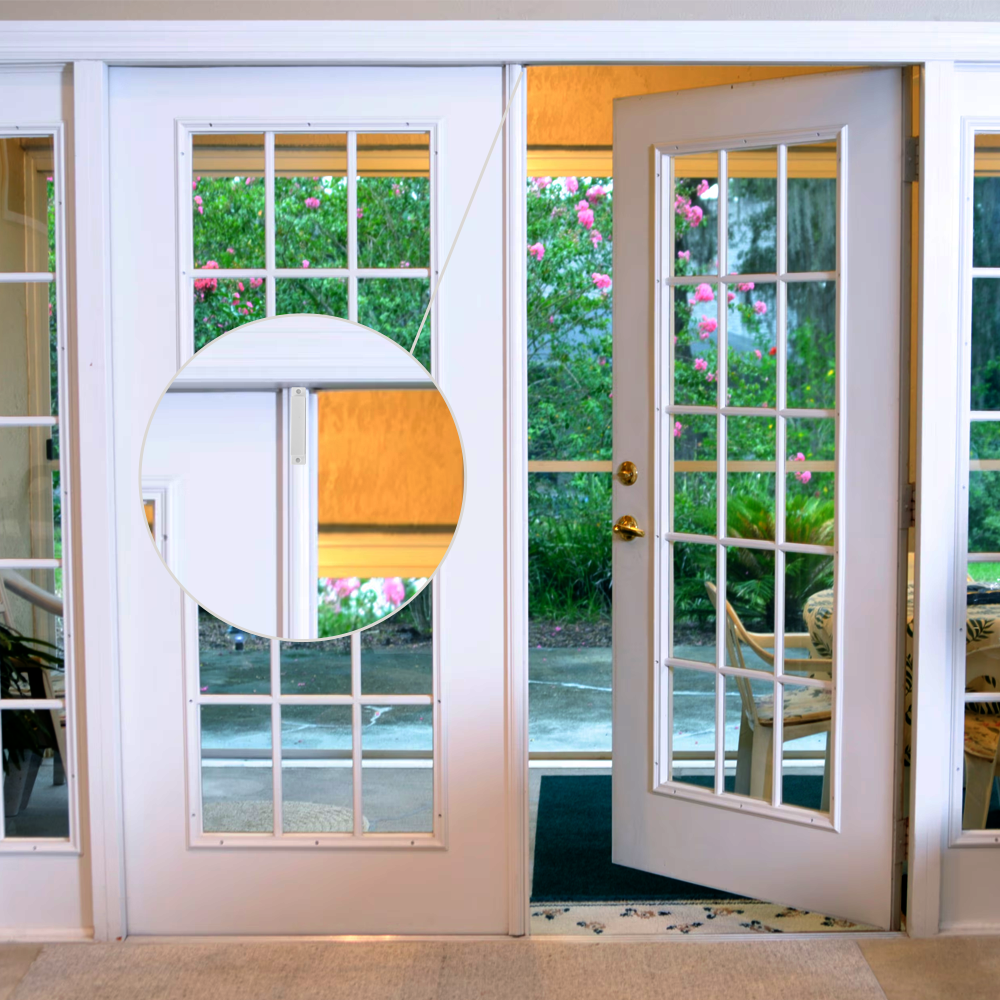

- Suitable for doors and windows
- Screws mount concealed terminals
- Magnetic contact switch easy to install in tight spaces
- Closed Gap, 1" (25mm)
- Departure Gap, 1.3" (33mm)
| Physical Characteristics | |
|---|---|
| Color | White |

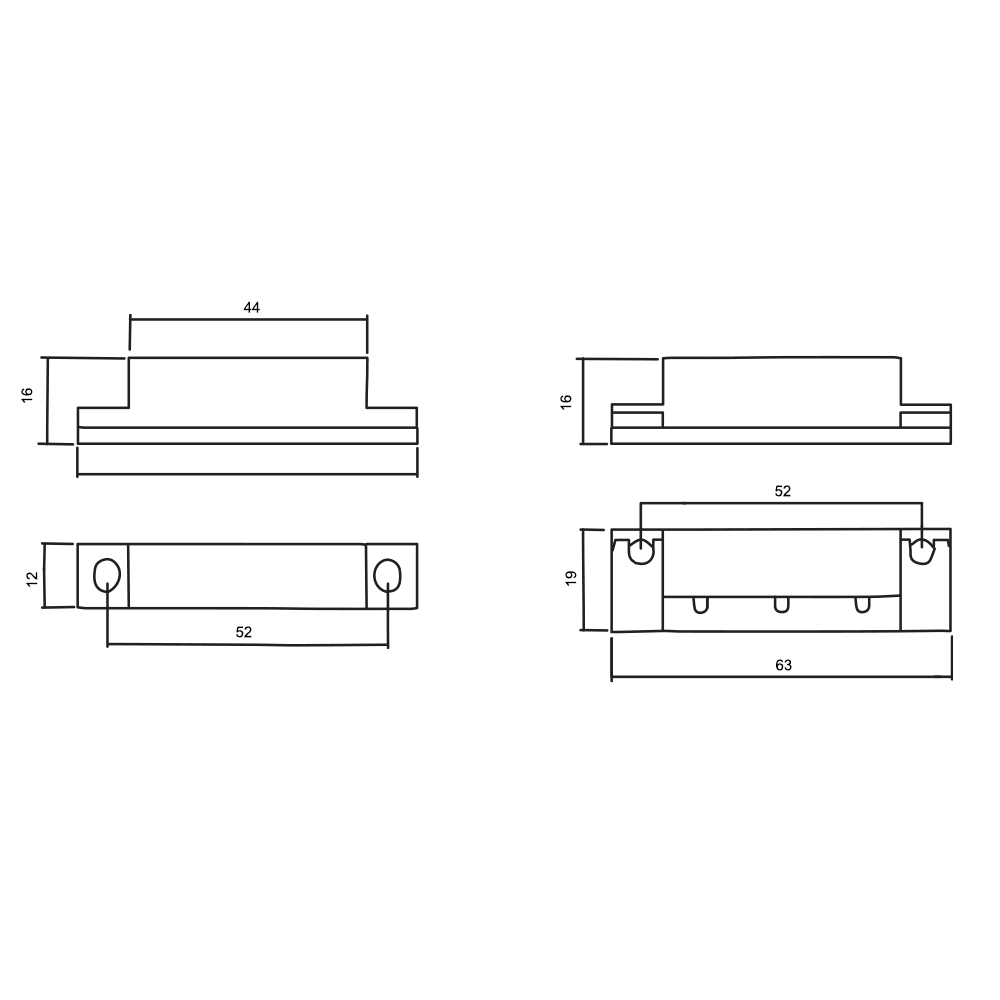

| Dimensions | 63 x 19 x 16mm |
| Loop Type | Closed & Open |
| Reed Form | SPDT (Single Pole, Double Throw) |
| Closed Gap | 1" (25mm) |
| Departure Gap | 1.3" (33mm) |

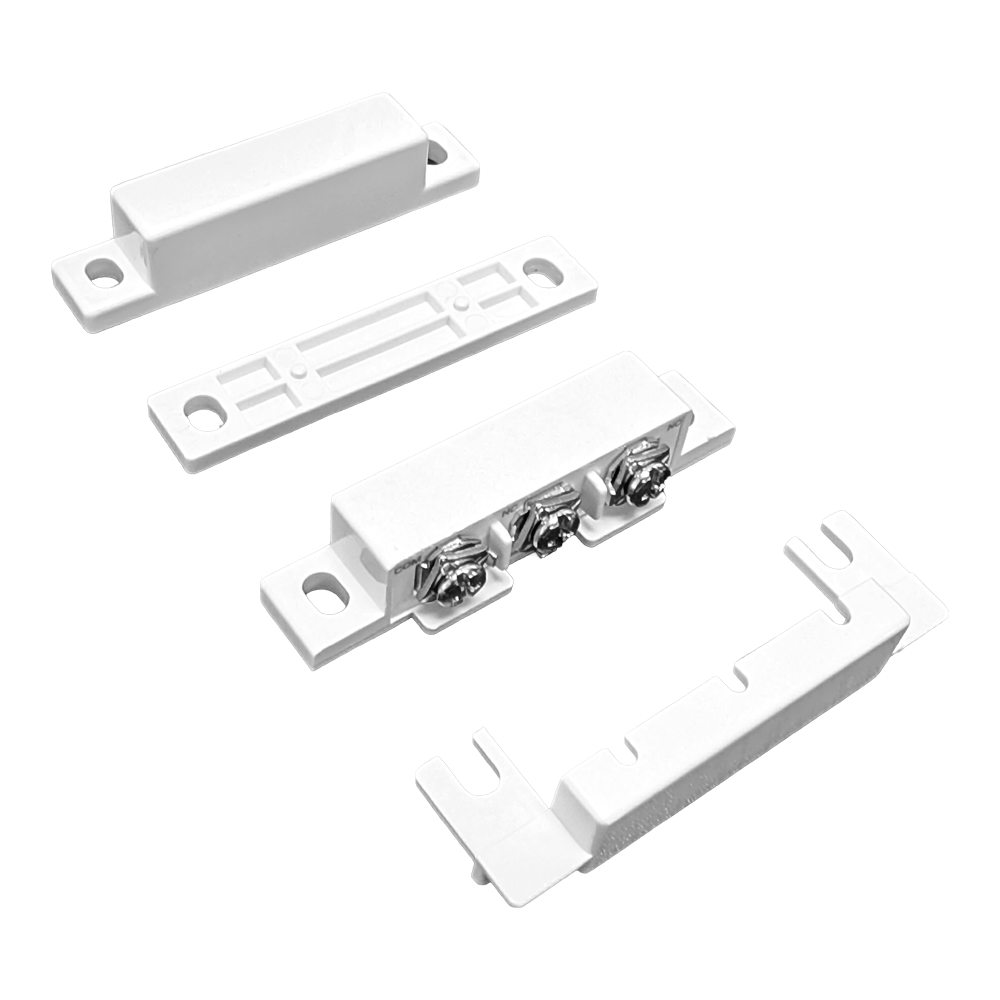

| Wiring Connection | Concealed Built-in Terminal Block |
| Maximum Initial Contact Resistance | 0.150 Ohm |
| Maximum Contact Rating | 3W |
| Maximum Switching Voltage | 30 VDC/VAC |
| Maximum Switching Current | 0.2A |
| Environmental | |
| RoHS | Compliant |
| CE | Compliant |
| Packaging Information | |

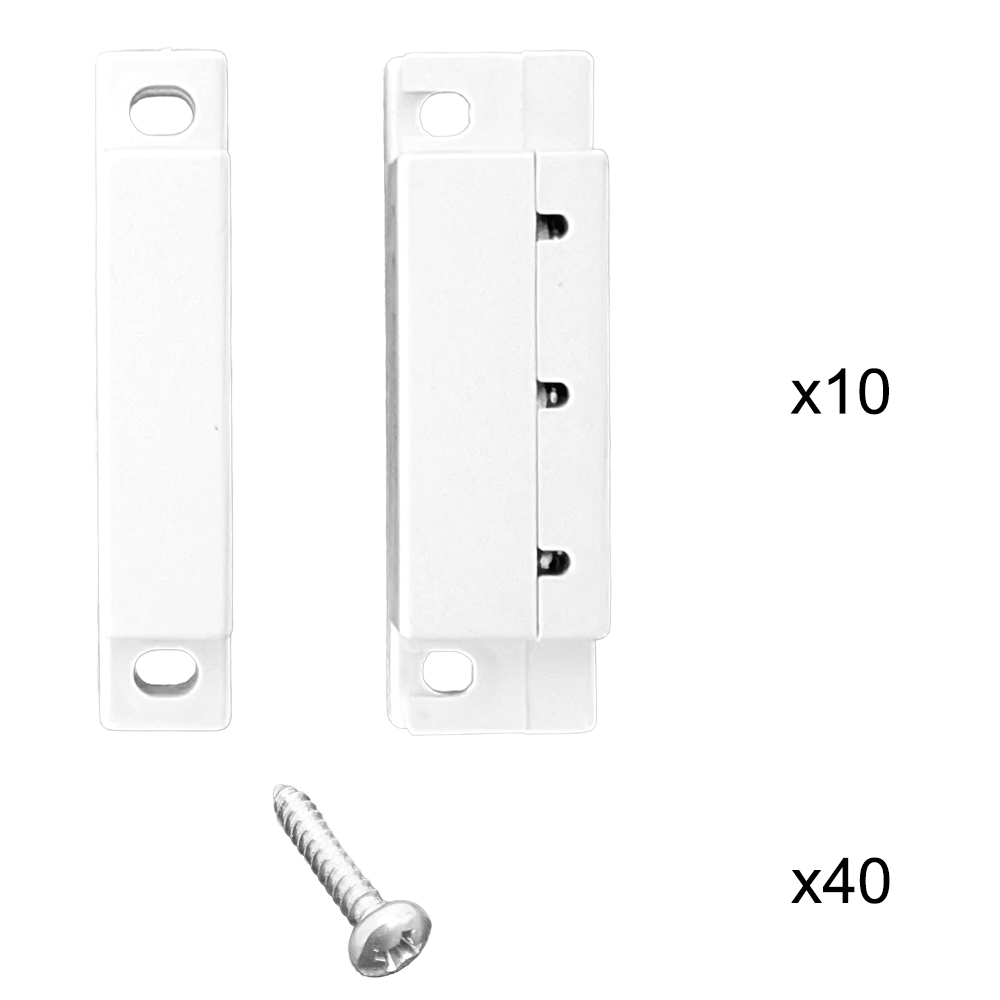

| Package Quantity | 10x Contacts 10x Magnets 10x Spacers 10x Covers 40x Screws |
| Product Weight | 0.87 lbs |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| ALM-1030-10WH | 0.87 lb |
