Description

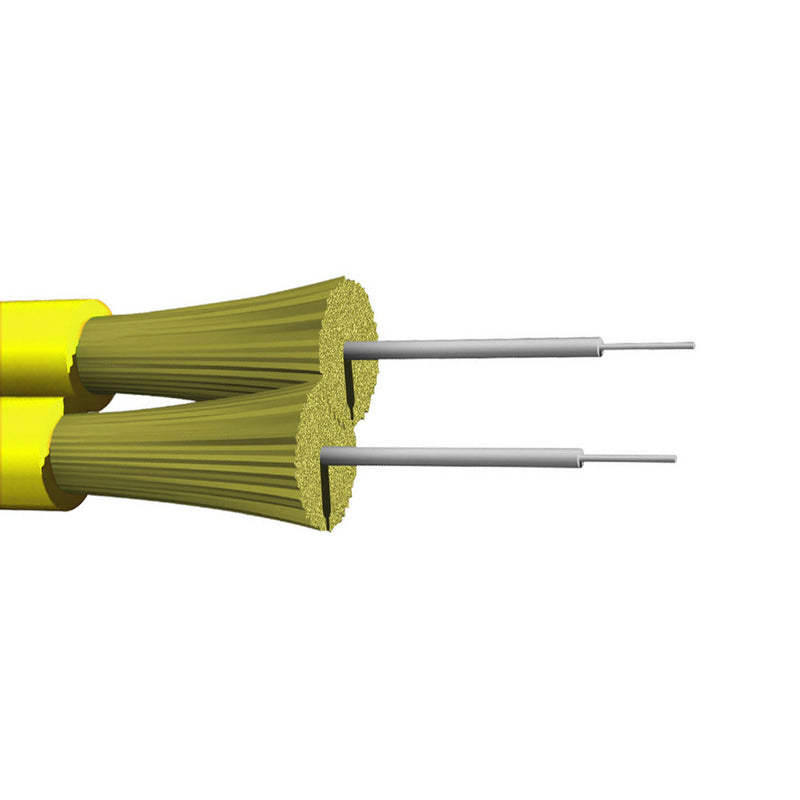

This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Optic Type | Zipcord Singlemode 9/125um |
| Fiber Core Diameter | 8.2 micron |
| Attenuation Range | @1310nm 0.4dB/km @1550nm 0.2dB/km |
| Maximum Tensile Load | Short Term, N 500 Long Term, N 300 |
| Minimum Bending Radius | Load 45mm Unload 30mm |
| Fiber Count | 2C |
| Tight Buffer Diameter | 0.9 micron ±0.05 |
| Cable Diameter | 3mm |
| Fire Rating | LSZH / OFNR |
| Uniformly Distributed | Kevlar |
| Operating Temperature | -40~+75 deg C |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.03 lbs [0.01 kg] |
