Singlemode 9/125um G.657A2 OTDR Fiber Optic Launch Box

Fiber Optic Launch Box CablesSKU: FO-OTDR609-SCA-1000M

Connectors: LC-UPC / SC-APC
Length: 1km
Price:
Sale price$636.45 CAD
Stock:
In stock


Description

Overview

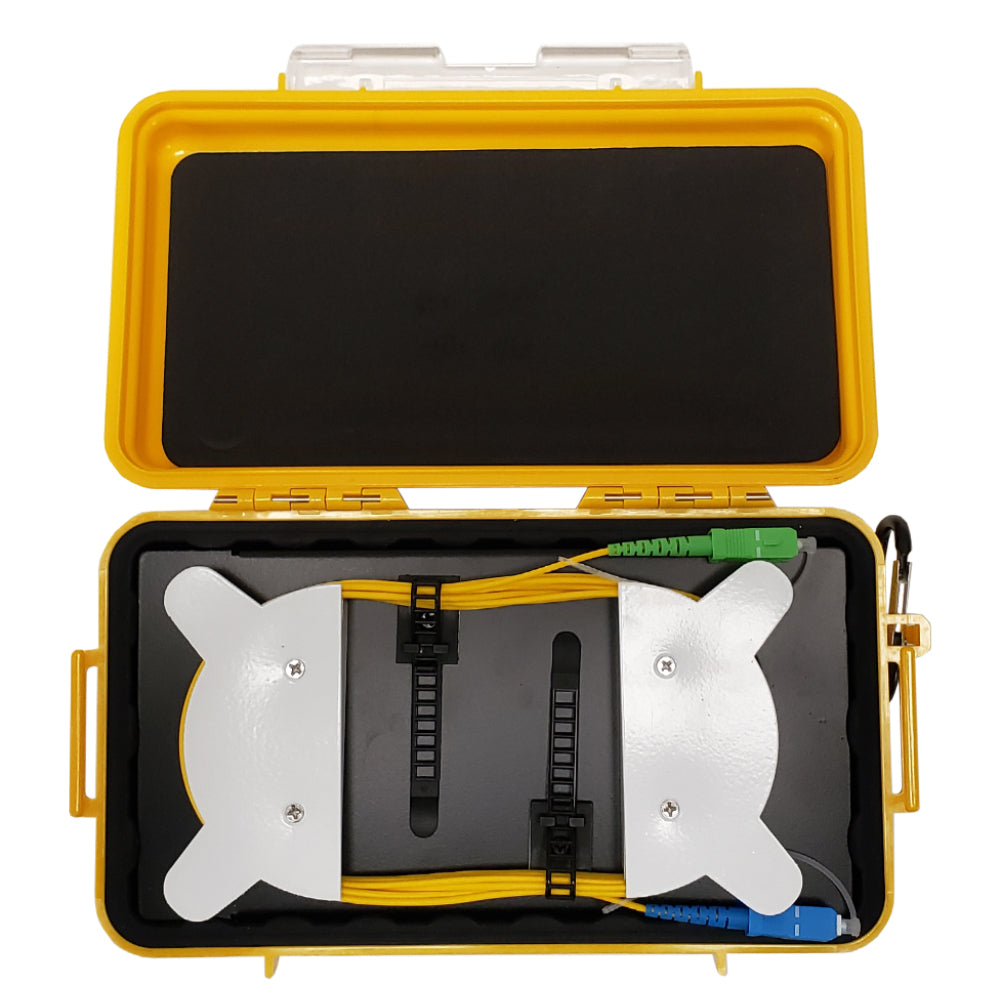

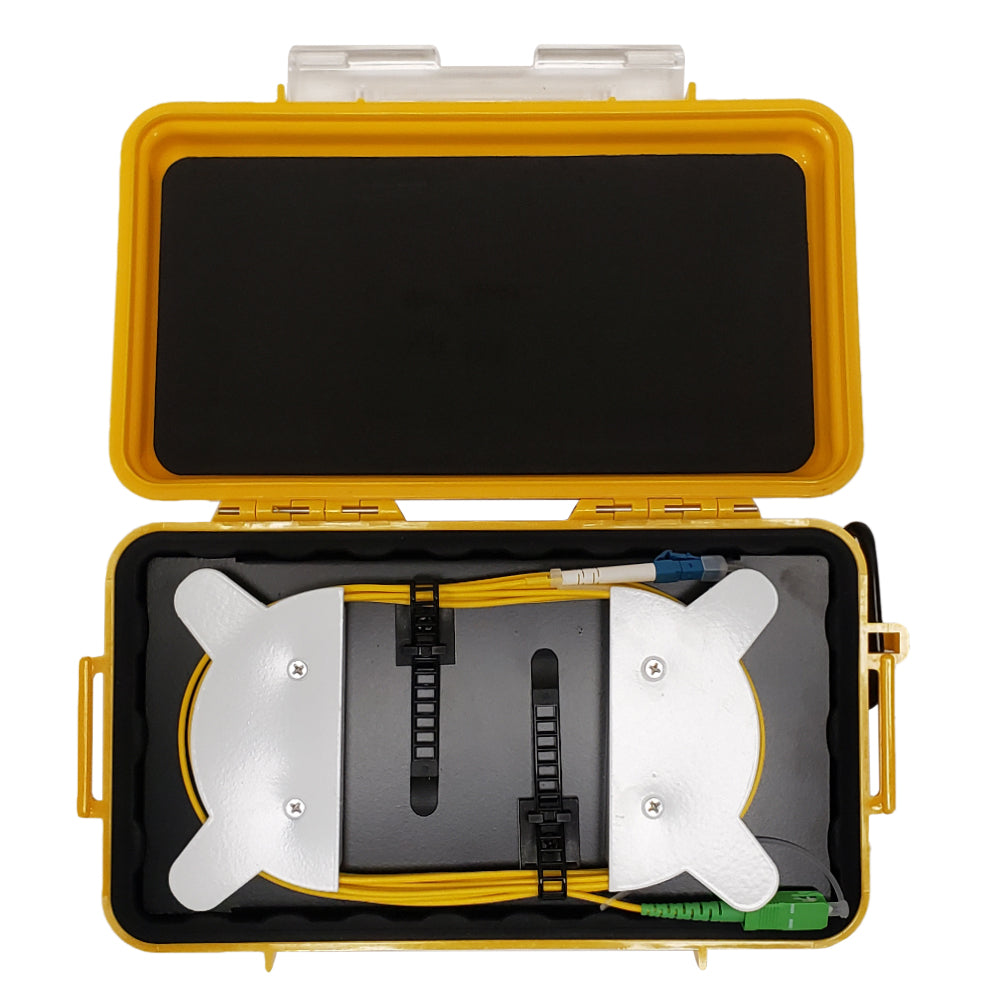

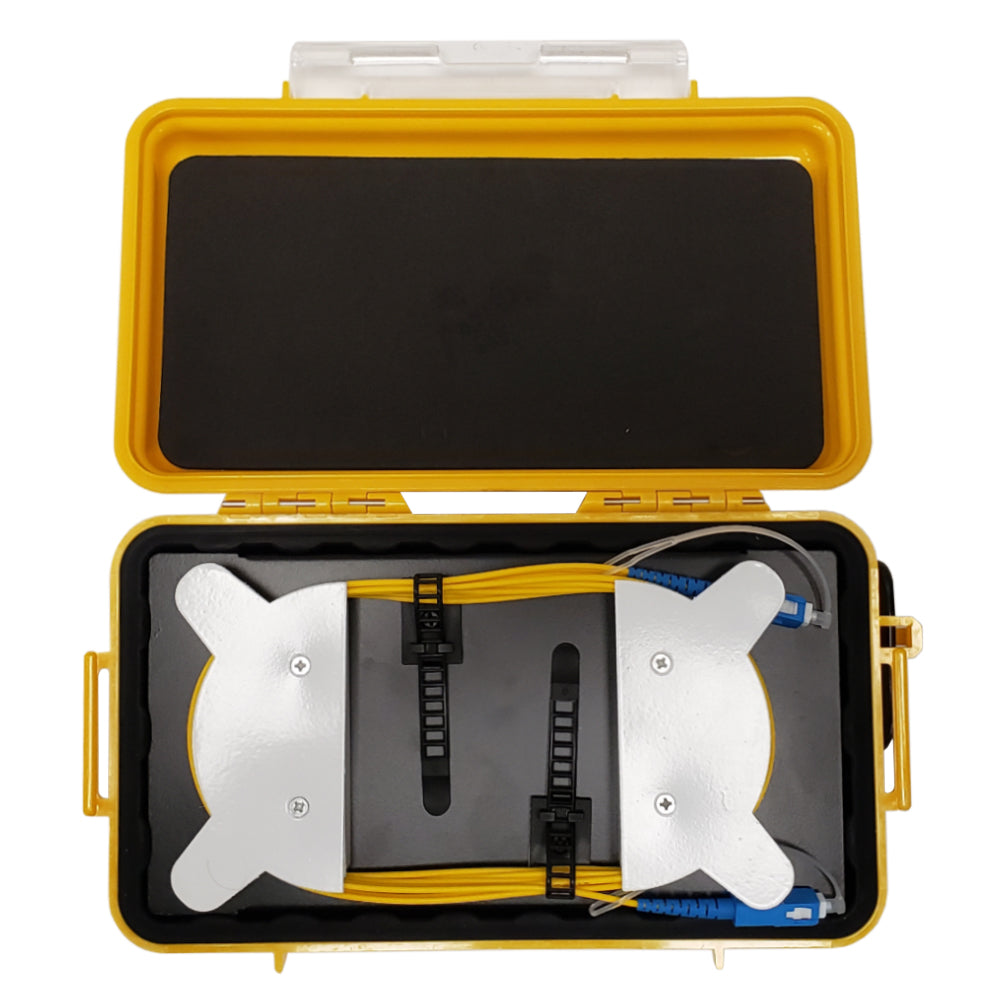

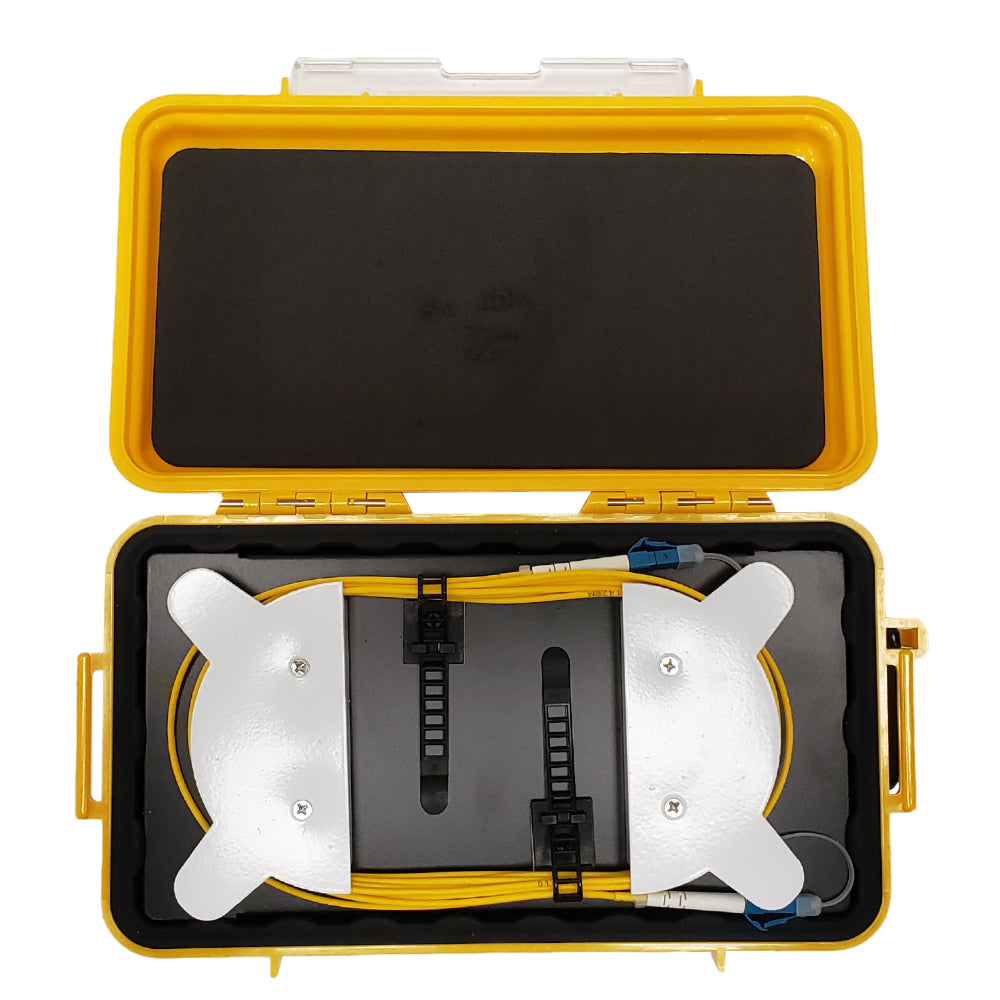

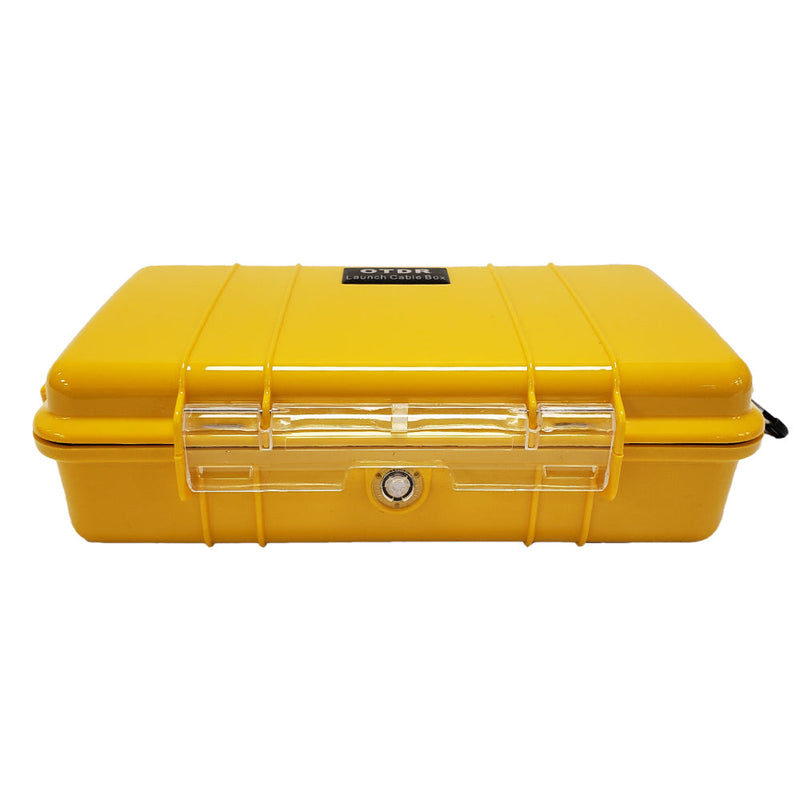

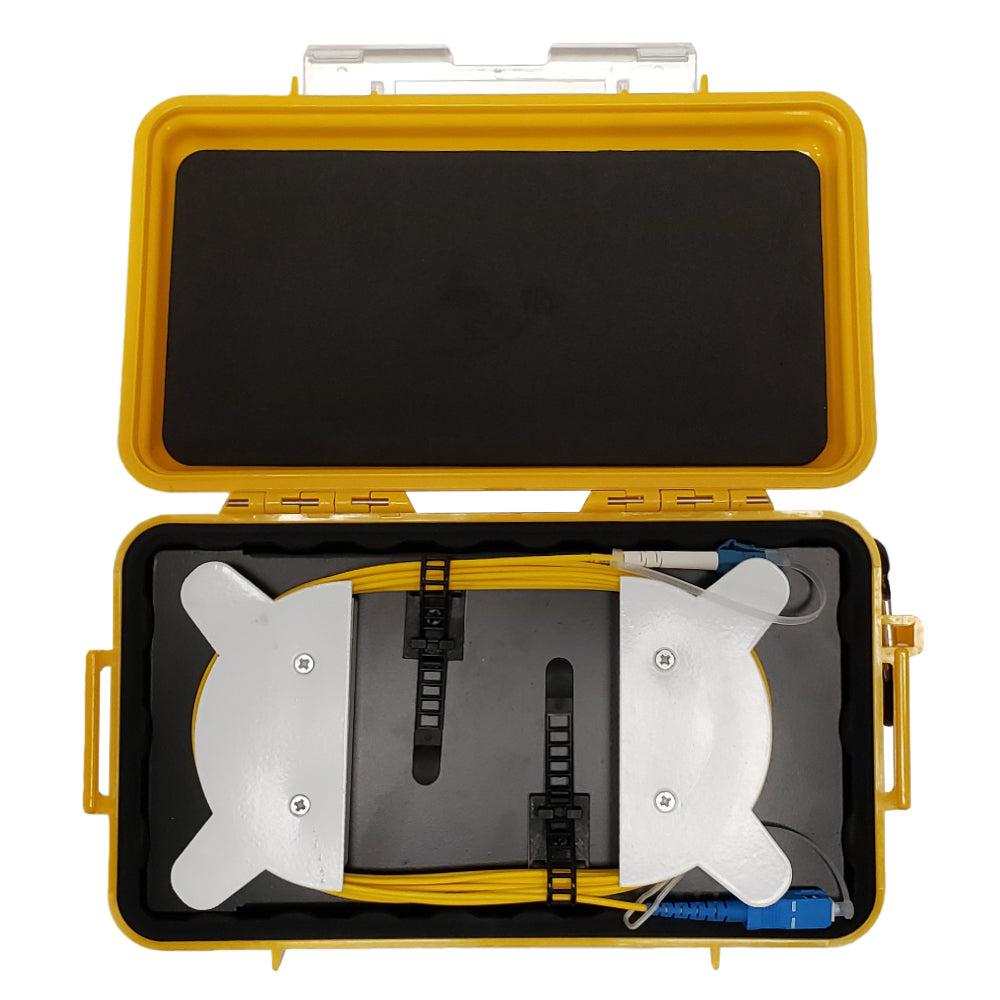

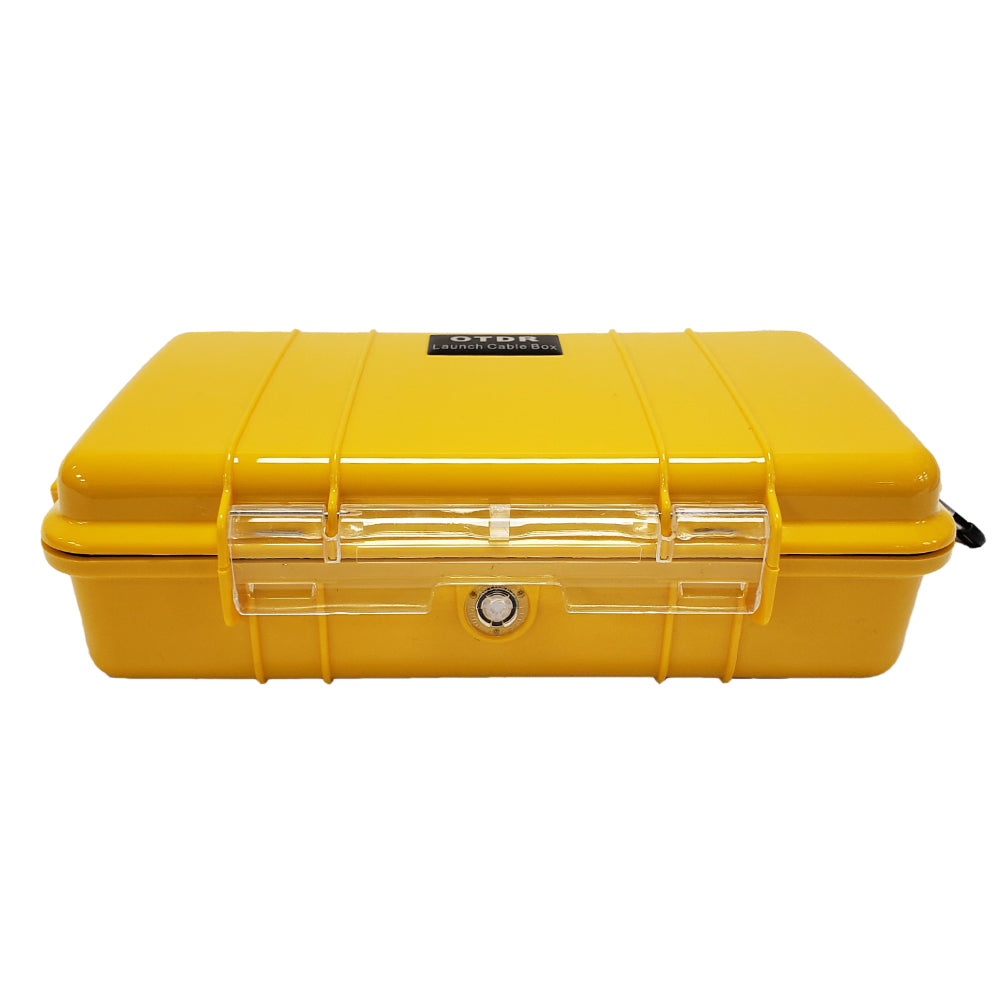

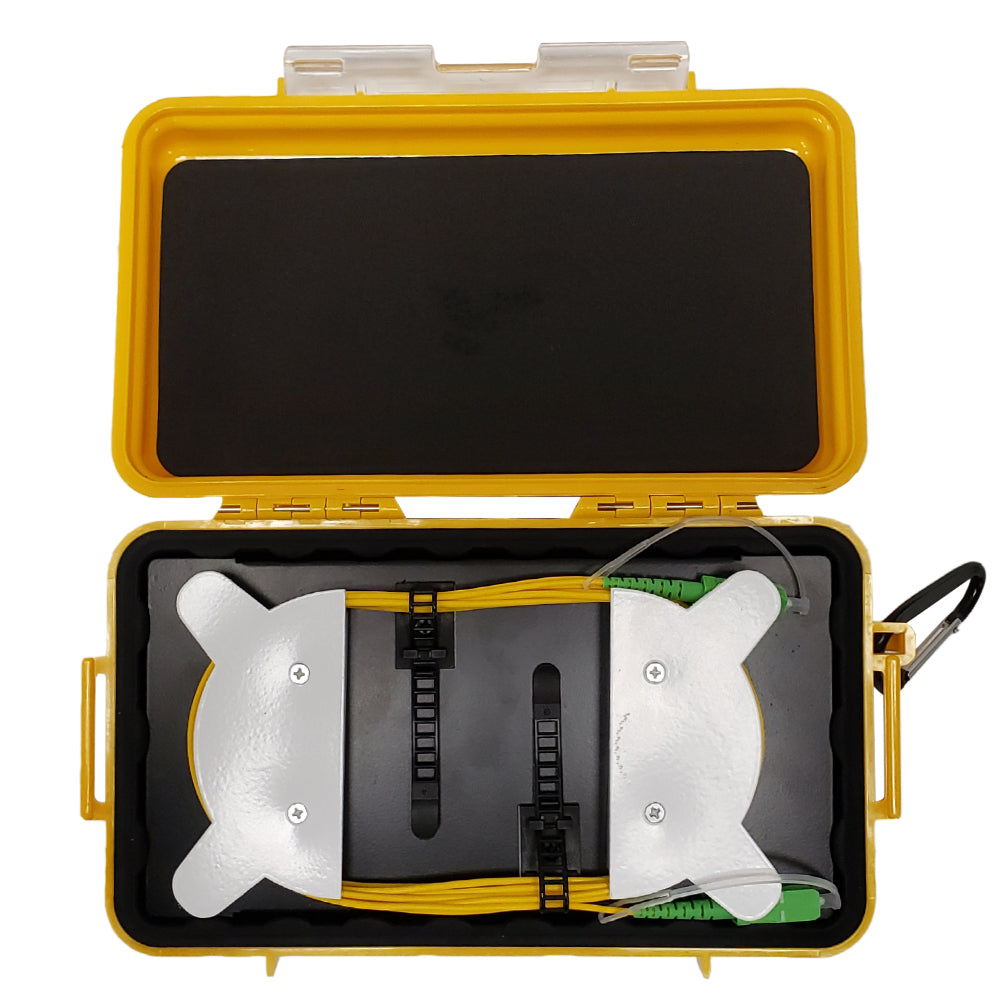

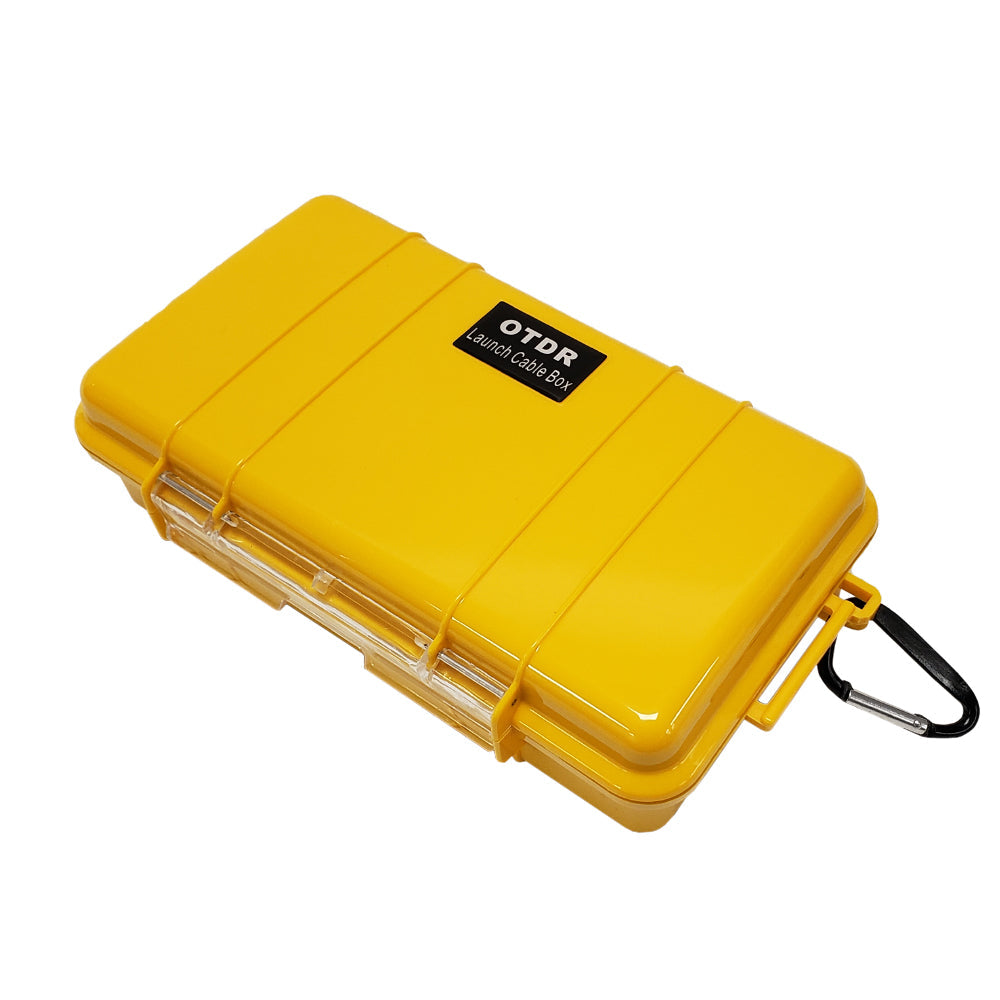

This launch box holds a coil of terminated fiber cable which is placed in a hard case. It is typically used for installation between an OTDR tester and a fiber line for testing, training and calibration.

Robust Metal Retractor

The robust metal retractor makes the launch box easy to carry.

Auto Purge Valve

The auto purge valve regulates the pressure automatically.

Built-in Cable Management

The built-in cable management helps reduce cable stress and saves space.

Features

Physical Characteristics
Box Color Yellow
Box Size 23.8 x 14.1 x 6.7 cm
Fiber Types Singlemode 9/125um G.657A2
Insertion Loss ≤0.3dB (Singlemode)
Return Loss UPC≥50dB
APC≥60dB
Connectors
Connector A Connector B
LC-UPC Simplex Male LC-UPC Simplex Male
LC-UPC Simplex Male SC-UPC Simplex Male
LC-UPC Simplex Male SC-APC Simplex Male
SC-UPC Simplex Male SC-UPC Simplex Male
SC-UPC Simplex Male SC-APC Simplex Male
SC-APC Simplex Male SC-APC Simplex Male
Packaging Information
Package Quantity 1
Product Weight 1.5 lbs [0.68kg]
SKU Options Weight
FO-OTDR609-SCA-1000M LC-UPC / SC-APC / 1km 1.5 lb
FO-OTDR609-SCA-150M LC-UPC / SC-APC / 150m 1.5 lb
FO-OTDR609-SCA-500M LC-UPC / SC-APC / 500m 1.5 lb
FO-OTDR604-SCA2-1000M SC-APC / SC-APC / 1km 1.5 lb
FO-OTDR604-SCA2-150M SC-APC / SC-APC / 150m 1.5 lb
FO-OTDR604-SCA2-500M SC-APC / SC-APC / 500m 1.5 lb
FO-OTDR604-SCA-1000M SC-UPC / SC-APC / 1km 1.5 lb
FO-OTDR604-SCA-150M SC-UPC / SC-APC / 150m 1.5 lb
FO-OTDR604-SCA-500M SC-UPC / SC-APC / 500m 1.5 lb
FO-OTDR608-1000M LC-UPC / LC-UPC / 1km 1.5 lb
FO-OTDR608-150M LC-UPC / LC-UPC / 150m 1.5 lb
FO-OTDR608-500M LC-UPC / LC-UPC / 500m 1.5 lb
FO-OTDR609-1000M LC-UPC / SC-UPC / 1km 1.5 lb
FO-OTDR609-150M LC-UPC / SC-UPC / 150m 1.5 lb
FO-OTDR609-500M LC-UPC / SC-UPC / 500m 1.5 lb
FO-OTDR604-1000M SC-UPC / SC-UPC / 1km 1.5 lb
FO-OTDR604-150M SC-UPC / SC-UPC / 150m 1.5 lb
FO-OTDR604-500M SC-UPC / SC-UPC / 500m 1.5 lb
