Description

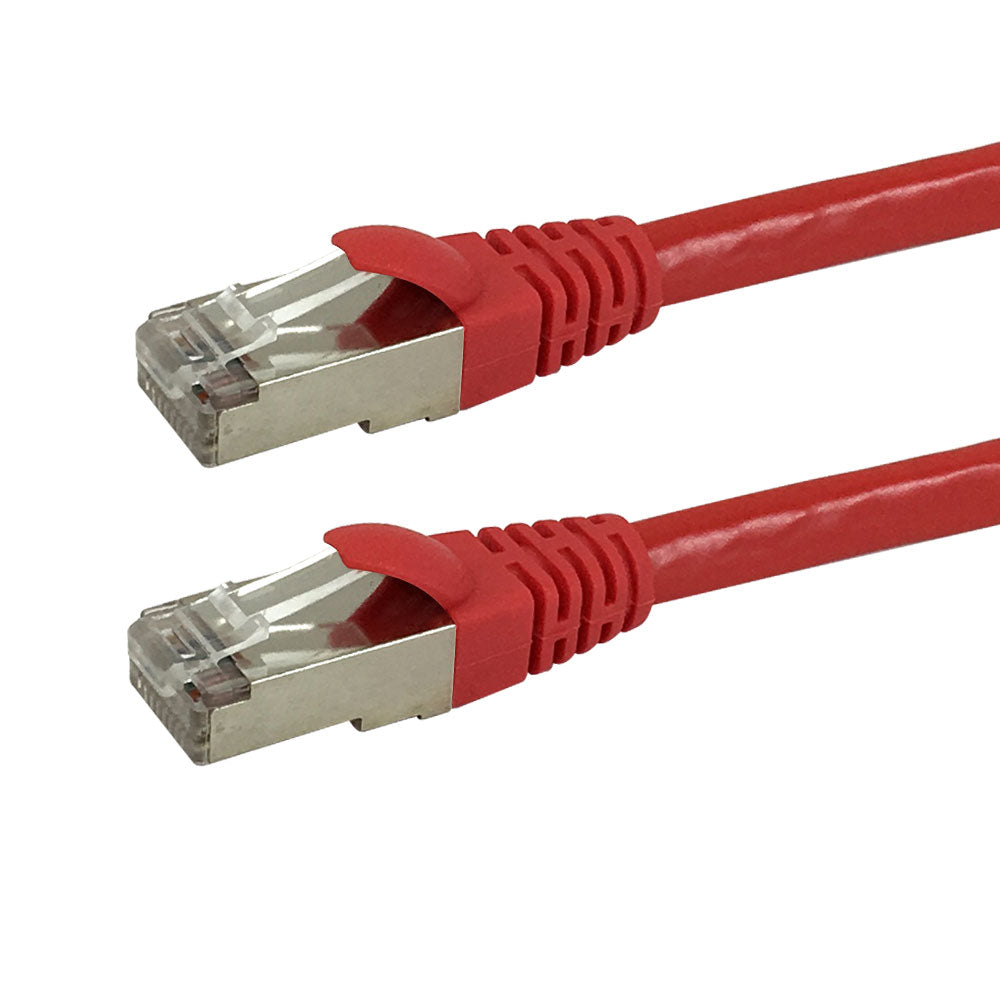

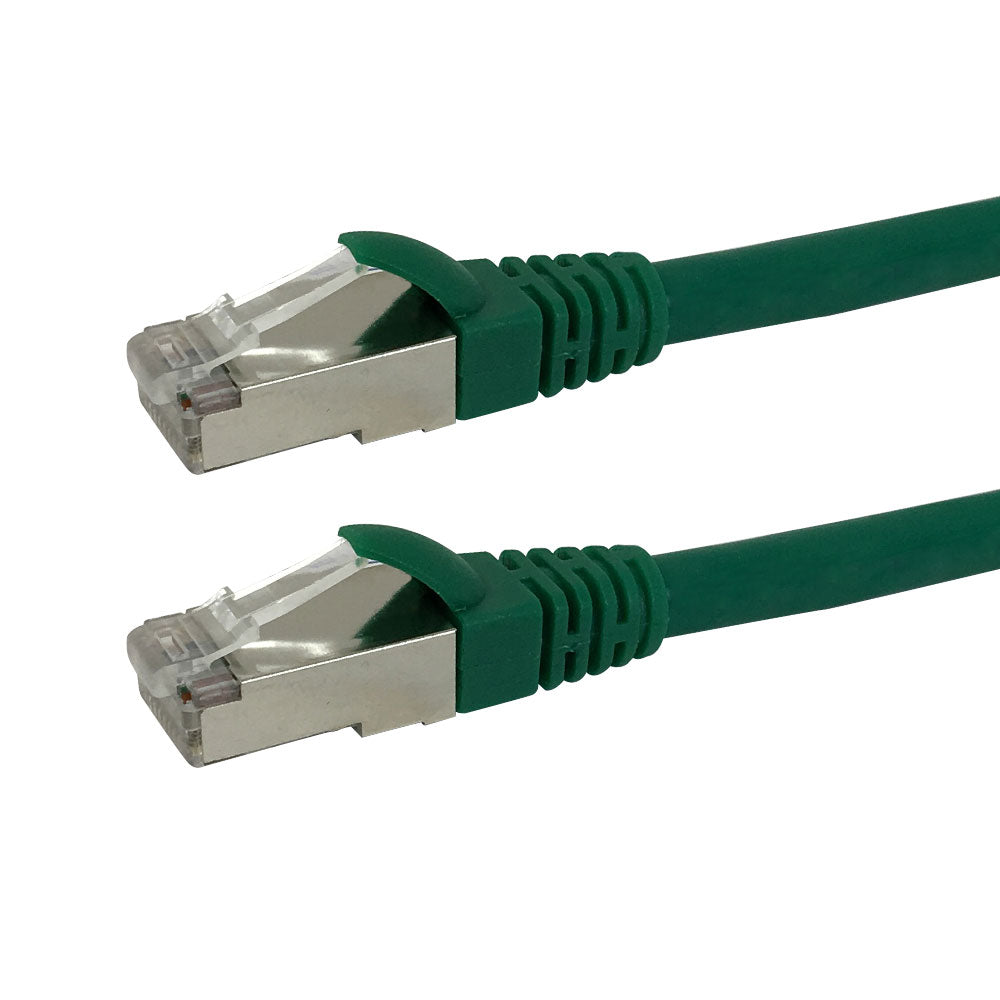

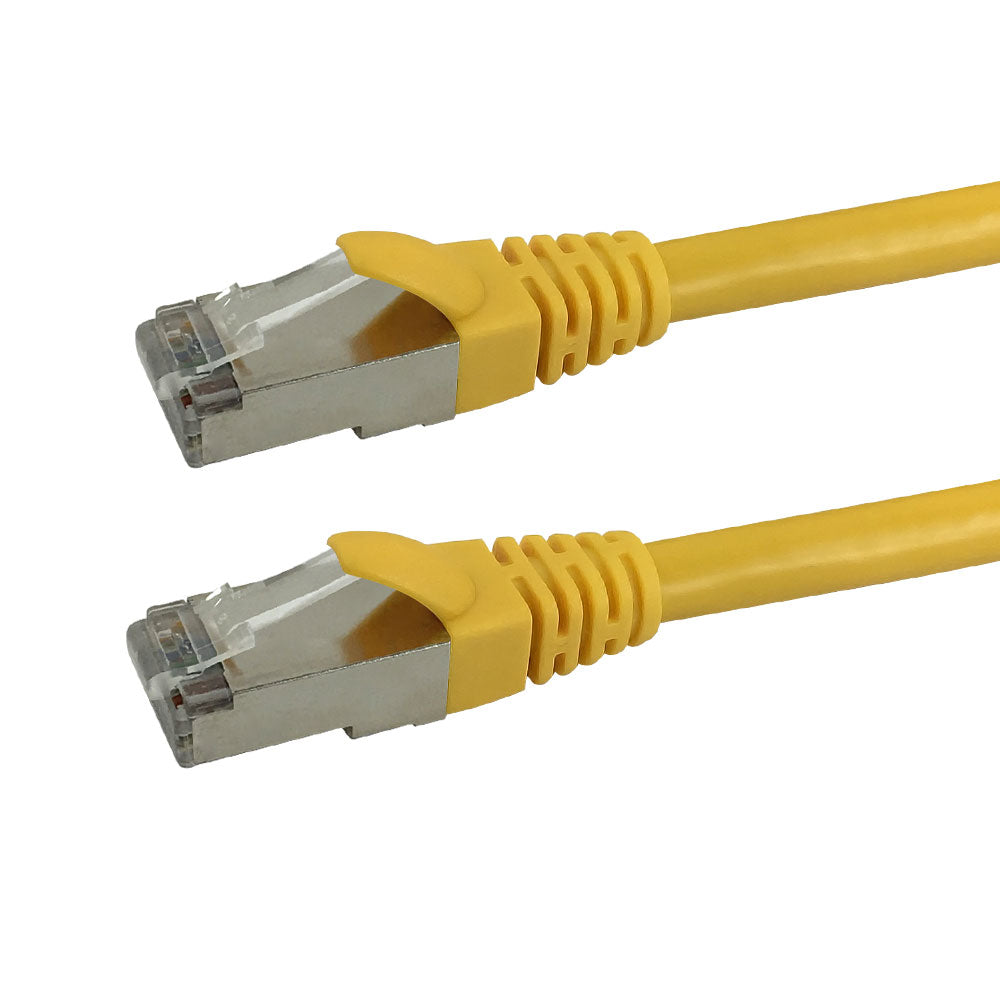

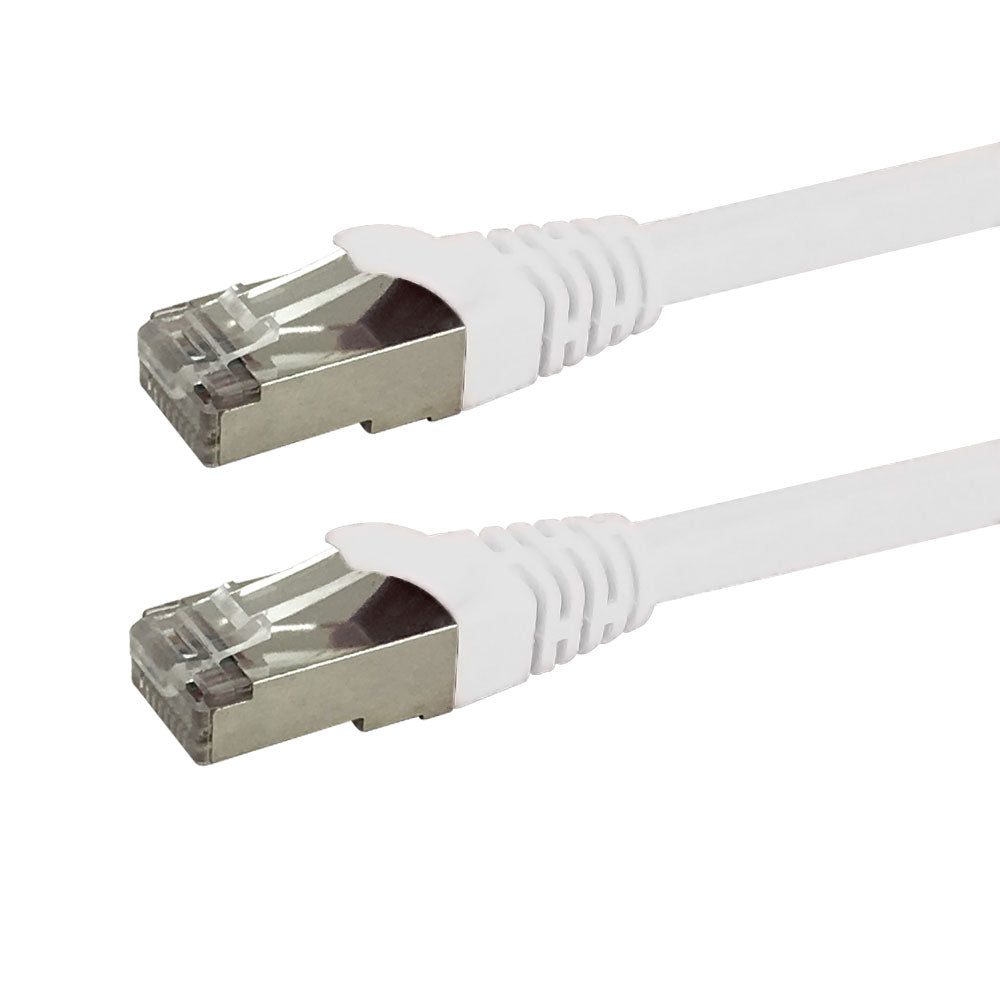

This custom Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
| Physical Characteristics | |
|---|---|
| Colors Available | Blue/Green/Grey/Red/White/Yellow |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 5.5mm |
| Wire Gauge | 24AWG Solid |
| Shielding | F/UTP (100% Overall Mylar Foil Shielded Pairs) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Temperature Rating | 75 Deg C |
| Jacket Type | PVC |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Frequency | 350 MHz |
| Approvals | |
| c(UL)us | Compliant - Cable |
| ETL Verified | Compliant |
| ANSI/TIA - 568 - C.2 | Compliant |
| ISO/IEC 11801 | Compliant |
| EN 50173-1 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| CAT5ES-0.8BL | 8 inch / Blue | 0.05 lb |
| CAT5ES-0.8GN | 8 inch / Green | 0.05 lb |
| CAT5ES-0.8GY | 8 inch / Grey | 0.05 lb |
| CAT5ES-0.8RD | 8 inch / Red | 0.05 lb |
| CAT5ES-0.8WH | 8 inch / White | 0.05 lb |
| CAT5ES-0.8YL | 8 inch / Yellow | 0.05 lb |
| CAT5ES-01BL | 1ft / Blue | 0.07 lb |
| CAT5ES-02BL | 2ft / Blue | 0.1 lb |
| CAT5ES-03BL | 3ft / Blue | 0.15 lb |
| CAT5ES-04BL | 4ft / Blue | 0.17 lb |
| CAT5ES-05BL | 5ft / Blue | 0.2 lb |
| CAT5ES-06BL | 6ft / Blue | 0.21 lb |
| CAT5ES-07BL | 7ft / Blue | 0.24 lb |
| CAT5ES-08BL | 8ft / Blue | 0.26 lb |
| CAT5ES-09BL | 9ft / Blue | 0.24 lb |
| CAT5ES-10BL | 10ft / Blue | 0.33 lb |
| CAT5ES-11BL | 11ft / Blue | 0.32 lb |
| CAT5ES-12BL | 12ft / Blue | 0.38 lb |
| CAT5ES-13BL | 13ft / Blue | 0.44 lb |
| CAT5ES-14BL | 14ft / Blue | 0.46 lb |
| CAT5ES-15BL | 15ft / Blue | 0.5 lb |
| CAT5ES-16BL | 16ft / Blue | 0.57 lb |
| CAT5ES-17BL | 17ft / Blue | 0.64 lb |
| CAT5ES-18BL | 18ft / Blue | 0.71 lb |
| CAT5ES-19BL | 19ft / Blue | 0.78 lb |
| CAT5ES-20BL | 20ft / Blue | 0.63 lb |
| CAT5ES-21BL | 21ft / Blue | 0.7 lb |
| CAT5ES-22BL | 22ft / Blue | 0.71 lb |
| CAT5ES-23BL | 23ft / Blue | 0.72 lb |
| CAT5ES-24BL | 24ft / Blue | 0.74 lb |
| CAT5ES-25BL | 25ft / Blue | 0.77 lb |
| CAT5ES-30BL | 30ft / Blue | 0.95 lb |
| CAT5ES-35BL | 35ft / Blue | 1.1 lb |
| CAT5ES-40BL | 40ft / Blue | 1.33 lb |
| CAT5ES-45BL | 45ft / Blue | 1.4 lb |
| CAT5ES-50BL | 50ft / Blue | 1.55 lb |
| CAT5ES-75BL | 75ft / Blue | 2.26 lb |
| CAT5ES-100BL | 100ft / Blue | 3.0 lb |
| CAT5ES-125BL | 125ft / Blue | 5.0 lb |
| CAT5ES-150BL | 150ft / Blue | 6.2 lb |
| CAT5ES-01GN | 1ft / Green | 0.07 lb |
| CAT5ES-02GN | 2ft / Green | 0.1 lb |
| CAT5ES-03GN | 3ft / Green | 0.15 lb |
| CAT5ES-04GN | 4ft / Green | 0.17 lb |
| CAT5ES-05GN | 5ft / Green | 0.2 lb |
| CAT5ES-06GN | 6ft / Green | 0.21 lb |
| CAT5ES-07GN | 7ft / Green | 0.24 lb |
| CAT5ES-08GN | 8ft / Green | 0.26 lb |
| CAT5ES-09GN | 9ft / Green | 0.24 lb |
| CAT5ES-10GN | 10ft / Green | 0.33 lb |
| CAT5ES-11GN | 11ft / Green | 0.32 lb |
| CAT5ES-12GN | 12ft / Green | 0.38 lb |
| CAT5ES-13GN | 13ft / Green | 0.44 lb |
| CAT5ES-14GN | 14ft / Green | 0.46 lb |
| CAT5ES-15GN | 15ft / Green | 0.5 lb |
| CAT5ES-16GN | 16ft / Green | 0.57 lb |
| CAT5ES-17GN | 17ft / Green | 0.64 lb |
| CAT5ES-18GN | 18ft / Green | 0.71 lb |
| CAT5ES-19GN | 19ft / Green | 0.78 lb |
| CAT5ES-20GN | 20ft / Green | 0.63 lb |
| CAT5ES-21GN | 21ft / Green | 0.7 lb |
| CAT5ES-22GN | 22ft / Green | 0.71 lb |
| CAT5ES-23GN | 23ft / Green | 0.72 lb |
| CAT5ES-24GN | 24ft / Green | 0.74 lb |
| CAT5ES-25GN | 25ft / Green | 0.77 lb |
| CAT5ES-30GN | 30ft / Green | 0.95 lb |
| CAT5ES-35GN | 35ft / Green | 1.1 lb |
| CAT5ES-40GN | 40ft / Green | 1.33 lb |
| CAT5ES-45GN | 45ft / Green | 1.4 lb |
| CAT5ES-50GN | 50ft / Green | 1.55 lb |
| CAT5ES-75GN | 75ft / Green | 2.26 lb |
| CAT5ES-100GN | 100ft / Green | 3.0 lb |
| CAT5ES-125GN | 125ft / Green | 5.0 lb |
| CAT5ES-150GN | 150ft / Green | 6.2 lb |
| CAT5ES-01GY | 1ft / Grey | 0.07 lb |
| CAT5ES-02GY | 2ft / Grey | 0.1 lb |
| CAT5ES-03GY | 3ft / Grey | 0.15 lb |
| CAT5ES-04GY | 4ft / Grey | 0.17 lb |
| CAT5ES-05GY | 5ft / Grey | 0.2 lb |
| CAT5ES-06GY | 6ft / Grey | 0.21 lb |
| CAT5ES-07GY | 7ft / Grey | 0.24 lb |
| CAT5ES-08GY | 8ft / Grey | 0.26 lb |
| CAT5ES-09GY | 9ft / Grey | 0.24 lb |
| CAT5ES-10GY | 10ft / Grey | 0.33 lb |
| CAT5ES-11GY | 11ft / Grey | 0.32 lb |
| CAT5ES-12GY | 12ft / Grey | 0.38 lb |
| CAT5ES-13GY | 13ft / Grey | 0.44 lb |
| CAT5ES-14GY | 14ft / Grey | 0.46 lb |
| CAT5ES-15GY | 15ft / Grey | 0.5 lb |
| CAT5ES-16GY | 16ft / Grey | 0.57 lb |
| CAT5ES-17GY | 17ft / Grey | 0.64 lb |
| CAT5ES-18GY | 18ft / Grey | 0.71 lb |
| CAT5ES-19GY | 19ft / Grey | 0.78 lb |
| CAT5ES-20GY | 20ft / Grey | 0.63 lb |
| CAT5ES-21GY | 21ft / Grey | 0.7 lb |
| CAT5ES-22GY | 22ft / Grey | 0.71 lb |
| CAT5ES-23GY | 23ft / Grey | 0.72 lb |
| CAT5ES-24GY | 24ft / Grey | 0.74 lb |
| CAT5ES-25GY | 25ft / Grey | 0.77 lb |
| CAT5ES-30GY | 30ft / Grey | 0.95 lb |
| CAT5ES-35GY | 35ft / Grey | 1.1 lb |
| CAT5ES-40GY | 40ft / Grey | 1.33 lb |
| CAT5ES-45GY | 45ft / Grey | 1.4 lb |
| CAT5ES-50GY | 50ft / Grey | 1.55 lb |
| CAT5ES-75GY | 75ft / Grey | 2.26 lb |
| CAT5ES-100GY | 100ft / Grey | 3.0 lb |
| CAT5ES-125GY | 125ft / Grey | 5.0 lb |
| CAT5ES-150GY | 150ft / Grey | 6.2 lb |
| CAT5ES-01RD | 1ft / Red | 0.07 lb |
| CAT5ES-02RD | 2ft / Red | 0.1 lb |
| CAT5ES-03RD | 3ft / Red | 0.15 lb |
| CAT5ES-04RD | 4ft / Red | 0.17 lb |
| CAT5ES-05RD | 5ft / Red | 0.2 lb |
| CAT5ES-06RD | 6ft / Red | 0.21 lb |
| CAT5ES-07RD | 7ft / Red | 0.24 lb |
| CAT5ES-08RD | 8ft / Red | 0.26 lb |
| CAT5ES-09RD | 9ft / Red | 0.24 lb |
| CAT5ES-10RD | 10ft / Red | 0.33 lb |
| CAT5ES-11RD | 11ft / Red | 0.32 lb |
| CAT5ES-12RD | 12ft / Red | 0.38 lb |
| CAT5ES-13RD | 13ft / Red | 0.44 lb |
| CAT5ES-14RD | 14ft / Red | 0.46 lb |
| CAT5ES-15RD | 15ft / Red | 0.5 lb |
| CAT5ES-16RD | 16ft / Red | 0.57 lb |
| CAT5ES-17RD | 17ft / Red | 0.64 lb |
| CAT5ES-18RD | 18ft / Red | 0.71 lb |
| CAT5ES-19RD | 19ft / Red | 0.78 lb |
| CAT5ES-20RD | 20ft / Red | 0.63 lb |
| CAT5ES-21RD | 21ft / Red | 0.7 lb |
| CAT5ES-22RD | 22ft / Red | 0.71 lb |
| CAT5ES-23RD | 23ft / Red | 0.72 lb |
| CAT5ES-24RD | 24ft / Red | 0.74 lb |
| CAT5ES-25RD | 25ft / Red | 0.77 lb |
| CAT5ES-30RD | 30ft / Red | 0.95 lb |
| CAT5ES-35RD | 35ft / Red | 1.1 lb |
| CAT5ES-40RD | 40ft / Red | 1.33 lb |
| CAT5ES-45RD | 45ft / Red | 1.4 lb |
| CAT5ES-50RD | 50ft / Red | 1.55 lb |
| CAT5ES-75RD | 75ft / Red | 2.26 lb |
| CAT5ES-100RD | 100ft / Red | 3.0 lb |
| CAT5ES-125RD | 125ft / Red | 5.0 lb |
| CAT5ES-150RD | 150ft / Red | 6.2 lb |
| CAT5ES-01WH | 1ft / White | 0.07 lb |
| CAT5ES-02WH | 2ft / White | 0.1 lb |
| CAT5ES-03WH | 3ft / White | 0.15 lb |
| CAT5ES-04WH | 4ft / White | 0.17 lb |
| CAT5ES-05WH | 5ft / White | 0.2 lb |
| CAT5ES-06WH | 6ft / White | 0.21 lb |
| CAT5ES-07WH | 7ft / White | 0.24 lb |
| CAT5ES-08WH | 8ft / White | 0.26 lb |
| CAT5ES-09WH | 9ft / White | 0.24 lb |
| CAT5ES-10WH | 10ft / White | 0.33 lb |
| CAT5ES-11WH | 11ft / White | 0.32 lb |
| CAT5ES-12WH | 12ft / White | 0.38 lb |
| CAT5ES-13WH | 13ft / White | 0.44 lb |
| CAT5ES-14WH | 14ft / White | 0.46 lb |
| CAT5ES-15WH | 15ft / White | 0.5 lb |
| CAT5ES-16WH | 16ft / White | 0.57 lb |
| CAT5ES-17WH | 17ft / White | 0.64 lb |
| CAT5ES-18WH | 18ft / White | 0.71 lb |
| CAT5ES-19WH | 19ft / White | 0.78 lb |
| CAT5ES-20WH | 20ft / White | 0.63 lb |
| CAT5ES-21WH | 21ft / White | 0.7 lb |
| CAT5ES-22WH | 22ft / White | 0.71 lb |
| CAT5ES-23WH | 23ft / White | 0.72 lb |
| CAT5ES-24WH | 24ft / White | 0.74 lb |
| CAT5ES-25WH | 25ft / White | 0.77 lb |
| CAT5ES-30WH | 30ft / White | 0.95 lb |
| CAT5ES-35WH | 35ft / White | 1.1 lb |
| CAT5ES-40WH | 40ft / White | 1.33 lb |
| CAT5ES-45WH | 45ft / White | 1.4 lb |
| CAT5ES-50WH | 50ft / White | 1.55 lb |
| CAT5ES-75WH | 75ft / White | 2.26 lb |
| CAT5ES-100WH | 100ft / White | 3.0 lb |
| CAT5ES-125WH | 125ft / White | 5.0 lb |
| CAT5ES-150WH | 150ft / White | 6.2 lb |
| CAT5ES-01YL | 1ft / Yellow | 0.07 lb |
| CAT5ES-02YL | 2ft / Yellow | 0.1 lb |
| CAT5ES-03YL | 3ft / Yellow | 0.15 lb |
| CAT5ES-04YL | 4ft / Yellow | 0.17 lb |
| CAT5ES-05YL | 5ft / Yellow | 0.2 lb |
| CAT5ES-06YL | 6ft / Yellow | 0.21 lb |
| CAT5ES-07YL | 7ft / Yellow | 0.24 lb |
| CAT5ES-08YL | 8ft / Yellow | 0.26 lb |
| CAT5ES-09YL | 9ft / Yellow | 0.24 lb |
| CAT5ES-10YL | 10ft / Yellow | 0.33 lb |
| CAT5ES-11YL | 11ft / Yellow | 0.32 lb |
| CAT5ES-12YL | 12ft / Yellow | 0.38 lb |
| CAT5ES-13YL | 13ft / Yellow | 0.44 lb |
| CAT5ES-14YL | 14ft / Yellow | 0.46 lb |
| CAT5ES-15YL | 15ft / Yellow | 0.5 lb |
| CAT5ES-16YL | 16ft / Yellow | 0.57 lb |
| CAT5ES-17YL | 17ft / Yellow | 0.64 lb |
| CAT5ES-18YL | 18ft / Yellow | 0.71 lb |
| CAT5ES-19YL | 19ft / Yellow | 0.78 lb |
| CAT5ES-20YL | 20ft / Yellow | 0.63 lb |
| CAT5ES-21YL | 21ft / Yellow | 0.7 lb |
| CAT5ES-22YL | 22ft / Yellow | 0.71 lb |
| CAT5ES-23YL | 23ft / Yellow | 0.72 lb |
| CAT5ES-24YL | 24ft / Yellow | 0.74 lb |
| CAT5ES-25YL | 25ft / Yellow | 0.77 lb |
| CAT5ES-30YL | 30ft / Yellow | 0.95 lb |
| CAT5ES-35YL | 35ft / Yellow | 1.1 lb |
| CAT5ES-40YL | 40ft / Yellow | 1.33 lb |
| CAT5ES-45YL | 45ft / Yellow | 1.4 lb |
| CAT5ES-50YL | 50ft / Yellow | 1.55 lb |
| CAT5ES-75YL | 75ft / Yellow | 2.26 lb |
| CAT5ES-100YL | 100ft / Yellow | 3.0 lb |
| CAT5ES-125YL | 125ft / Yellow | 5.0 lb |
| CAT5ES-150YL | 150ft / Yellow | 6.2 lb |
