Overview

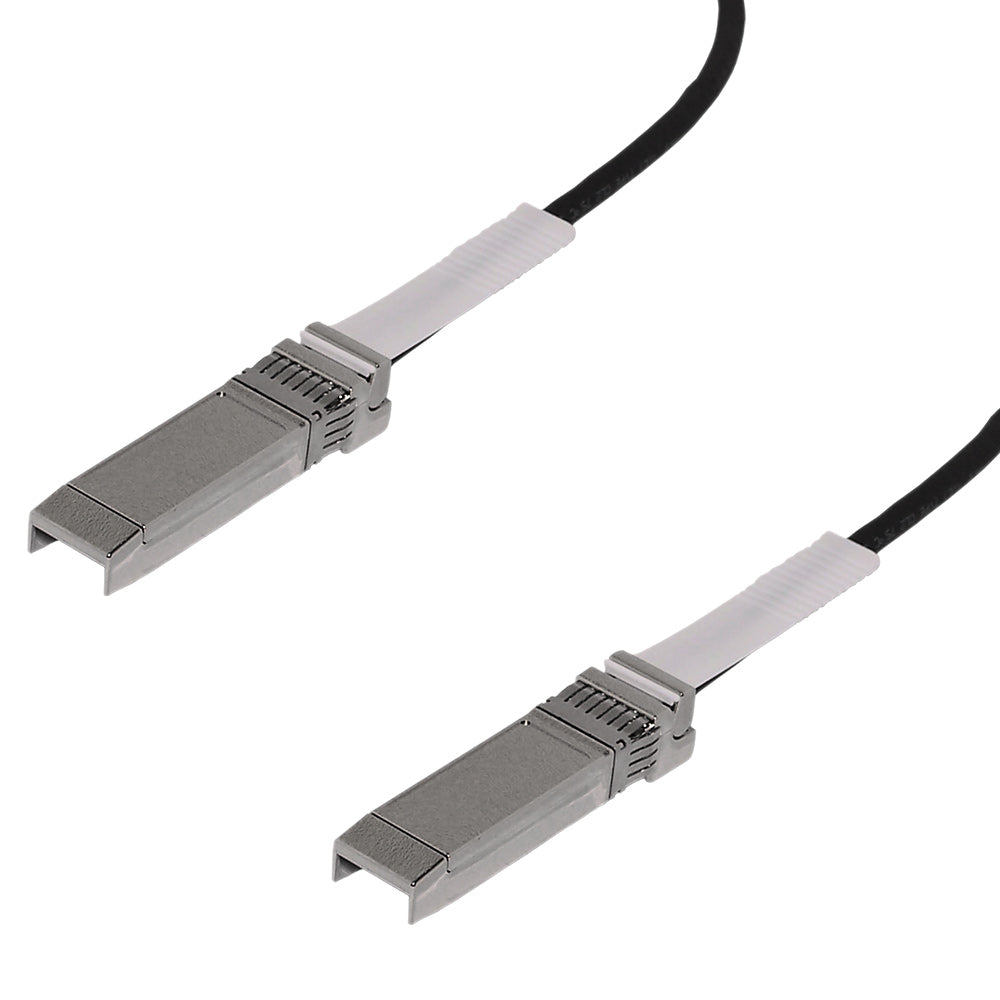

This SFP+ direct attach data storage cable has a SFP+ (SFF-8432) connector on both ends. They are constructed using shielded twin-axial copper cable in varying gauges from 24 to 30AWG. It is typically used to directly attach switches/servers in short distance point to point applications and provide 10 Gigabit Ethernet connectivity between devices with SFP+ interfaces. The cable is also hot-swappable which minimizes network downtimes, making upgrades quick and easy.
Passive cables are much less expensive but require the host to do the work of driving it properly, they have higher reliability and require fewer components (no active Tx /Rx components). Active cables offer the added benefit of being optical-module such as: enhanced signal integrity, transmit pre-emphasis and longer cable lengths.
Compatible Switches
 |
|
|
Application
Example of direct short distance connection between two switches.
Specifications
| Physical Characteristics | |
|---|---|
| Impedance | 100±5 ohm |
| Application | 10Gb Ethernet and Fiber Channel Applications |
| Data Rate Support | 1x, 2x, 4x and 8x Fiber Channel Data Rates |
| Cable Jacket Material | PVC |
| Contact Plating | Gold Plated |
| Connector Material | Zinc Die Cast, Nickel Plated Back Shells |
| Connectors | |
| Connector A | SFP+ (SFF-8432) - (Small Form Factor Pluggable) |
| Connector B | SFP+ (SFF-8432) - (Small Form Factor Pluggable) |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Packaging Quantity | 1 Cable |
| Warranty Information | |
| Warranty | 5 Year Warranty |
| 0.5m | 1m | 2m | 3m | 5m | 7m |
|---|---|---|---|---|---|
| 0.15 lb | 0.35 lbs | 0.50 lbs | 0.65 lbs | 1.20 lbs | 1.40 lbs |
5-YEAR WARRANTY
Infinite Cables Inc. offers a 5-year warranty on SFP+/QSFP+ Cables & Transceivers to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Options | Weight |
| MS-400-0.5M | 0.5m | 0.35 lb |
| MS-400-1M | 1m | 0.5 lb |
| MS-400-2M | 2m | 0.65 lb |
| MS-400-3M | 3m | 1.2 lb |
| MS-400-5M | 5m | 1.4 lb |
| MS-400-7M | 7m | 1.75 lb |
