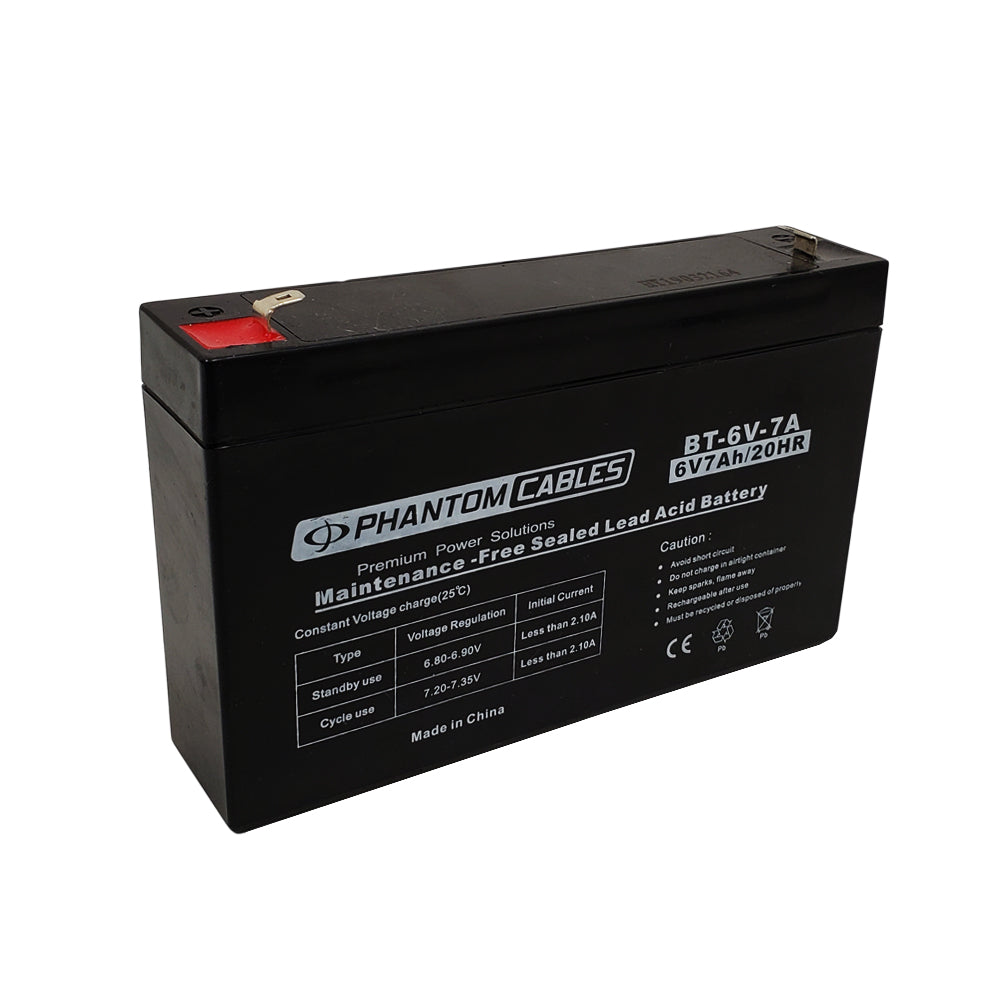

Sealed Lead Acid Battery 6V 7amp x 6

Sealed Lead Acid BatteriesSKU: BT-6V-7A-6PCS

Price:
Sale price$101.70 CAD
Stock:
In stock


Description

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

Application

Specifications

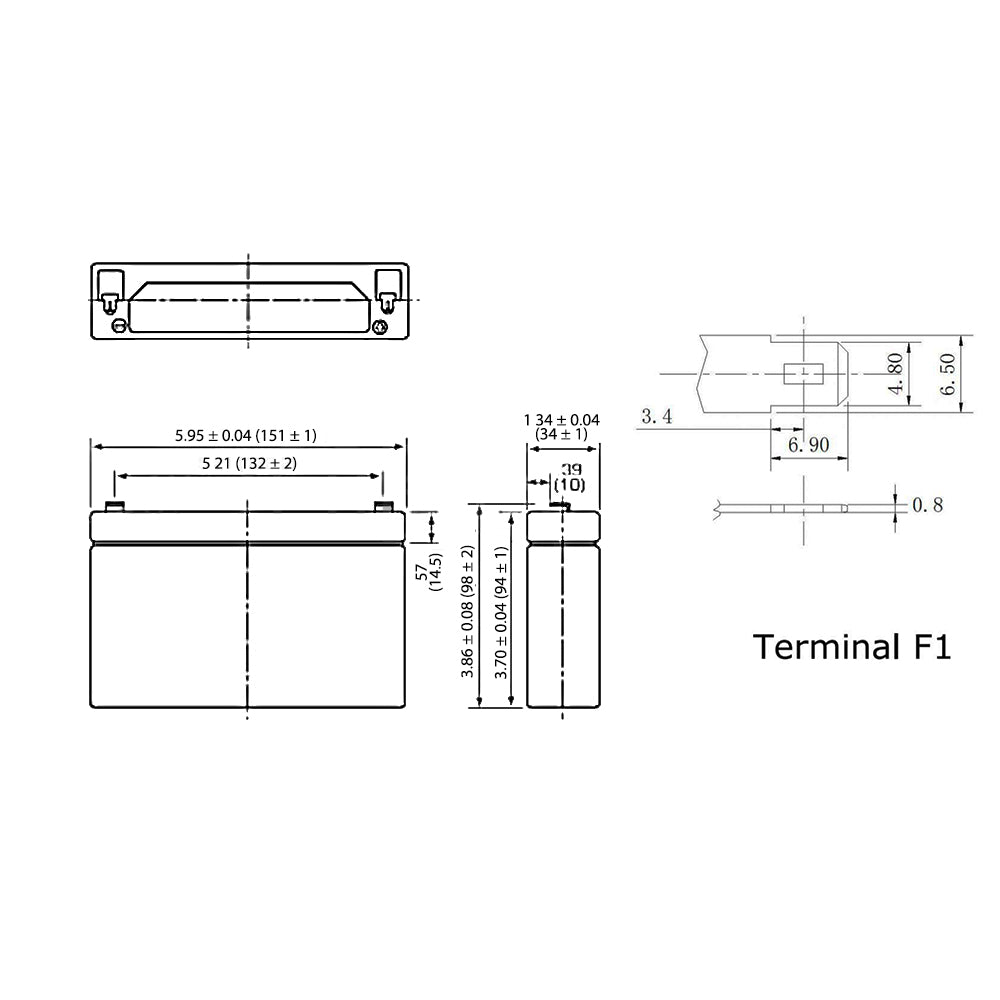

Physical Characteristics
Type 6x UPS Replacement
Voltage 6V
Amps 7A
Terminal Type F1
Tab Size 0.1875 inch
Container Material ABS(UL-94HB)
Length 6 inches [151mm]
Width 1.3 inches [34mm]
Height 3.7 inches [94mm]
Operating Temperature 25±3℃ (77±5℃F )
Performance
Internal Resistance Approx.15m٦
Max. Discharge Current 105A(5S)
Rated Capacity 5.00AH (20hr, 1.75V/cell,25℃/77℃F)
4.72AH (10hr, 1.75V/cell,25℃/77℃F)
4.23AH (5hr, 1.75V/cell,25℃/77℃F)
3.85AH (3hr, 1.75V/cell,25℃/77℃F)
2.89AH (1hr, 1.75V/cell,25℃/77℃F)
Cycle Use Charge Current Less Than 0.25CA
7.05V~7.35V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
6.75V~6.9V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature
40℃ 103%
25℃ 100%
0℃ 86%
-15℃ 65%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:65%
Packaging Information
Product Weight 15.9 lbs [7.2kg]
Packaging Quantity 6 UPS Battery 6V 5amp
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number Powerware UPS 5115-1500RM
SKU Weight
BT-6V-7A-6PCS 15.9 lb
