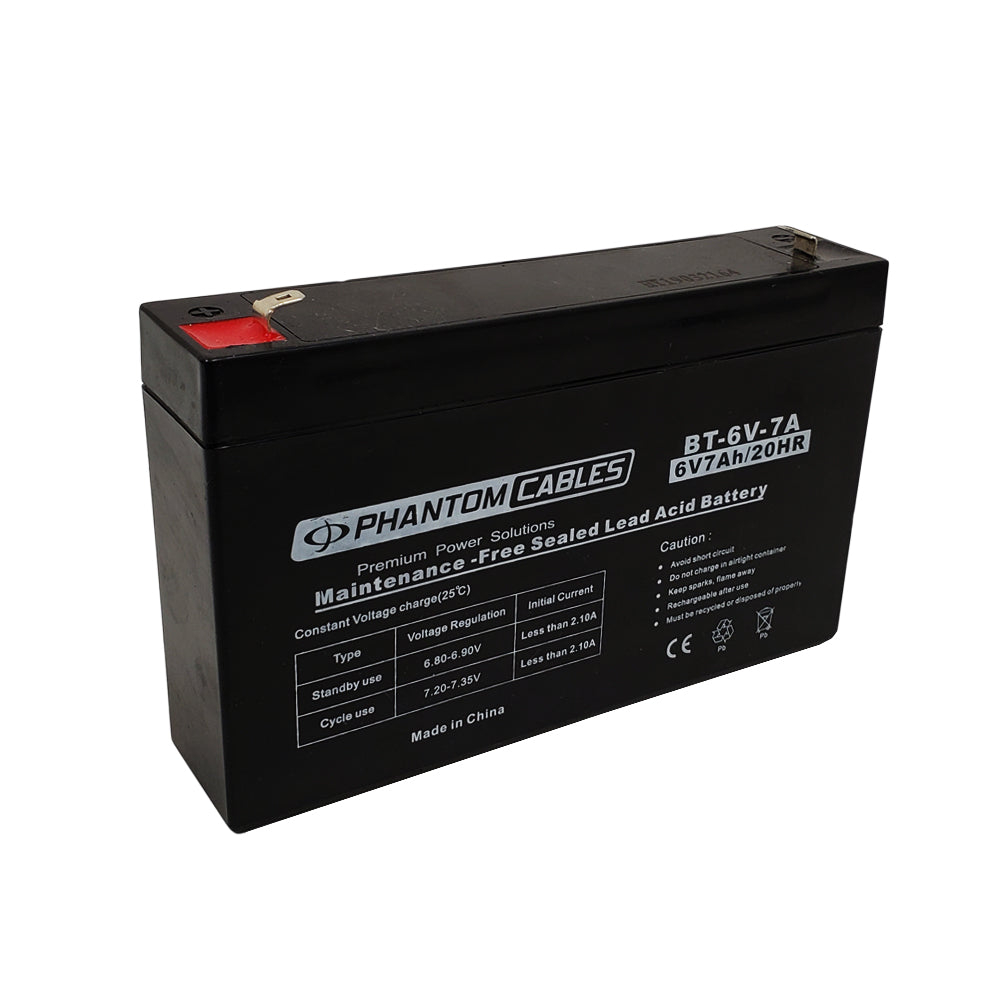

Sealed Lead Acid Battery 6V 7amp


Price:
Sale price$14.80 CAD
Stock:
In stock


Description

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

Application

Specifications

Physical Characteristics
Type UPS Replacement
Voltage 6V
Amps 7A
Terminal Type F1
Tab Size 0.1875 inch
Container Material ABS(UL-94HB)
Length 6 inches [151mm]
Width 1.3 inches [34mm]
Height 3.7 inches [94mm]
Operating Temperature 25±3°C (77±5°F )
Performance
Internal Resistance Approx.15m„¦
Max. Discharge Current 105A(5S)
Rated Capacity 7.00AH (20hr, 1.75V/cell,25°C/77°F)
6.63AH (10hr, 1.75V/cell,25°C/77°F)
5.95AH (5hr, 1.75V/cell,25°C/77°F)
5.4AH (3hr, 1.75V/cell,25°C/77°F)
4.06AH (1hr, 1.75V/cell,25°C/77°F)
Cycle Use Charge Current Less Than 0.25CA
7.05V~7.35V@25°C(77°F)Temp. Coefficient -30mV/°C
Floating Use No limit on Initial Charging Current Voltage
6.75V~6.9V@25°C(77°F)Temp. Coefficient -20mV/°C
Capacity affected by
Temperature
40°C 103%
25°C 100%
0°C 86%
-15°C 65%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:65%
Packaging Information
Product Weight 2.65 lbs [1.2kg]
Warranty Information
Warranty 6 Months
