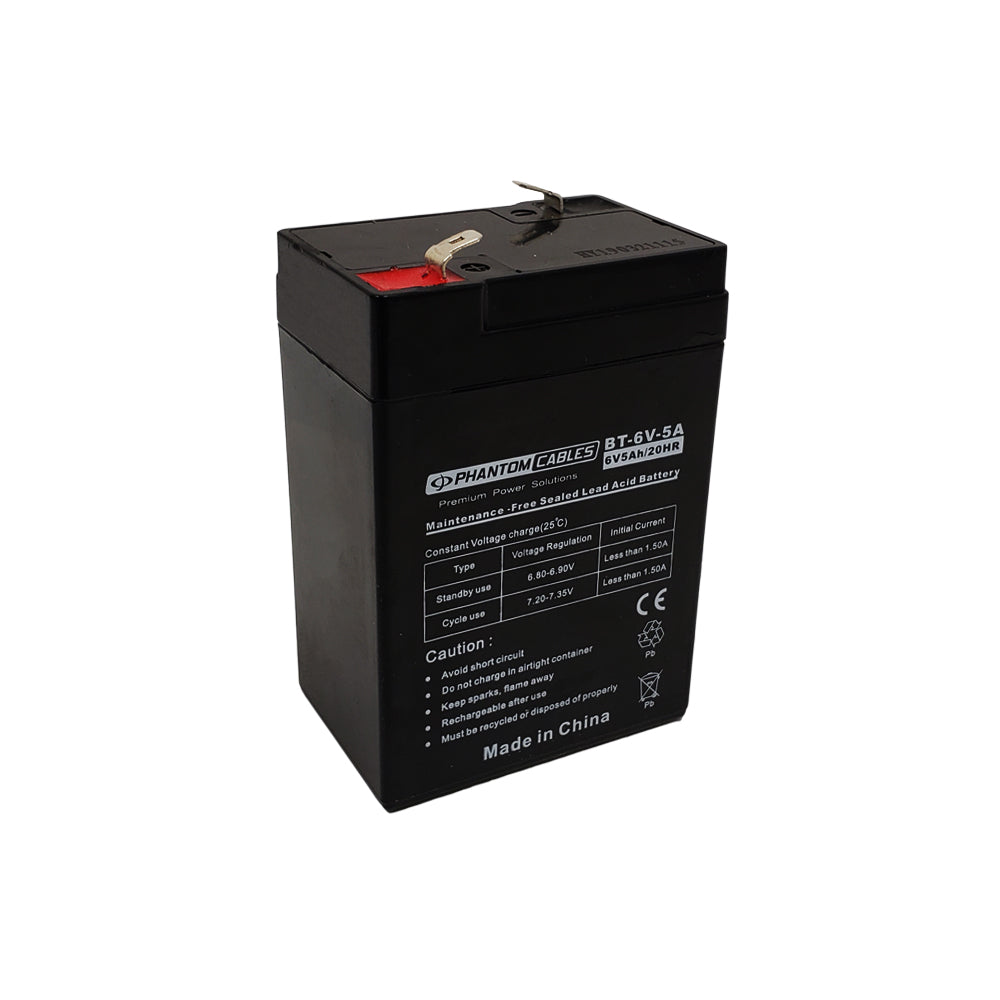

Sealed Lead Acid Battery 6V 5amp x 3

Sealed Lead Acid BatteriesSKU: BT-6V-5A-3PCS

Price:
Sale price$29.25 CAD
Stock:
Sold out


Description

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

Application

Specifications

Physical Characteristics
Type 3x UPS Replacement
Voltage 6V
Amps 5A
Terminal Type F1
Tab Size 0.1875 inch
Container Material ABS(UL-94HB)

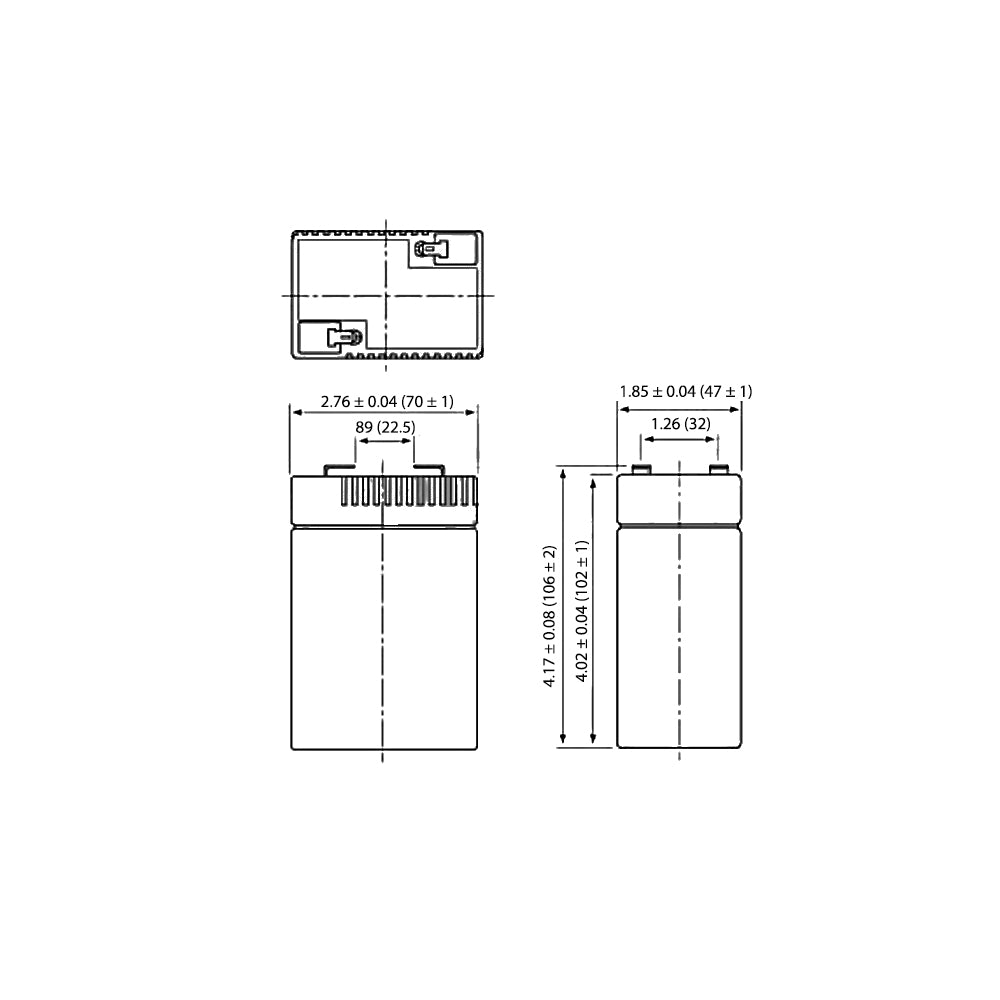

Length 1.85 inches [47mm]
Width 2.8 inches [70mm]
Height 4 inches [102mm]
Operating Temperature 25±3℃ (77±5℃F )
Performance
Internal Resistance Approx.15m٦
Max. Discharge Current 105A(5S)
Rated Capacity 5.00AH (20hr, 1.75V/cell,25℃/77℃F)
4.72AH (10hr, 1.75V/cell,25℃/77℃F)
4.23AH (5hr, 1.75V/cell,25℃/77℃F)
3.85AH (3hr, 1.75V/cell,25℃/77℃F)
2.89AH (1hr, 1.75V/cell,25℃/77℃F)
Cycle Use Charge Current Less Than 0.25CA
7.05V~7.35V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
6.75V~6.9V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature
40℃ 103%
25℃ 100%
0℃ 86%
-15℃ 65%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:65%
Packaging Information
Product Weight 5.7lbs [2.56kg]
Packaging Quantity 3 UPS Battery 6V 5amp
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number APC Smart-UPS SU250
