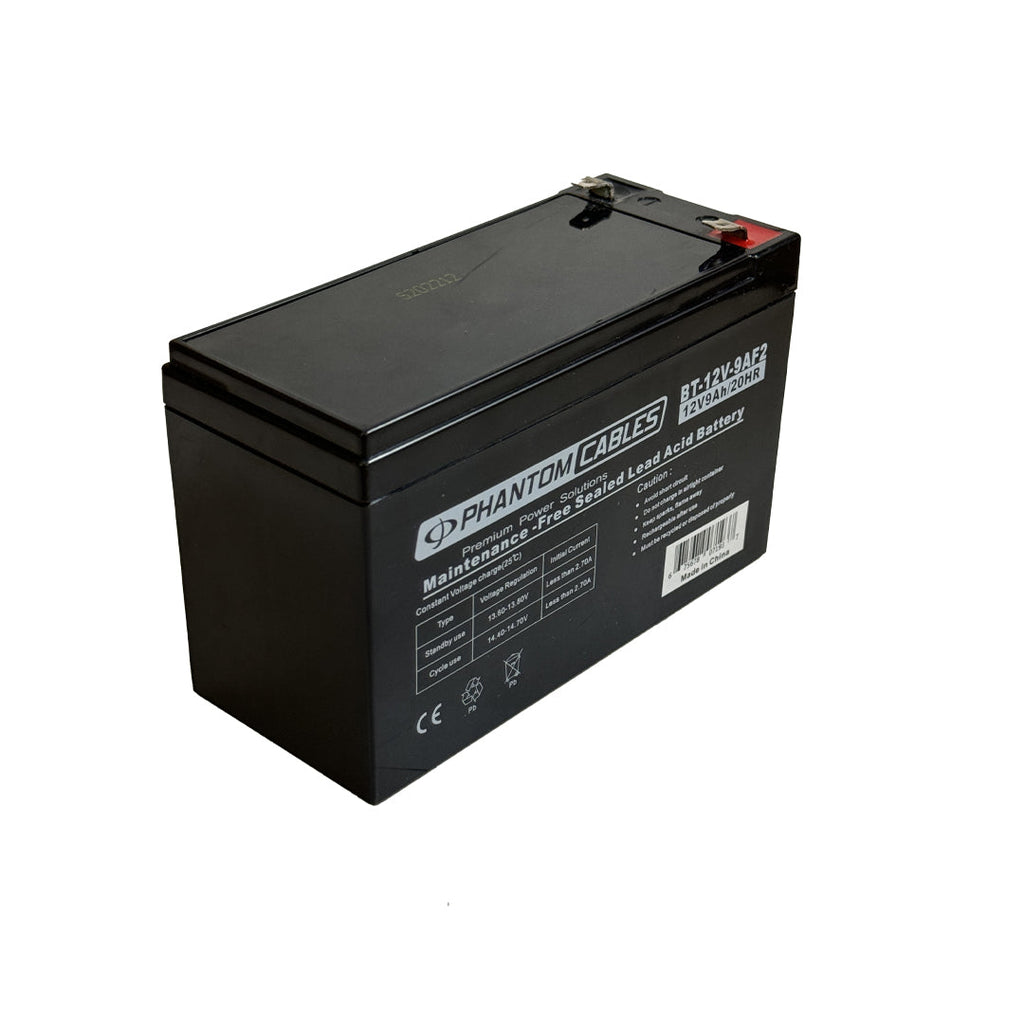

Sealed Lead Acid Battery 12V 9amp x 12

Sealed Lead Acid BatteriesSKU: BT-12V-9A-12PCS

Price:
Sale price$420.60 CAD
Stock:
In stock


Description

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

Application

Specifications

Physical Characteristics
Type 12x UPS Replacement
Voltage 12V
Amps 9A
Terminal Type F2
Tab Size 0.25 inch
Container Material ABS(UL-94HB)

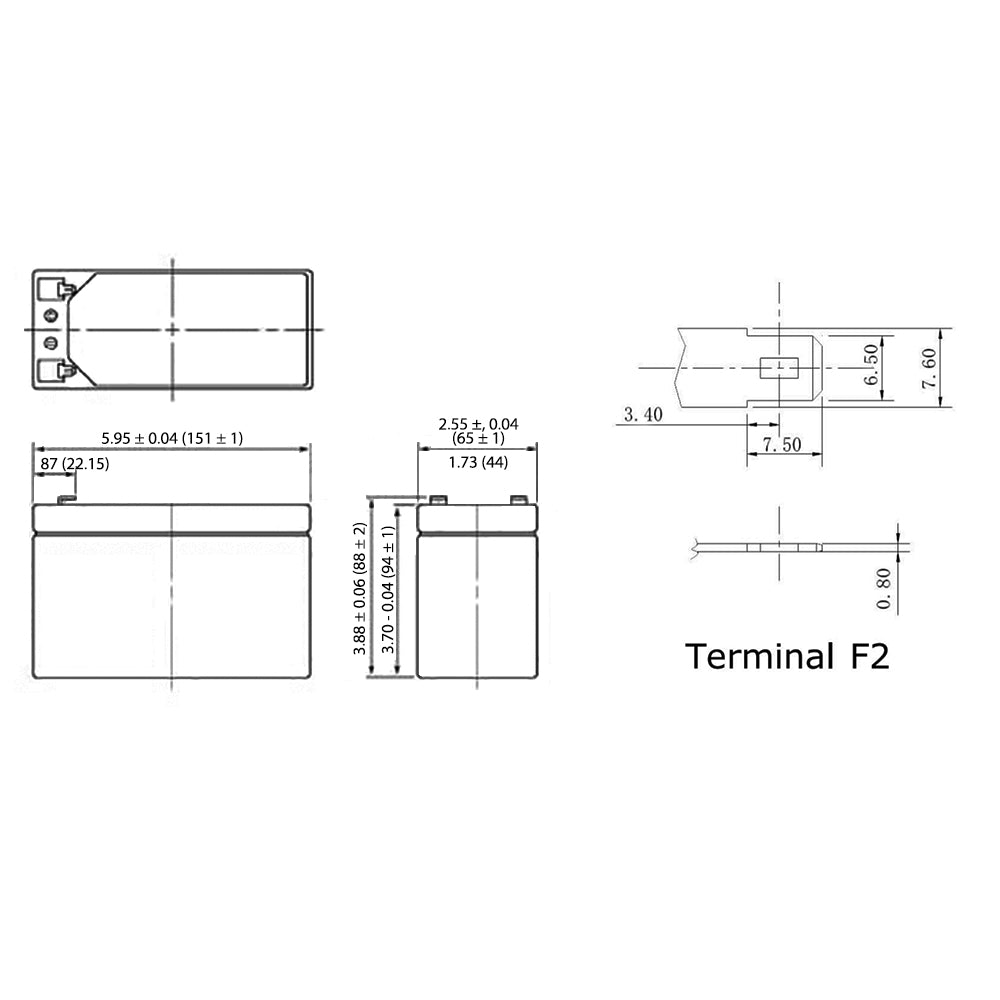

Length 5.94 inches [151mm]
Width 2.56 inches [65mm]
Height 3.70 inches [100mm]
Operating Temperature 25±3℃ (77±5℃F )
Compatible Terminal Adapter
BT-ADT2T1 Battery terminal adapter F2 female (0.25") to F1 male (0.1875")
Performance
Internal Resistance Approx.16mΩ (Full charged Battery at 25℃(77℉))
Max. Discharge Current Current 127.5A(5S)
Rated Capacity 9.00AH (20hr, 1.75V/cell,25℃/77℃F)
8.30AH (10hr, 1.75V/cell,25℃/77℃F)
8.0AH (5hr, 1.75V/cell,25℃/77℃F)

5.85AH (1hr, 1.75V/cell,25℃/77℃F)
Cycle Use Initial Charging Current less than 2.70A
14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature
40℃ 102%
25℃ 100%
0℃ 85%
-15℃ 65%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:64%
Packaging Information
Product Weight 73.8 lbs [33.5kg]
Packaging Quantity 12 UPS Battery 12V 9amp
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number Powerware UPS 9125-EBM72
SKU Weight
BT-12V-9A-12PCS 73.8 lb
