Description

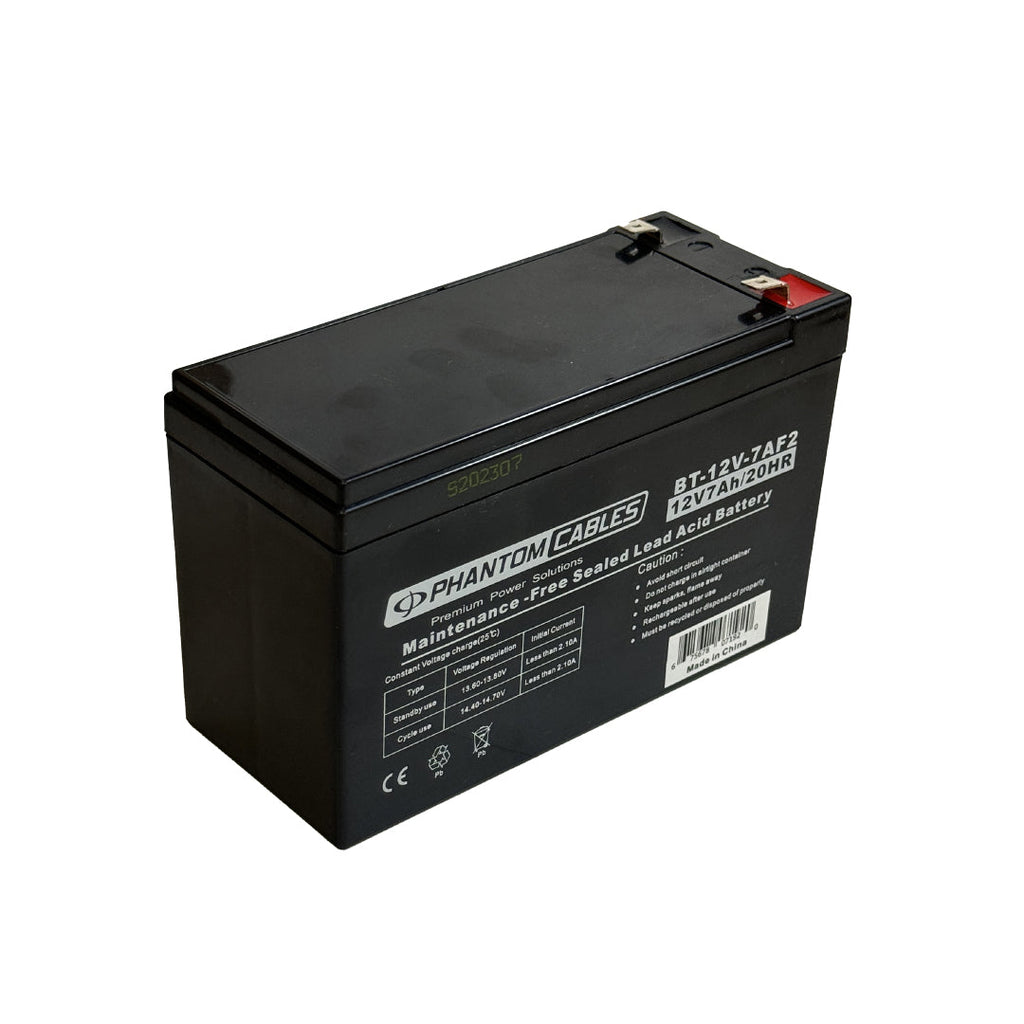

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | 16x UPS Replacement |
| Voltage | 12V |
| Amps | 7A |
| Terminal Type | F2 |
| Tab Size | 0.25 inch |
| Container Material | ABS(UL-94HB) |

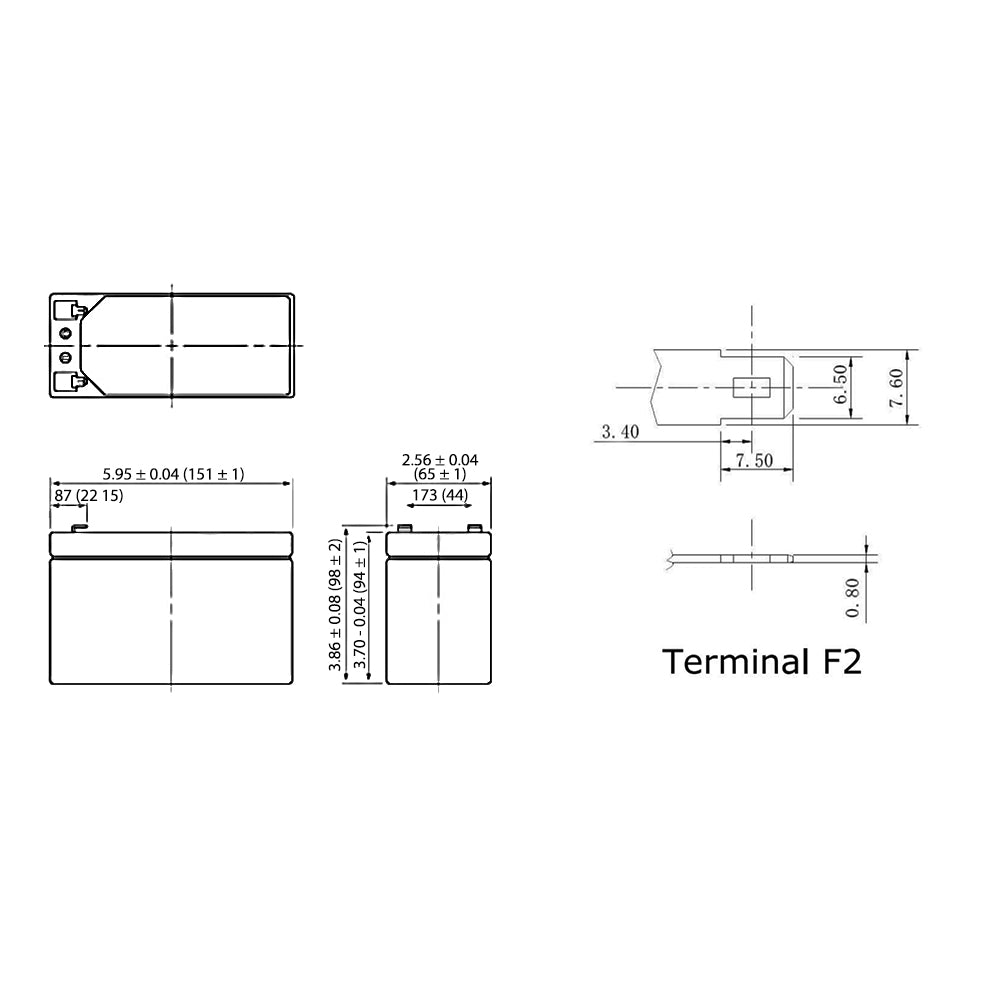

| Length | 2.6 inches [65mm] |
| Width | 6 inches [151mm] |
| Height | 3.7 inches [94mm] |
| Operating Temperature | 25±3℃ (77±5℃F ) |
| Compatible Terminal Adapter | |
| BT-ADT2T1 | Battery terminal adapter F2 female (0.25") to F1 male (0.1875") |
| Performance | |
| Internal Resistance | Approx.20m٦ |
| Max. Discharge Current | 112.5A(5S) |
| Rated Capacity | 7.00AH (20hr, 1.75V/cell,25℃/77℃F) 6.70AH (10hr, 1.75V/cell,25℃/77℃F) 6.27AH (5hr, 1.75V/cell,25℃/77℃F) 5.49AH (3hr, 1.75V/cell,25℃/77℃F) 4.17AH (1hr, 1.75V/cell,25℃/77℃F) |
| Cycle Use | Charge Current Less Than 0.25CA 14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃ |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃ |
| Capacity affected by Temperature | 40℃ 103% 25℃ 100% 0℃ 86% -15℃ 65% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:65% |
| Packaging Information | |
| Product Weight | 87.2 lbs [40kg] |
| Packaging Quantity | 16 UPS Battery 12V 7amp |
| Warranty Information | |
| Warranty | 6 Months |
| Compatibility Information | |
| Model Number | APC Smart-UPS SU5000R5XLTXFMR APC Smart-UPS SU5000RMT5U APC Smart-UPS SU5000RMT5UXFMR APC Smart-UPS SU5000RMXLT5U Powerware UPS 9120-BAT-2000 Powerware UPS 9120-3000 |
