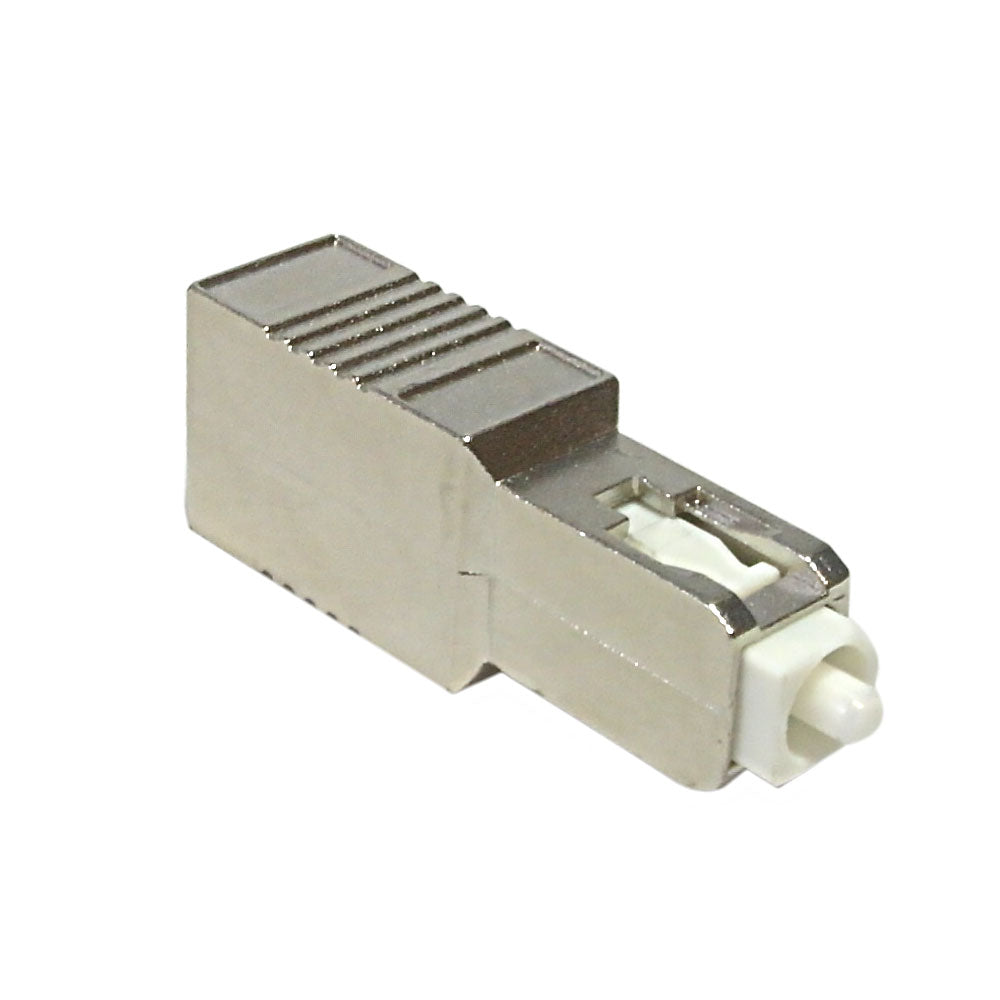

SC/SC Singlemode Fiber optic Attenuator UPC Male/Female

Fiber Optic AttenuatorsSKU: FO-ATSC3-1DB

Attenuation: 1 dB
Price:
Sale price$11.85 CAD
Stock:
In stock


Description

This fixed fiber optic attenuator consists of a SC simplex male on one end and a SC simplex female on the other end. It is typically used to either test power levels or reduce power levels of an optical signal.

Physical Characteristics
Color Nickel Plated
Housing Metal
Sleeve Ceramic
Mounting Style Inline
Mode Singlemode
Operating Temperature -40 deg C to +85 deg C
Connector(s)
Connector A SC/APC Female Simplex
Connector B SC/APC Male Simplex
Performance
Operating Wavelength 1310nm / 1550nm
Return Loss >60dB
Tolerance +/- 0.5dB
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs
SKU Options Weight
FO-ATSC3-1DB 1 dB 0.02 lb
FO-ATSC3-2DB 2 dB 0.02 lb
FO-ATSC3-3DB 3 dB 0.02 lb
FO-ATSC3-4DB 4 dB 0.02 lb
FO-ATSC3-5DB 5 dB 0.02 lb
FO-ATSC3-10DB 10 dB 0.02 lb
FO-ATSC3-12DB 12 dB 0.02 lb
FO-ATSC3-15DB 15 dB 0.02 lb
FO-ATSC3-20DB 20 dB 0.02 lb
