RJ45 to Blunt Cat6 Solid UTP Outdoor UV Direct Burial Pigtail Cable - Black

CAT6 Patch CablesSKU: CAT6OPT-15BKA

Length: 15ft
Color Coding: 568A
Price:
Sale price$8.40 CAD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities ship out same day or next day. Contact us for details: sales@infinitecables.com



Description

Overview

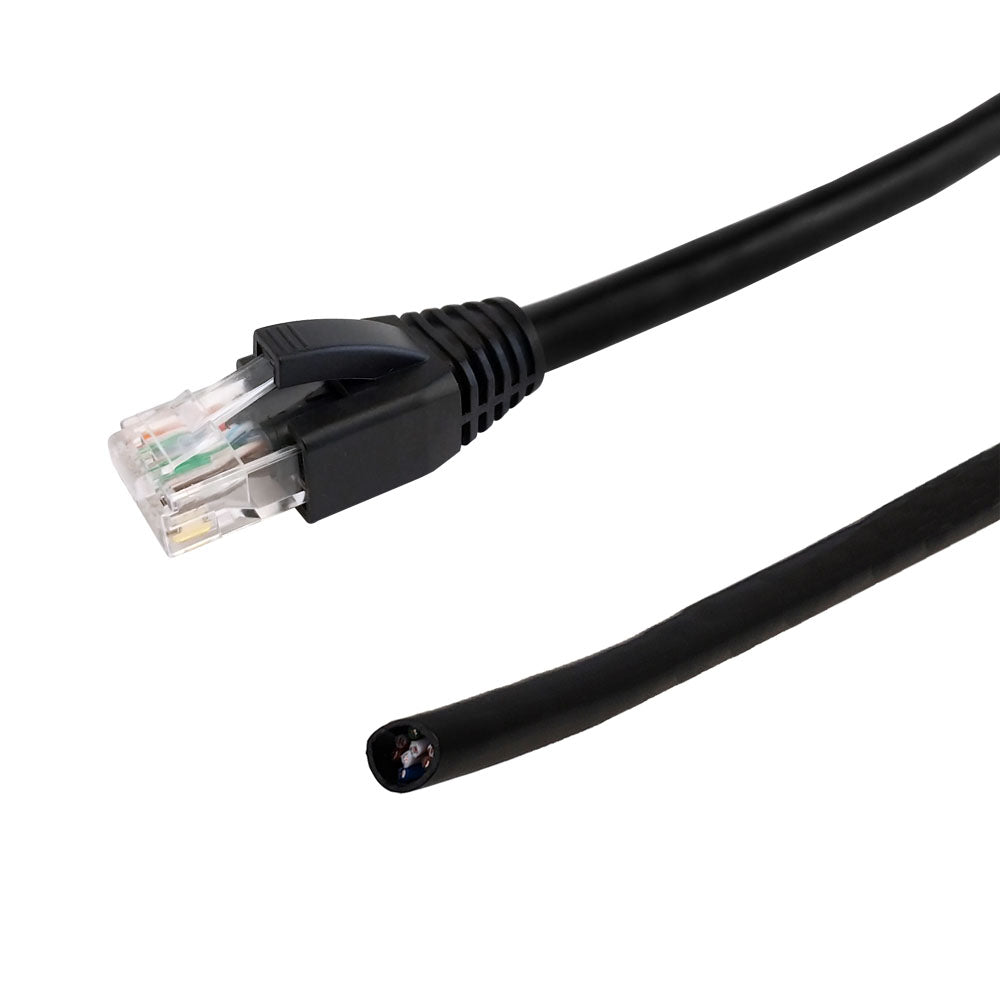

This Cat6 UTP outdoor UV direct burial ethernet cable consists of a RJ45 male on one end and has no termination on the other. The un-terminated end is typically used for punching down onto a jack or panel and the RJ45 end can be used outdoors either above or below ground as premise wiring to connect network devices.

100% Pure Copper

This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.

50 Micron Gold Plated Connectors

This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.

Outdoor Rated Cable

Ideal for use in cable runs that are located above or below ground as premise wiring to connect network devices.

Application

Specifications

Physical Characteristics
Connector Plating Gold Plated 50 Micron
Conductor Material 100% Bare Copper
Cable Diameter 6.20 mm
Wire Gauge 23AWG Solid
Color Code 568A / 568B
Shielding UTP (Unshielded)
Pairs 4
Temperature Rating -40°C to +75°C
StrainRelief
Tab Style Strain Relief Boot
Jacket Rating Direct Burial / UV
Jacket Material LLDPE
UV Yes
Connectors
Connector A RJ45 Long Body Male
Connector B Un-terminated
Environmental
RoHS Yes
Package Information
Package Quantity 1
Cable Weights
15ft 16ft 17ft 18ft 19ft 20ft 21ft 22ft 23ft 24ft 25ft 30ft 35ft 50ft 75ft 100ft 125ft 150ft
0.43 lbs 0.45 lbs 0.47 lbs 0.49 lbs 0.51 lbs 0.53 lbs 0.55 lbs 0.57 lbs 0.58 lbs 0.59 lbs 0.60 lbs 0.70 lbs 0.80 lbs 1.10 lbs 1.90 lbs 2.15 lbs 3.75 lbs 4.50 lbs

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

Product Weight

15ft/568A
CAT6OPT-15BKA
0.5 lb
15ft/568B
CAT6OPT-15BKB
0.5 lb
16ft/568A
CAT6OPT-16BKA
0.57 lb
16ft/568B
CAT6OPT-16BKB
0.57 lb
17ft/568A
CAT6OPT-17BKA
0.64 lb
17ft/568B
CAT6OPT-17BKB
0.64 lb
18ft/568A
CAT6OPT-18BKA
0.71 lb
18ft/568B
CAT6OPT-18BKB
0.71 lb
19ft/568A
CAT6OPT-19BKA
0.78 lb
19ft/568B
CAT6OPT-19BKB
0.78 lb
20ft/568A
CAT6OPT-20BKA
0.63 lb
20ft/568B
CAT6OPT-20BKB
0.63 lb
21ft/568A
CAT6OPT-21BKA
0.7 lb
21ft/568B
CAT6OPT-21BKB
0.7 lb
22ft/568A
CAT6OPT-22BKA
0.71 lb
22ft/568B
CAT6OPT-22BKB
0.71 lb
23ft/568A
CAT6OPT-23BKA
0.72 lb
23ft/568B
CAT6OPT-23BKB
0.72 lb
24ft/568A
CAT6OPT-24BKA
0.74 lb
24ft/568B
CAT6OPT-24BKB
0.74 lb
25ft/568A
CAT6OPT-25BKA
0.77 lb
25ft/568B
CAT6OPT-25BKB
0.77 lb
30ft/568A
CAT6OPT-30BKA
0.95 lb
30ft/568B
CAT6OPT-30BKB
0.95 lb
35ft/568A
CAT6OPT-35BKA
1.1 lb
35ft/568B
CAT6OPT-35BKB
1.1 lb
50ft/568A
CAT6OPT-50BKA
1.55 lb
50ft/568B
CAT6OPT-50BKB
1.55 lb
75ft/568A
CAT6OPT-75BKA
2.26 lb
75ft/568B
CAT6OPT-75BKB
2.26 lb
100ft/568A
CAT6OPT-100BKA
3.0 lb
100ft/568B
CAT6OPT-100BKB
3.0 lb
125ft/568A
CAT6OPT-125BKA
5.0 lb
125ft/568B
CAT6OPT-125BKB
5.0 lb
150ft/568A
CAT6OPT-150BKA
6.2 lb
150ft/568B
CAT6OPT-150BKB
6.2 lb
