Overview

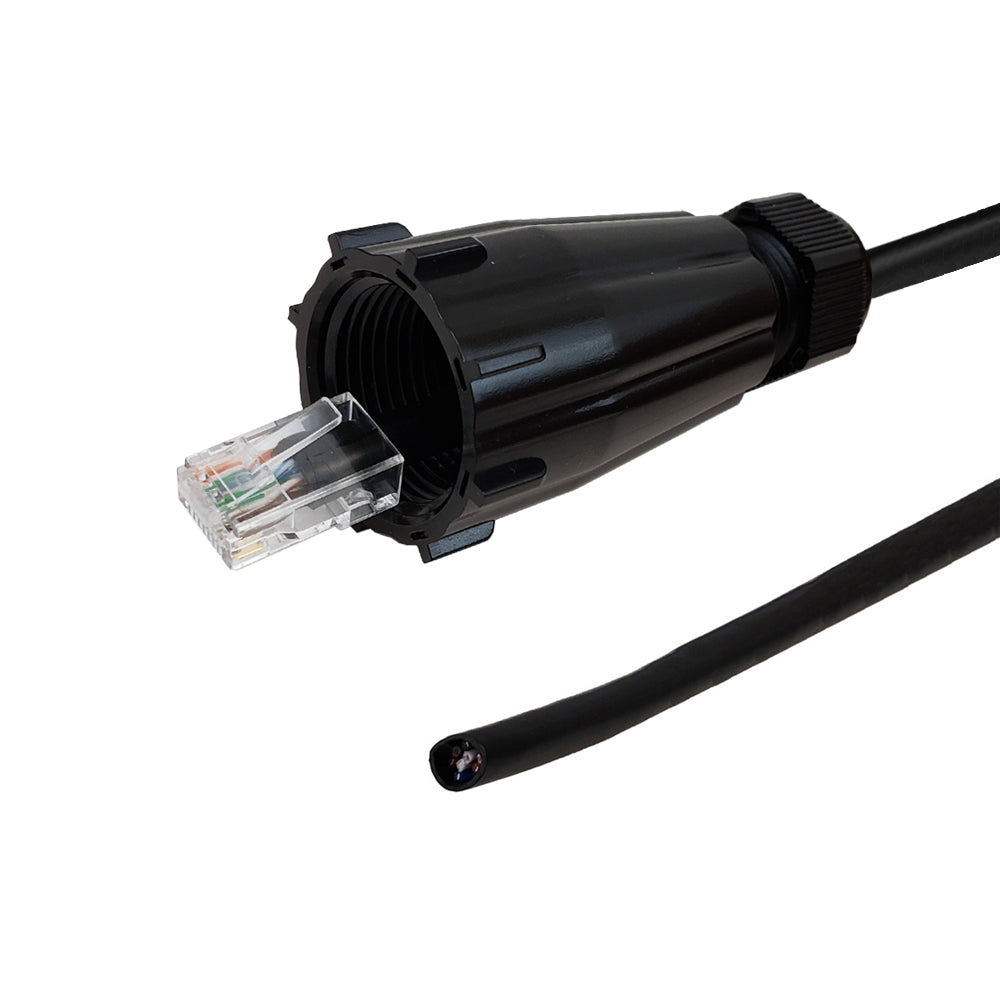

This Cat6 UTP outdoor UV direct burial Ethernet cable consists of RJ45 male with IP68 rated shroud on one end and has no termination on the other. The un-terminated end is typically used for punching down onto a jack or panel and the IP68 shroud is intended to mate with our IP68 rated couplers for a weather tight seal. It is typically used outdoors either above or below ground as premise wiring to connect network devices.

These cables are made to order. Most orders ship out same day or next day depending on the quantity. Please contact us for more details.

100% Pure Copper

This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.

50 Micron Gold Plated Connectors

This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.

Outdoor Cable, IP68 Rated Housing

Ideal for use in cable runs that are located above or below ground as premise wiring to connect network devices. The shrouds are IP68 rated and can be secured to mating IP68 rated RJ45 couplers - not allowing water penetration.

Application

Specifications

Physical Characteristics
Connector Plating	Gold Plated 50 Micron
Conductor Material	100% Bare Copper
Cable Diameter	6.20 mm
Wire Gauge	23AWG Solid
Color Code	568A / 568B
Shielding	UTP (Unshielded)
Pairs	4
Temperature Rating	-40°C to +75°C
StrainRelief	Tab Style Strain Relief Boot
Jacket Rating	Direct Burial / UV
Jacket Material	LLDPE
UV	Yes
Connectors
Connector A	RJ45 Long Body Male
Connector B	Un-terminated
Environmental
RoHS	Yes
Package Information
Package Quantity	1

Cable Weights
15ft	16ft	17ft	18ft	19ft	20ft	21ft	22ft	23ft	24ft	25ft	30ft	35ft	50ft	75ft	100ft	125ft	150ft
0.43 lbs	0.45 lbs	0.47 lbs	0.49 lbs	0.51 lbs	0.53 lbs	0.55 lbs	0.57 lbs	0.58 lbs	0.59 lbs	0.60 lbs	0.70 lbs	0.80 lbs	1.10 lbs	1.90 lbs	2.15 lbs	3.75 lbs	4.50 lbs

Spec Sheets

Download attachment

RJ45 Male with IP68 Shroud to Blunt Cat6 Solid UTP Outdoor UV / Direct Burial Pigtail Cable (568x) - Black
