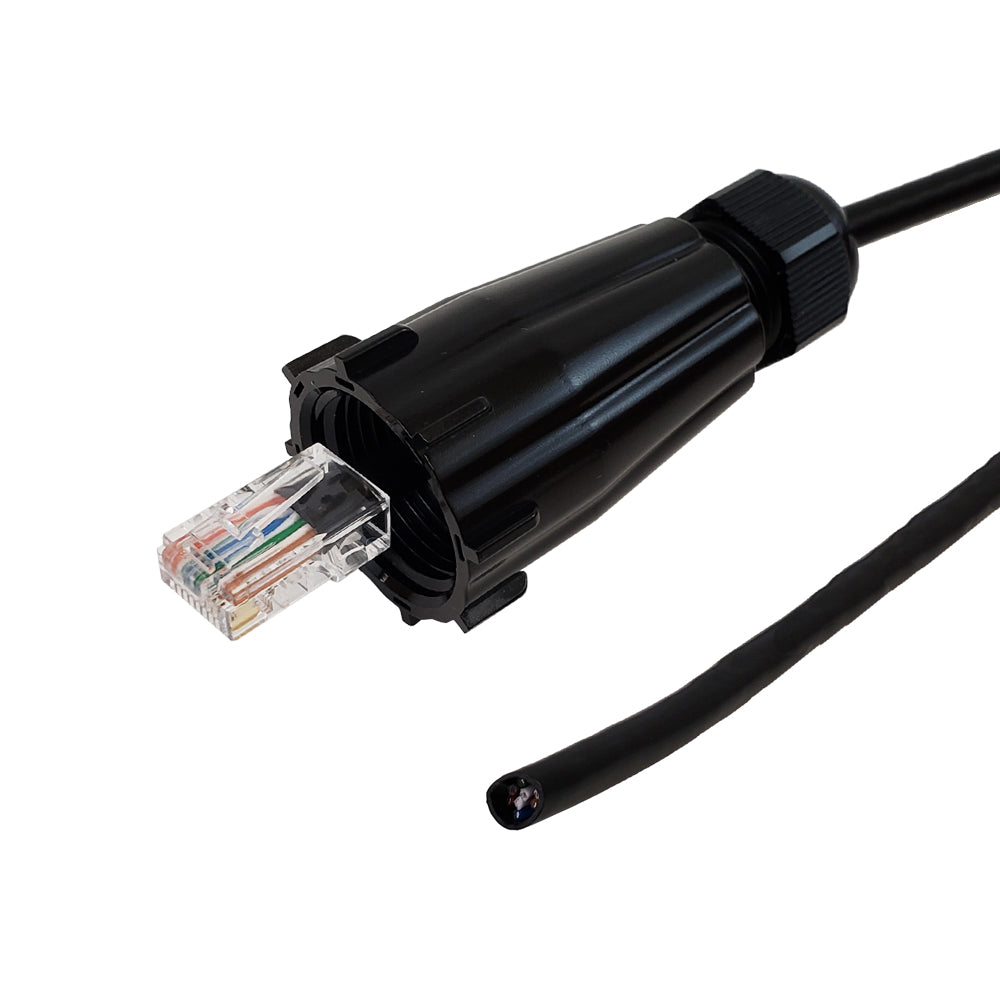

This Cat5e UTP outdoor UV direct burial Ethernet cable consists of RJ45 male with IP68 rated shroud on one end and has no termination on the other. The un-terminated end is typically used for punching down onto a jack or panel and the IP68 shroud is intended to mate with our IP68 rated couplers for a weather tight seal. It is typically used outdoors either above or below ground as premise wiring to connect network devices.
cables are made to order. Most orders ship out same day or next day depending
on the quantity. Please
contact us for more
100% Pure Copper
This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.
50 Micron Gold Plated Connectors
This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.
Outdoor Cable, IP68 Rated Housing
Ideal for use in cable runs that are located above or below ground as premise wiring to connect network devices. The shrouds are IP68 rated and can be secured to mating IP68 rated RJ45 couplers - not allowing water penetration.
|Connector Plating||Gold Plated 50 Micron|
|Conductor Material||100% Bare Copper|
|Cable Diameter||5.10 mm|
|Wire Gauge||24AWG Solid|
|Color Code||568A / 568B|
|Temperature Rating||-40℃ to +75℃
||Bubble Boot Strain Relief|
|Jacket Rating||Direct Burial / UV|
|Connector A||RJ45 Long Body Male|
|0.43 lbs||0.45 lbs||0.47 lbs||0.49 lbs||0.51 lbs||0.53 lbs||0.55 lbs||0.57 lbs||0.58 lbs||0.59 lbs||0.60 lbs||0.70 lbs||0.80 lbs||1.10 lbs||1.90 lbs||2.15 lbs||3.75 lbs||4.50 lbs|
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
For the lead-time on a larger quantity orders, please contact us via phone at
