Overview

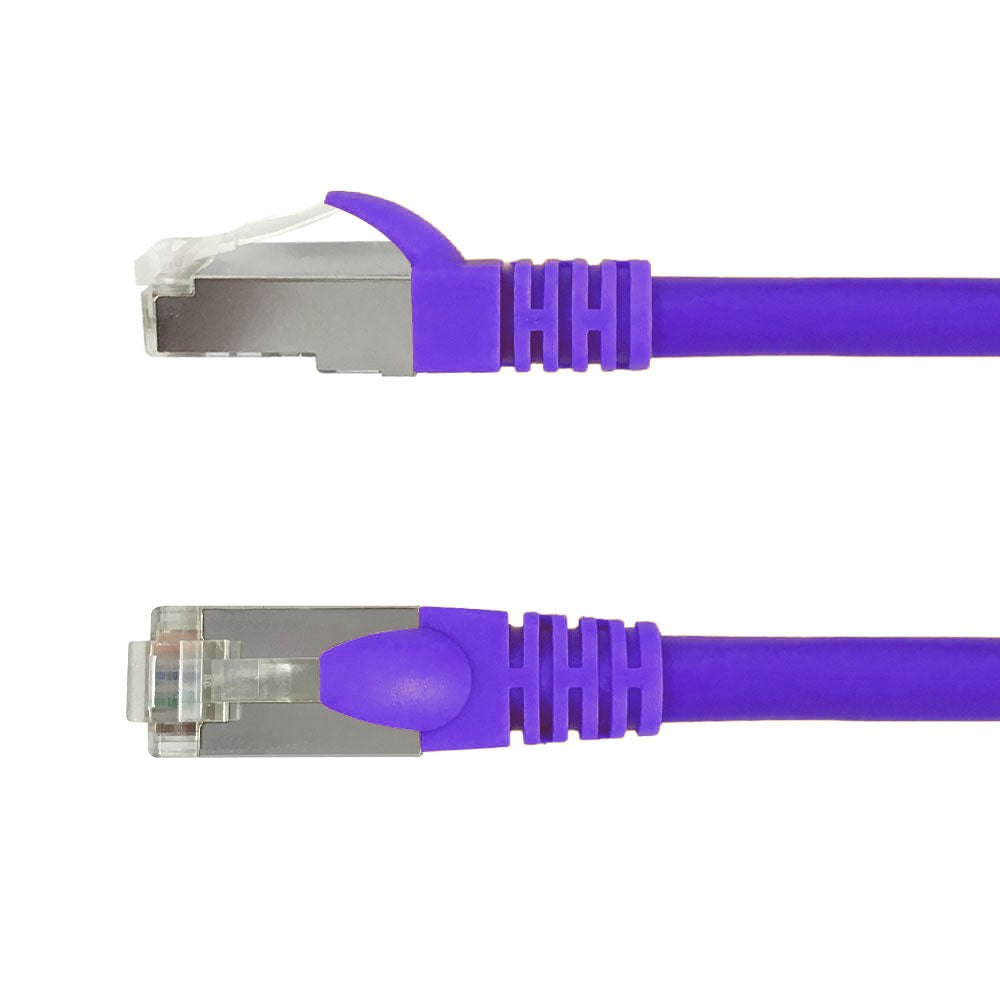

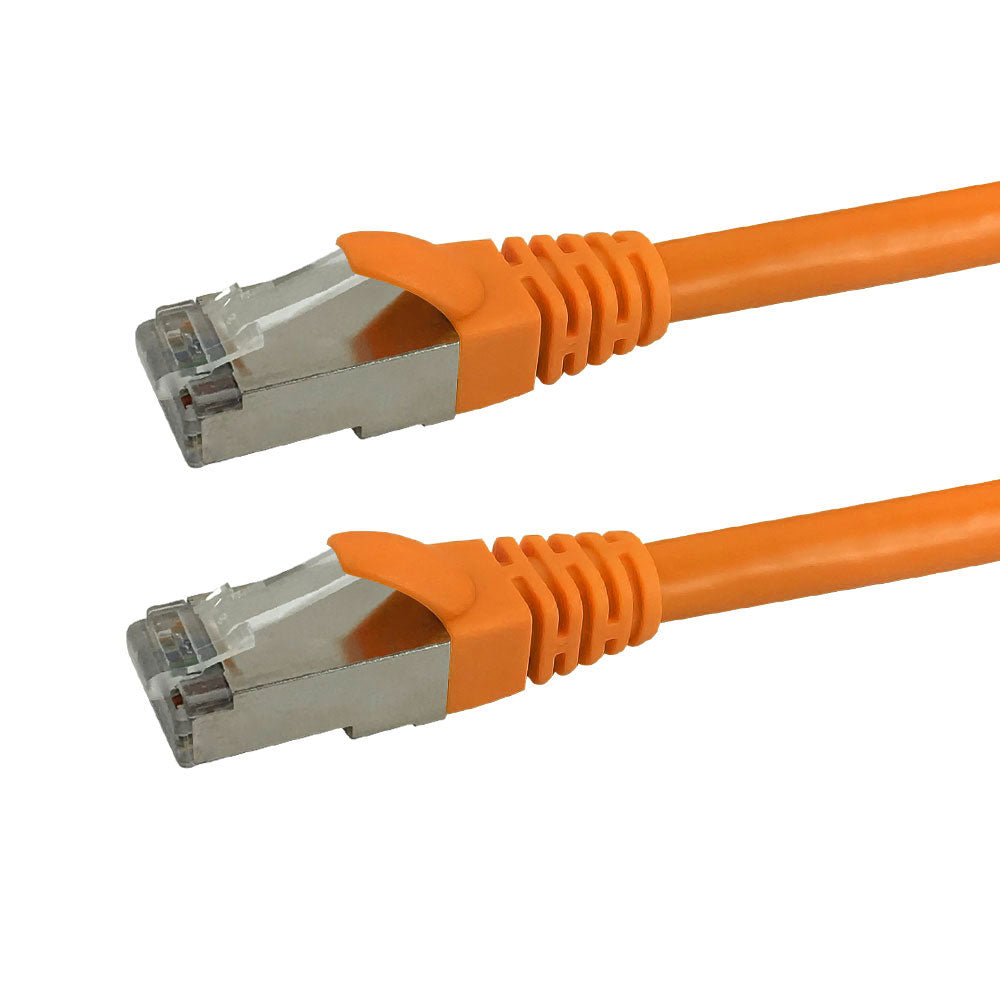

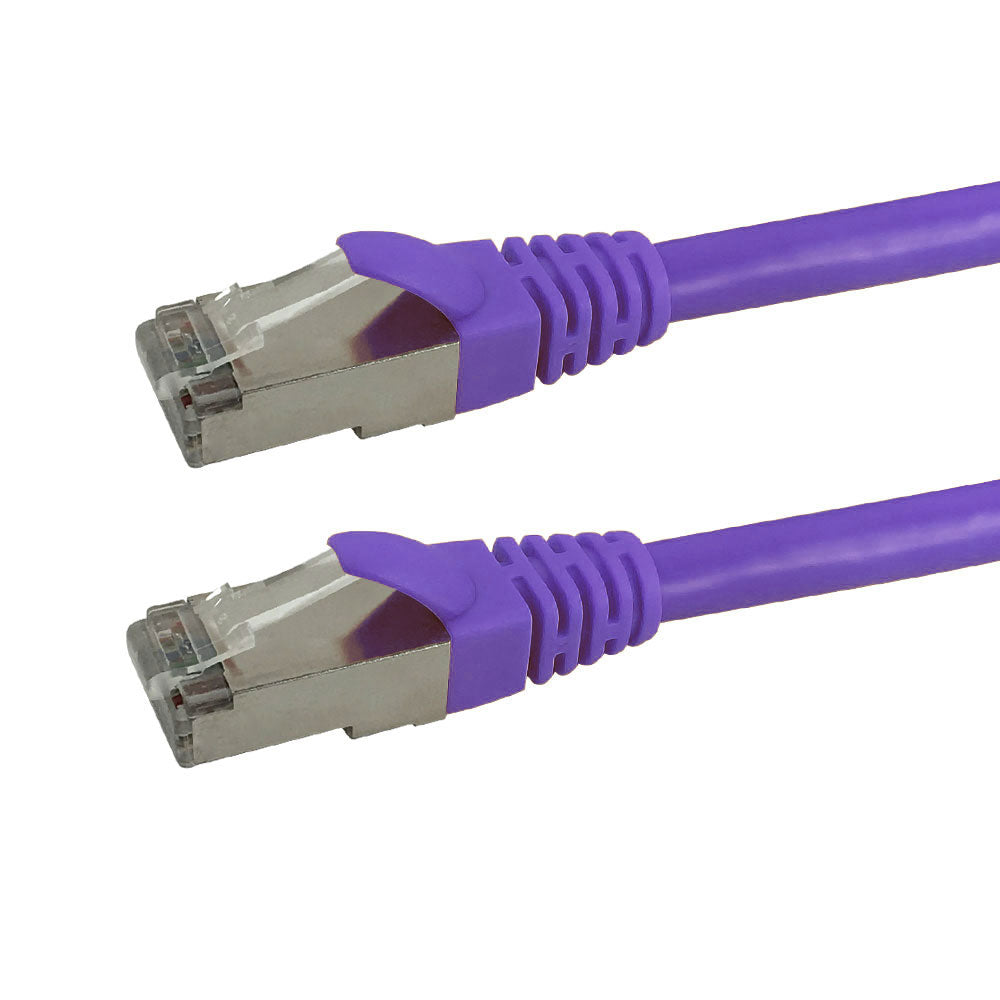

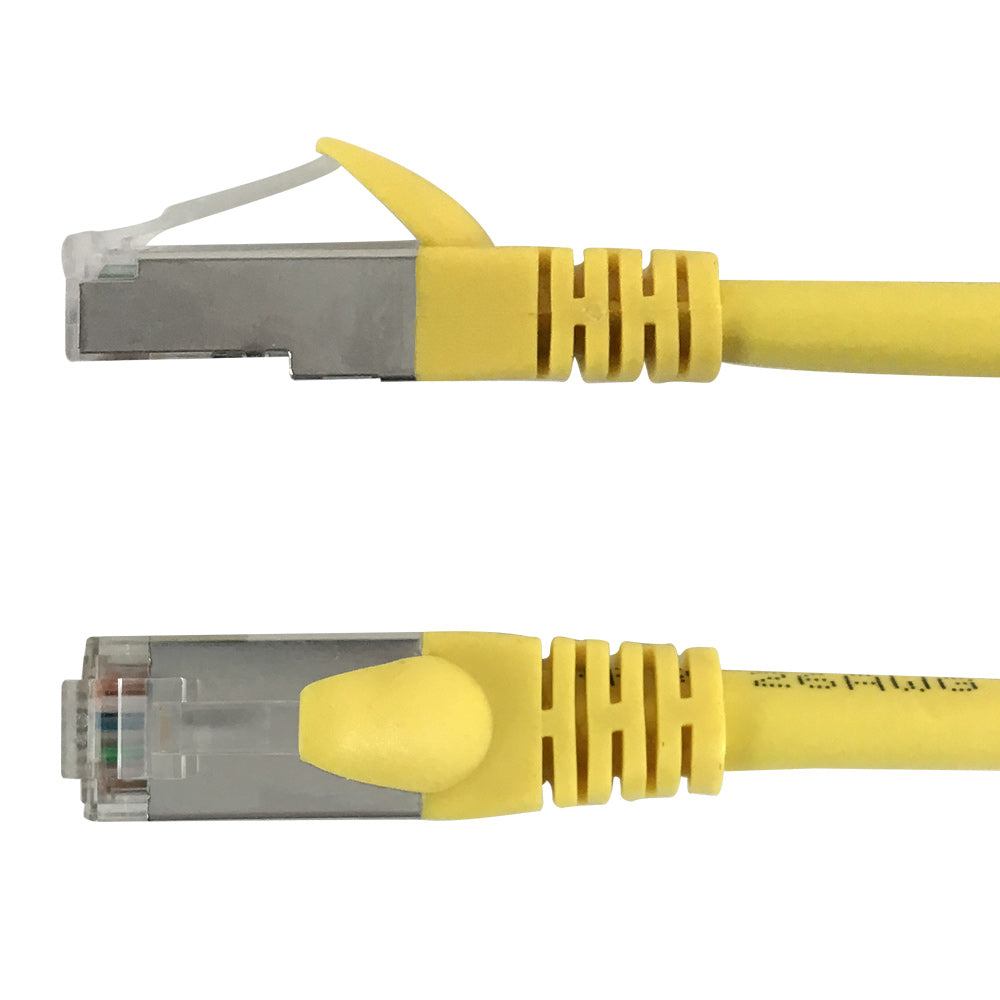

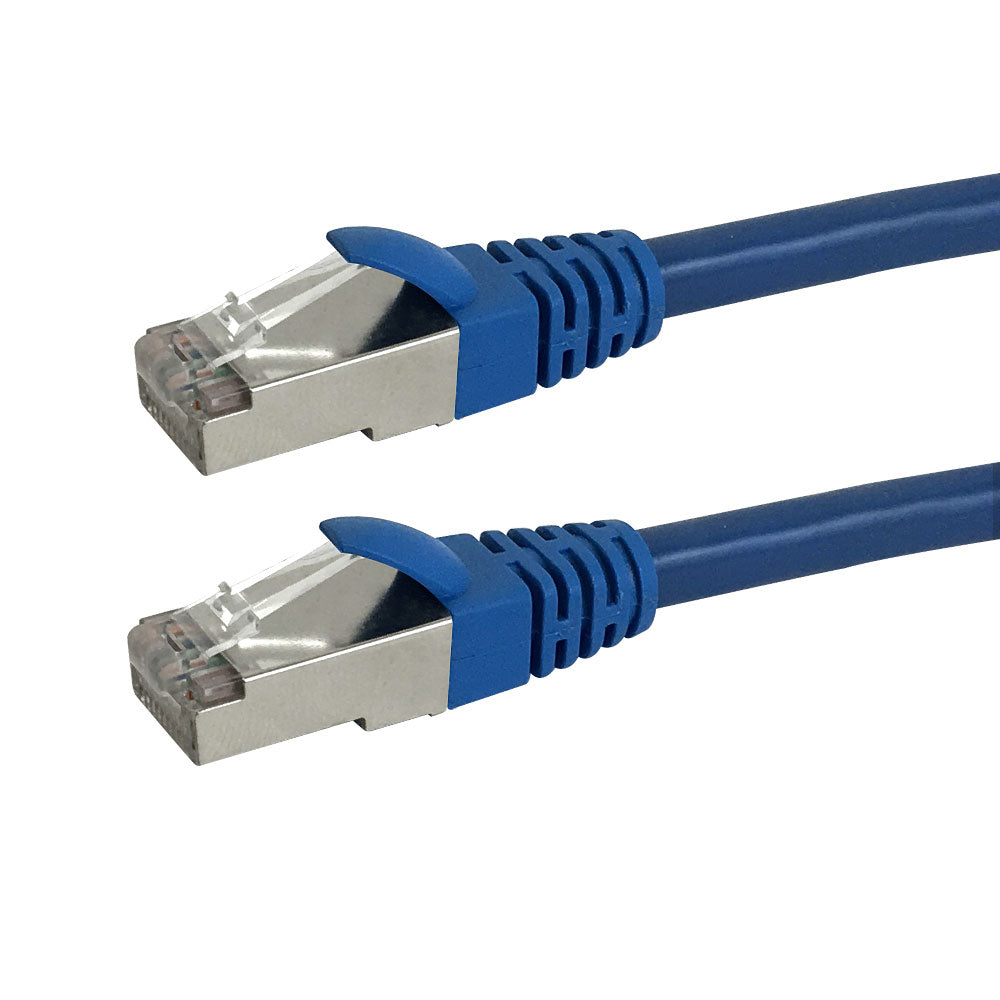

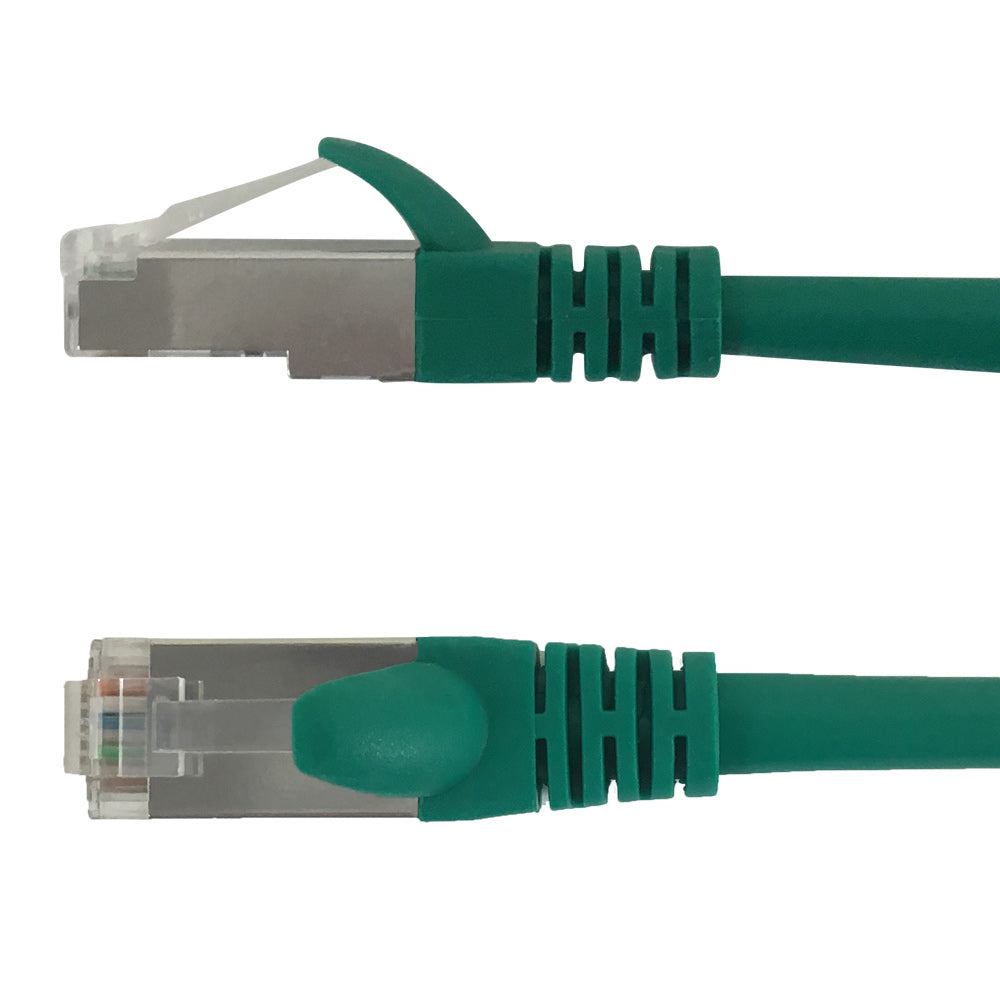

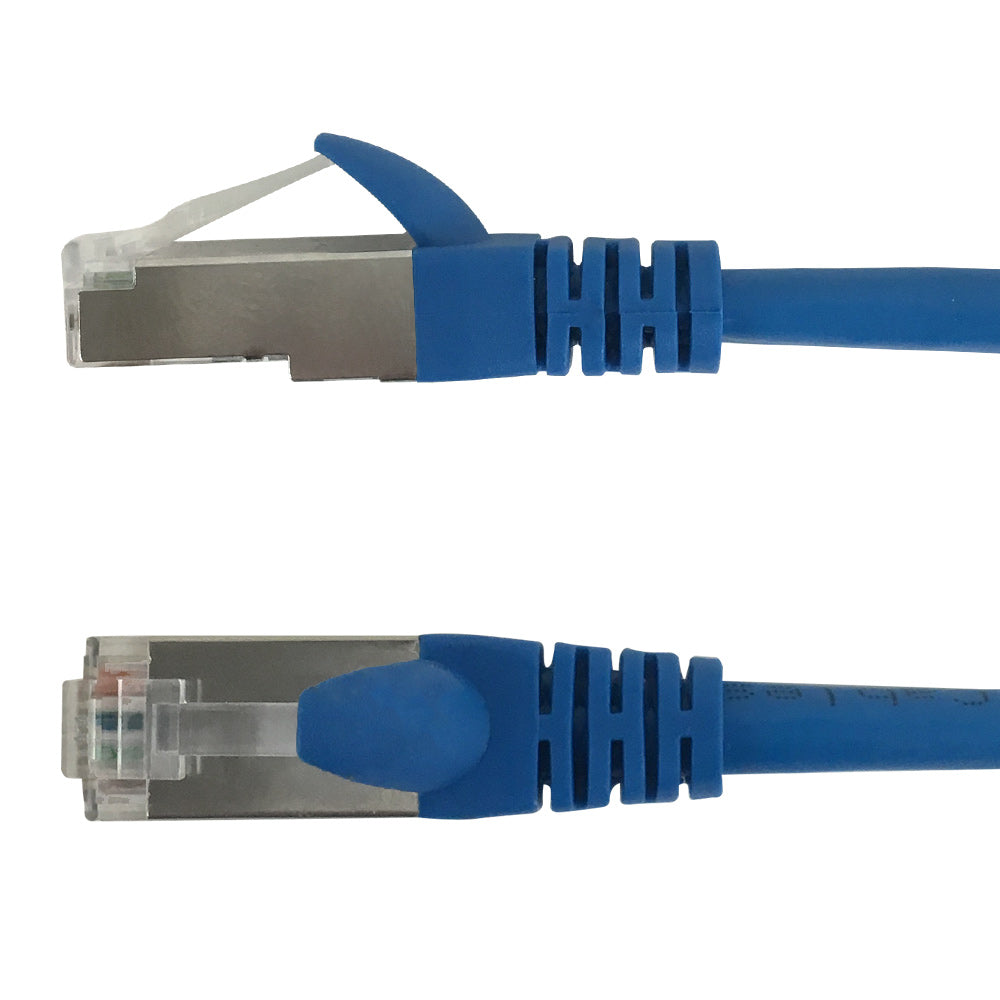

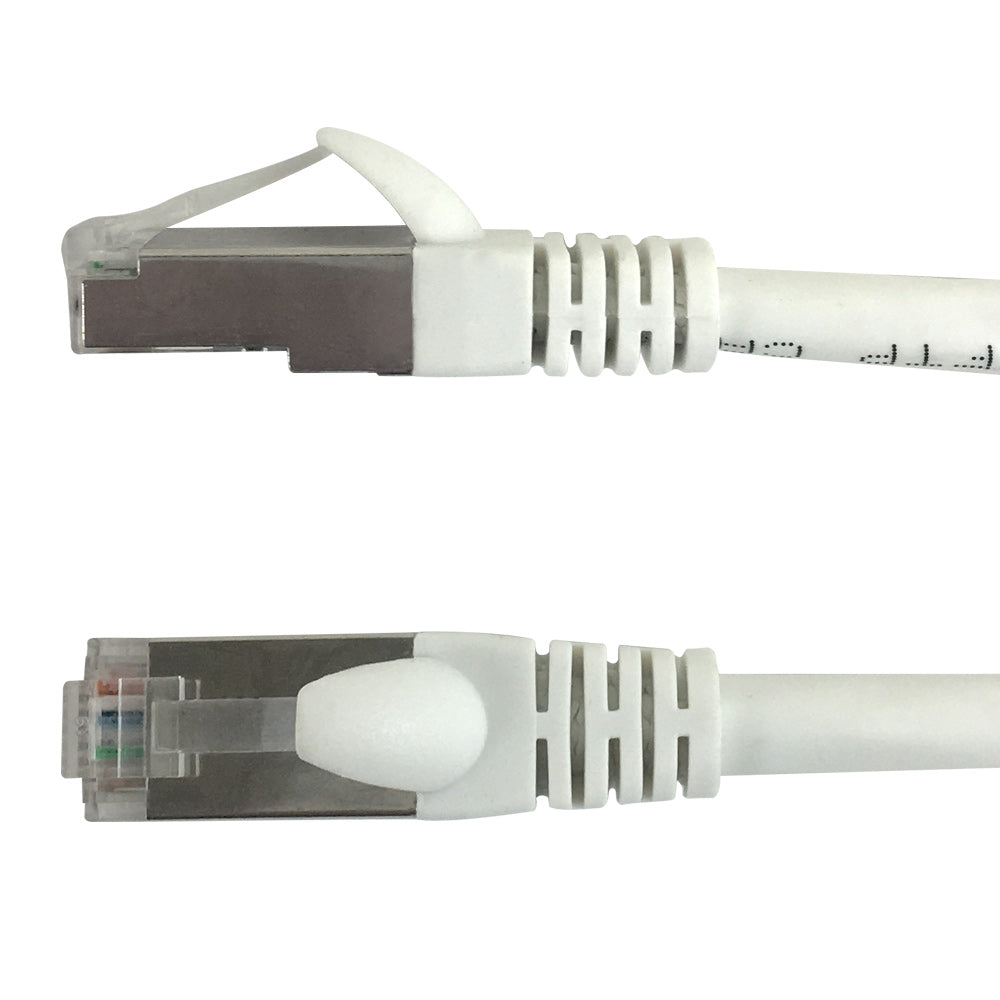

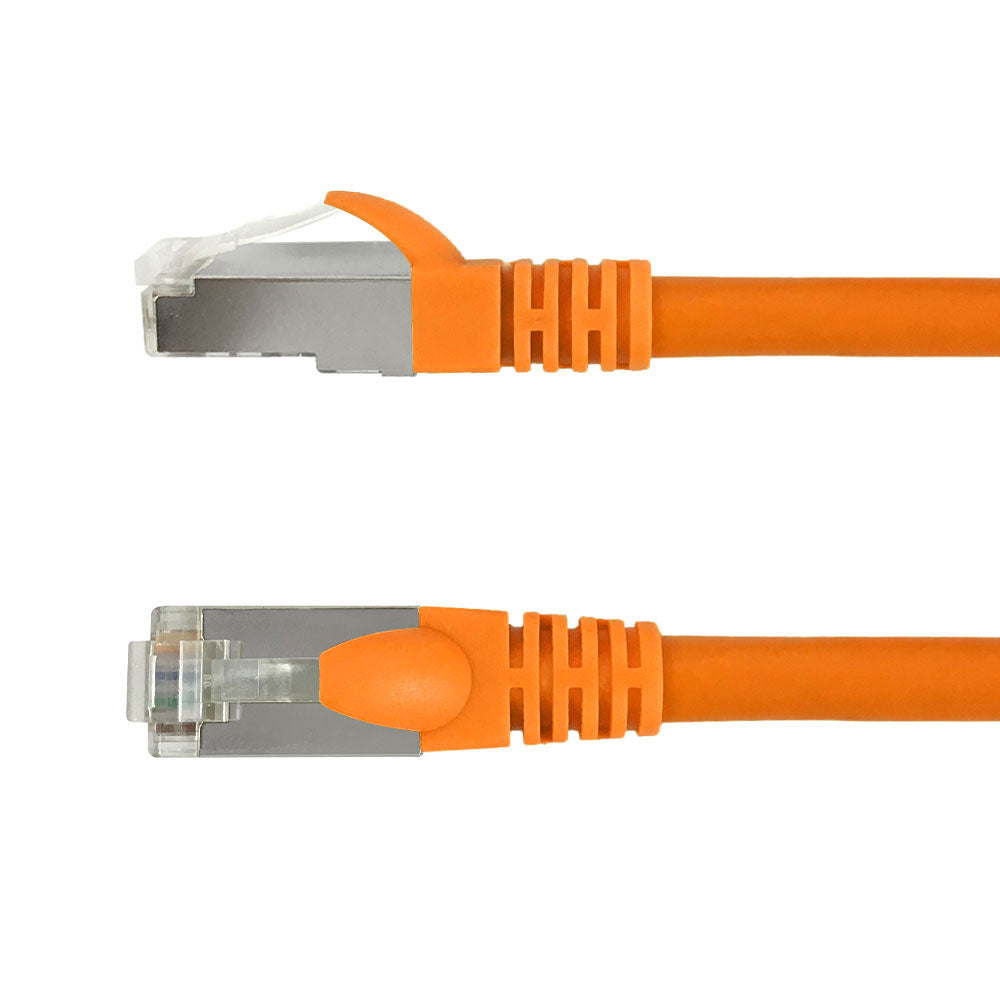

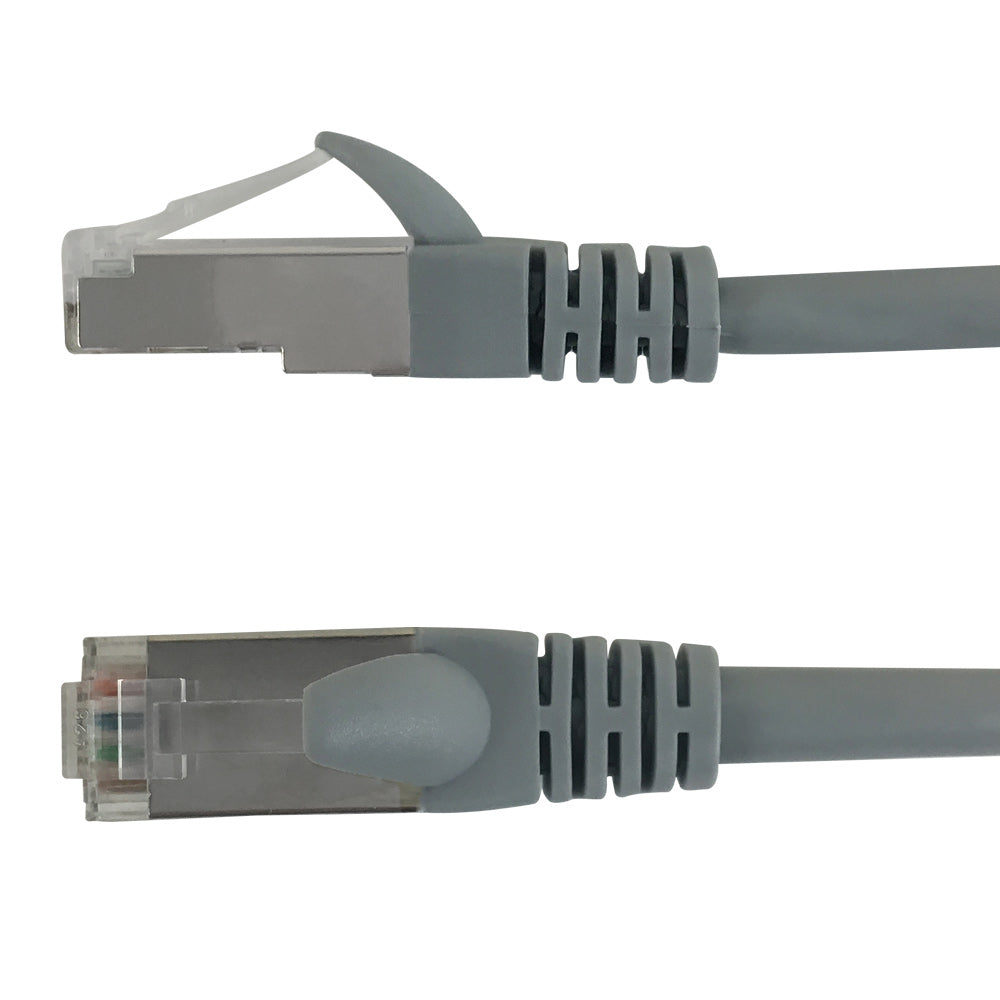

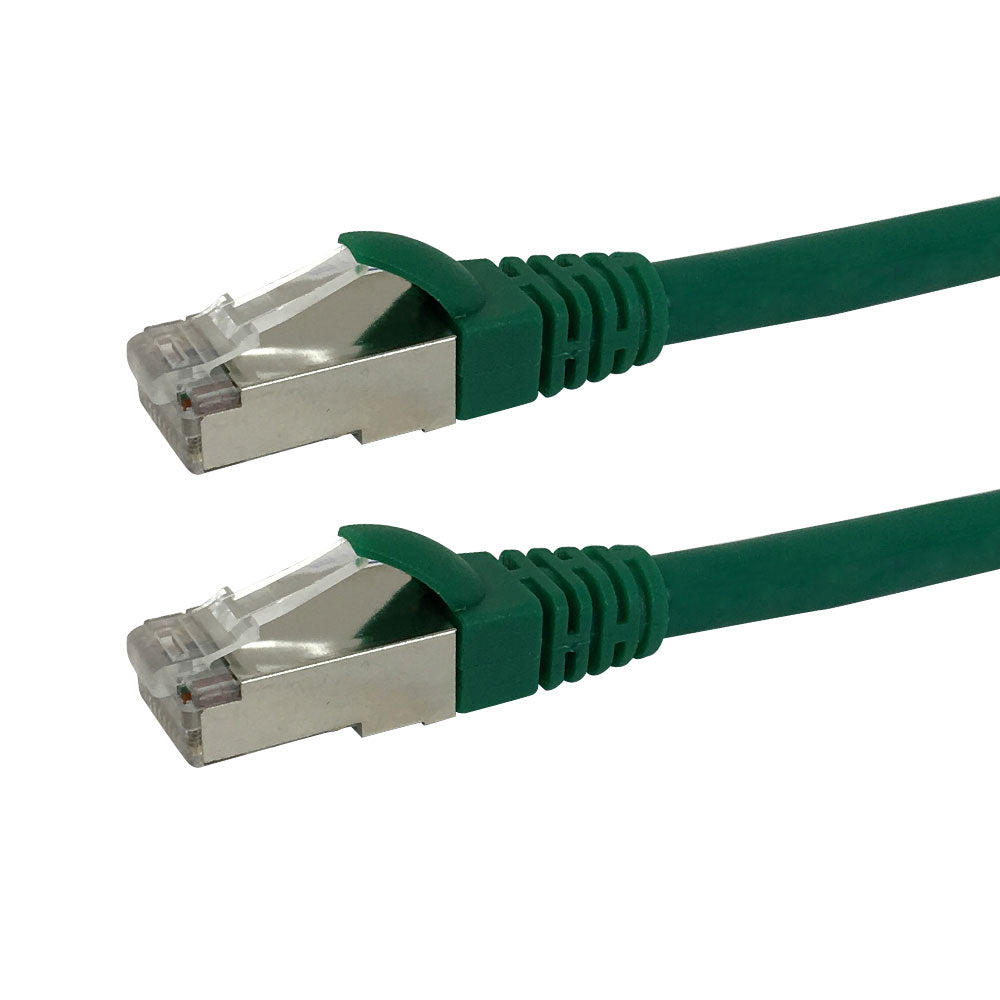

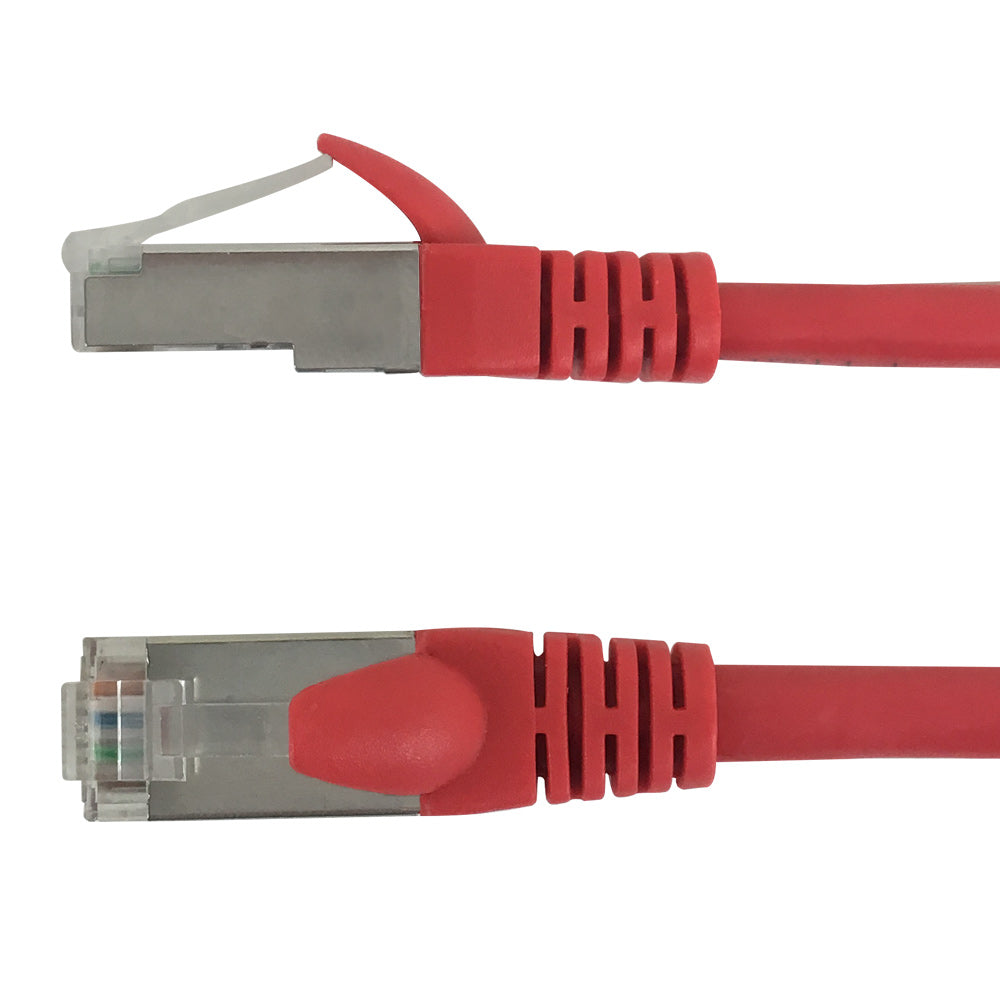

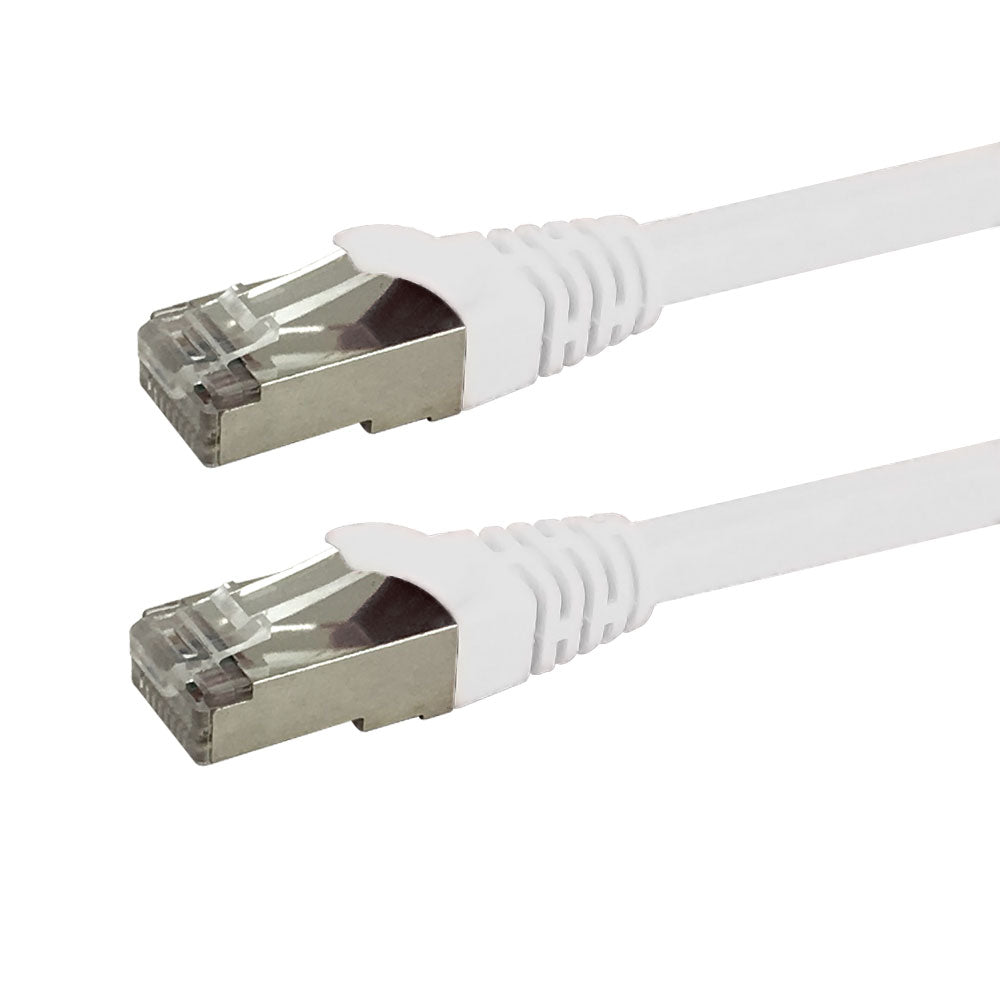

This Cat6a shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI). These cables are Fluke® Cat6a patch cable certified and come with an individual test report. The cable jacket is also CMR (riser) fire rated.

100% Pure Copper

This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.

50 Micron Gold Plated Connectors

This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.

Double Shielded

Foil shield on individual pairs plus overall braid is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation.

Fluke® Patch Cable Certified

Our cables are 100% tested to pass a Fluke® CAT6a patch cable test, and come w printed test report

Specifications

Physical Characteristics
Connector Plating	Gold Plated 50 Micron
Cable Diameter	6mm
Wire Gauge	26AWG Stranded
Shielding	SSTP - Foil shield on individual pairs plus overall braid
Pairs	4
Fire Rating	CMR (FT4 Riser Rated)
Molding	Molded Tab Style Strain Relief
Jacket Type	PVC
Bend Radius	24mm
Connectors
Connector A	RJ45 Long Body Male
Connector B	RJ45 Long Body Male
Performance
Speed	10Gb
Approvals
c(UL)us	Yes - Cable
ISO/IEC 11801	Yes
Environmental
RoHS	Yes
Reach	Yes
Conflict Materials	Yes
Package Information
Package Quantity	1
Warranty Information
Warranty	Limited Lifetime

Cable Weights
1ft	2ft	3ft	5ft	7ft	10ft	15ft	25ft	35ft	50ft	75ft	100ft
0.07 lbs	0.08 lbs	0.10 lbs	0.15 lbs	0.20 lbs	0.30 lbs	0.45 lbs	0.60 lbs	0.90 lbs	1.15 lbs	1.75 lbs	2.30 lbs

Spec Sheets

Download attachment

REACH Certificate

RoHS Certificate

RJ45 Cat6a SSTP 10GB Molded Shielded Patch Cable - Premium Fluke® Patch Cable Certified - CMR Riser Rated
