Description
Overview

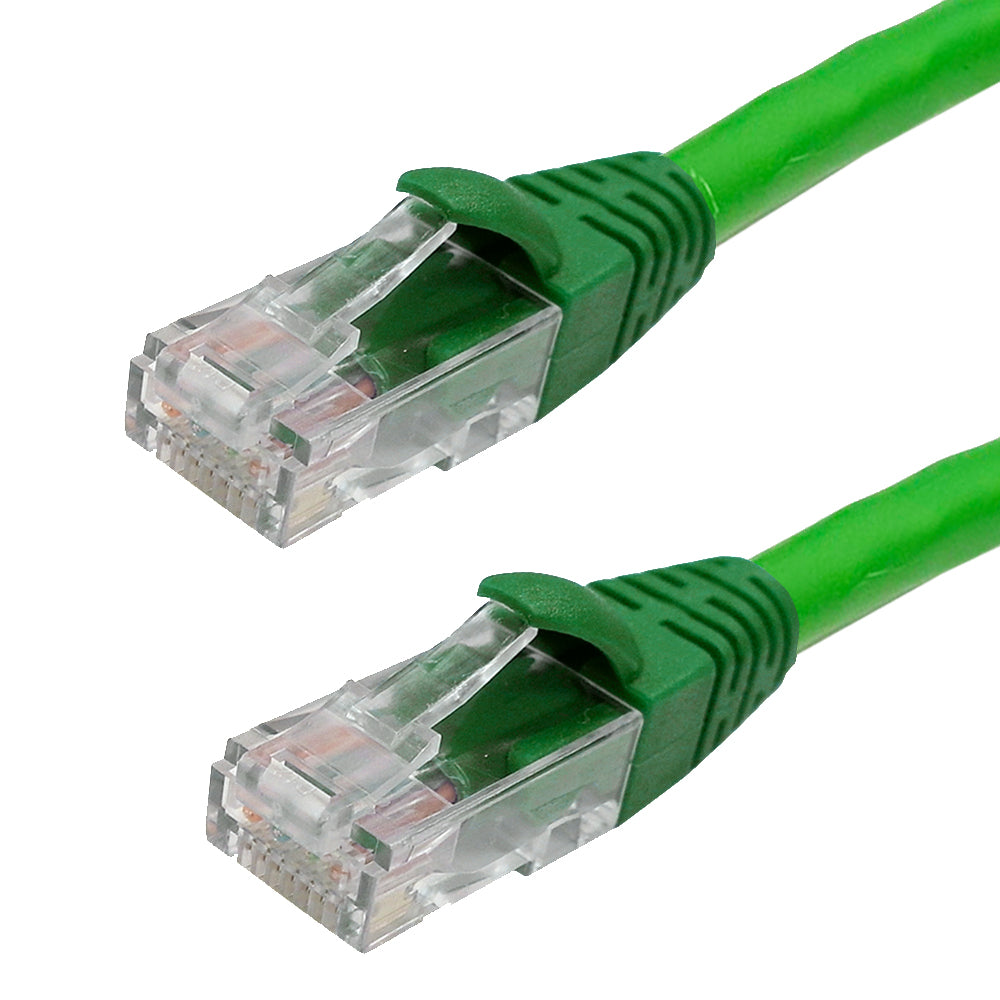

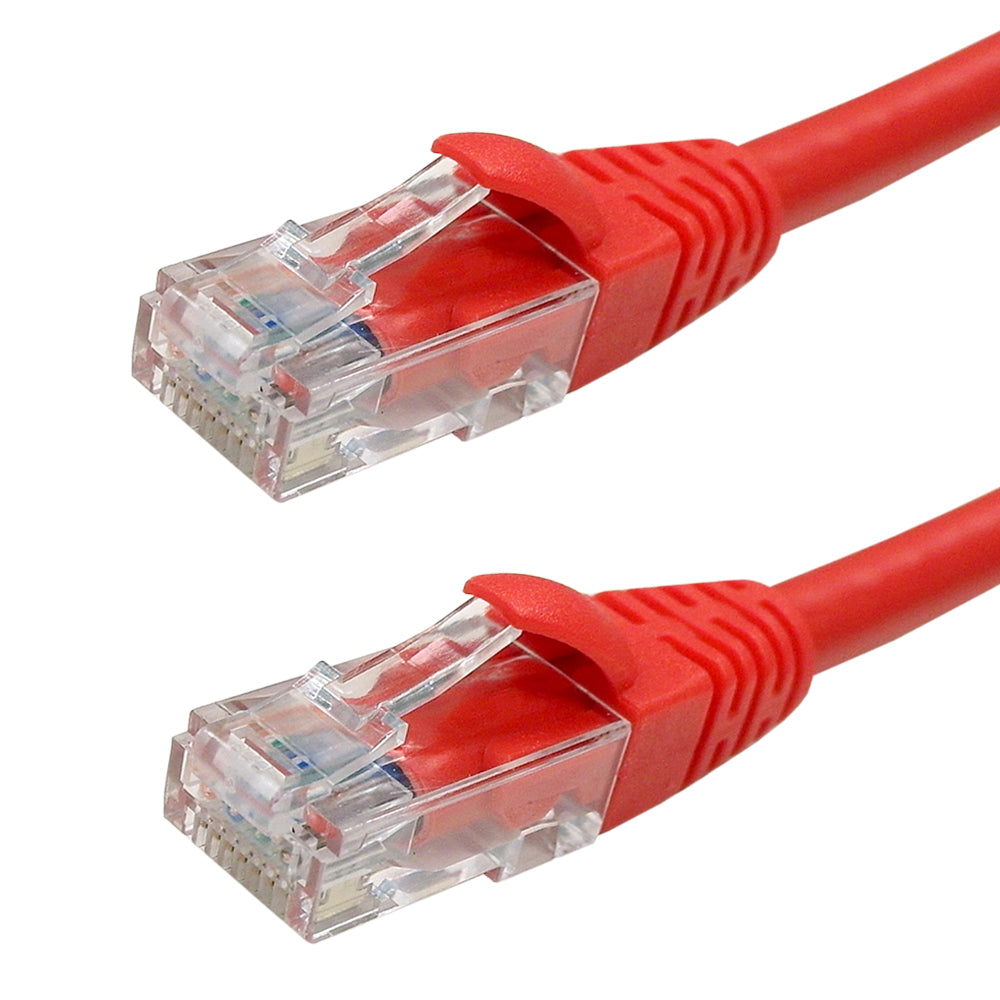

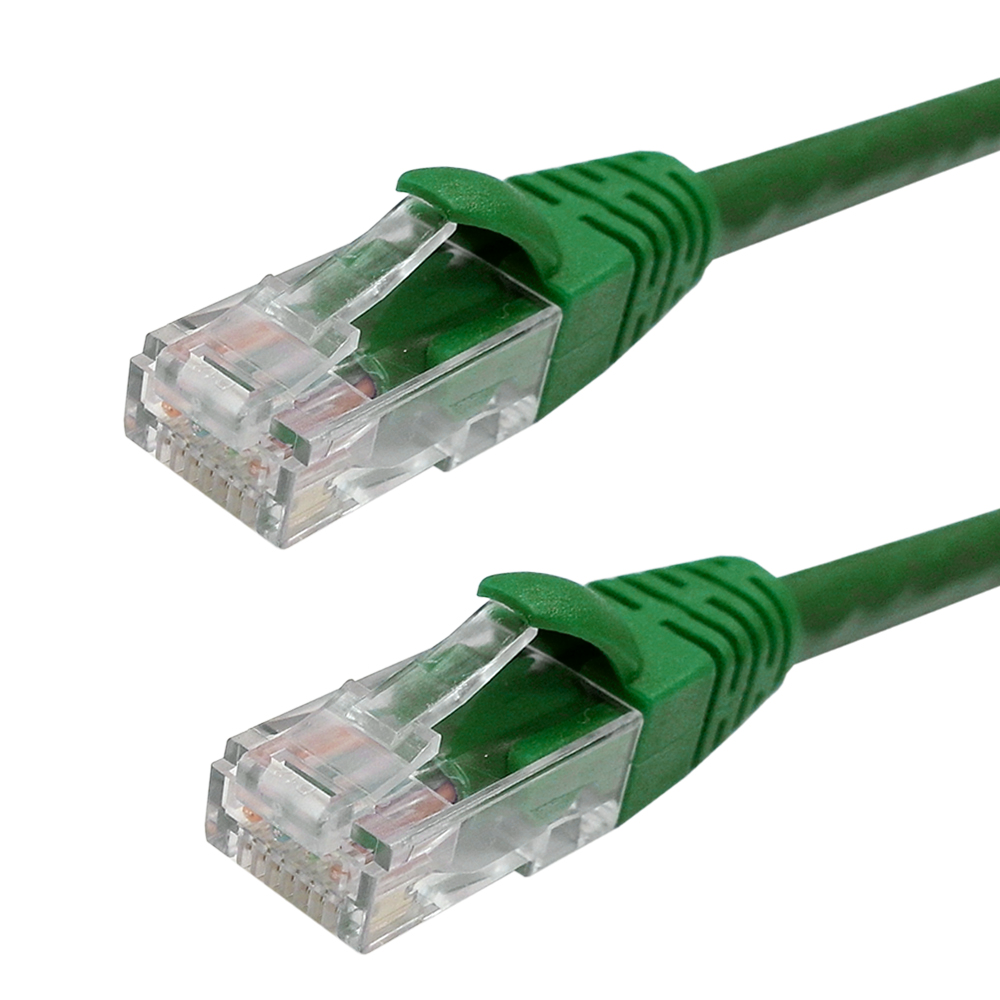

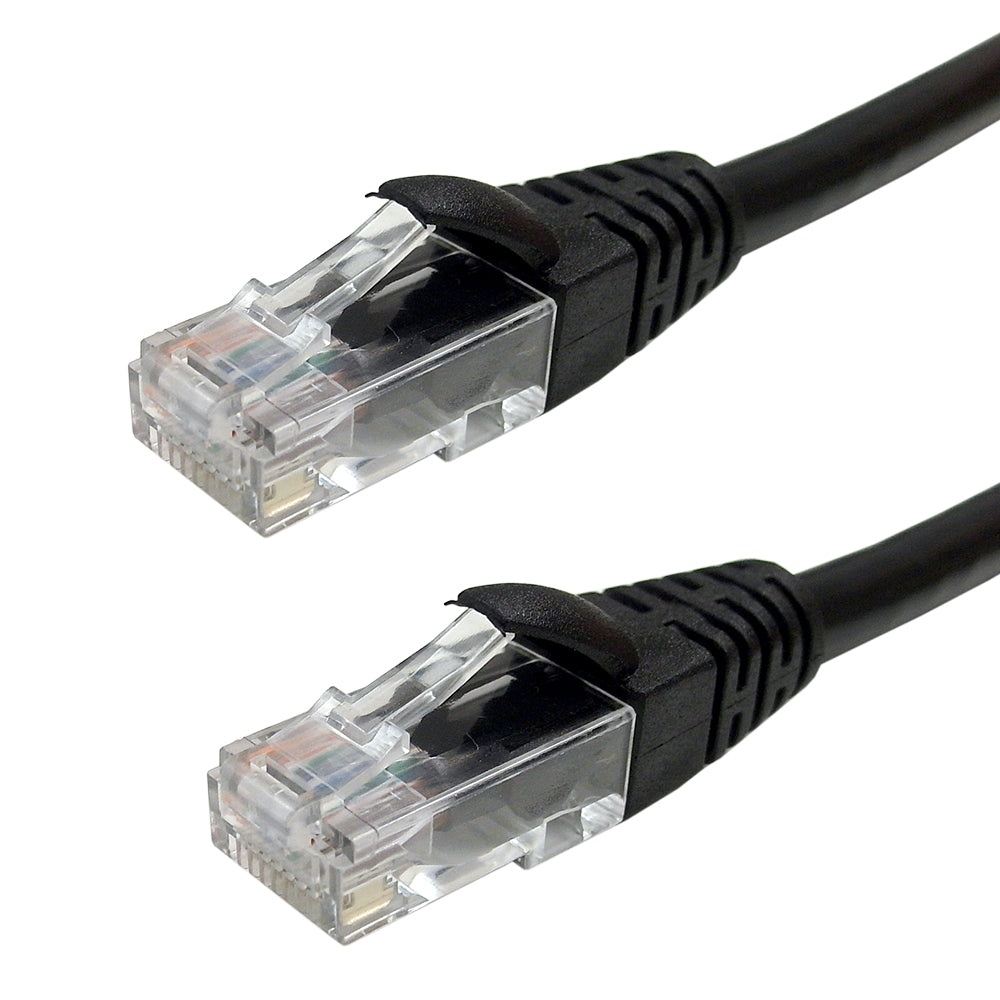

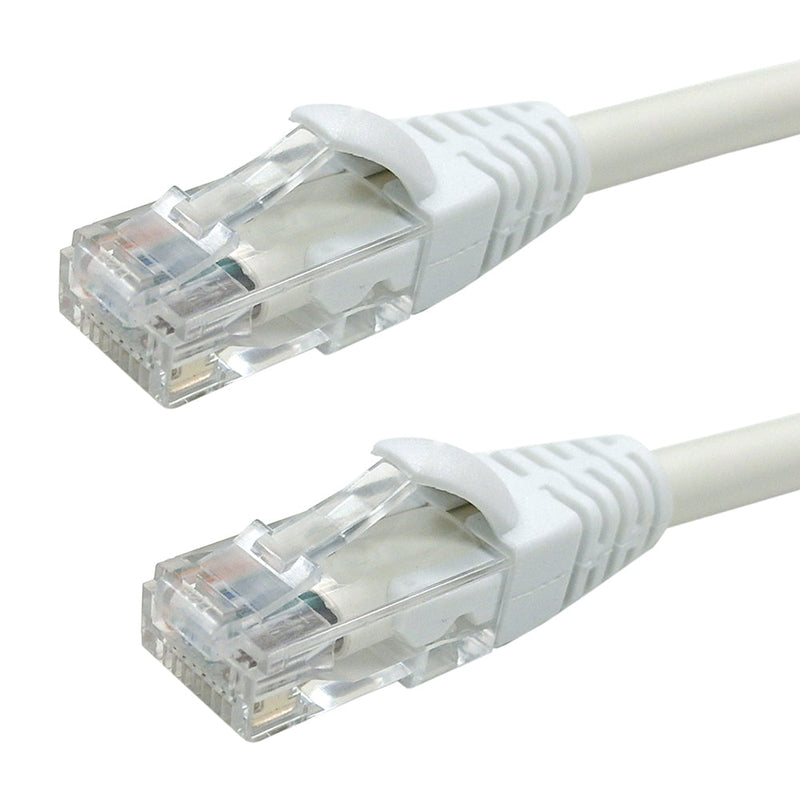

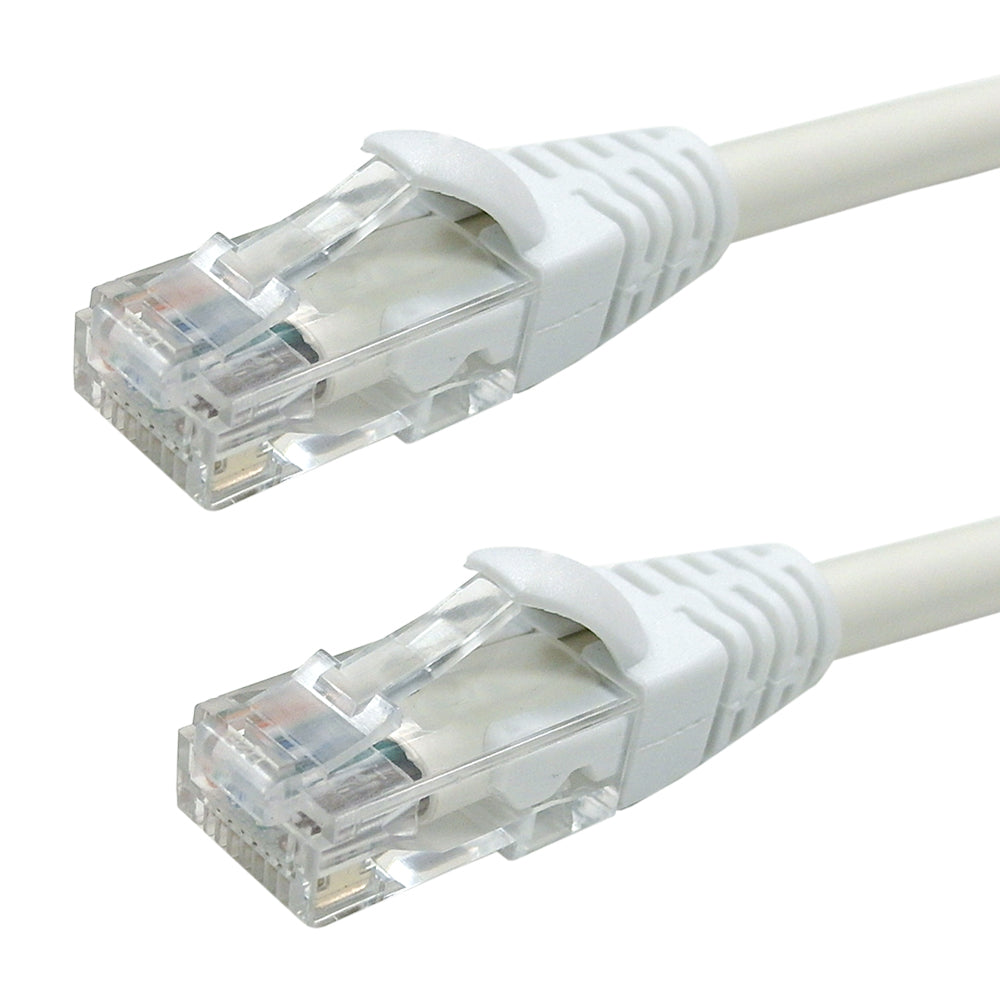

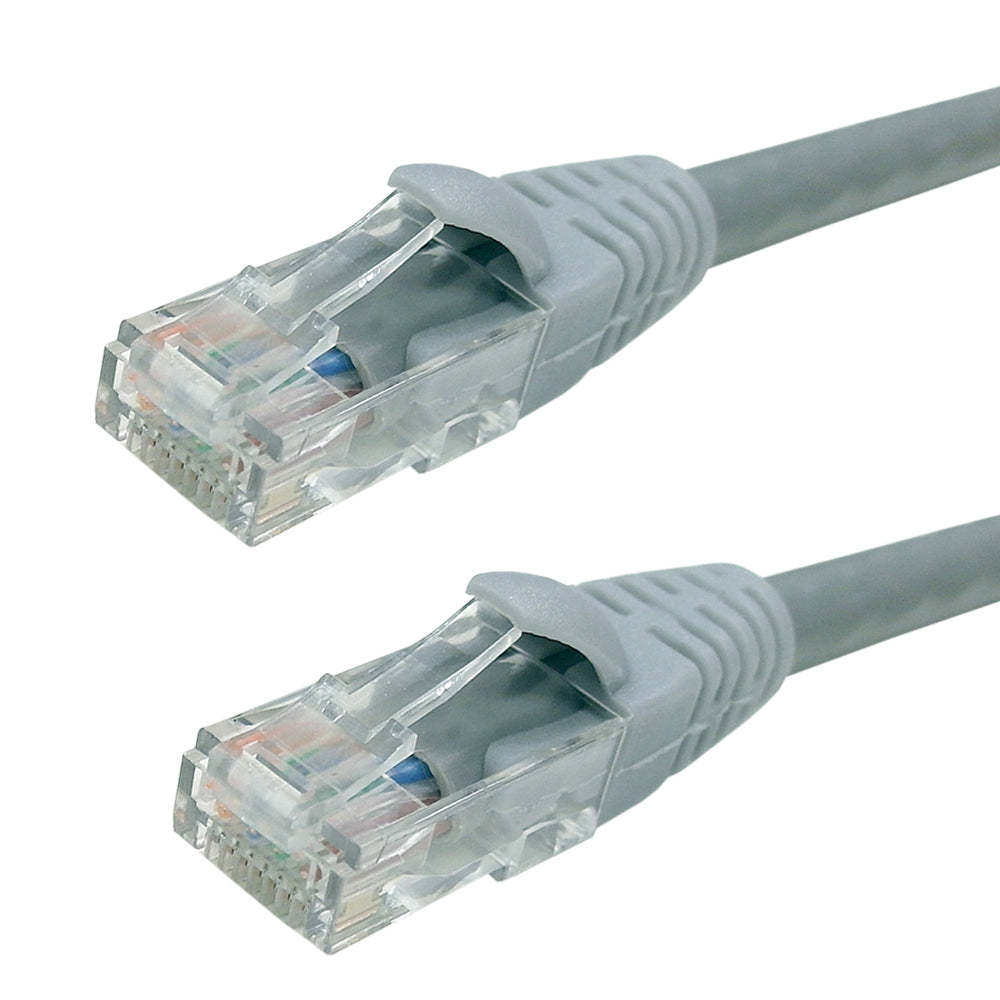

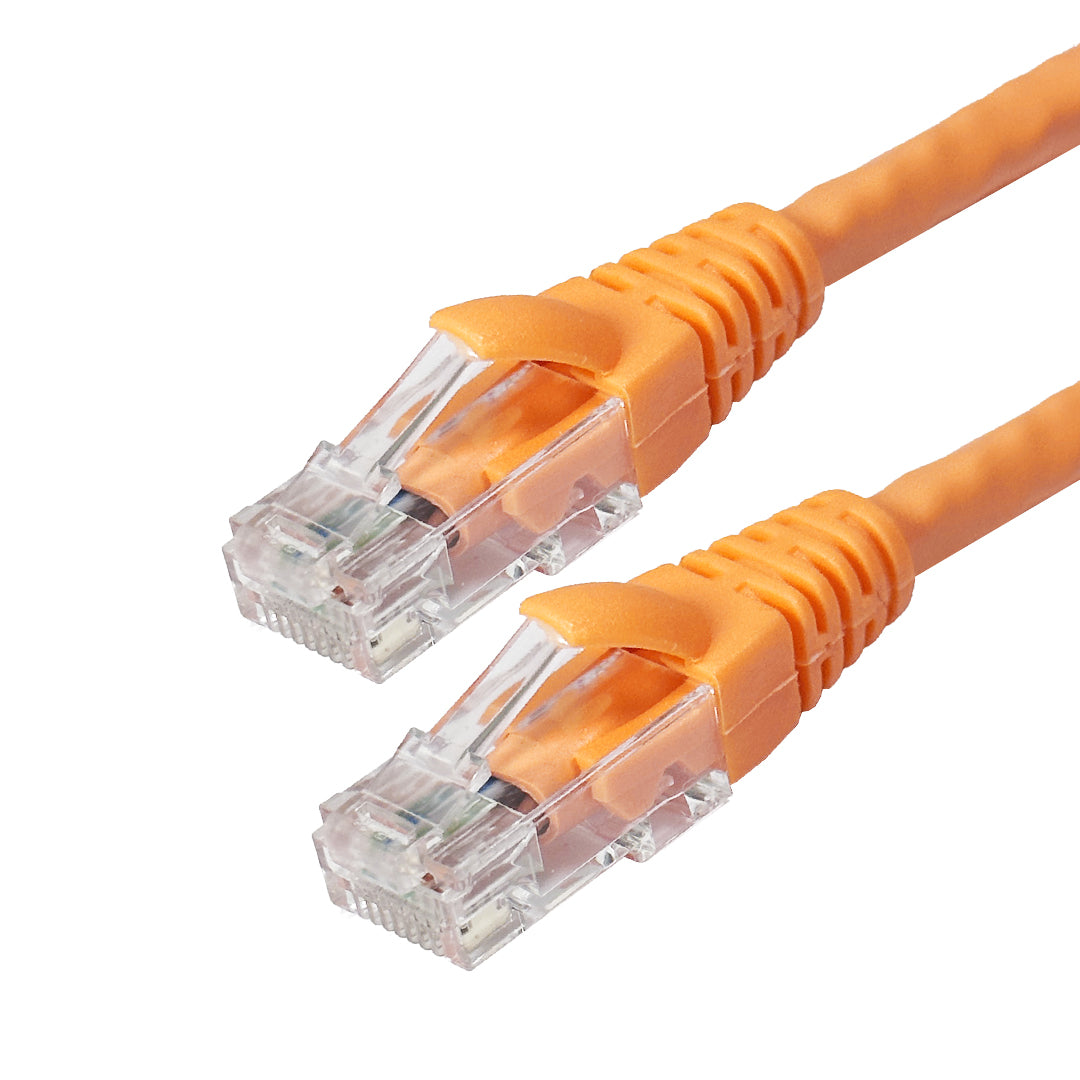

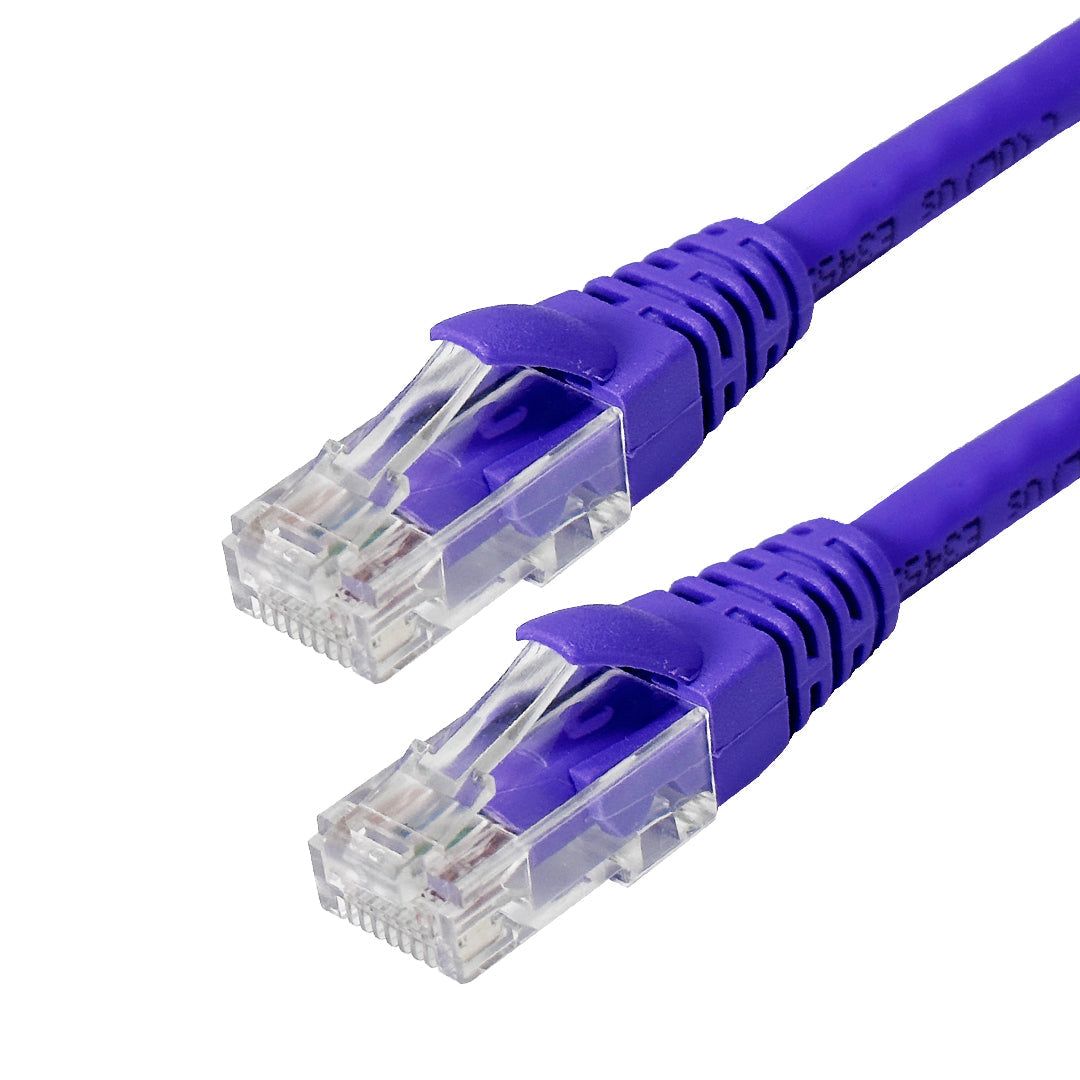

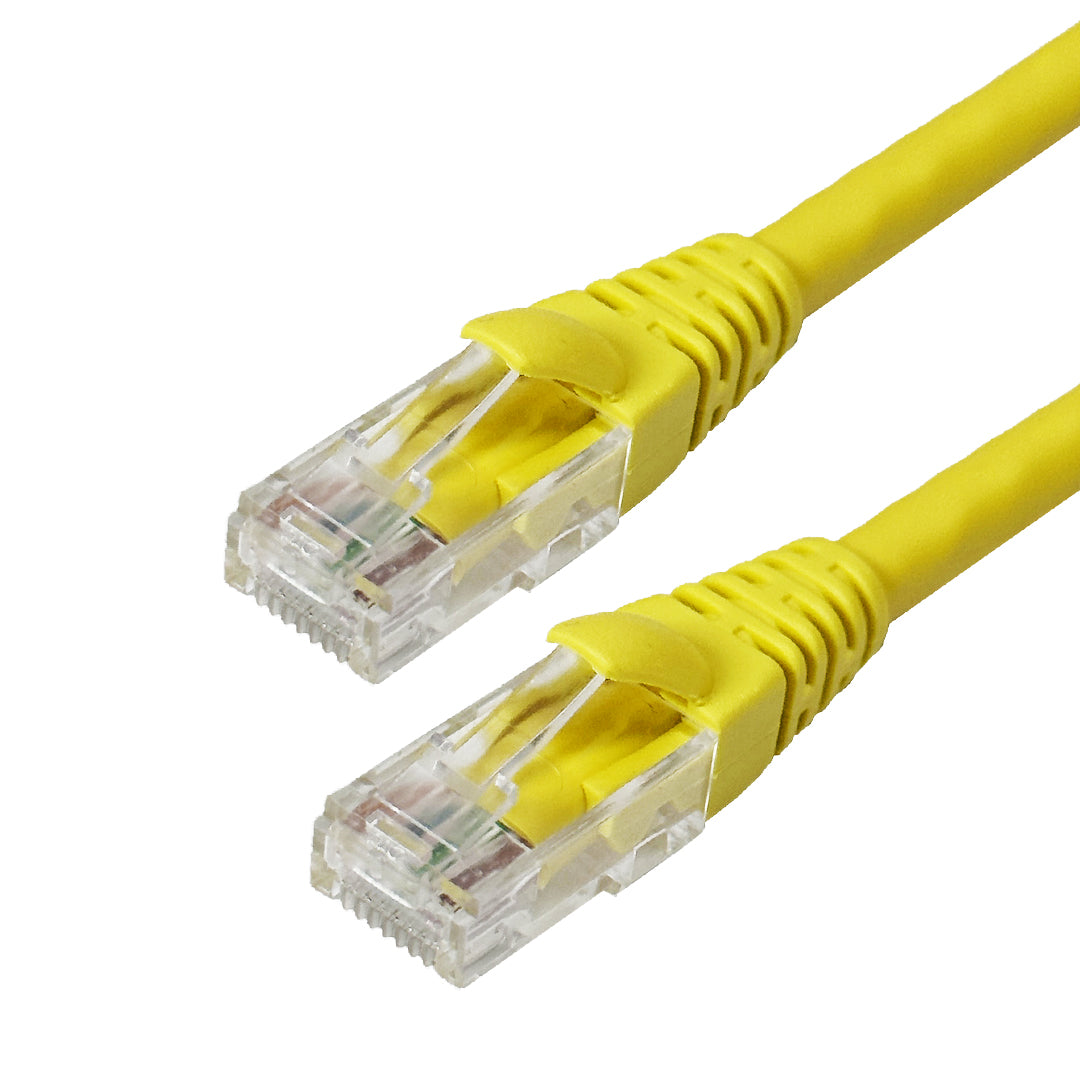

This FT6 plenum rated Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
These cables are made to order. Most orders ship out same day or next day depending on the quantity. Please contact us for more details.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Plenum Rated CableIdeal for use in cable runs that are located within a plenum air space or partially travel through a plenum airspace.
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Conductor Material | 100% Bare Copper |
| Cable Diameter | 6.00 mm |
| Wire Gauge | 23AWG Solid |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMP/FT6 [Plenum Rated] |
| Color Code | 568B |
| Strain Relief |
Molded Tab Style Strain Relief |
| Temperature Rating | -10℃ to +75℃ |
| Jacket Type | PVC - Polyvinyl Chloride |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Frequency | 550 MHz |
| Approvals | |
| c(UL)us | Compliant - Cable |
| ISO/IEC 9001 | Compliant - Cable |
| TIA/EIA 568C.2 | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 5ft | 7ft | 10ft | 14ft | 20ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.15 lbs | 0.20 lbs | 0.25 lbs | 0.40 lbs | 0.50 lbs | 0.60 lbs | 0.70 lbs | 0.80 lbs | 1.10 lbs | 1.90 lbs | 2.15 lbs | 2.30 lbs | 2.60 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| CAT6P-01BK | 1ft / Black | 0.07 lb |
| CAT6P-01BL | 1ft / Blue | 0.07 lb |
| CAT6P-01GN | 1ft / Green | 0.07 lb |
| CAT6P-01GY | 1ft / Grey | 0.07 lb |
| CAT6P-01OR | 1ft / Orange | 0.07 lb |
| CAT6P-01PR | 1ft / Purple | 0.07 lb |
| CAT6P-01WH | 1ft / White | 0.07 lb |
| CAT6P-01YL | 1ft / Yellow | 0.07 lb |
| CAT6P-02YL | 2ft / Yellow | 0.1 lb |
| CAT6P-02WH | 2ft / White | 0.1 lb |
| CAT6P-02PR | 2ft / Purple | 0.1 lb |
| CAT6P-02OR | 2ft / Orange | 0.1 lb |
| CAT6P-02GY | 2ft / Grey | 0.1 lb |
| CAT6P-02GN | 2ft / Green | 0.1 lb |
| CAT6P-02BL | 2ft / Blue | 0.1 lb |
| CAT6P-02BK | 2ft / Black | 0.1 lb |
| CAT6P-03BK | 3ft / Black | 0.15 lb |
| CAT6P-03BL | 3ft / Blue | 0.15 lb |
| CAT6P-03GN | 3ft / Green | 0.15 lb |
| CAT6P-03GY | 3ft / Grey | 0.15 lb |
| CAT6P-03OR | 3ft / Orange | 0.15 lb |
| CAT6P-03PR | 3ft / Purple | 0.15 lb |
| CAT6P-03WH | 3ft / White | 0.15 lb |
| CAT6P-03YL | 3ft / Yellow | 0.15 lb |
| CAT6P-05YL | 5ft / Yellow | 0.2 lb |
| CAT6P-05WH | 5ft / White | 0.2 lb |
| CAT6P-05PR | 5ft / Purple | 0.2 lb |
| CAT6P-05OR | 5ft / Orange | 0.2 lb |
| CAT6P-05GY | 5ft / Grey | 0.2 lb |
| CAT6P-05GN | 5ft / Green | 0.2 lb |
| CAT6P-05BL | 5ft / Blue | 0.2 lb |
| CAT6P-05BK | 5ft / Black | 0.2 lb |
| CAT6P-07YL | 7ft / Yellow | 0.24 lb |
| CAT6P-07WH | 7ft / White | 0.24 lb |
| CAT6P-07PR | 7ft / Purple | 0.24 lb |
| CAT6P-07OR | 7ft / Orange | 0.24 lb |
| CAT6P-07GY | 7ft / Grey | 0.24 lb |
| CAT6P-07GN | 7ft / Green | 0.24 lb |
| CAT6P-07BL | 7ft / Blue | 0.24 lb |
| CAT6P-07BK | 7ft / Black | 0.24 lb |
| CAT6P-10YL | 10ft / Yellow | 0.33 lb |
| CAT6P-10WH | 10ft / White | 0.33 lb |
| CAT6P-10PR | 10ft / Purple | 0.33 lb |
| CAT6P-10OR | 10ft / Orange | 0.33 lb |
| CAT6P-10GY | 10ft / Grey | 0.33 lb |
| CAT6P-10GN | 10ft / Green | 0.33 lb |
| CAT6P-10BL | 10ft / Blue | 0.33 lb |
| CAT6P-10BK | 10ft / Black | 0.33 lb |
| CAT6P-14BK | 14ft / Black | 0.46 lb |
| CAT6P-14BL | 14ft / Blue | 0.46 lb |
| CAT6P-14GN | 14ft / Green | 0.46 lb |
| CAT6P-14GY | 14ft / Grey | 0.46 lb |
| CAT6P-14OR | 14ft / Orange | 0.46 lb |
| CAT6P-14PR | 14ft / Purple | 0.46 lb |
| CAT6P-14WH | 14ft / White | 0.46 lb |
| CAT6P-14YL | 14ft / Yellow | 0.46 lb |
| CAT6P-20BK | 20ft / Black | 0.63 lb |
| CAT6P-20BL | 20ft / Blue | 0.63 lb |
| CAT6P-20GN | 20ft / Green | 0.63 lb |
| CAT6P-20GY | 20ft / Grey | 0.63 lb |
| CAT6P-20OR | 20ft / Orange | 0.63 lb |
| CAT6P-20PR | 20ft / Purple | 0.63 lb |
| CAT6P-20WH | 20ft / White | 0.63 lb |
| CAT6P-20YL | 20ft / Yellow | 0.63 lb |
| CAT6P-25BK | 25ft / Black | 0.77 lb |
| CAT6P-25BL | 25ft / Blue | 0.77 lb |
| CAT6P-25GN | 25ft / Green | 0.77 lb |
| CAT6P-25GY | 25ft / Grey | 0.77 lb |
| CAT6P-25OR | 25ft / Orange | 0.77 lb |
| CAT6P-25PR | 25ft / Purple | 0.77 lb |
| CAT6P-25WH | 25ft / White | 0.77 lb |
| CAT6P-25YL | 25ft / Yellow | 0.77 lb |
| CAT6P-30BK | 30ft / Black | 0.95 lb |
| CAT6P-30BL | 30ft / Blue | 0.95 lb |
| CAT6P-30GN | 30ft / Green | 0.95 lb |
| CAT6P-30GY | 30ft / Grey | 0.95 lb |
| CAT6P-30OR | 30ft / Orange | 0.95 lb |
| CAT6P-30PR | 30ft / Purple | 0.95 lb |
| CAT6P-30WH | 30ft / White | 0.95 lb |
| CAT6P-30YL | 30ft / Yellow | 0.95 lb |
| CAT6P-35BK | 35ft / Black | 1.1 lb |
| CAT6P-35BL | 35ft / Blue | 1.1 lb |
| CAT6P-35GN | 35ft / Green | 1.1 lb |
| CAT6P-35GY | 35ft / Grey | 1.1 lb |
| CAT6P-35OR | 35ft / Orange | 1.1 lb |
| CAT6P-35PR | 35ft / Purple | 1.1 lb |
| CAT6P-35WH | 35ft / White | 1.1 lb |
| CAT6P-35YL | 35ft / Yellow | 1.1 lb |
| CAT6P-50YL | 50ft / Yellow | 1.55 lb |
| CAT6P-50WH | 50ft / White | 1.55 lb |
| CAT6P-50PR | 50ft / Purple | 1.55 lb |
| CAT6P-50OR | 50ft / Orange | 1.55 lb |
| CAT6P-50GY | 50ft / Grey | 1.55 lb |
| CAT6P-50GN | 50ft / Green | 1.55 lb |
| CAT6P-50BL | 50ft / Blue | 1.55 lb |
| CAT6P-50BK | 50ft / Black | 1.55 lb |
| CAT6P-75BK | 75ft / Black | 2.26 lb |
| CAT6P-75BL | 75ft / Blue | 2.26 lb |
| CAT6P-75GN | 75ft / Green | 2.26 lb |
| CAT6P-75GY | 75ft / Grey | 2.26 lb |
| CAT6P-75OR | 75ft / Orange | 2.26 lb |
| CAT6P-75PR | 75ft / Purple | 2.26 lb |
| CAT6P-75WH | 75ft / White | 2.26 lb |
| CAT6P-75YL | 75ft / Yellow | 2.26 lb |
| CAT6P-100BK | 100ft / Black | 3.0 lb |
| CAT6P-100BL | 100ft / Blue | 3.0 lb |
| CAT6P-100GN | 100ft / Green | 3.0 lb |
| CAT6P-100GY | 100ft / Grey | 3.0 lb |
| CAT6P-100OR | 100ft / Orange | 3.0 lb |
| CAT6P-100PR | 100ft / Purple | 3.0 lb |
| CAT6P-100WH | 100ft / White | 3.0 lb |
| CAT6P-100YL | 100ft / Yellow | 3.0 lb |
| CAT6P-125BK | 125ft / Black | 5.0 lb |
| CAT6P-125BL | 125ft / Blue | 5.0 lb |
| CAT6P-125GN | 125ft / Green | 5.0 lb |
| CAT6P-125GY | 125ft / Grey | 5.0 lb |
| CAT6P-125OR | 125ft / Orange | 5.0 lb |
| CAT6P-125PR | 125ft / Purple | 5.0 lb |
| CAT6P-125WH | 125ft / White | 5.0 lb |
| CAT6P-125YL | 125ft / Yellow | 5.0 lb |
| CAT6P-150BK | 150ft / Black | 6.2 lb |
| CAT6P-150BL | 150ft / Blue | 6.2 lb |
| CAT6P-150GN | 150ft / Green | 6.2 lb |
| CAT6P-150GY | 150ft / Grey | 6.2 lb |
| CAT6P-150OR | 150ft / Orange | 6.2 lb |
| CAT6P-150PR | 150ft / Purple | 6.2 lb |
| CAT6P-150WH | 150ft / White | 6.2 lb |
| CAT6P-150YL | 150ft / Yellow | 6.2 lb |
