RJ45 Cat6 F/UTP Solid Shielded 23AWG Molded Patch Cable - CMP Plenum Rated

CAT6 Patch CablesSKU: CAT6SP-15BK

Length: 15ft
Color: Black
Sale price$22.00 CAD
*Parts in stock - see below for lead-time

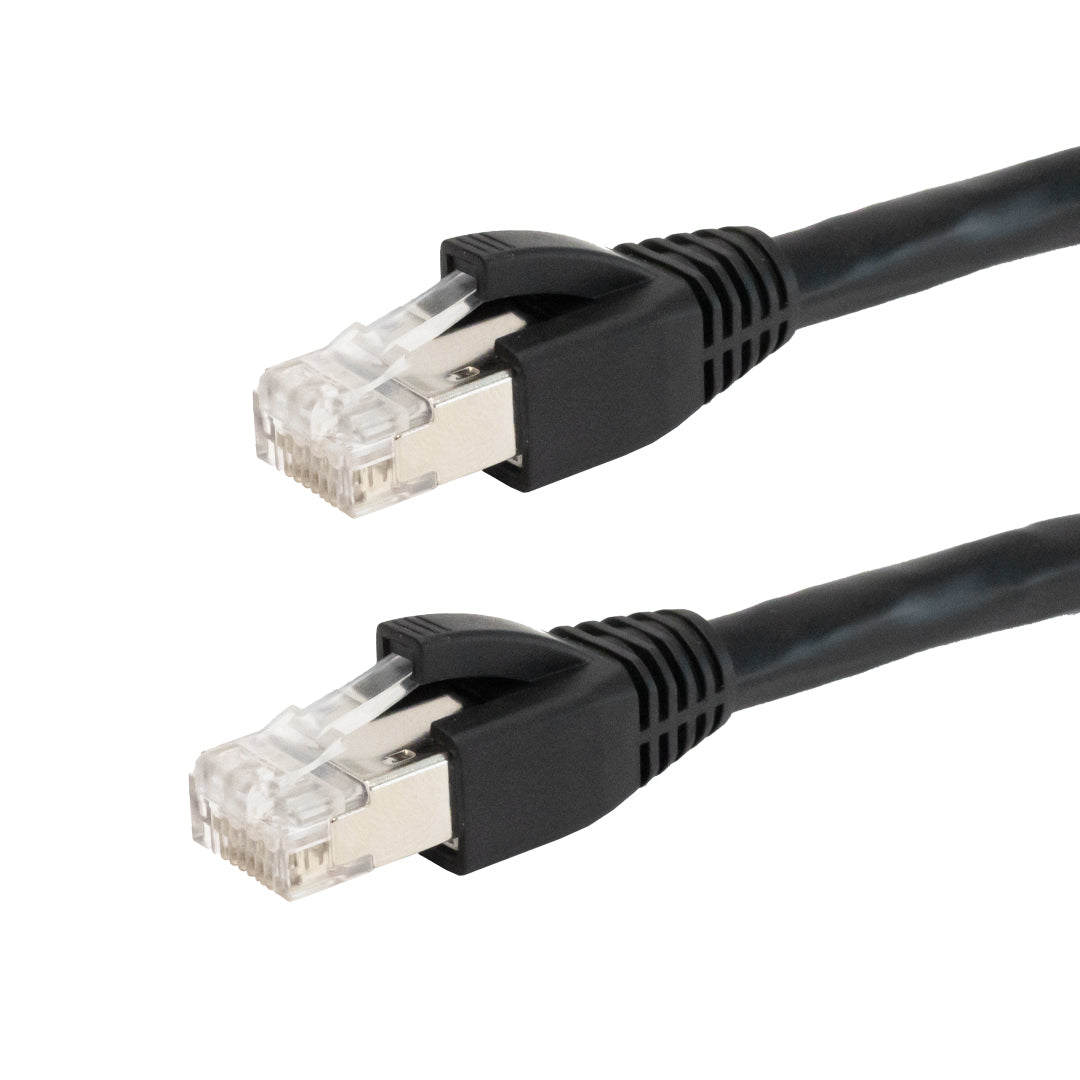

This Cat6 shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI). The cable jacket is also CMP (plenum) fire rated.

TERMS: non-cancelable & non-returnable

100% Pure Copper

This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.

50 Micron Gold Plated Connectors

This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.


100% mylar foil shielded pairs is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation.


Physical Characteristics
Connector Plating Gold Plated 50 Micron
Cable Diameter 7.45 mm
Wire Gauge 23AWG Solid
Shielding F/UTP (100% Aluminum Foil Shield)
Pairs 4
Insulation Outer Diameter: 0.0414" (1.05 +/- 0.5mm)
PET (20/0.25mm)
Jacket Nominal Thickness 0.0197" (0.50mm)
Jacket Outer Diameter 0.268" +/- 0.012 (6.8 +/- 0.3mm)
Fire Rating CMP/FT6 [Plenum Rated]
Temperature Rating -20 deg C to +80 deg C
Jacket Type PVC
Electrical Characteristics
Voltage 30V
Capacitance 5.6nF/100m .Nom
Velocity of Propagation ‚Č•65%
DCR Conductor 9.38 Ohms/100m.Nom
D-C Resistance Unbalance ‚ȶ5%
Characteristic Impedance 1-100MHz,100¬Ī15%
Connector A RJ45 Shielded Long Body Male
Connector B RJ45 Shielded Long Body Male
c(UL)us Yes - Cable
RoHS Yes
Reach Yes
Conflict Materials Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
15ft 20ft 25ft 30ft 35ft 50ft 75ft 100ft 125ft 150ft 175ft 200ft 225ft 250ft 275ft 300ft
0.45 lbs 0.45 lbs 0.75 lbs 0.45 lbs 1.05 lbs 1.50 lbs 2.25 lbs 3.00 lbs 3.75 lbs 4.50 lbs 5.25 lbs 6.00 lbs 6.75 lbs 7.50 lbs 8.25 lbs 9.00 lbs

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.
