Description
Overview

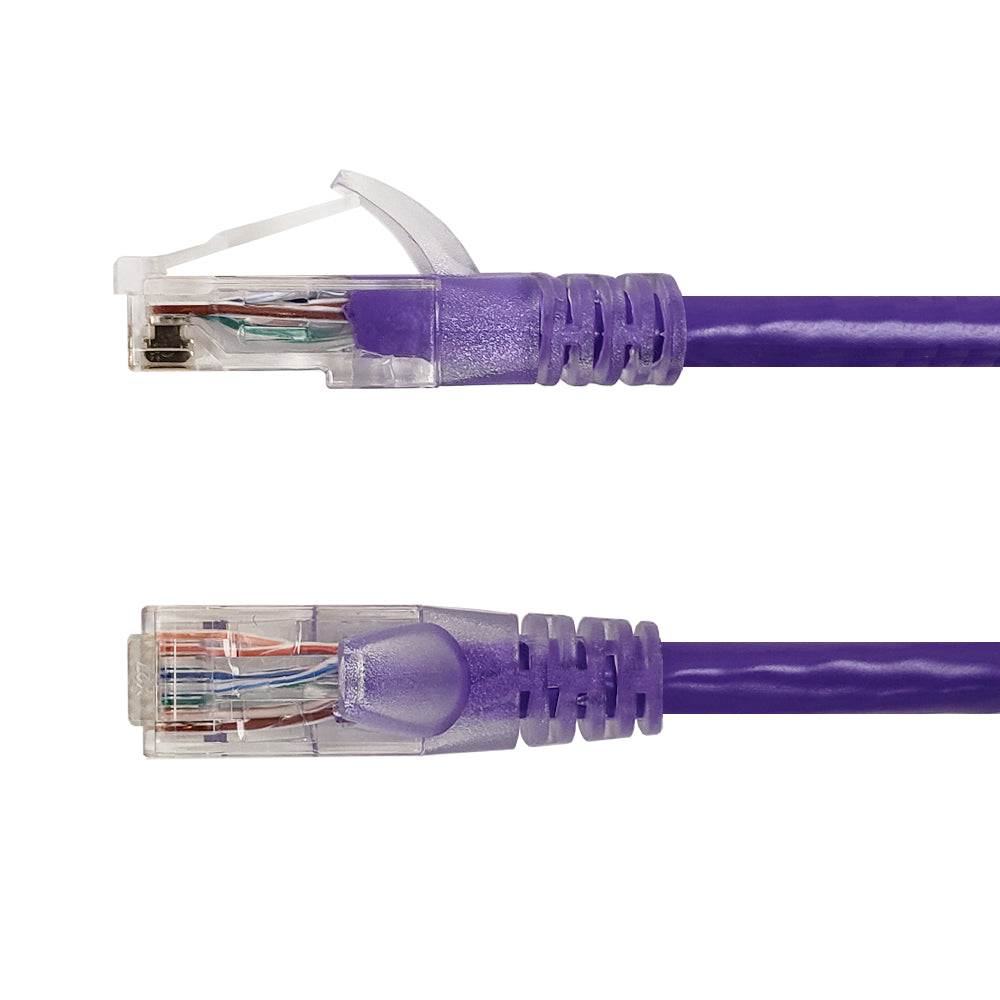

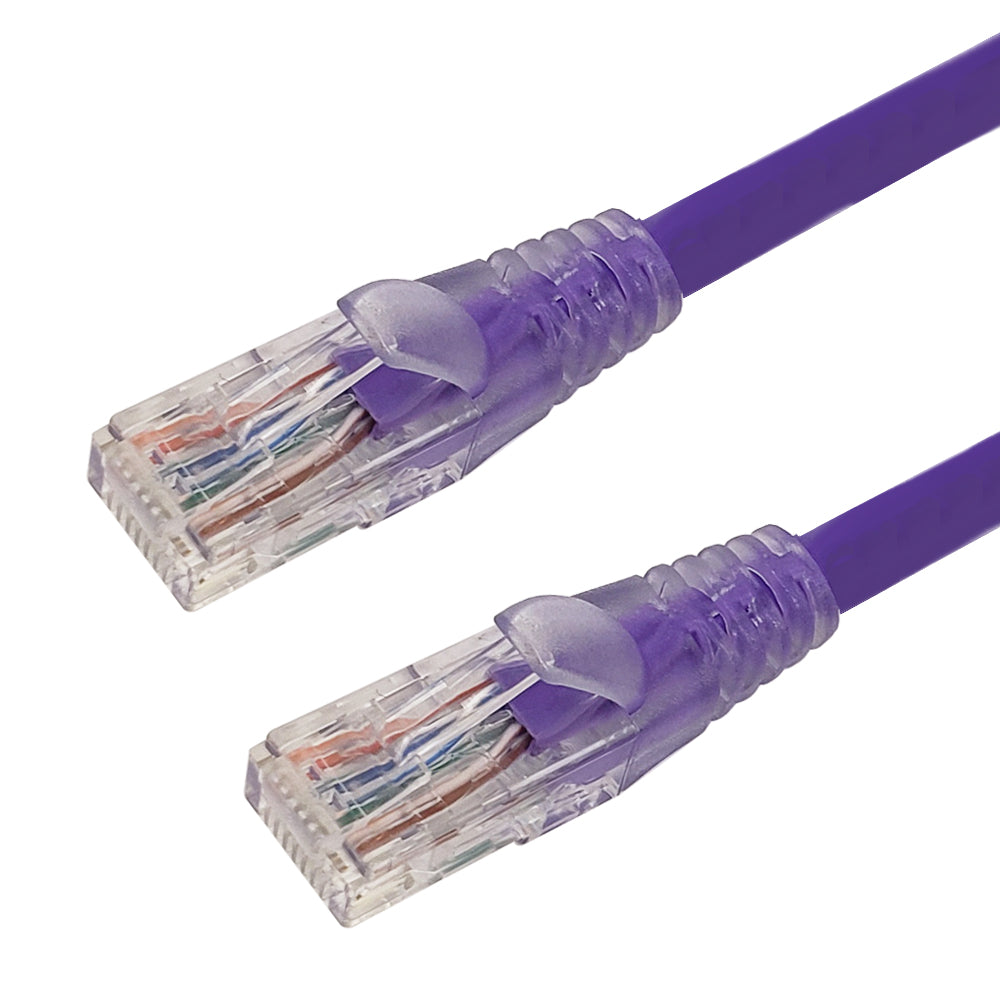

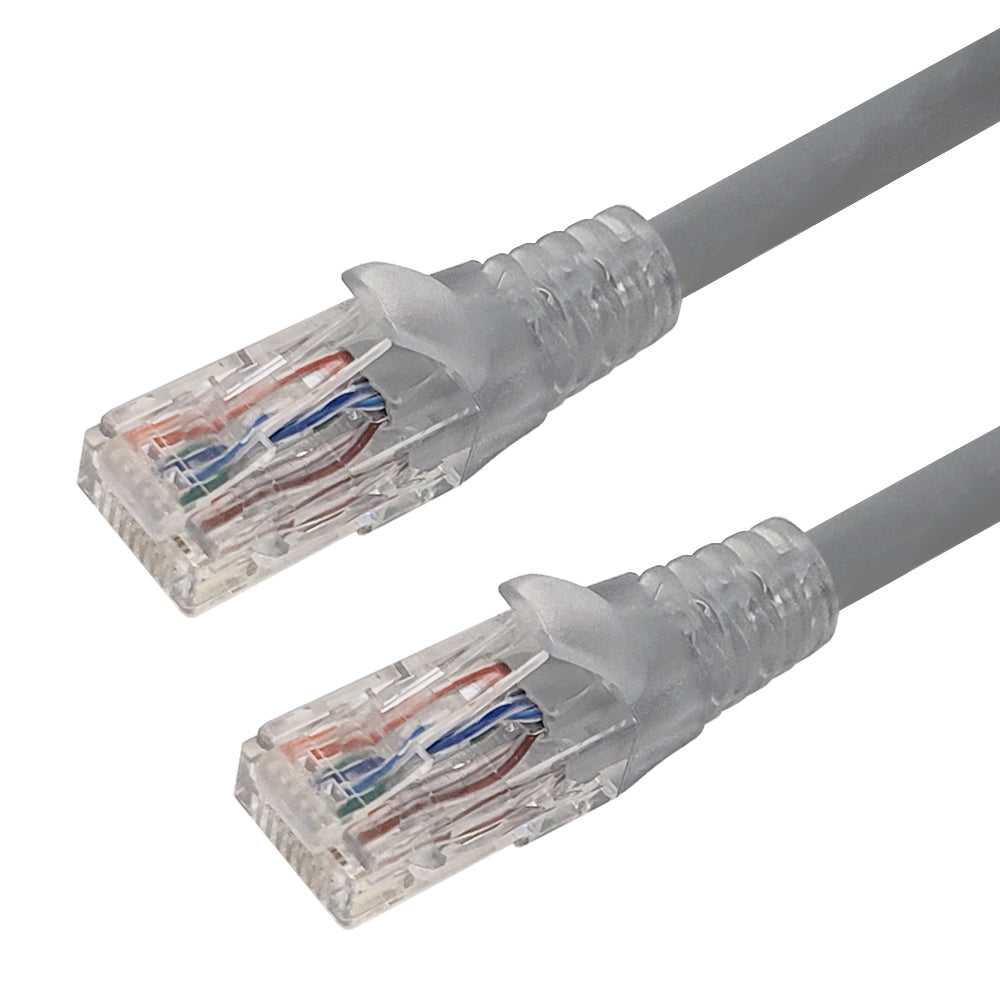

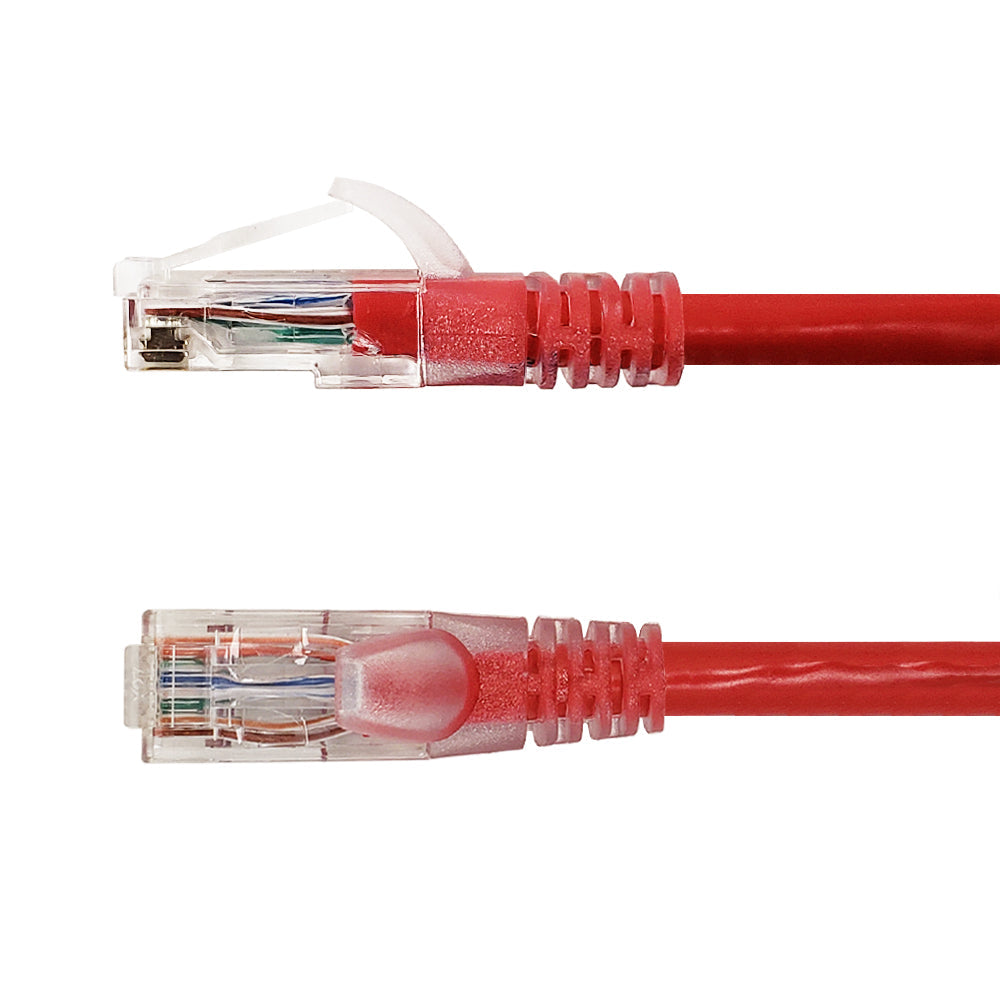

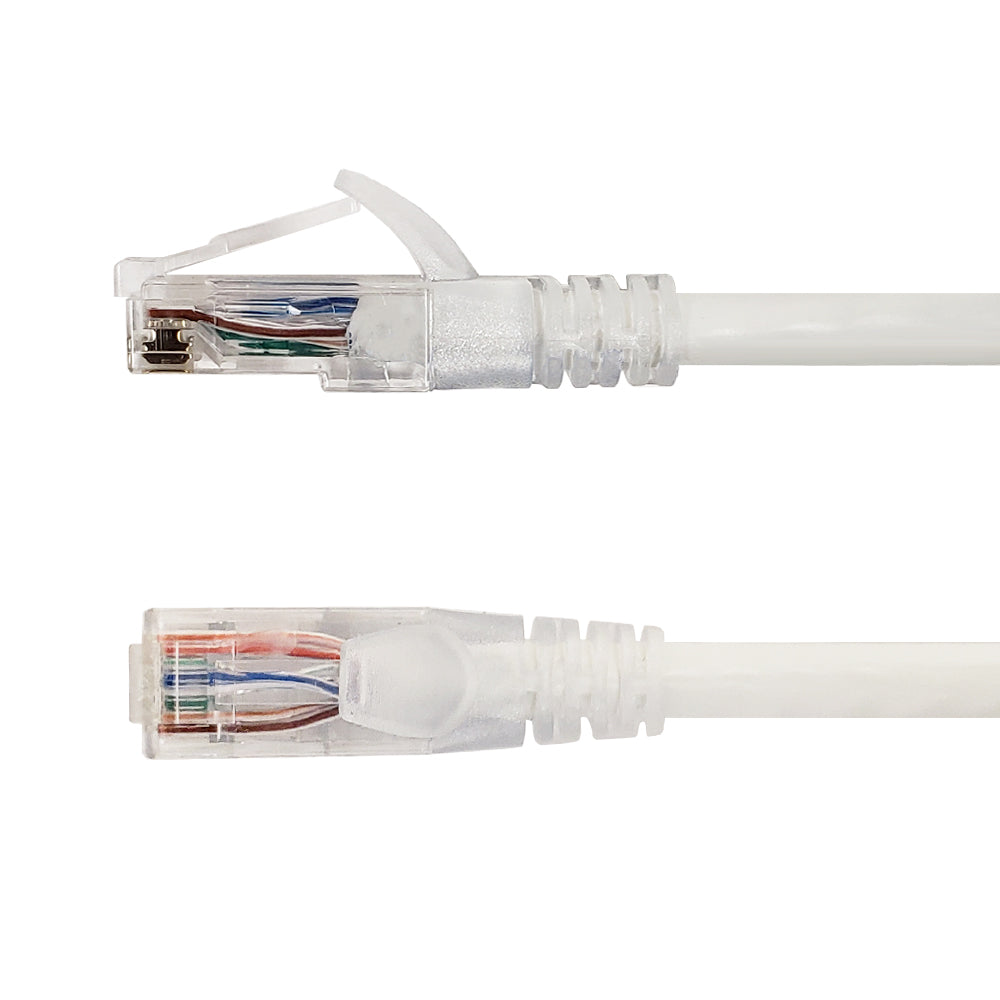

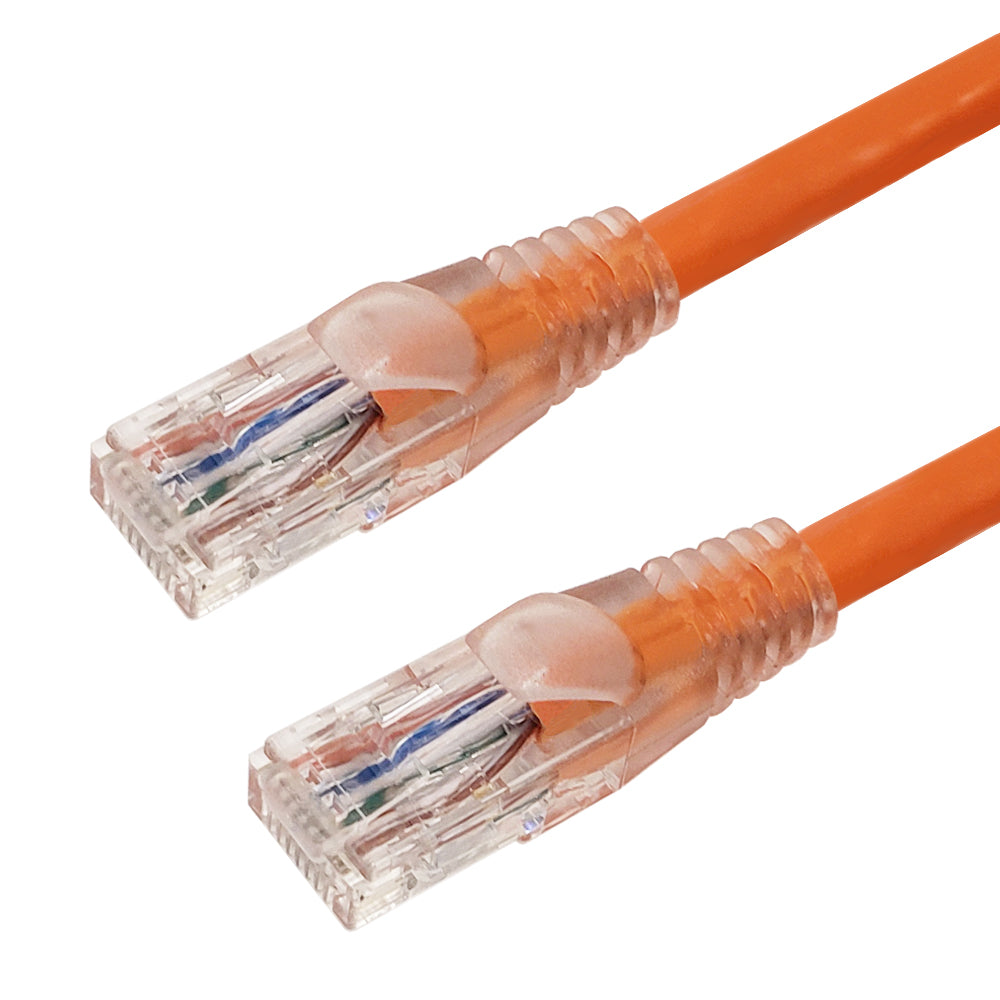

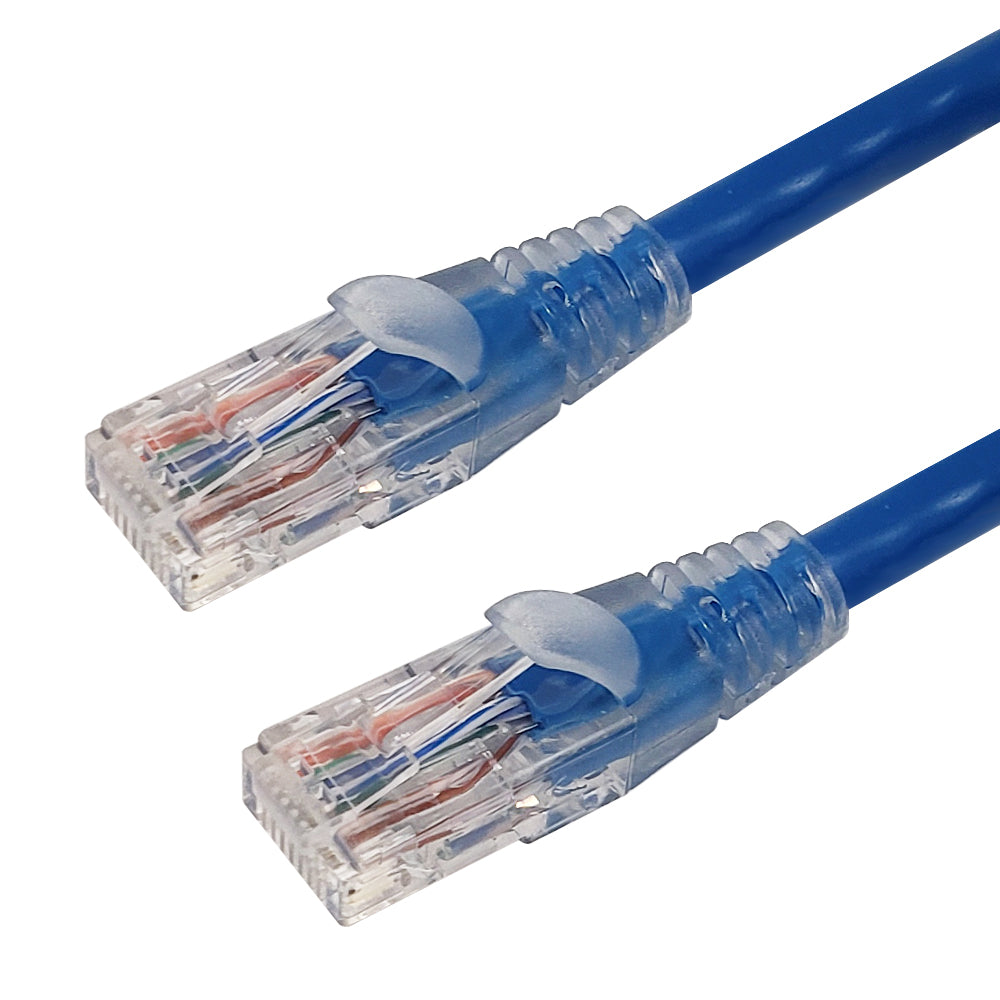

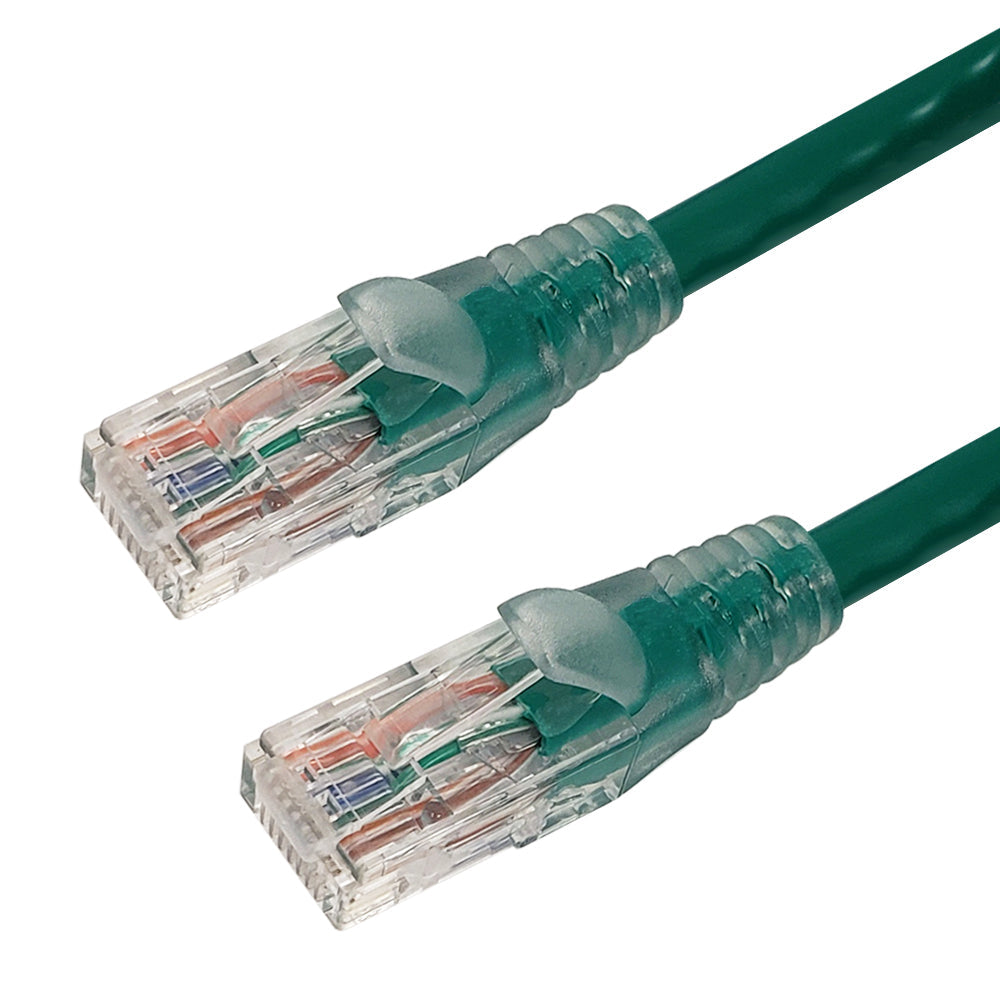

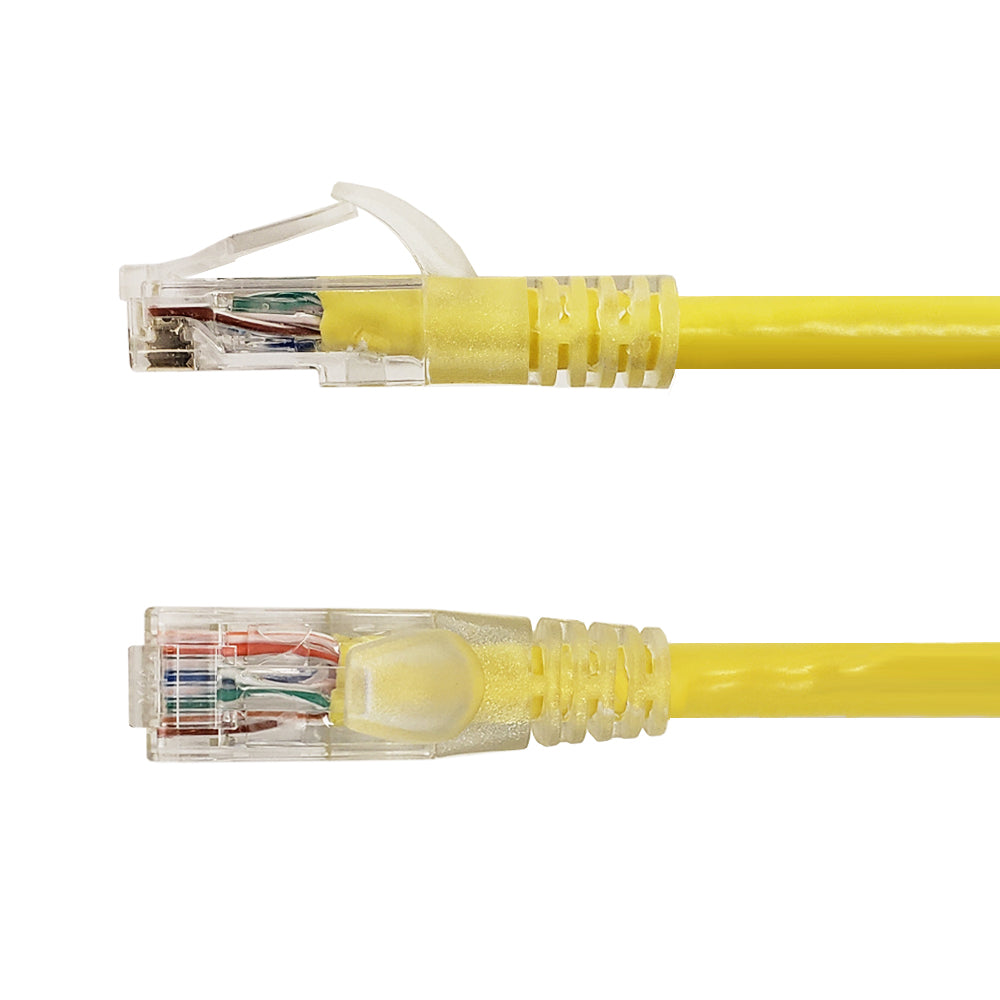

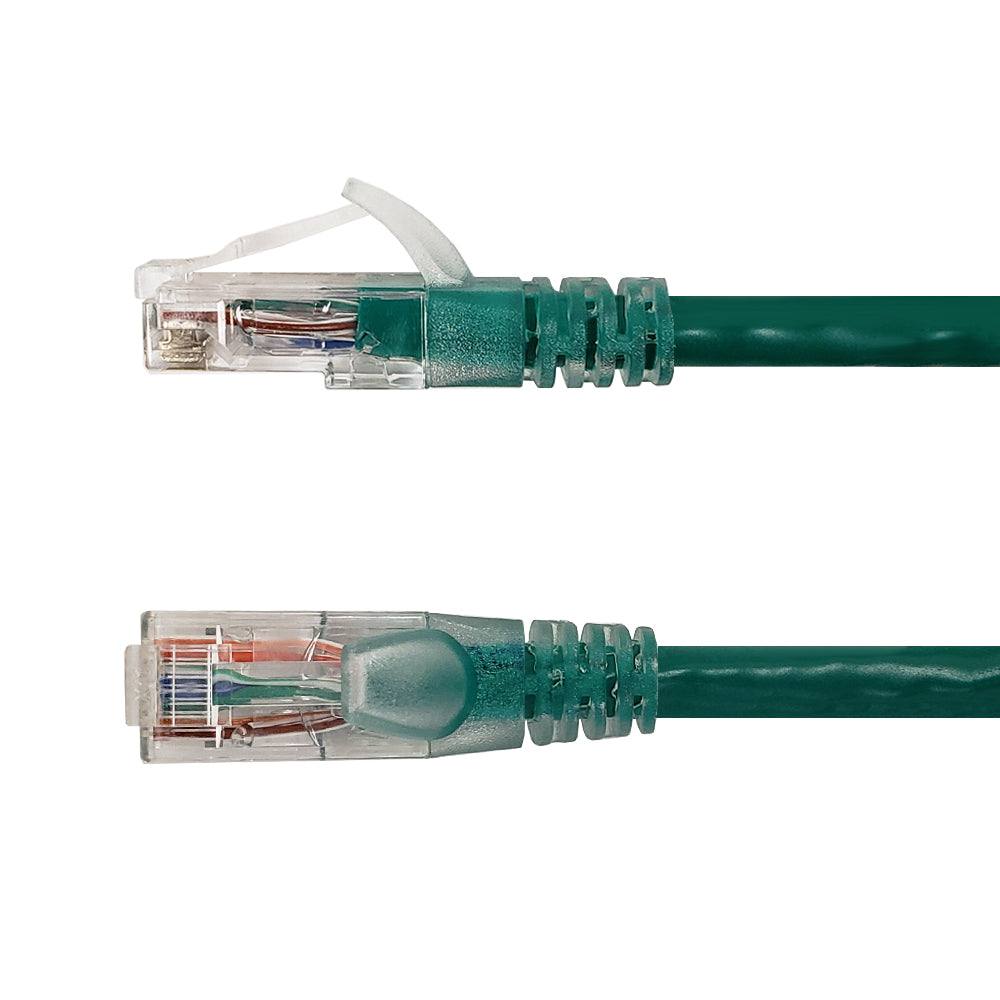

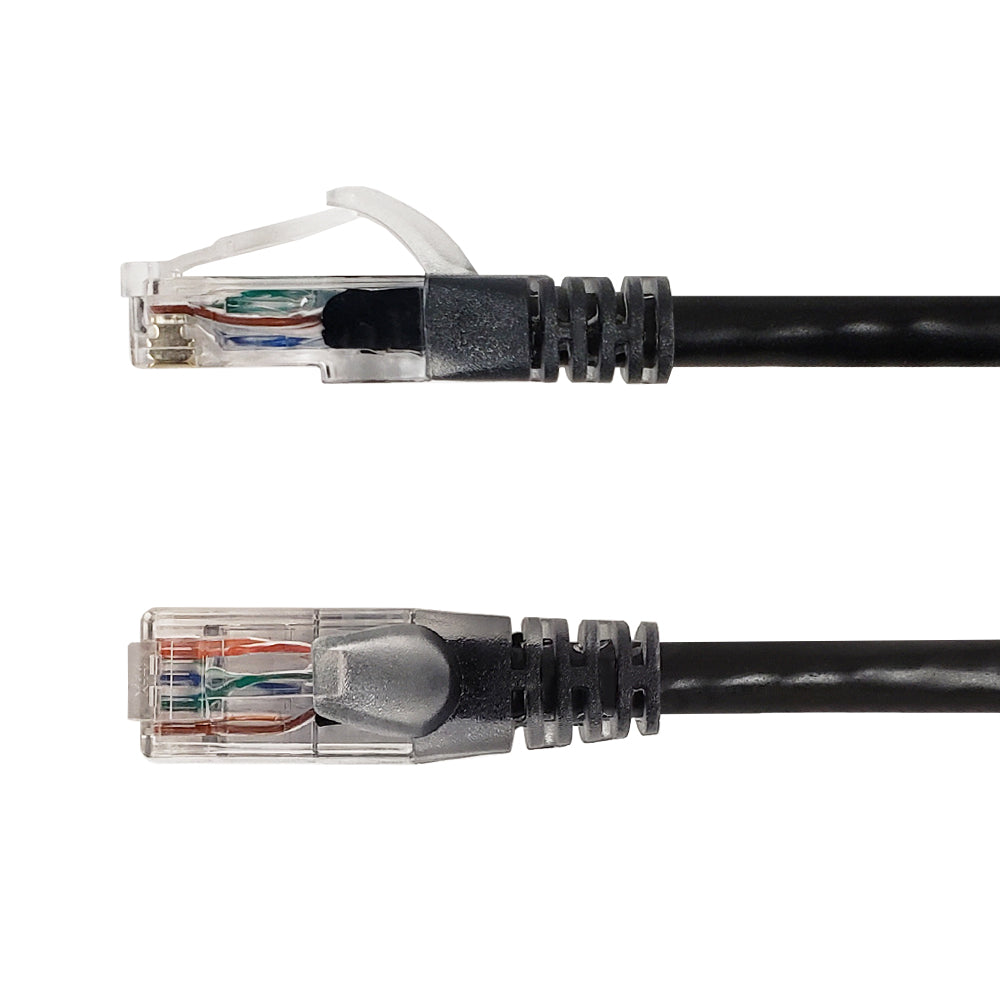

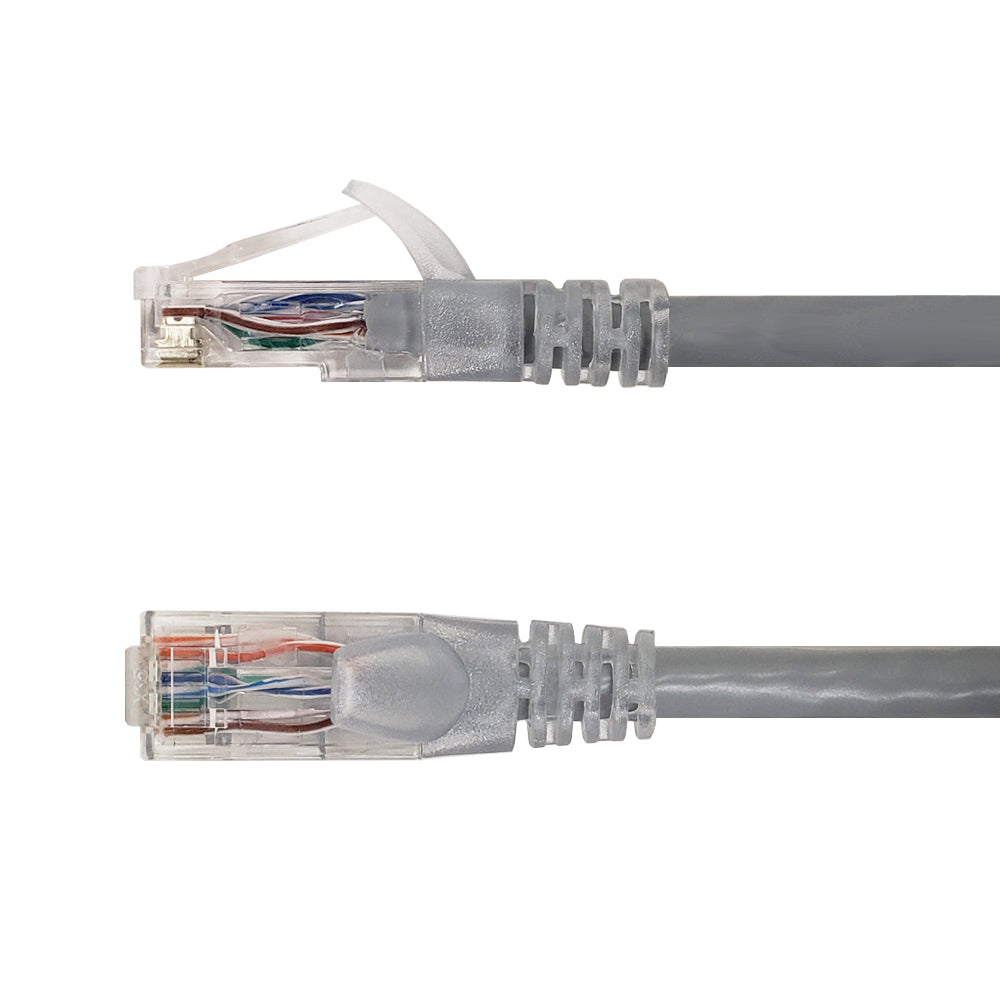

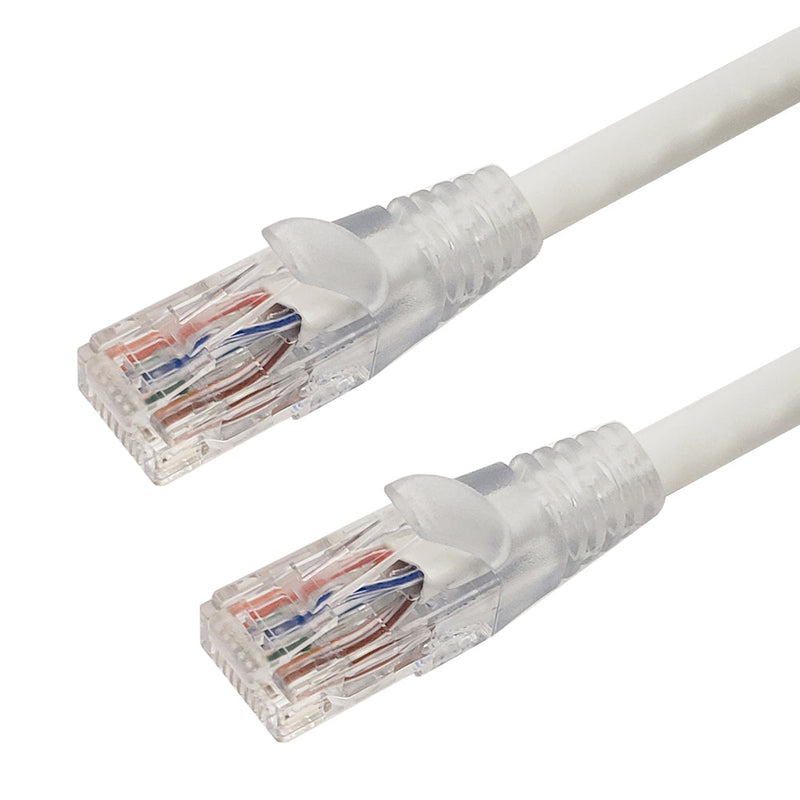

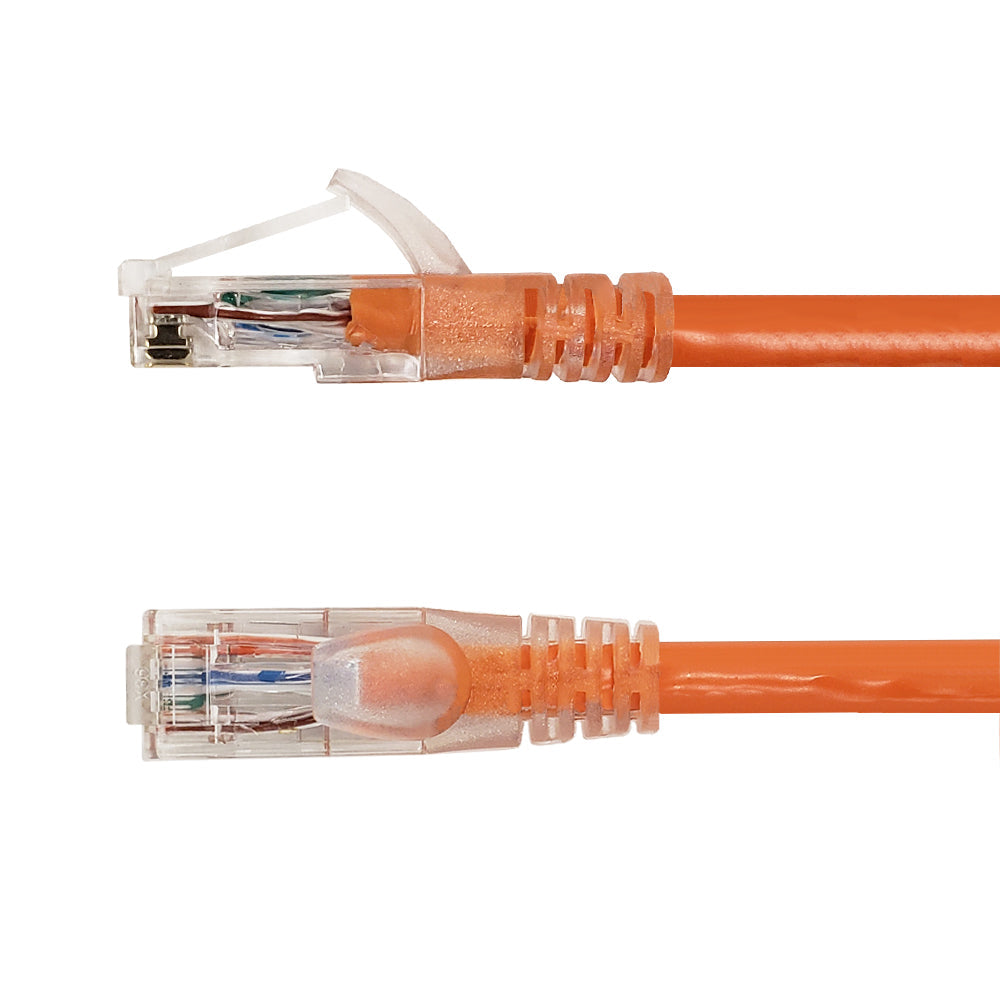

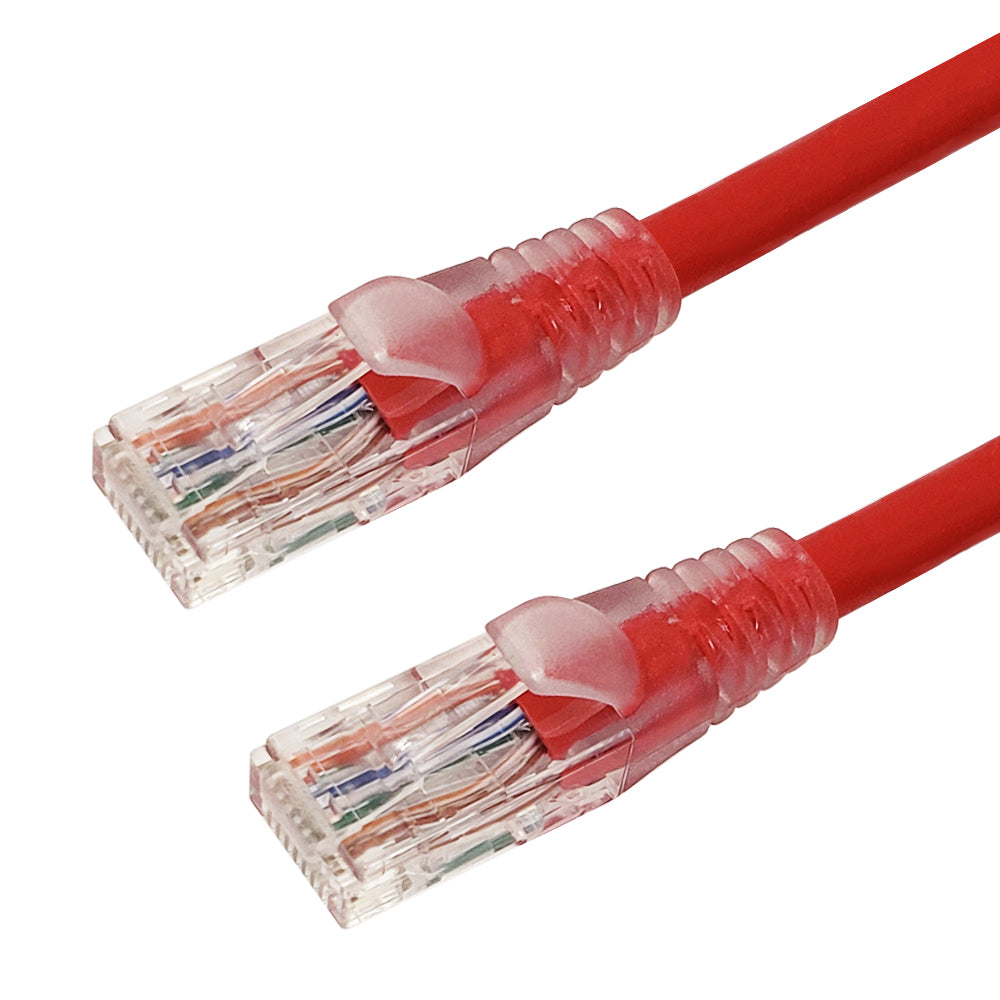

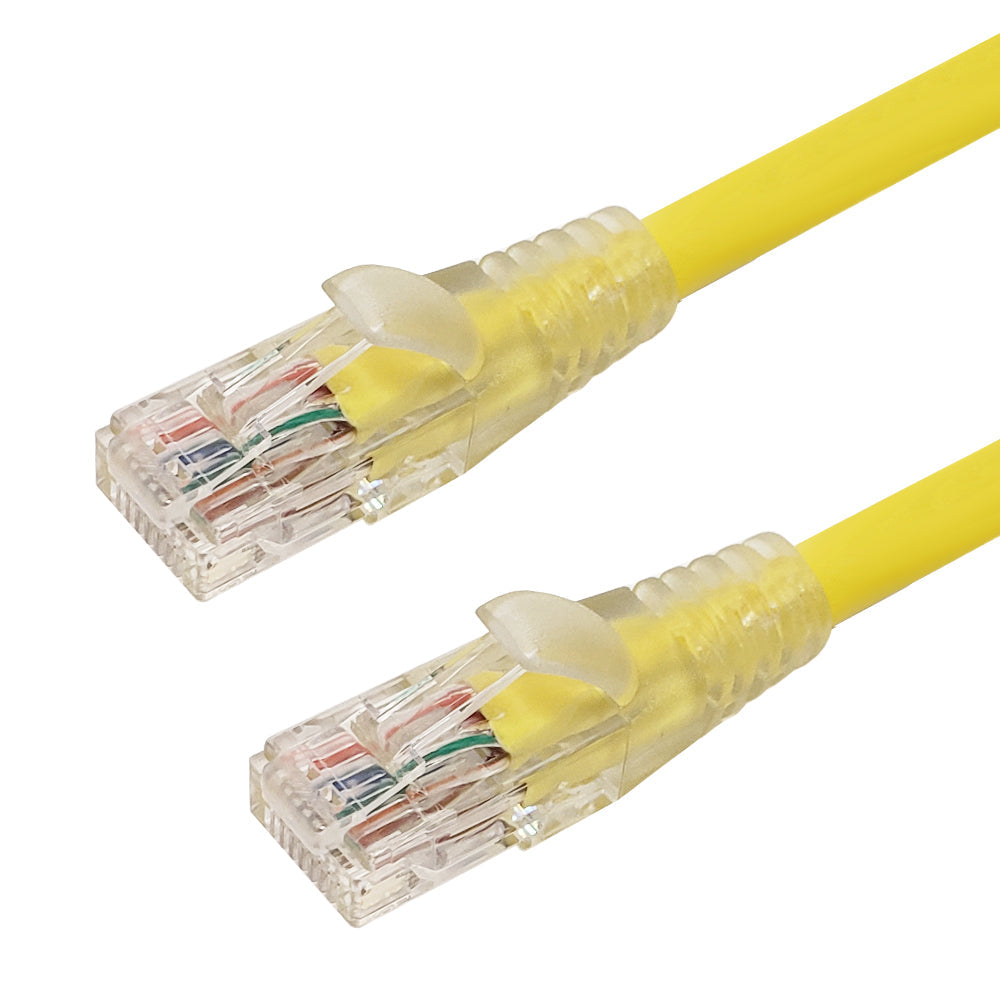

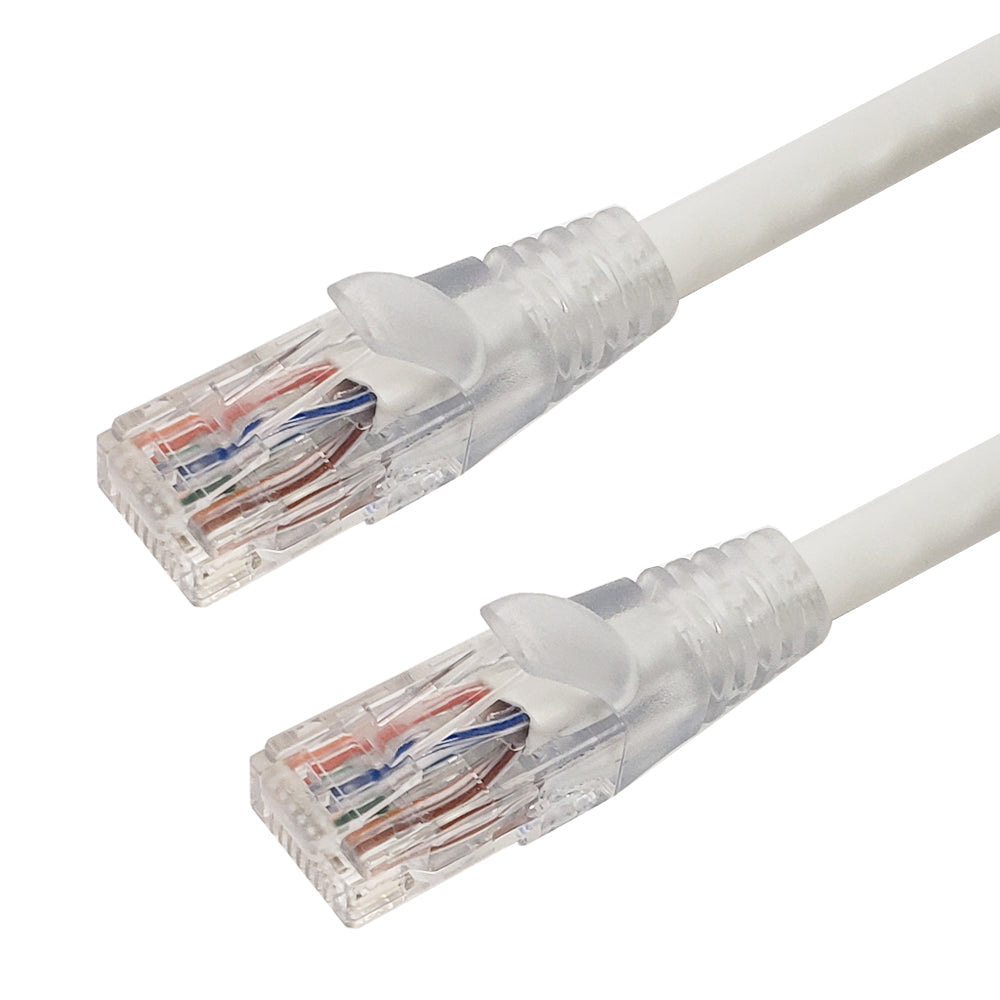

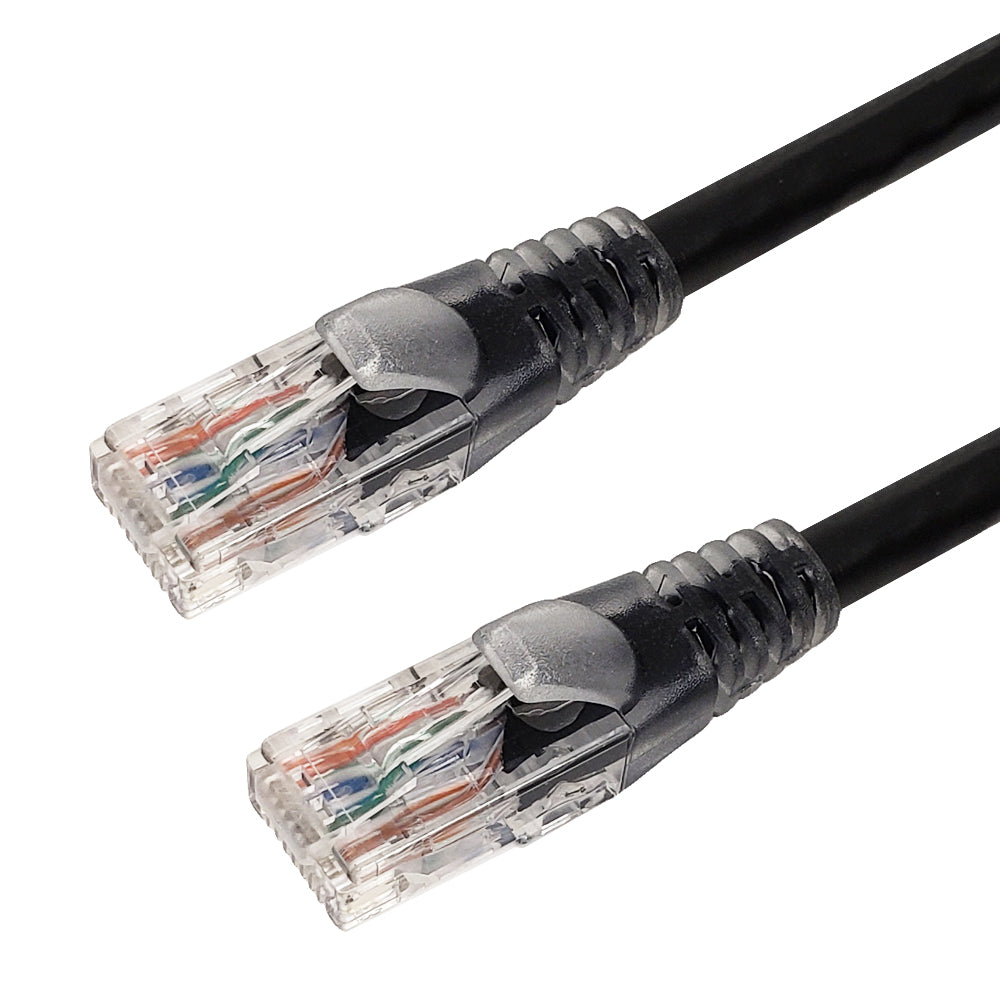

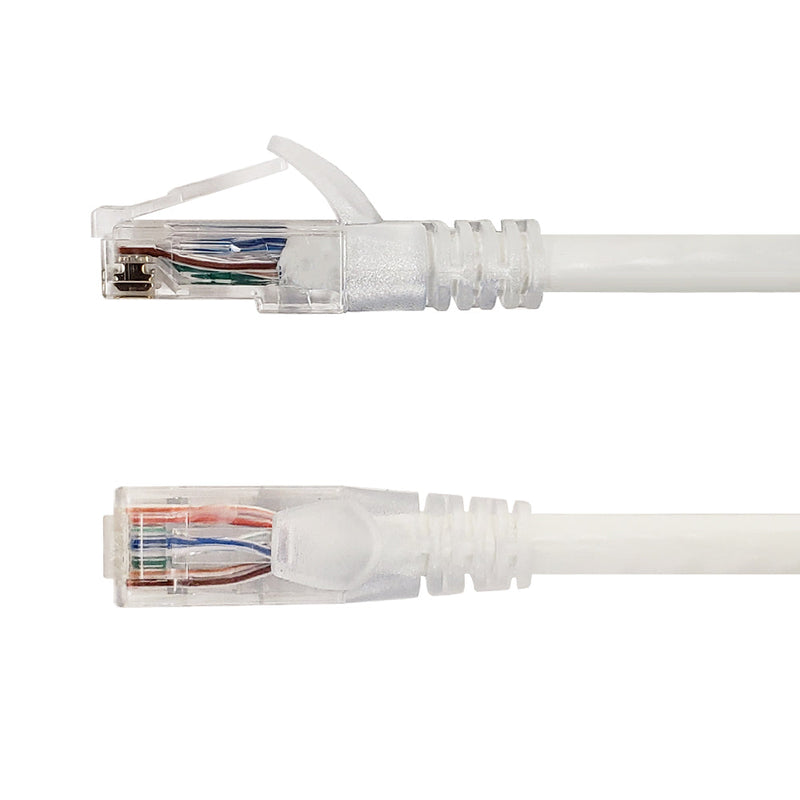

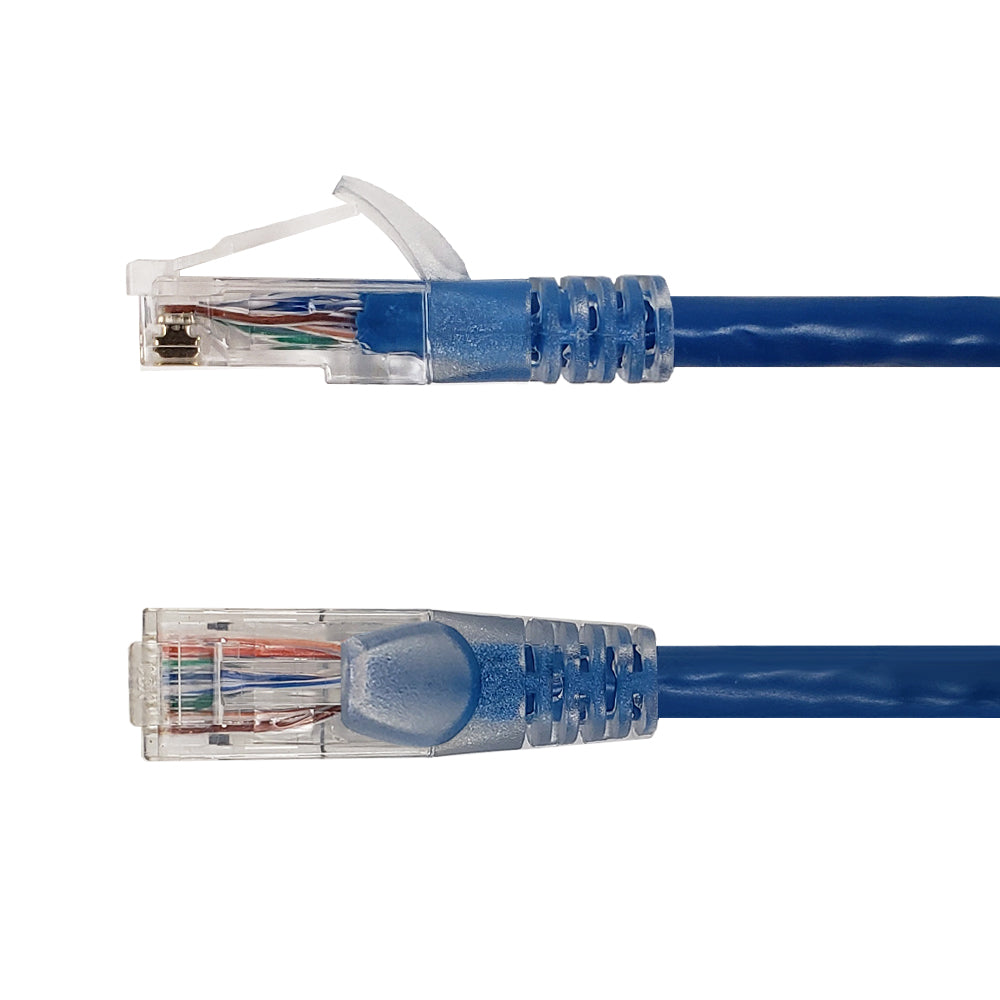

This Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Fluke Patch Cable TestedOur cables are 100% continuity tested and batch tested to pass a CAT6 fluke patch cable test.
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.2mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CM |
| Color Code | 568B |
| Molding | Molded Tab Style Strain Relief |
| Jacket Temperature Rating | +75 deg C |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| CAT6 Fluke Patch Cable Test | Yes |
| Frequency | 550 MHz |
| Approvals | |
| c(UL)us | Yes - Cable |
| ETL Verified | Yes |
| TIA/EIA - 568 - C.2 | Yes |
| Product Support | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Country of Origin | Vietnam |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 6 inch | 1ft | 2ft | 3ft | 5ft | 7ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.02 lbs | 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.15 lbs | 0.20 lbs | 0.25 lbs | 0.43 lbs | 0.60 lbs | 0.80 lbs | 1.10 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| CAT6CB-6INBK | 6 inch / Black | 0.05 lb |
| CAT6CB-01BK | 1ft / Black | 0.07 lb |
| CAT6CB-02BK | 2ft / Black | 0.1 lb |
| CAT6CB-03BK | 3ft / Black | 0.15 lb |
| CAT6CB-05BK | 5ft / Black | 0.2 lb |
| CAT6CB-07BK | 7ft / Black | 0.24 lb |
| CAT6CB-10BK | 10ft / Black | 0.33 lb |
| CAT6CB-15BK | 15ft / Black | 0.5 lb |
| CAT6CB-25BK | 25ft / Black | 0.77 lb |
| CAT6CB-35BK | 35ft / Black | 1.1 lb |
| CAT6CB-50BK | 50ft / Black | 1.55 lb |
| CAT6CB-75BK | 75ft / Black | 2.32 lb |
| CAT6CB-100BK | 100ft / Black | 3.11 lb |
| CAT6CB-6INBL | 6 inch / Blue | 0.05 lb |
| CAT6CB-01BL | 1ft / Blue | 0.07 lb |
| CAT6CB-02BL | 2ft / Blue | 0.1 lb |
| CAT6CB-03BL | 3ft / Blue | 0.15 lb |
| CAT6CB-05BL | 5ft / Blue | 0.2 lb |
| CAT6CB-07BL | 7ft / Blue | 0.24 lb |
| CAT6CB-10BL | 10ft / Blue | 0.33 lb |
| CAT6CB-15BL | 15ft / Blue | 0.5 lb |
| CAT6CB-25BL | 25ft / Blue | 0.77 lb |
| CAT6CB-35BL | 35ft / Blue | 1.1 lb |
| CAT6CB-50BL | 50ft / Blue | 1.55 lb |
| CAT6CB-75BL | 75ft / Blue | 2.32 lb |
| CAT6CB-100BL | 100ft / Blue | 3.11 lb |
| CAT6CB-6INGN | 6 inch / Green | 0.05 lb |
| CAT6CB-01GN | 1ft / Green | 0.07 lb |
| CAT6CB-02GN | 2ft / Green | 0.1 lb |
| CAT6CB-03GN | 3ft / Green | 0.15 lb |
| CAT6CB-05GN | 5ft / Green | 0.2 lb |
| CAT6CB-07GN | 7ft / Green | 0.24 lb |
| CAT6CB-10GN | 10ft / Green | 0.33 lb |
| CAT6CB-15GN | 15ft / Green | 0.5 lb |
| CAT6CB-25GN | 25ft / Green | 0.77 lb |
| CAT6CB-35GN | 35ft / Green | 1.1 lb |
| CAT6CB-50GN | 50ft / Green | 1.55 lb |
| CAT6CB-75GN | 75ft / Green | 2.32 lb |
| CAT6CB-100GN | 100ft / Green | 3.11 lb |
| CAT6CB-6INGY | 6 inch / Gray | 0.05 lb |
| CAT6CB-01GY | 1ft / Gray | 0.07 lb |
| CAT6CB-02GY | 2ft / Gray | 0.1 lb |
| CAT6CB-03GY | 3ft / Gray | 0.15 lb |
| CAT6CB-05GY | 5ft / Gray | 0.2 lb |
| CAT6CB-07GY | 7ft / Gray | 0.24 lb |
| CAT6CB-10GY | 10ft / Gray | 0.33 lb |
| CAT6CB-15GY | 15ft / Gray | 0.5 lb |
| CAT6CB-25GY | 25ft / Gray | 0.77 lb |
| CAT6CB-35GY | 35ft / Gray | 1.1 lb |
| CAT6CB-50GY | 50ft / Gray | 1.55 lb |
| CAT6CB-75GY | 75ft / Gray | 2.32 lb |
| CAT6CB-100GY | 100ft / Gray | 3.11 lb |
| CAT6CB-6INOR | 6 inch / Orange | 0.05 lb |
| CAT6CB-01OR | 1ft / Orange | 0.07 lb |
| CAT6CB-02OR | 2ft / Orange | 0.1 lb |
| CAT6CB-03OR | 3ft / Orange | 0.15 lb |
| CAT6CB-05OR | 5ft / Orange | 0.2 lb |
| CAT6CB-07OR | 7ft / Orange | 0.24 lb |
| CAT6CB-10OR | 10ft / Orange | 0.33 lb |
| CAT6CB-15OR | 15ft / Orange | 0.5 lb |
| CAT6CB-25OR | 25ft / Orange | 0.77 lb |
| CAT6CB-35OR | 35ft / Orange | 1.1 lb |
| CAT6CB-50OR | 50ft / Orange | 1.55 lb |
| CAT6CB-75OR | 75ft / Orange | 2.32 lb |
| CAT6CB-100OR | 100ft / Orange | 3.11 lb |
| CAT6CB-6INPR | 6 inch / Purple | 0.05 lb |
| CAT6CB-01PR | 1ft / Purple | 0.07 lb |
| CAT6CB-02PR | 2ft / Purple | 0.1 lb |
| CAT6CB-03PR | 3ft / Purple | 0.15 lb |
| CAT6CB-05PR | 5ft / Purple | 0.2 lb |
| CAT6CB-07PR | 7ft / Purple | 0.24 lb |
| CAT6CB-10PR | 10ft / Purple | 0.33 lb |
| CAT6CB-15PR | 15ft / Purple | 0.5 lb |
| CAT6CB-25PR | 25ft / Purple | 0.77 lb |
| CAT6CB-35PR | 35ft / Purple | 1.1 lb |
| CAT6CB-50PR | 50ft / Purple | 1.55 lb |
| CAT6CB-75PR | 75ft / Purple | 2.32 lb |
| CAT6CB-100PR | 100ft / Purple | 3.11 lb |
| CAT6CB-6INRD | 6 inch / Red | 0.05 lb |
| CAT6CB-01RD | 1ft / Red | 0.07 lb |
| CAT6CB-02RD | 2ft / Red | 0.1 lb |
| CAT6CB-03RD | 3ft / Red | 0.15 lb |
| CAT6CB-05RD | 5ft / Red | 0.2 lb |
| CAT6CB-07RD | 7ft / Red | 0.24 lb |
| CAT6CB-10RD | 10ft / Red | 0.33 lb |
| CAT6CB-15RD | 15ft / Red | 0.5 lb |
| CAT6CB-25RD | 25ft / Red | 0.77 lb |
| CAT6CB-35RD | 35ft / Red | 1.1 lb |
| CAT6CB-50RD | 50ft / Red | 1.55 lb |
| CAT6CB-75RD | 75ft / Red | 2.32 lb |
| CAT6CB-100RD | 100ft / Red | 3.11 lb |
| CAT6CB-6INWH | 6 inch / White | 0.05 lb |
| CAT6CB-01WH | 1ft / White | 0.07 lb |
| CAT6CB-02WH | 2ft / White | 0.1 lb |
| CAT6CB-03WH | 3ft / White | 0.15 lb |
| CAT6CB-05WH | 5ft / White | 0.2 lb |
| CAT6CB-07WH | 7ft / White | 0.24 lb |
| CAT6CB-10WH | 10ft / White | 0.33 lb |
| CAT6CB-15WH | 15ft / White | 0.5 lb |
| CAT6CB-25WH | 25ft / White | 0.77 lb |
| CAT6CB-35WH | 35ft / White | 1.1 lb |
| CAT6CB-50WH | 50ft / White | 1.55 lb |
| CAT6CB-75WH | 75ft / White | 2.32 lb |
| CAT6CB-100WH | 100ft / White | 3.11 lb |
| CAT6CB-6INYL | 6 inch / Yellow | 0.05 lb |
| CAT6CB-01YL | 1ft / Yellow | 0.07 lb |
| CAT6CB-02YL | 2ft / Yellow | 0.1 lb |
| CAT6CB-03YL | 3ft / Yellow | 0.15 lb |
| CAT6CB-05YL | 5ft / Yellow | 0.2 lb |
| CAT6CB-07YL | 7ft / Yellow | 0.24 lb |
| CAT6CB-10YL | 10ft / Yellow | 0.33 lb |
| CAT6CB-15YL | 15ft / Yellow | 0.5 lb |
| CAT6CB-25YL | 25ft / Yellow | 0.77 lb |
| CAT6CB-35YL | 35ft / Yellow | 1.1 lb |
| CAT6CB-50YL | 50ft / Yellow | 1.55 lb |
| CAT6CB-75YL | 75ft / Yellow | 2.32 lb |
| CAT6CB-100YL | 100ft / Yellow | 3.11 lb |
