RJ45 Cat5e F/UTP Solid Shielded 23AWG Molded Patch Cable - CMP Plenum Rated

CAT5E Patch CablesSKU: CAT5ESP-15BK

Length: 15ft
Color: Black
Price:
Sale price$14.10 CAD
Stock:
*Parts in stock - see below for lead-time


Description

Overview

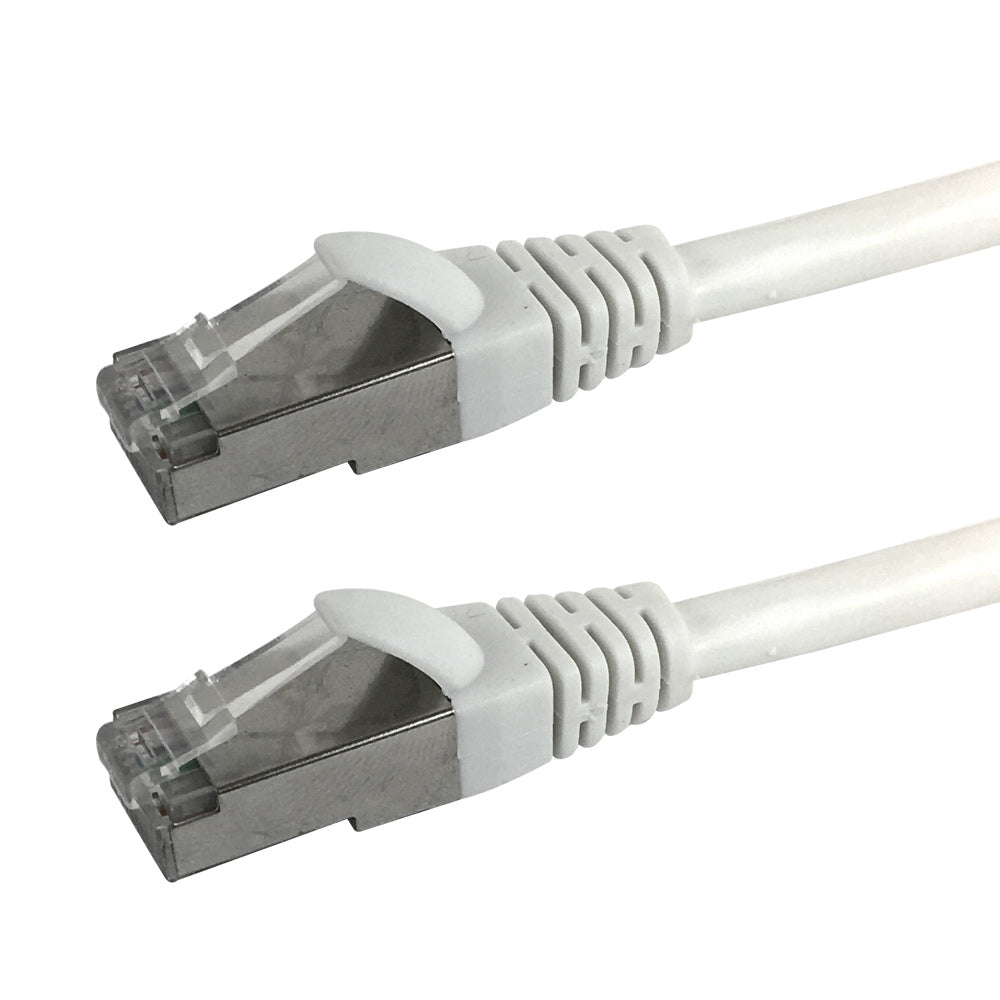

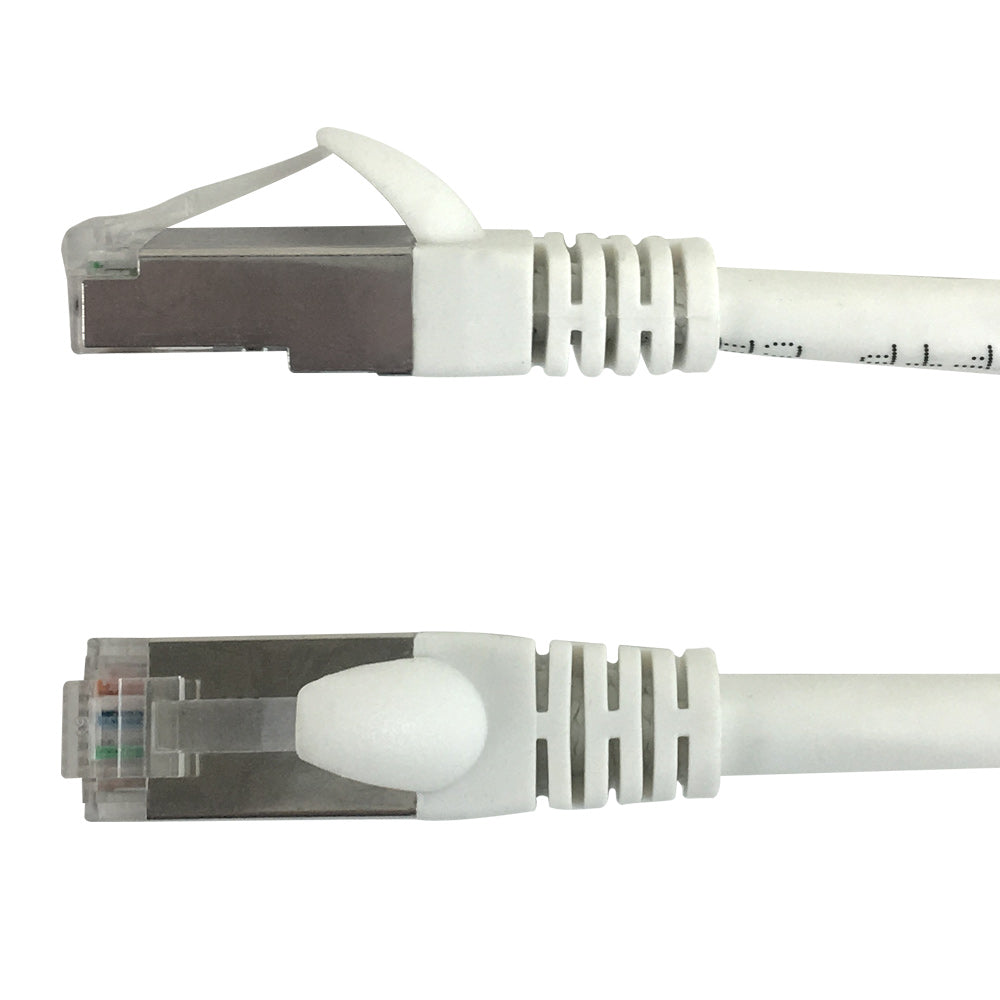

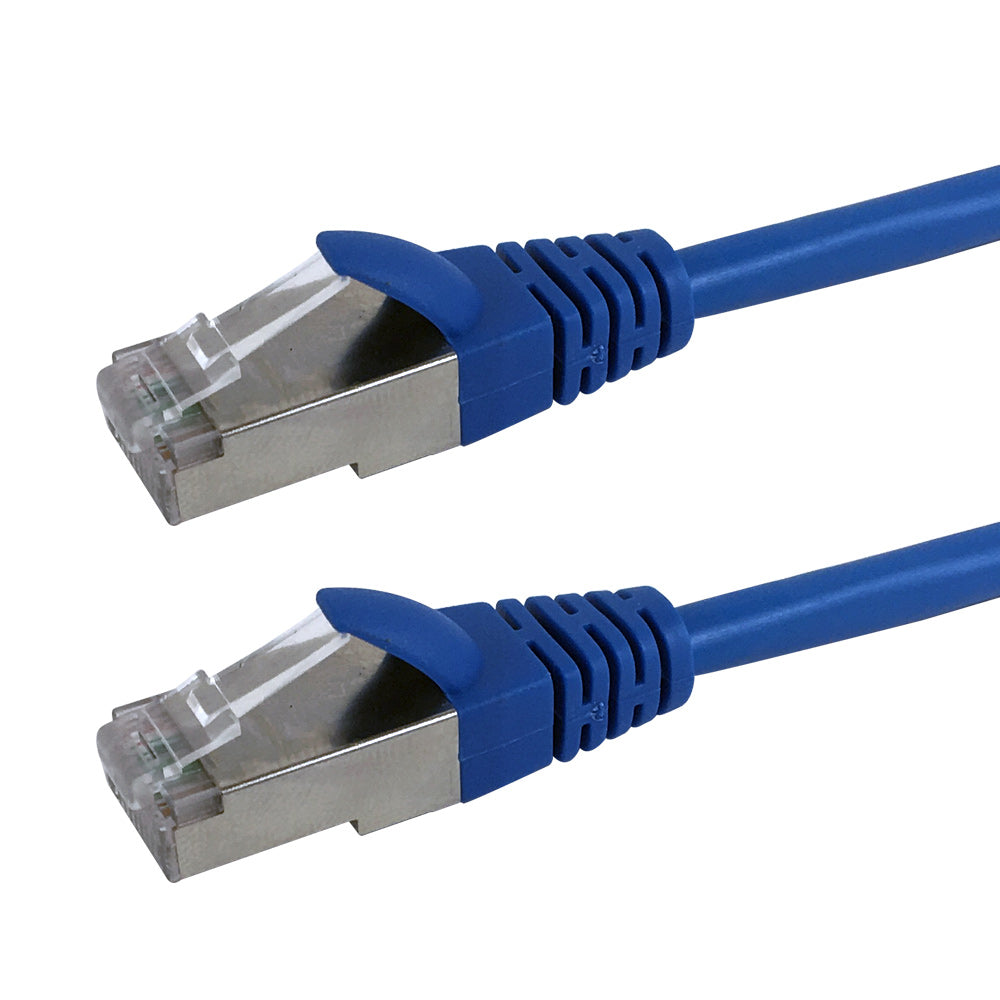

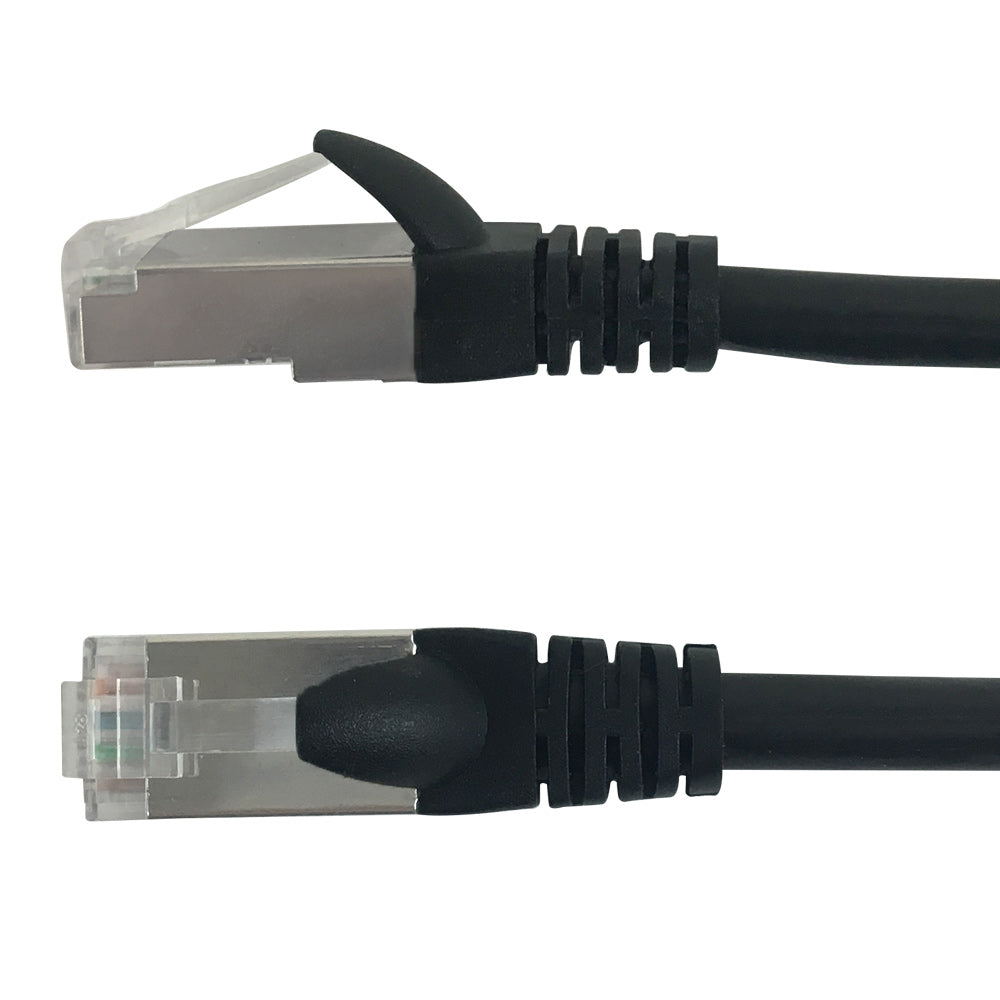

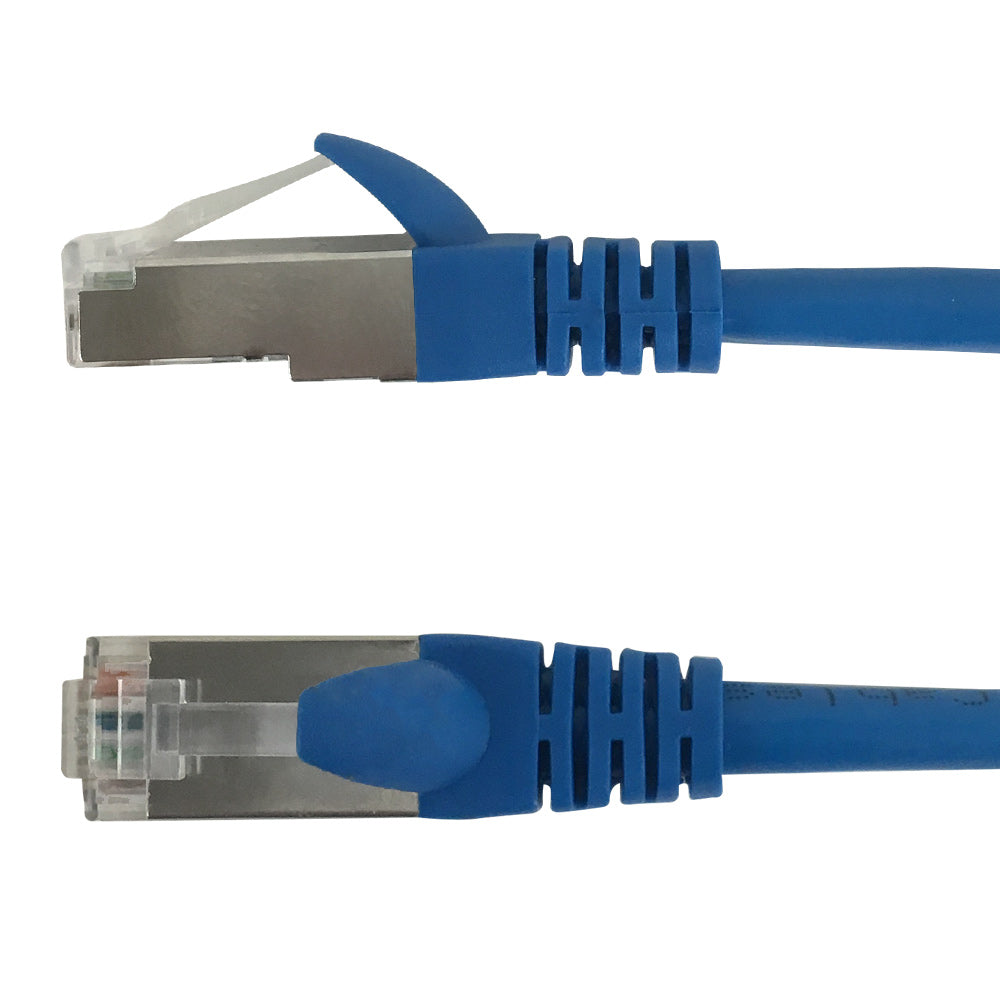

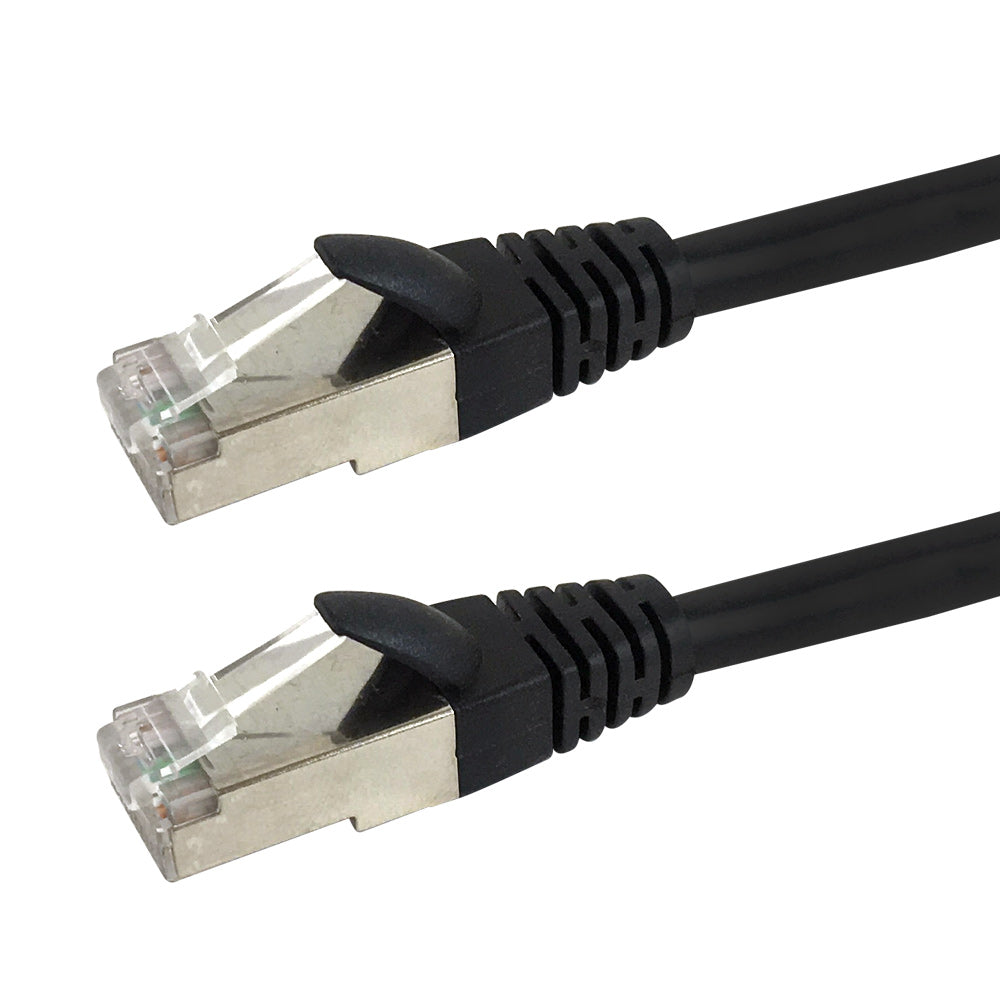

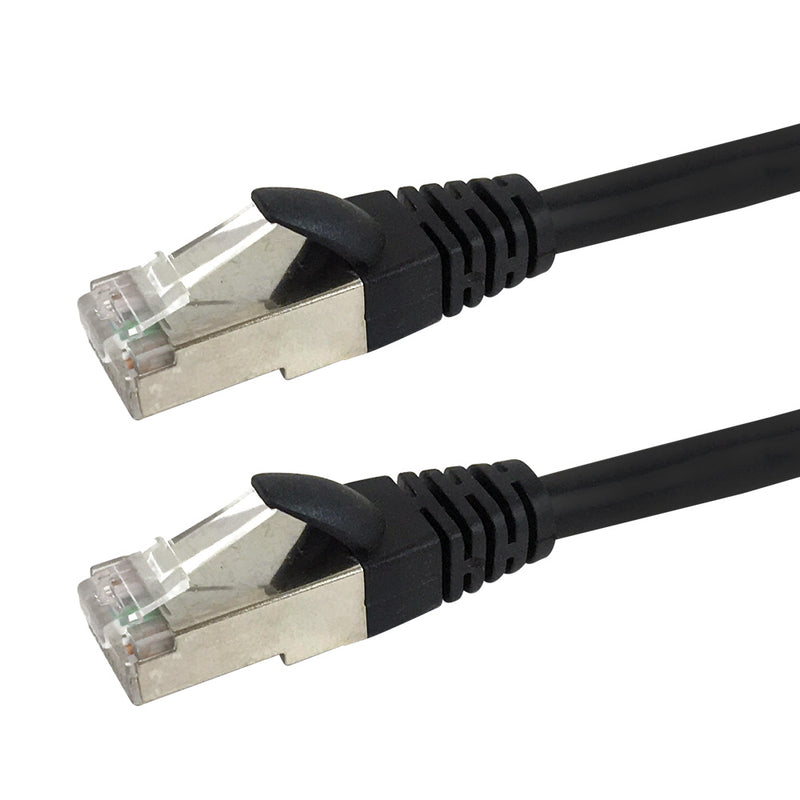

This Cat5e shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI). The cable jacket is also CMP (plenum) fire rated.

TERMS: non-cancelable & non-returnable

100% Pure Copper

This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.

50 Micron Gold Plated Connectors

This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.

FOIL SHIELDED

100% mylar foil shielded pairs is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation.

Specifications

Physical Characteristics
Color Black/Blue/White
Connector Plating Gold Plated 50 Micron
Cable Diameter 6.30 mm
Wire Gauge 23AWG Solid
Shielding F/UTP (100% Aluminum Foil Shield)
Pairs 4
Insulation 0.0378 inches [0.96±0.05mm]
Jacket Nominal Thickness 0.0197" (0.50mm)
Insulation Outer Diameter 0.0378 inches [0.96±0.05mm]
Fire Rating CMP/FT6[Plenum Rated]
Temperature Rating -20 deg C to +80 deg C
Jacket Type PVC
Electrical Characteristics
Voltage 30V
Capacitance 5.6nF/100m .Nom
Velocity of Propagation ≥65%
DCR Conductor 9.38 Ohms/100m.Nom
D-C Resistance Unbalance ≦5%
Connectors
Connector A RJ45 Shielded Long Body Male
Connector B RJ45 Shielded Long Body Male
Approvals
c(UL)us Yes - Cable
Environmental
RoHS Yes
Reach Yes
Conflict Materials Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
15ft 20ft 25ft 30ft 35ft 50ft 75ft 100ft 125ft 150ft 175ft 200ft 225ft 250ft 275ft 300ft
0.45 lbs 0.45 lbs 0.75 lbs 0.45 lbs 1.05 lbs 1.50 lbs 2.25 lbs 3.00 lbs 3.75 lbs 4.50 lbs 5.25 lbs 6.00 lbs 6.75 lbs 7.50 lbs 8.25 lbs 9.00 lbs

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

SKU Options Weight
CAT5ESP-15BK 15ft / Black 0.5 lb
CAT5ESP-20BK 20ft / Black 0.63 lb
CAT5ESP-25BK 25ft / Black 0.77 lb
CAT5ESP-30BK 30ft / Black 0.95 lb
CAT5ESP-35BK 35ft / Black 1.1 lb
CAT5ESP-50BK 50ft / Black 1.55 lb
CAT5ESP-75BK 75ft / Black 2.26 lb
CAT5ESP-100BK 100ft / Black 3.0 lb
CAT5ESP-125BK 125ft / Black 5.0 lb
CAT5ESP-150BK 150ft / Black 6.2 lb
CAT5ESP-175BK 175ft / Black 6.45 lb
CAT5ESP-200BK 200ft / Black 7.28 lb
CAT5ESP-225BK 225ft / Black 7.4 lb
CAT5ESP-250BK 250ft / Black 12.5 lb
CAT5ESP-275BK 275ft / Black 0.77 lb
CAT5ESP-300BK 300ft / Black 15.0 lb
CAT5ESP-15BL 15ft / Blue 0.5 lb
CAT5ESP-20BL 20ft / Blue 0.63 lb
CAT5ESP-25BL 25ft / Blue 0.77 lb
CAT5ESP-30BL 30ft / Blue 0.95 lb
CAT5ESP-35BL 35ft / Blue 1.1 lb
CAT5ESP-50BL 50ft / Blue 1.55 lb
CAT5ESP-75BL 75ft / Blue 2.26 lb
CAT5ESP-100BL 100ft / Blue 3.0 lb
CAT5ESP-125BL 125ft / Blue 5.0 lb
CAT5ESP-150BL 150ft / Blue 6.2 lb
CAT5ESP-175BL 175ft / Blue 6.45 lb
CAT5ESP-200BL 200ft / Blue 7.28 lb
CAT5ESP-225BL 225ft / Blue 7.4 lb
CAT5ESP-250BL 250ft / Blue 12.5 lb
CAT5ESP-275BL 275ft / Blue 0.77 lb
CAT5ESP-300BL 300ft / Blue 15.0 lb
CAT5ESP-15WH 15ft / White 0.5 lb
CAT5ESP-20WH 20ft / White 0.63 lb
CAT5ESP-25WH 25ft / White 0.77 lb
CAT5ESP-30WH 30ft / White 0.95 lb
CAT5ESP-35WH 35ft / White 1.1 lb
CAT5ESP-50WH 50ft / White 1.55 lb
CAT5ESP-75WH 75ft / White 2.26 lb
CAT5ESP-100WH 100ft / White 3.0 lb
CAT5ESP-125WH 125ft / White 5.0 lb
CAT5ESP-150WH 150ft / White 6.2 lb
CAT5ESP-175WH 175ft / White 6.45 lb
CAT5ESP-200WH 200ft / White 7.28 lb
CAT5ESP-225WH 225ft / White 7.4 lb
CAT5ESP-250WH 250ft / White 12.5 lb
CAT5ESP-275WH 275ft / White 0.77 lb
CAT5ESP-300WH 300ft / White 15.0 lb
