Description

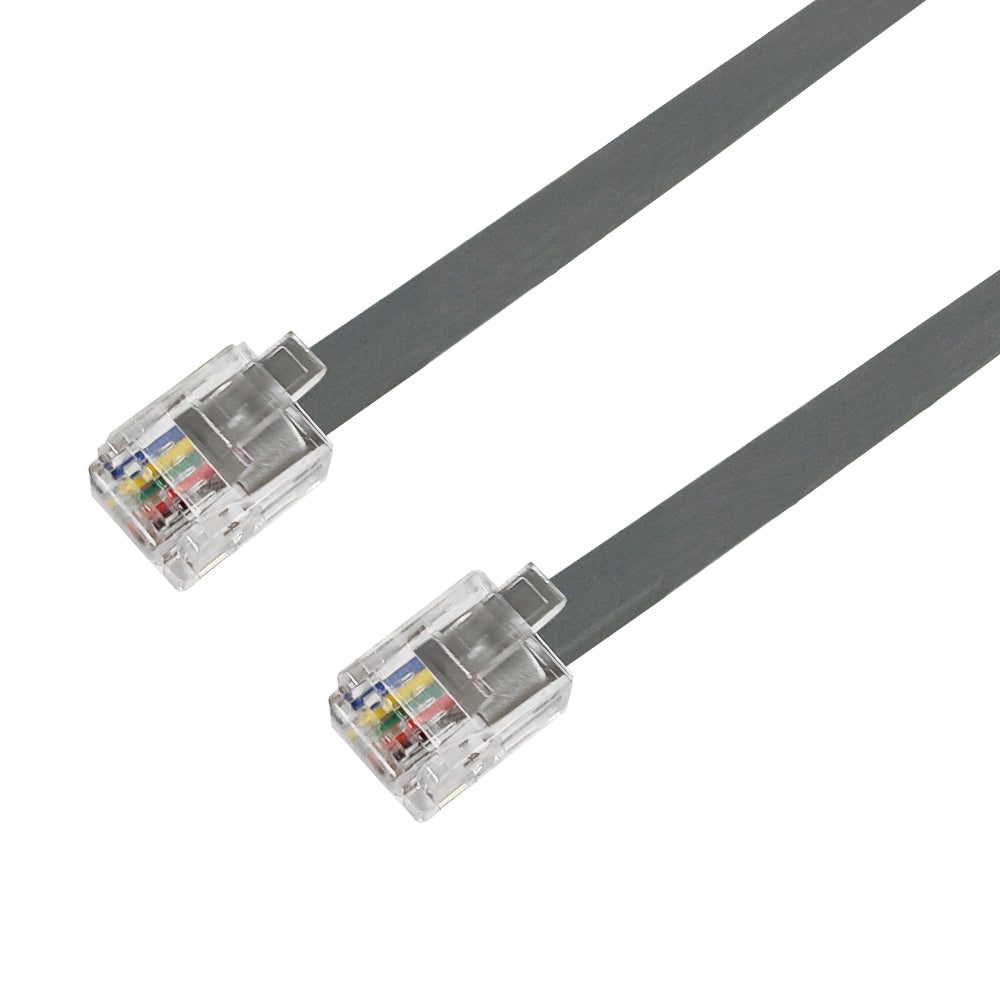

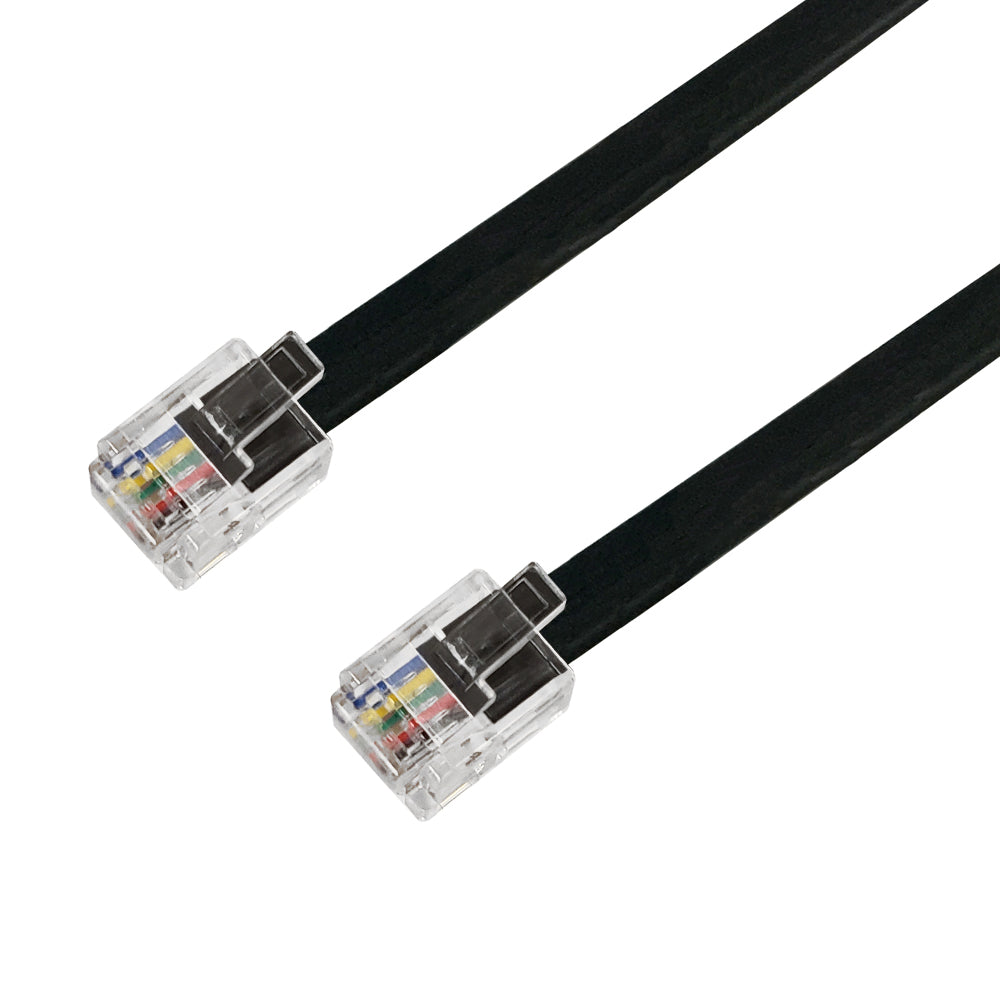

This modular flat phone cable consists of a RJ12 (6P6C) male plug on both ends and has straight through wiring. It is typically used in data applications such as connecting a modem to a ADSL filter.
| Physical Characteristics | |
|---|---|
| Color | Black/Silver Satin |
| Contact Plating | Gold |
| Cable Diameter | 5mm x 2.5mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | VW-1 |
| Temperature Rating | 60℃ |
| Cable Voltage Rating | 150V |
| Wiring | Straight Through (1-1, 2-2, 3-3, 4-4) |
| Connector(s) | |
| Connector A | RJ12 (6P6C) Male |
| Connector B | RJ12 (6P6C) Male |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| TEL-111-01BK | 1ft / Black | 0.07 lb |
| TEL-111-01SL | 1ft / Silver | 0.07 lb |
| TEL-111-03BK | 3ft / Black | 0.15 lb |
| TEL-111-03SL | 3ft / Silver | 0.15 lb |
| TEL-111-05BK | 5ft / Black | 0.2 lb |
| TEL-111-05SL | 5ft / Silver | 0.2 lb |
| TEL-111-07BK | 7ft / Black | 0.24 lb |
| TEL-111-07SL | 7ft / Silver | 0.24 lb |
| TEL-111-10BK | 10ft / Black | 0.33 lb |
| TEL-111-10SL | 10ft / Silver | 0.33 lb |
| TEL-111-15BK | 15ft / Black | 0.5 lb |
| TEL-111-15SL | 15ft / Silver | 0.5 lb |
