Description
This bulk RG6 cable consists of a 18AWG solid center conductor. It is ideal for CATV video applications.
| Physical Characteristics | ||||
|---|---|---|---|---|

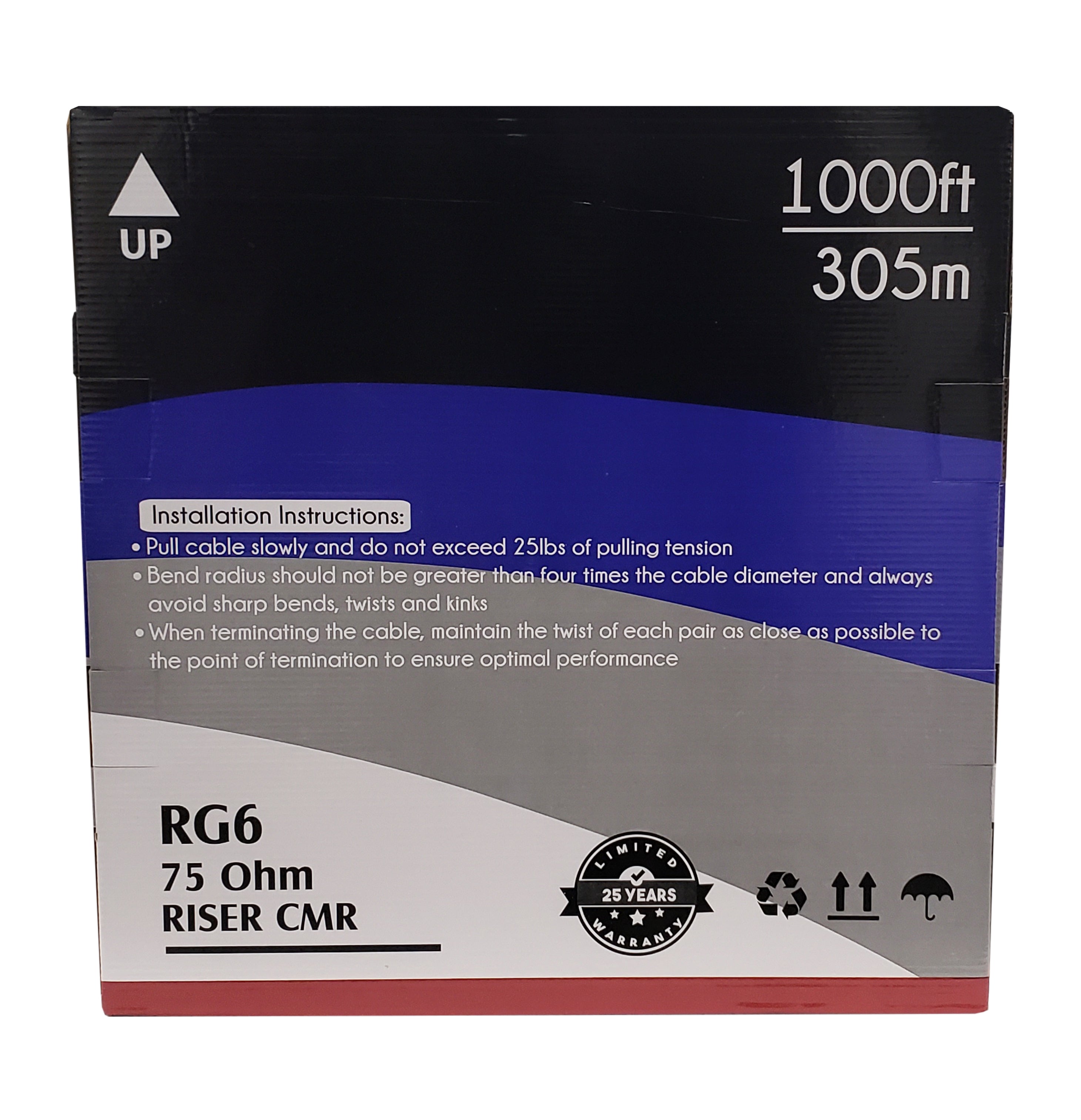

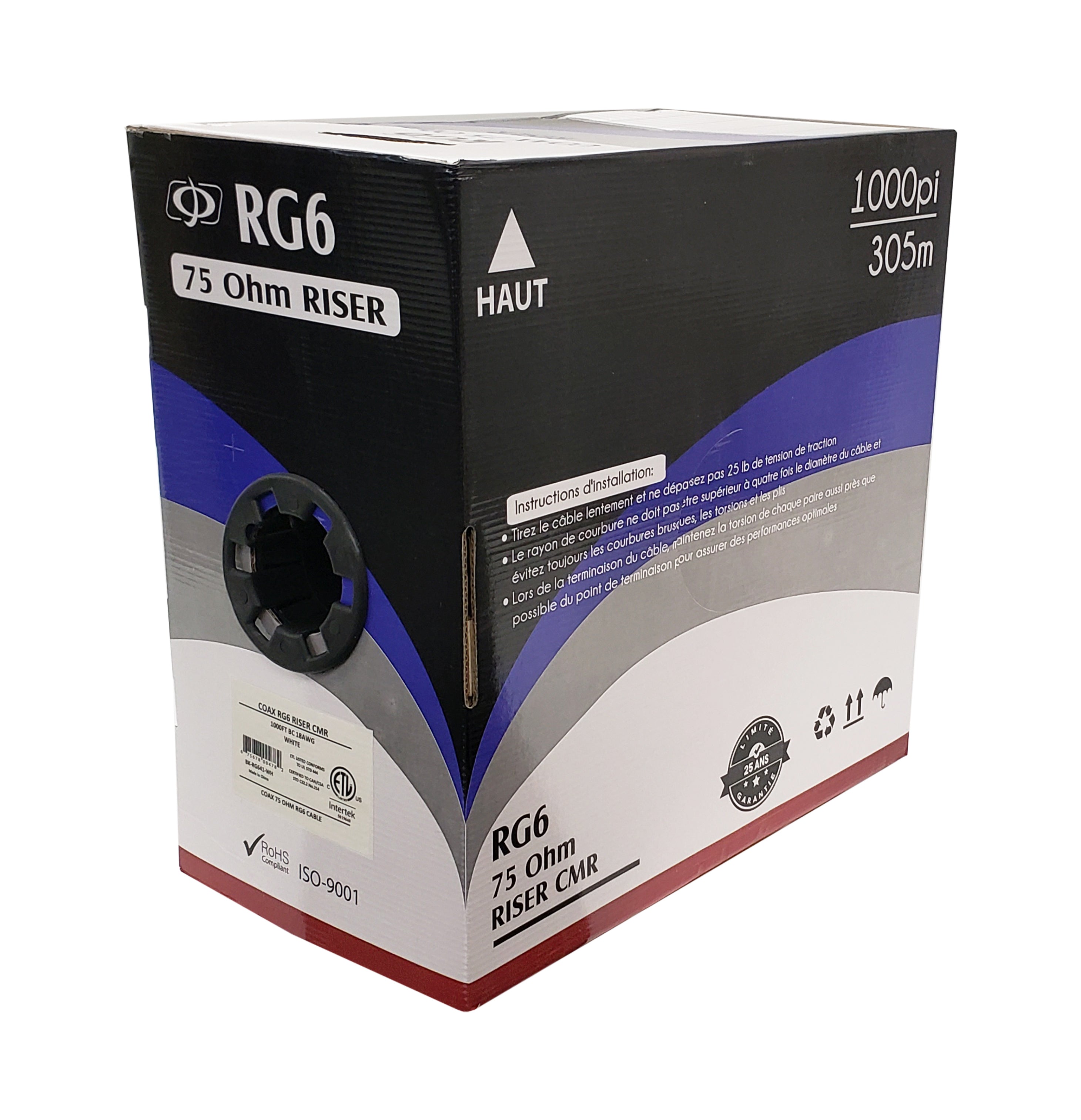

| Cable Lengths Available | 250 foot 1000 foot Pull Box |
|||

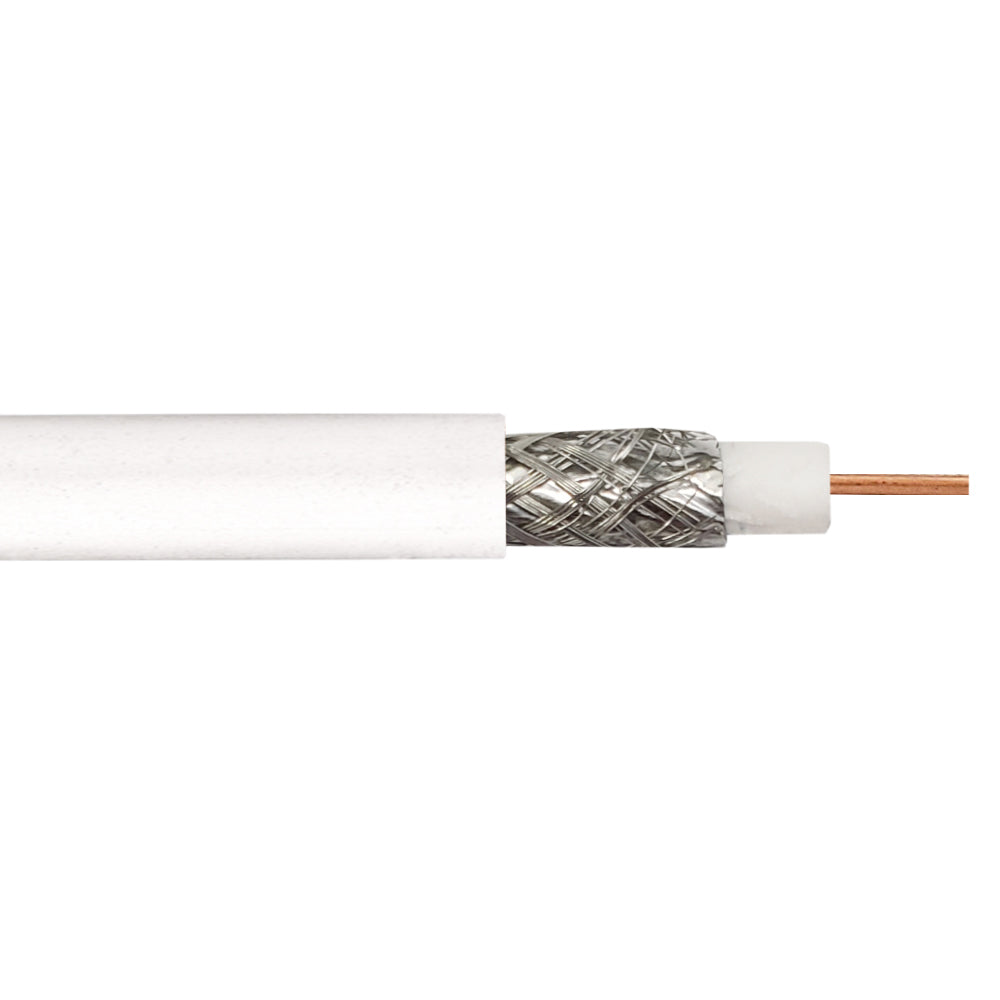

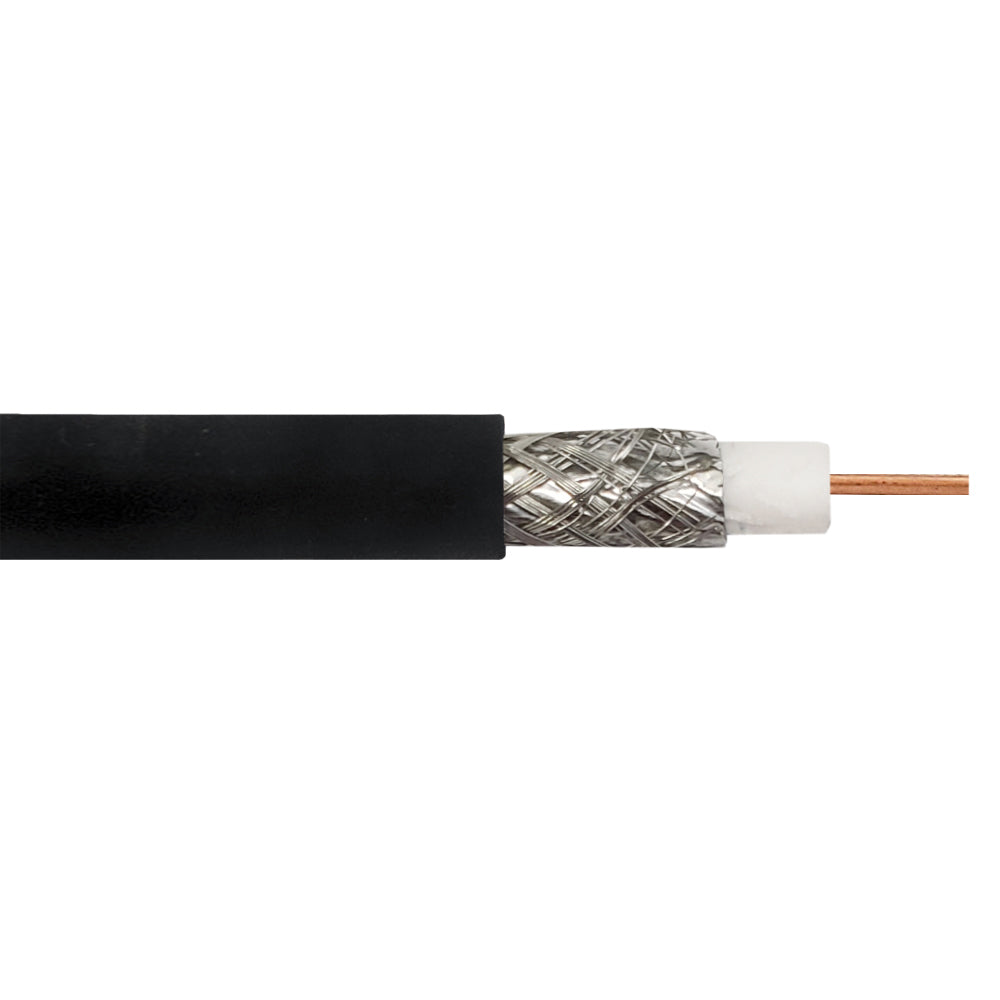

| Color | Black/White | |||
| Cable Diameter | 6.90mm | |||
| Wire Gauge | 18AWG | |||
| Inner Conductor | 1/1.02mm Solid Bare Copper - Oxygen-Free | |||
| Insulation | 4.57mm Foamed Polyethylene | |||
| Shield 1 | Bonded Aluminum Foil | |||
| Shield 2 | 5*16*0.12mm 60% AL | |||
| Jacket Material | PVC - Polyvinyl Chloride | |||
| Jacket Rating | CMR/FT4 [Riser Rated] | |||
| Impedance | 75±3Ω | |||
| Capacitance | 54±3pF/m | |||
| Return Loss | 20dB Min | |||
| Operating Temperature | -20℃ ~ 75℃ |
|||
| Approvals | ||||
| c(ETL)us | Yes | |||
| Environmental | ||||
| RoHS | Yes | |||
| Packaging Information | ||||
| Package Quantity | 1 | |||
|
Cable Length Product Weight |
1000ft [305m] 28.33 lbs[12.85 kg] |
250ft [76.2m] 7.08 lbs[3.21 kg] |
||
