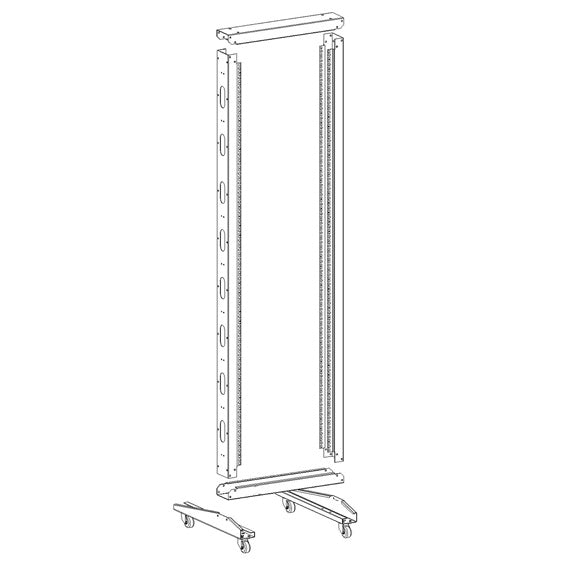

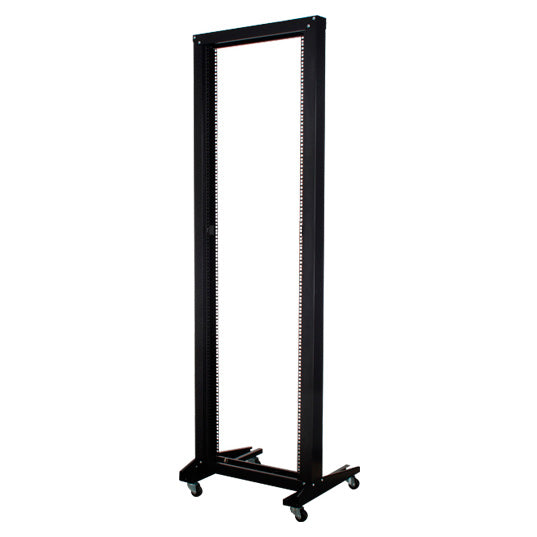

This 2-post relay rack is 19 inches wide, and 42U in height. It is typically used to mount networking and audio/video rack mountable equipment. Shipped knockdown in a flat-pack for easy handling and shipping.
Physical Characteristics |
Color |
Black - Powder Coated |
Material |
SPCC Cold Rolled Steel |
Loading Capacity |
Maximum 330 lbs [150kg] |
Mounting Rails |
2 x 19"-Mounting Rail Posts (square hole knockouts on both sides) |
Mounting Rail Thickness |
1.9mm |
Product Dimensions
|
78.75"H x 23.6"W x 23.6"D [200cmH x 60cm W x 60cm D] |
Compatibility |
Compatible Vertical Cable Managers |
RM-450-42U - Vertical Cable Manager for Relay Rack - 42U RM-455-42U - 42U Vertical Cable Manager - Front Facing
|
Approvals |
ANSI/EIA |
Yes |
RS-310-D |
Yes |
IEC60297-2 |
Yes |
DIN41494 |
Yes |
PART1 |
Yes |
PART7 |
Yes |
Environmental |
RoHS |
Yes |
Reach |
Yes |
Packaging Information |
Package Quantity |
1 - Relay Rack 42U (78 inch) - Knock Down Style (Unassembled) |
|
4 - Casters (use of casters is optional) |
|
Assembly Hardware |
|
M6 Screws and Cage Nuts |
Product Weight |
45.1 lbs [20.5kg] |
Package Dimensions
|
78"H x 6.5"W x 7"D [198cmH x 16.5cm W x 17.8cm D] |
