Description

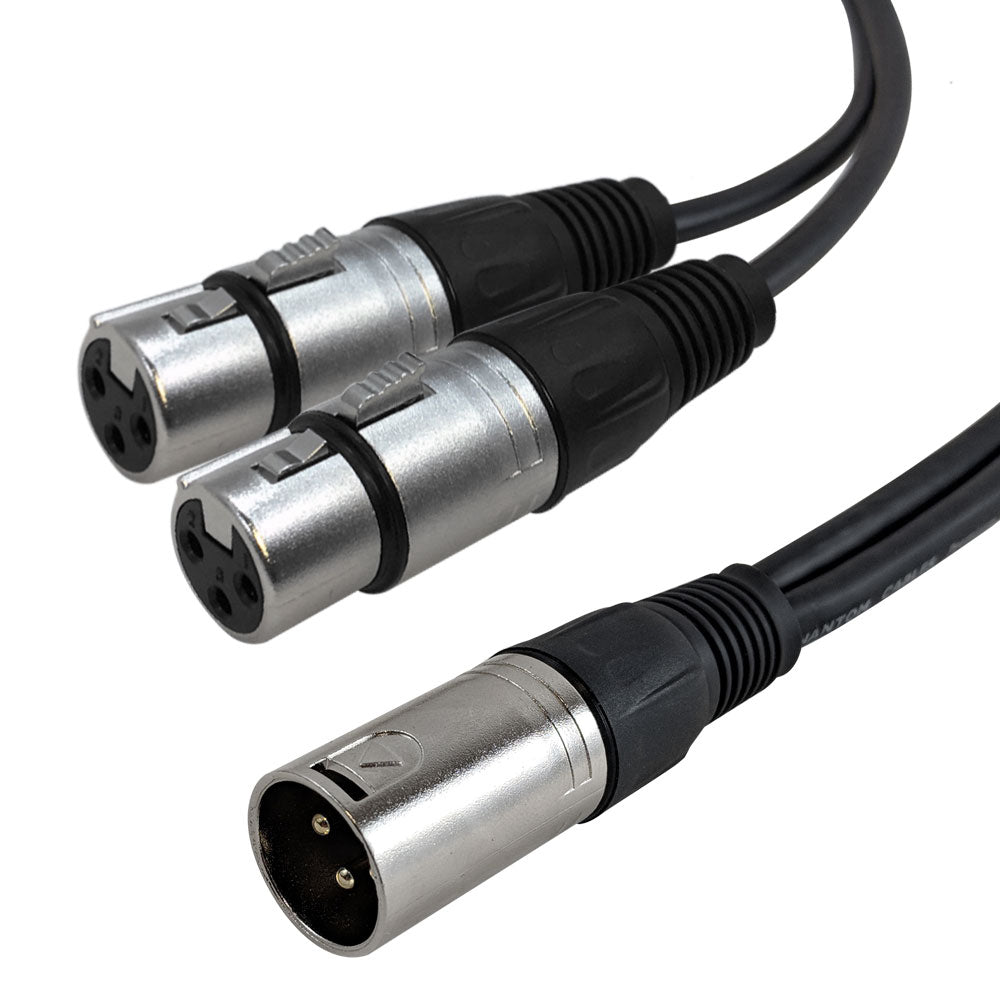

This splitter cable has an XLR male on one end and two XLR females on the other. It is typically used to split a microphone or XLR output into two duplicate balanced channels.
- Two separate 24AWG cables breakout directly from the source connector
- Breakout begins directly from the source connector
- Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra-flexible to maximize mobility
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics | |
---|---|
Color | Black |
Connector Plating | Nickel |
Contact Plating | Gold |
Cable Diameter | 5.0mm |
Wire Gauge | 24AWG |
Jacket Material | PVC - Polyvinyl Chloride |
Fire Rating | FT4 (Riser CMR) |
Cable Shielding | 90% Bare Copper Braid, 100% Aluminum Mylar Foil |
Strain Relief | Metal Shell |
Connectors | |
Connector A | XLR Male |
Connector B | XLR Female |
Connector C | XLR Female |
Approvals | |
cUL | Yes - Cable |
Environmental | |
RoHS | Yes |
Package Information | |
Package Quantity | 1 |
Warranty Information | |
Warranty | Limited Lifetime |
1ft | 3ft | 6ft | 10ft |
---|---|---|---|
0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
SKU | Options | Weight |
XLR-MFF-01 | 1ft | 0.11 lb |
XLR-MFF-03 | 3ft | 0.19 lb |
XLR-MFF-06 | 6ft | 0.34 lb |
XLR-MFF-10 | 10ft | 0.53 lb |
