Description

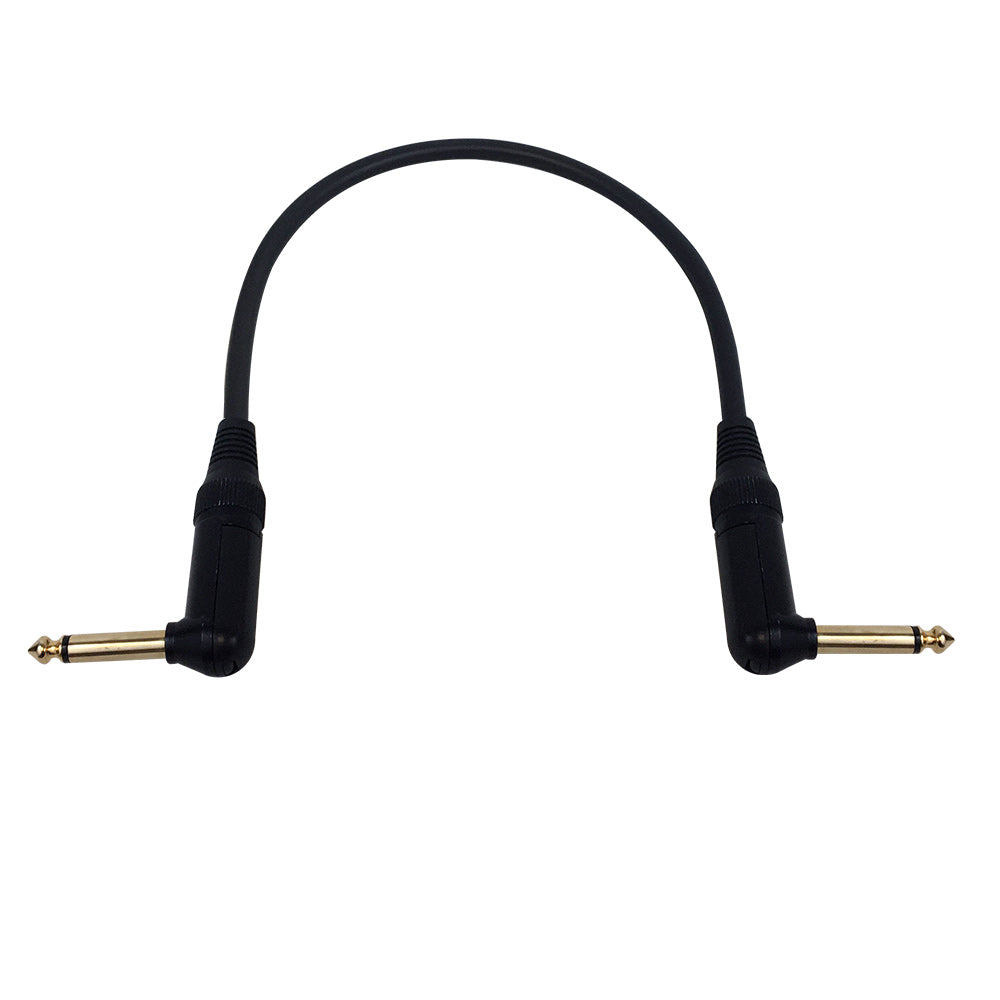

This instrument/guitar audio patch cable has a 1/4 inch TS mono right angle male on both ends. It is typically used to patch multiple guitar foot petals to one another.
- 18 AWG OFC (oxygen-free copper) center conductor reduces resistance for increased performance
- Low-capacitance cable allows the cleanest highs possible
- Multi-strand (127/0.08) copper center conductor and a durable jacket makes for a flexible cable to maximize longevity and mobility
- High quality, gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating | Gold |
| Cable Diameter | 6.03mm |
| Wire Gauge | 18AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Tinned Copper Braid + 100% Mylar Foil |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | 1/4 Inch TS Right Angle Mono Male |
| Connector B | 1/4 Inch TS Right Angle Mono Male |
| Approvals | |
| c(UL) | Cable - Yes |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 8 inch | 1ft | 1.5ft |
|---|---|---|
| 0.10 lbs | 0.20 lbs | 0.30 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
For the lead-time on a larger quantity orders, please contact us via phone at
