Premium Phantom Cables RG59 F-Type Male to RCA Male Cable FT4

RCA CablesSKU: TV-RCAPH-03

Length: 3ft
Price:
Sale price$16.45 CAD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com



Description

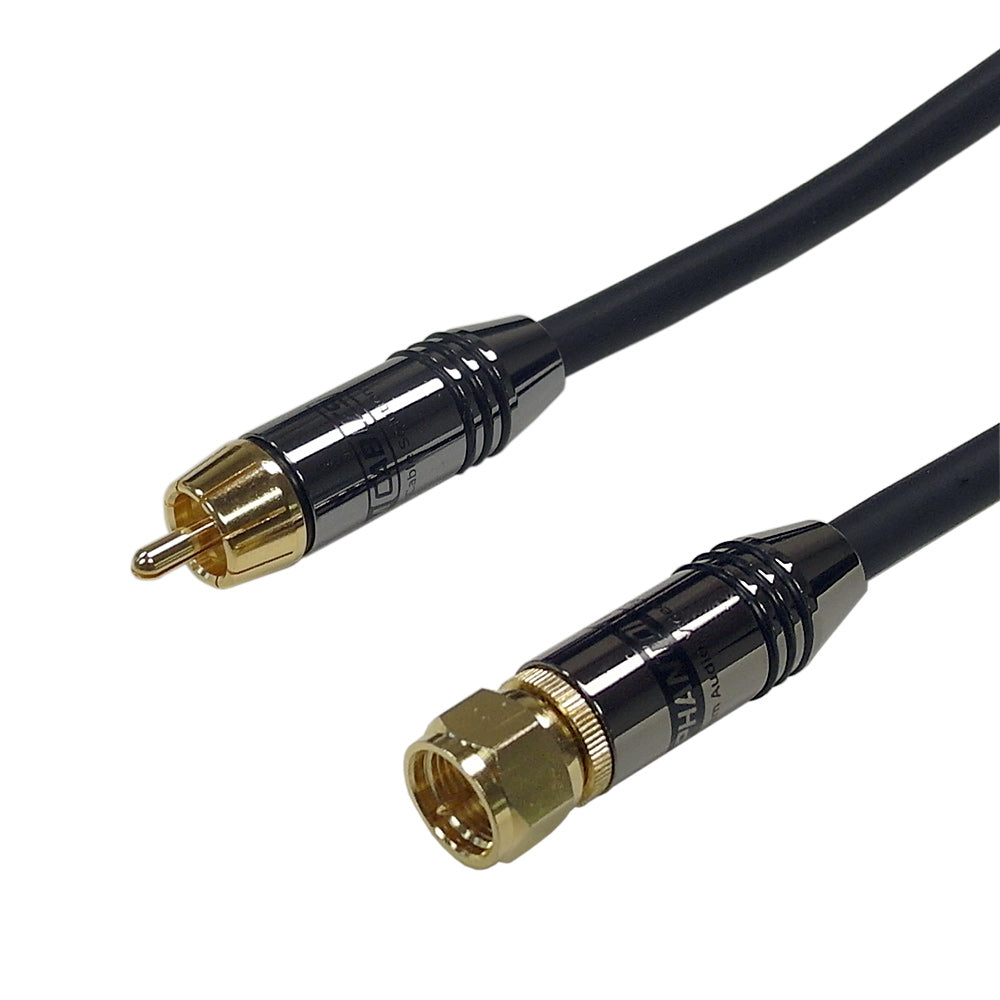

This RG59 cable consists of a RCA male connector on one end and a F-type connector on the other end. It is used to connect a CCTV output to a video display input.

  • Constructed of low-loss, High Definition 75 ohm multi-stranded, heavy gauge cable for premium performance and maximum flexibility
  • FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
  • Cables nominal capacitance is an exceptional 18.6 pf/ft and has a nominal attenuation of 3.00 dB/100ft
  • Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
  • Durable cable jacket is ultra flexible to maximize mobility
  • High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
  • The connector backshells are made of a durable, zinc plated metal alloy
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity

Physical Characteristics
Color Black
Connector Plating Gold
Cable Diameter 6.15 mm
Wire Gauge 22AWG Stranded Bare Copper
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating FT4 - Riser
Cable Shielding 100% aluminum/mylar foil, plus a 95% tinned copper braid
Strain Relief Metal Shell
Connector(s)
Connector A F-Type Male
Connector B RCA Male
Performance
Impedance 75ohm
Capacitance 18.6 PF/FT
Velocity of Propagation 78%
Approvals
c(UL)us Approved Cable
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft
0.40 lbs 0.55 lbs 0.75 lbs 1.00 lbs 1.50 lbs 2.00 lbs 2.75 lbs 4.00 lbs 5.25 lbs

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

SKU Options Weight
TV-RCAPH-03 3ft 0.19 lb
TV-RCAPH-06 6ft 0.34 lb
TV-RCAPH-10 10ft 0.53 lb
TV-RCAPH-15 15ft 0.77 lb
TV-RCAPH-25 25ft 1.25 lb
TV-RCAPH-35 35ft 1.73 lb
TV-RCAPH-50 50ft 2.45 lb
TV-RCAPH-75 75ft 3.65 lb
TV-RCAPH-100 100ft 4.85 lb
