Premium Phantom Cables RG59 Composite RCA Male to Female Cable FT4

RCA CablesSKU: RCA1PH3-03

Length: 3ft
Price:
Sale price$15.35 CAD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com



Description

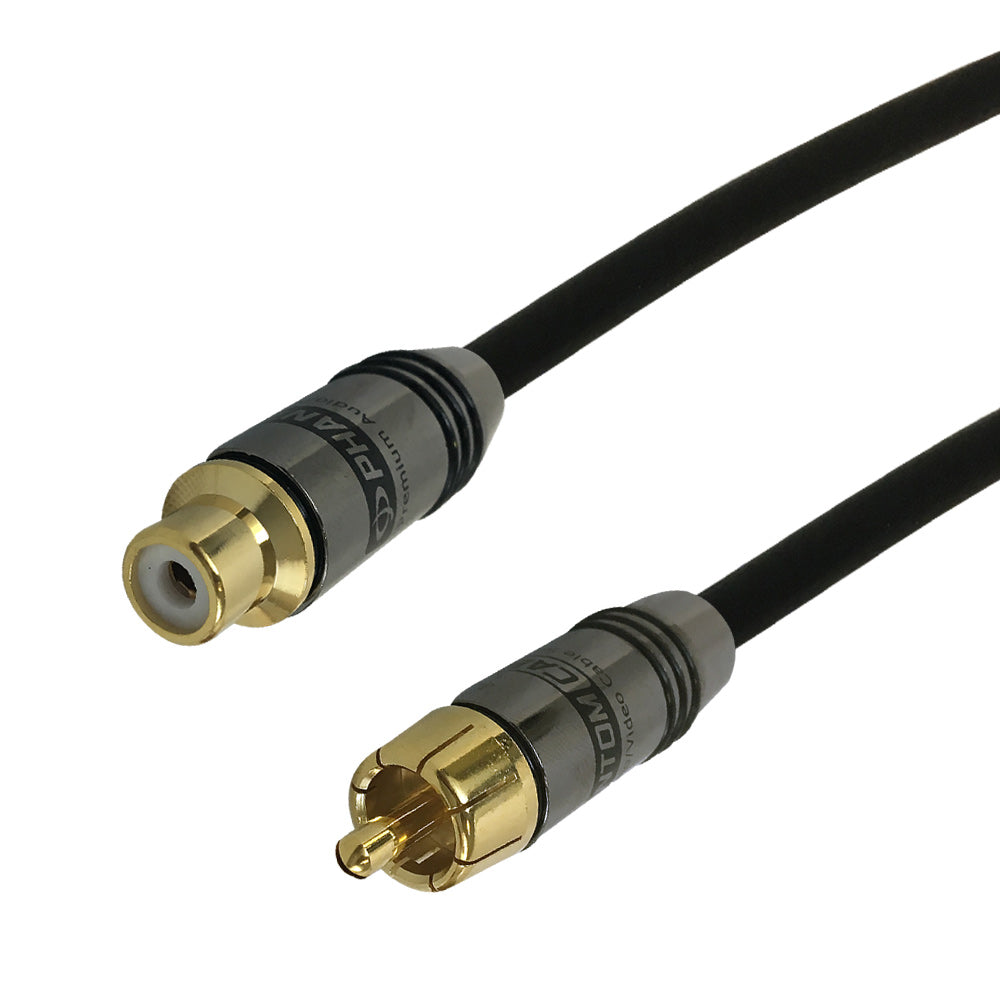

This cable consists of RCA male connector on one end, and a RCA female connector on the other end. It is typically used to extend a composite video cable.

  • Constructed of low-loss, High Definition 75 ohm multi-stranded, heavy gauge cable for premium performance and maximum flexibility
  • FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
  • Cables nominal capacitance is an exceptional 18.6 pf/ft and has a nominal attenuation of 3.00 dB/100ft
  • Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
  • Durable bonded cable jacket is ultra flexible to maximize mobility
  • High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
  • The connector backshells are made of a durable, zinc plated metal alloy
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics
Color Black
Connector Plating Gold
Cable Diameter 22AWG Stranded
Cable Type RG59
Jacket Material PVC - Polyvinyl Chloride
Fire Rating FT4 (Riser CMR)
Cable Shielding 95% Bare Copper Braid, 100% Aluminum Mylar Foil
Insulation Foam Polyethylene
Strain Relief Metal Shell
Performance
Impedance 75 Ohm
Velocity of Propagation 78%
Capacitance 18.6 PF/FT
Connector(s)
Connector A 1 - RCA Male
Connector B 1 - RCA Female
Approvals
c(UL)us Yes - Cable
Environmental
RoHS Yes
Packaging Information
Package Quantity 1 - Cable
Warranty Information
Warranty Limited Lifetime

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

SKU Options Weight
RCA1PH3-03 3ft 0.5 lb
RCA1PH3-06 6ft 0.34 lb
RCA1PH3-10 10ft 0.53 lb
RCA1PH3-15 15ft 0.77 lb
RCA1PH3-25 25ft 1.25 lb
RCA1PH3-35 35ft 1.73 lb
RCA1PH3-50 50ft 2.45 lb
RCA1PH3-75 75ft 3.65 lb
RCA1PH3-100 100ft 4.85 lb
