Description

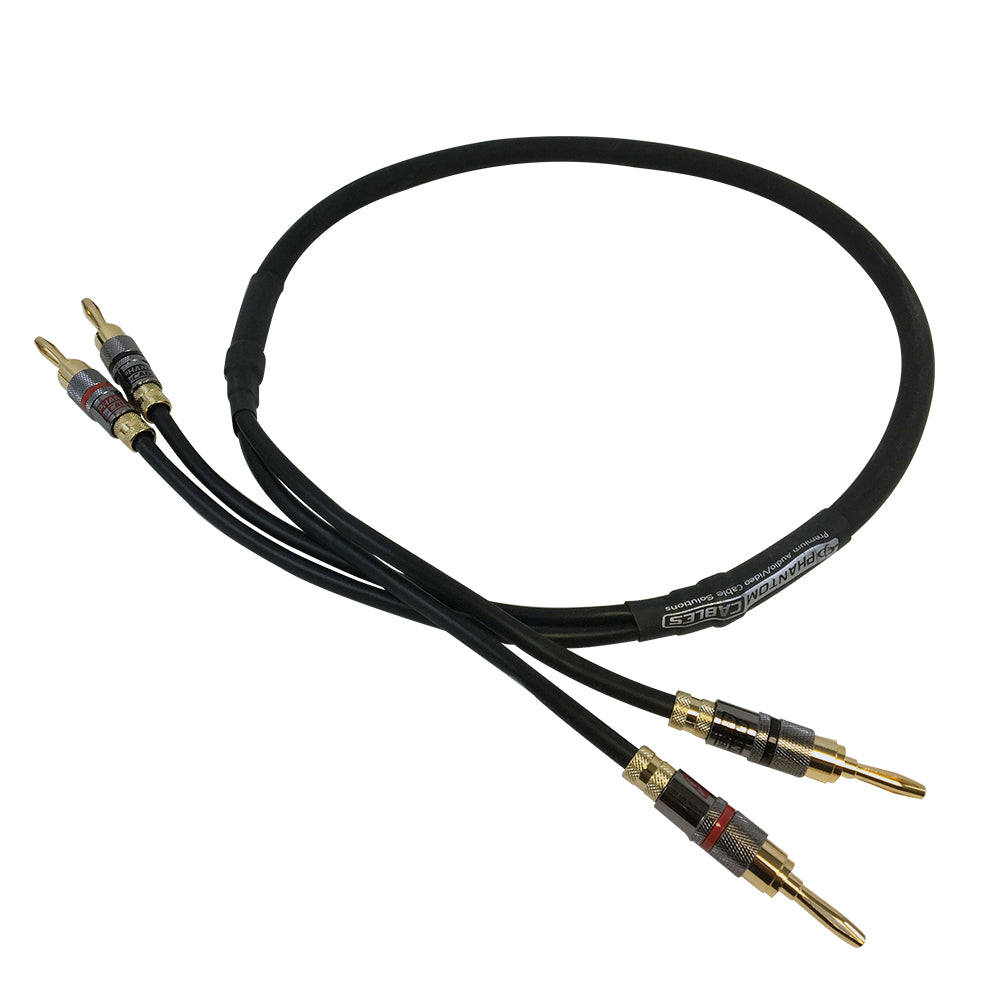

This audio speaker cable has two banana clip males on one end and two banana clip males on the other. It is typically used to connect speakers to amplifiers.
- A hi-flex jacket combined with a multi-stranded heavy gauge cable allows for extra cable flexibility and no sacrifice in audio quality
- 12 or 14 gauge OFHC (Oxygen Free Copper) conductors achieve maximum sound clarity
- Multi-stranded copper cable is used to capture all the highs & lows for optimum audio performance
- Two conductor twisted cable construction enhances signal timing accuracy
- High quality, 24K gold plated, color coded connectors allow for optimum connectivity and maintain a clean signal integrity
Available options
Wire Gauge | Overall Cable Diameter |
2C 14AWG Stranded 42/0.26 | 8.8mm |
2C 12AWG Stranded 65/0.26 | 9.5mm |
Physical Characteristics | |
---|---|
Color | Black |
Connector Plating | Gold |
Jacket Material | PVC - Polyvinyl Chloride |
Fire Rating | FT4 (Riser CMR) |
Connectors | |
Connector A | 2 - Banana Clip Male |
Connector B | 2 - Banana Clip Male |
Environmental | |
RoHS | Yes |
Certifications | |
cUL | Yes - Cable |
Package Information | |
Package Quantity | 1 |
Warranty Information | |
Warranty | Limited Lifetime |
3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft | |
---|---|---|---|---|---|---|---|---|---|---|---|
14AWG | 0.80 lbs | 1.10 lbs | 1.50 lbs | 2.00 lbs | 3.00 lbs | 4.00 lbs | 5.50 lbs | 8.00 lbs | 10.50 lbs | 13.00 lbs | 15.50 lbs |
12AWG | 0.95 lbs | 1.40 lbs | 2.00 lbs | 2.75 lbs | 4.25 lbs | 5.75 lbs | 8.00 lbs | 11.75 lbs | 15.50 lbs | 19.25 lbs | 23.00 lbs |
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
SKU | Options | Weight |
SP-B2B2C-03 | 3ft / 14AWG | 0.19 lb |
SP-B2B2D-03 | 3ft / 12AWG | 0.19 lb |
SP-B2B2C-06 | 6ft / 14AWG | 0.34 lb |
SP-B2B2D-06 | 6ft / 12AWG | 0.34 lb |
SP-B2B2C-10 | 10ft / 14AWG | 0.53 lb |
SP-B2B2D-10 | 10ft / 12AWG | 0.53 lb |
SP-B2B2C-15 | 15ft / 14AWG | 0.77 lb |
SP-B2B2D-15 | 15ft / 12AWG | 0.77 lb |
SP-B2B2C-25 | 25ft / 14AWG | 1.25 lb |
SP-B2B2D-25 | 25ft / 12AWG | 1.25 lb |
SP-B2B2C-35 | 35ft / 14AWG | 1.73 lb |
SP-B2B2D-35 | 35ft / 12AWG | 1.73 lb |
SP-B2B2C-50 | 50ft / 14AWG | 2.45 lb |
SP-B2B2D-50 | 50ft / 12AWG | 2.45 lb |
SP-B2B2C-75 | 75ft / 14AWG | 3.65 lb |
SP-B2B2D-75 | 75ft / 12AWG | 3.65 lb |
SP-B2B2C-100 | 100ft / 14AWG | 4.85 lb |
SP-B2B2D-100 | 100ft / 12AWG | 4.85 lb |
SP-B2B2C-125 | 125ft / 14AWG | 6.05 lb |
SP-B2B2D-125 | 125ft / 12AWG | 6.05 lb |
SP-B2B2C-150 | 150ft / 14AWG | 7.25 lb |
SP-B2B2D-150 | 150ft / 12AWG | 7.25 lb |
