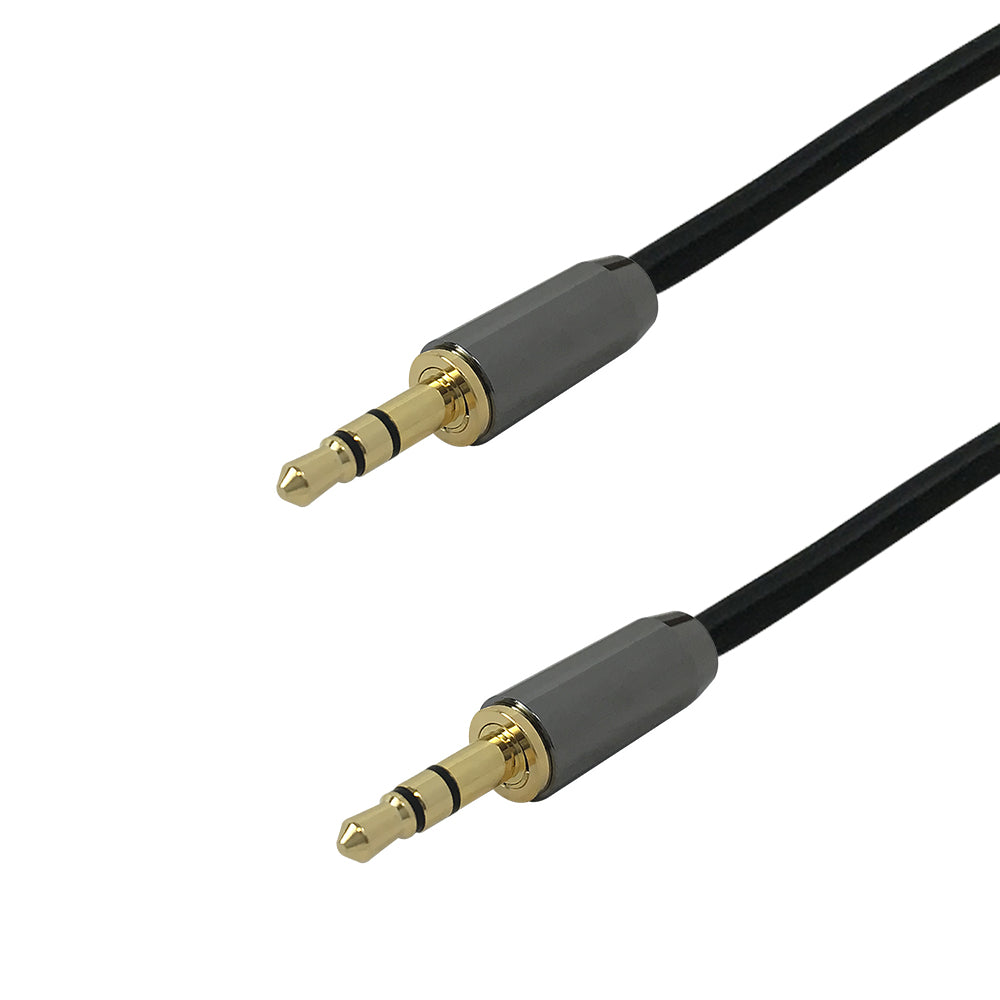

Premium Phantom Cables 3.5mm Stereo Male To Male Cable 22AWG - Plenum

3.5mm CablesSKU: 35MM1-03PL

Length: 3ft
Price:
Sale price$14.65 CAD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com



Description

This plenum stereo audio cable has a 3.5mm male on one end and a 3.5mm male on the other. It is typically used to connect 3.5mm devices such as PCs and stereo systems to 3.5mm stereo inputs.

  • Balanced cable is used to capture all highs & lows for optimum audio performance
  • Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
  • Multi-stranded copper center conductors and a durable cable jacket
  • High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
  • FT6 plenum fire rated jacket for in-wall use
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics
Color Black
Connector Plating Nickel
Cable Diameter 4.0 mm
Wire Gauge 22AWG
Jacket Material PVC - Polyvinyl Chloride
Fire Rating CMP/CL3 (Plenum Rated)
Cable Shielding 90% Copper Braid, 100% Mylar Foil
Strain Relief Molded PVC
Connectors
Connector A 3.5mm Stereo Male
Connector B 3.5mm Stereo Male
Environmental
RoHS Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft
0.35 lbs 0.45 lbs 0.55 lbs 0.70 lbs 1.00 lbs 1.30 lbs 1.75 lbs 3.00 lbs 3.50 lbs

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

SKU Options Weight
35MM1-03PL 3ft 0.19 lb
35MM1-06PL 6ft 0.34 lb
35MM1-10PL 10ft 0.53 lb
35MM1-15PL 15ft 0.77 lb
35MM1-25PL 25ft 1.25 lb
35MM1-35PL 35ft 1.73 lb
35MM1-50PL 50ft 2.45 lb
35MM1-75PL 75ft 3.65 lb
35MM1-100PL 100ft 4.85 lb
