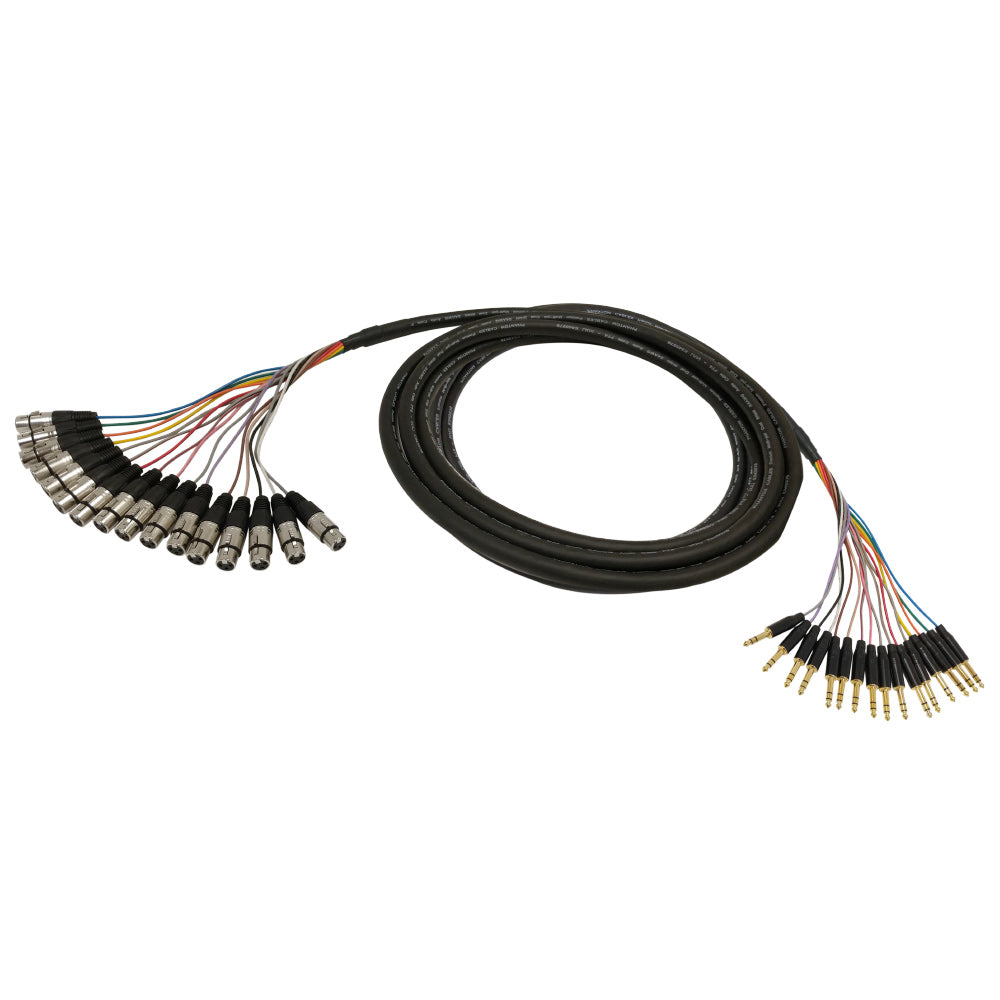

This audio snake cable has sixteen 1/4 inch TRS male connectors on one end and sixteen XLR female on the other. It is typically used to connect mixing consoles and patch bays.
Premium twisted 24AWG Oxygen Free copper conductor (OFHC) cable is used to capture all highs & lows for optimum audio performance
Dual 100% aluminum mylar foil shields maximize EMI/RFI noise rejection therefore maintaining the cleanest signal possible
High quality, gold plated connectors allow for optimum connectivity and maintain a clean signal integrity
FT4 riser fire rated jacket for in-wall use
Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics
Color
Black
Connector Plating
Gold
Cable Shielding
Overall Foil Shielded plus Individually Shielded Pairs with Aluminum-Polyester Foil
Wire Gauge
24AWG
Jacket Fire Rating
FT4 (Riser)
Connectors
Connector A

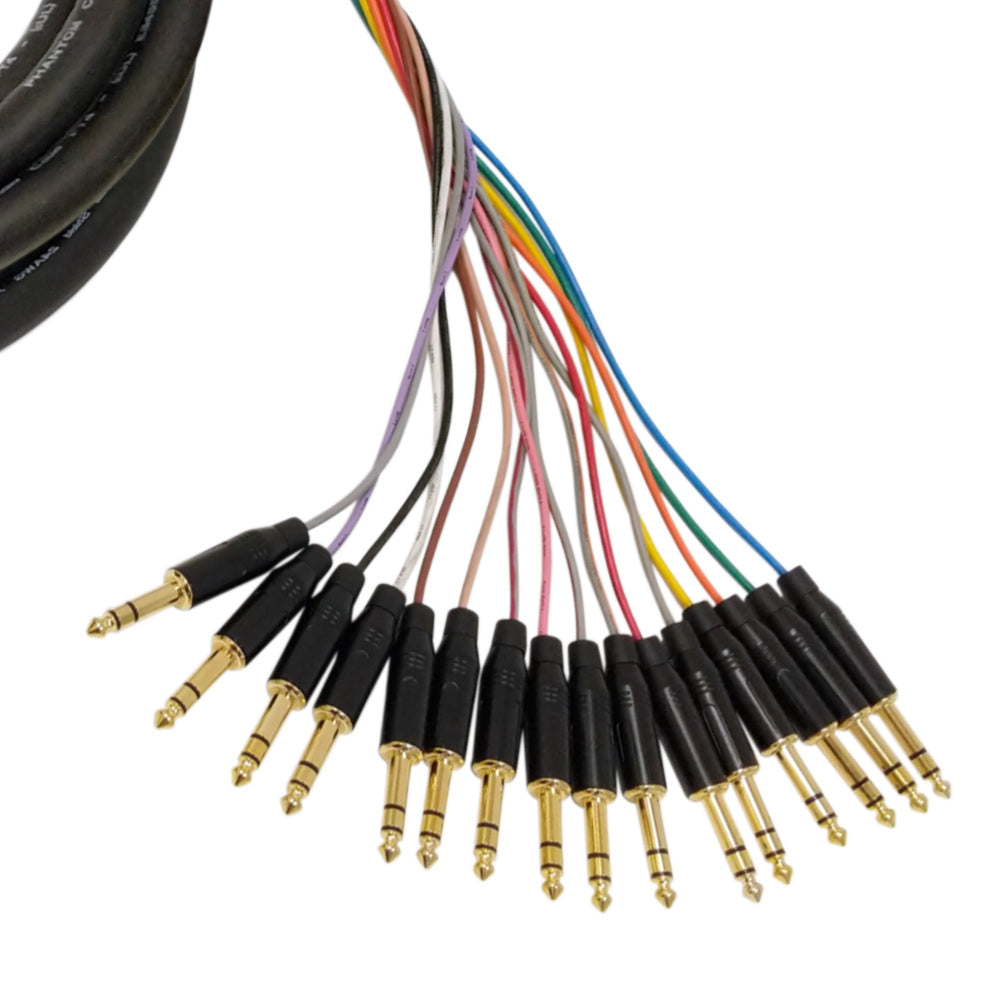

16 - 1/4 Inch TRS Male
Connector B

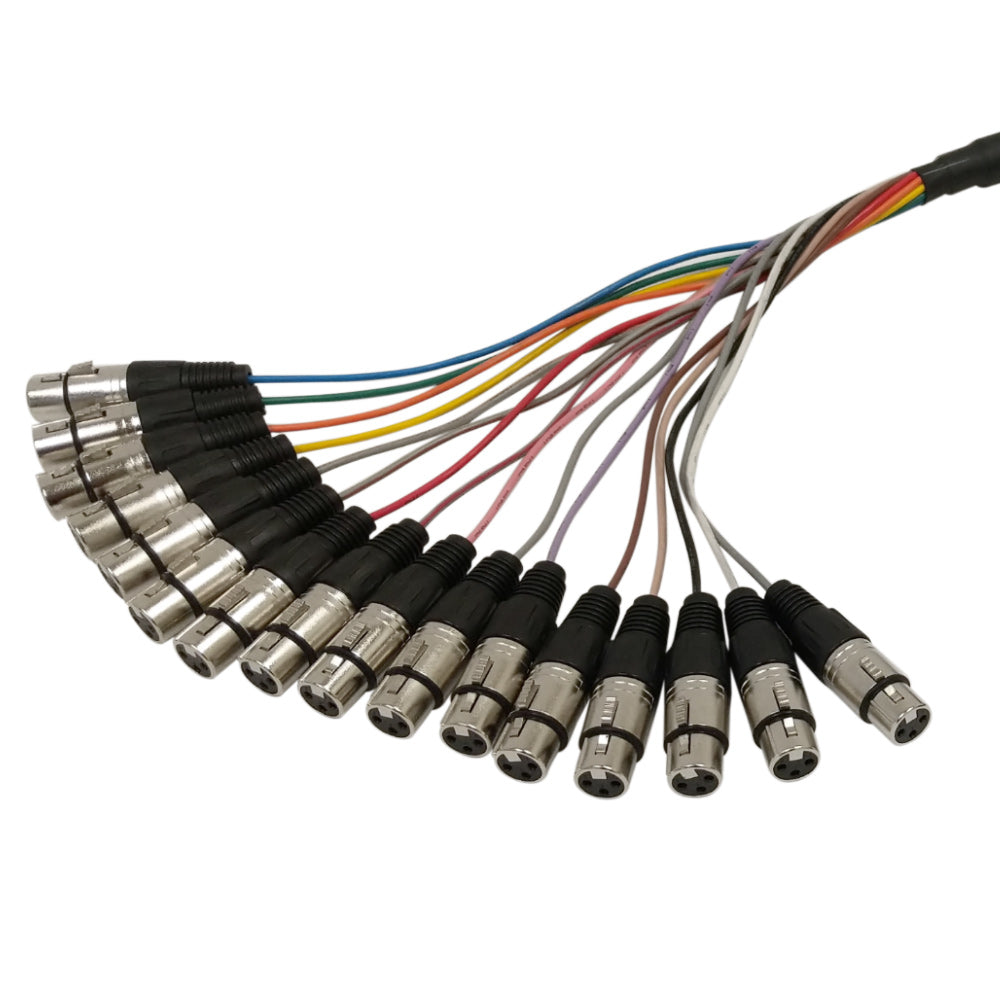

16 - XLR Female
Environmental
RoHS
Yes
Package Information
Package Quantity
1
Warranty Information
Warranty
Limited Lifetime
Cable Weights
3ft
6ft
10ft
15ft
25ft
35ft
50ft
3.90 lbs
4.80 lbs
6.00 lbs
7.50 lbs
10.50 lbs
13.50 lbs
18.00 lbs
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
For the lead-time on a larger quantity orders, please contact us via phone at1-866-207-6442or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.
Product Weight
3ft
S16-TRS-XLRF-03 0.19 lb
6ft
S16-TRS-XLRF-06 0.34 lb
10ft
S16-TRS-XLRF-10 0.53 lb
15ft
S16-TRS-XLRF-15 0.77 lb
25ft
S16-TRS-XLRF-25 1.25 lb
35ft
S16-TRS-XLRF-35 1.73 lb
50ft
S16-TRS-XLRF-50 2.45 lb
