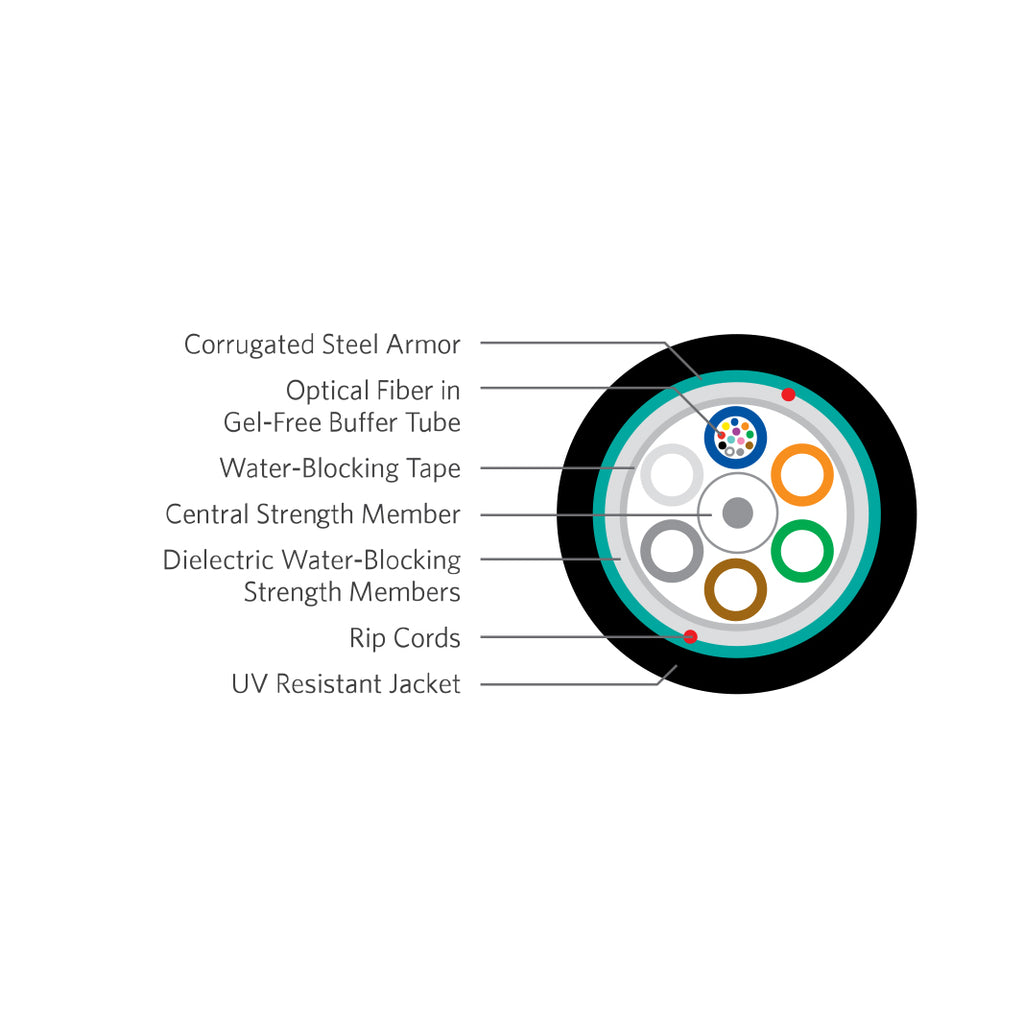

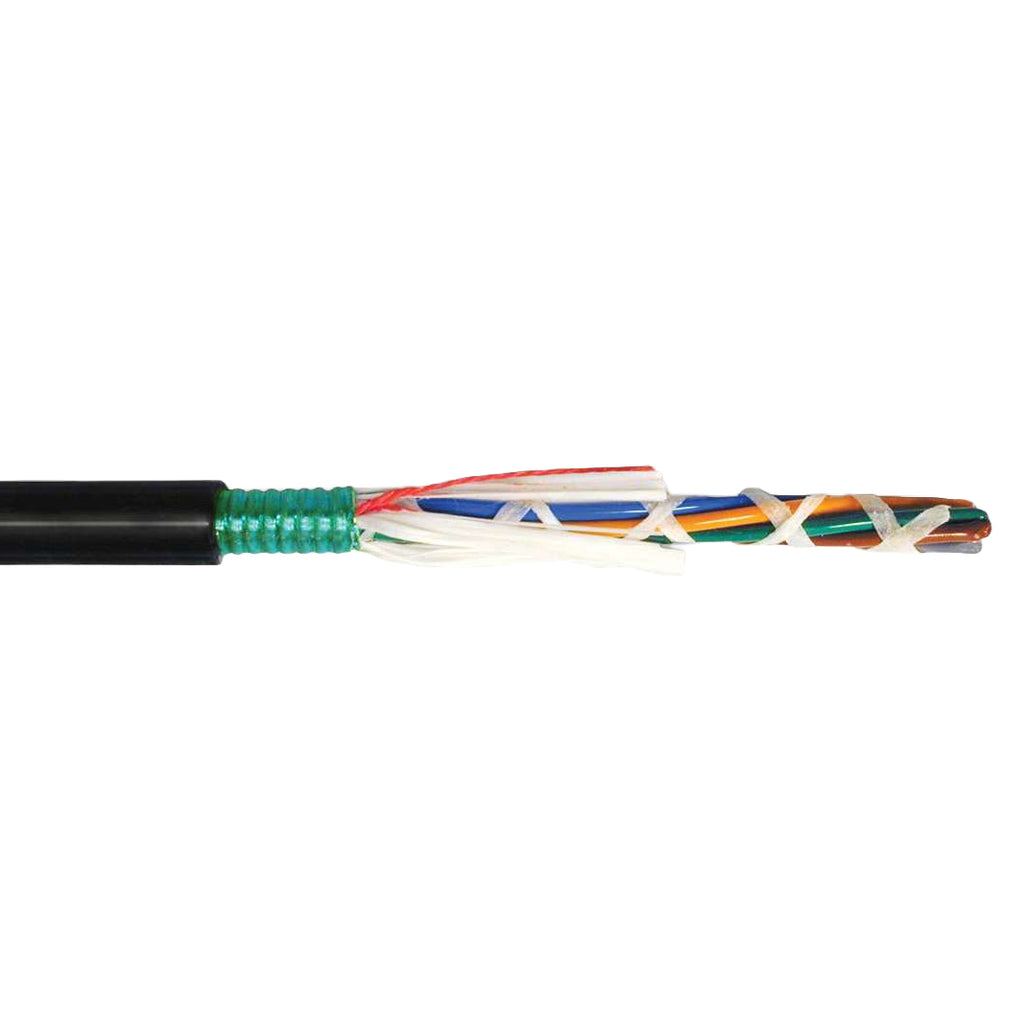

This bulk loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable provides high fiber density, can be used for multiple network applications, reduces cable installation time, reduces number of tools required, speeds fiber access/cleanup and dielectric design eliminates grounding issues.
Features
- Multiple fiber types including composites
- Dry (SAP) core standard
- Central strength members available in metallic or dielectric
- Gel-free tubes
- Tested to meet or exceed Telcordia® GR-20-CORE, RDUP PE-90 Designation MLT and ICEA S-87-640-2011
- RoHS Compliant
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OSP Loose Tube Singlemode Outdoor Direct Burial Dri-Lite Cable |
| Fiber Count | 12-Strand / 24-Strand |
| Nominal Diameter | 11.7mm |
| Tension(Installation) | 600 lbs |
| Tension(Long Term) | 200 lbs |
| Bending Radius(Installation) | 234mm |
| Bending Radius(Long Term) | 117mm |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Installation Temperature | -30℃ ~ +70℃ |
| Manufacturer Information | |
| Superior Essex Part Number | 120242D01 |
| Environmental | |
| RoHS | Yes |
| Telcordia® GR-20-CORE | Yes |
| RDUP PE-90 Designation MLT | Yes |
| ICEA S-87-640-2011 | Yes |
| Packaging Information | |
| Product Weight | 0.84 lbs |
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| BK-F120122D01 | 12-Strand | 0.84 lb |
| BK-F120242D01 | 24-Strand | 0.84 lb |
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
