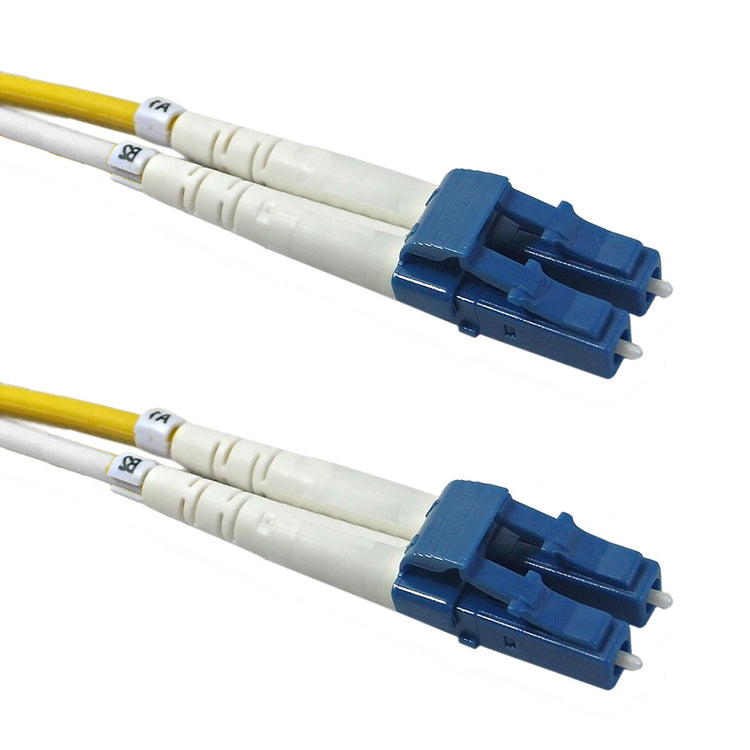

OS2 Singlemode Duplex LC/LC 9 Micron - Fiber Optic Patch Cable - 2mm Jacket - OFNP Plenum

OS2 Singlemode DuplexSKU: FO-208B-15P

Length: 5m
Price:
Sale price$13.10 CAD
Stock:
In stock


Description

Overview

These 9 micron (OS2) fiber optic cable is made with Corning ClearCurve LBL glass fiber, which exceeds ITU-T G.657.A2/B2 and remains compatible and fully compliant with ITU-T G.652.D. It has 2mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.

Premium Cables Made with Corning® Glass Fibers

All of our singlemode fiber cables are made with Corning® (ClearCurve LBL) glass for optimal performance and quality.

Individually Serialized Cables

Each cable is individually serialized with cable labels at both ends which allows us to quickly access saved detailed interferometer test reports, but also makes tracing quick and easy during installation.

OFNP Rated Jacket

These cables are OFNP rated for use in plenum air spaces such as overhead and below floor cable runs in a data center.

100% Fully IL & RL Tested

Our singlemode cables are 100% tested for insertion loss and return loss to stringent parameters and come with a test report.

Ceramic Ferrule

All our connectors are made with ceramic ferrules which have a high durability and reliable dimensional control to ensure optimal insertion and return loss.

3D Interferometer Tested

Each of our cables are individually interferometer tested for radius of curvature, apex offset and fiber height.

Certifications

Our fiber optic cable is c(UL)us certified to meet the appropriate safety standards.

Lifetime Warranty

Our cables come with a limited lifetime warranty against manufacturing defects.

Application

Specifications

Physical Characteristics
Color Yellow
Cable Diameter 2mm
Fiber Size 9/125 micron
Fiber Type Singlemode
Glass Manufacturer Corning Glass (ClearCurve LBL)
Connector Ferrules Ceramic
Fiber Classification OS2
Jacket Rating Plenum (OFNP)
Operating Temperature -10°C ~ +70°C
Connector(s)
Connector A LC/UPC Duplex Male
Connector B LC/UPC Duplex Male
Performance
Insertion Loss <0.3db @ 1550nm
Return Loss ≥50db
Interferometer Tested 100% Tested
Approvals
c(UL)us Yes - Cable
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Warranty Limited Lifetime
Cable Weights
15ft - 5m 23ft - 7m 30ft - 10m 50ft - 15m 65ft - 20m 80ft - 25m 100ft - 30m 131ft - 40m 164ft - 50m
0.20 lbs 0.29 lbs 0.38 lbs 0.52 lbs 0.77 lbs 0.86 lbs 1.03 lbs 1.39 lbs 2.05 lbs
SKU Options Weight
FO-208B-15P 5m 0.2 lb
FO-208B-23P 7m 0.24 lb
FO-208B-30P 10m 0.33 lb
FO-208B-50P 15m 0.5 lb
FO-208B-65P 20m 0.63 lb
FO-208B-80P 25m 0.77 lb
FO-208B-100P 30m 0.95 lb
FO-208B-131P 40m 1.33 lb
FO-208B-164P 50m 1.55 lb
