Description

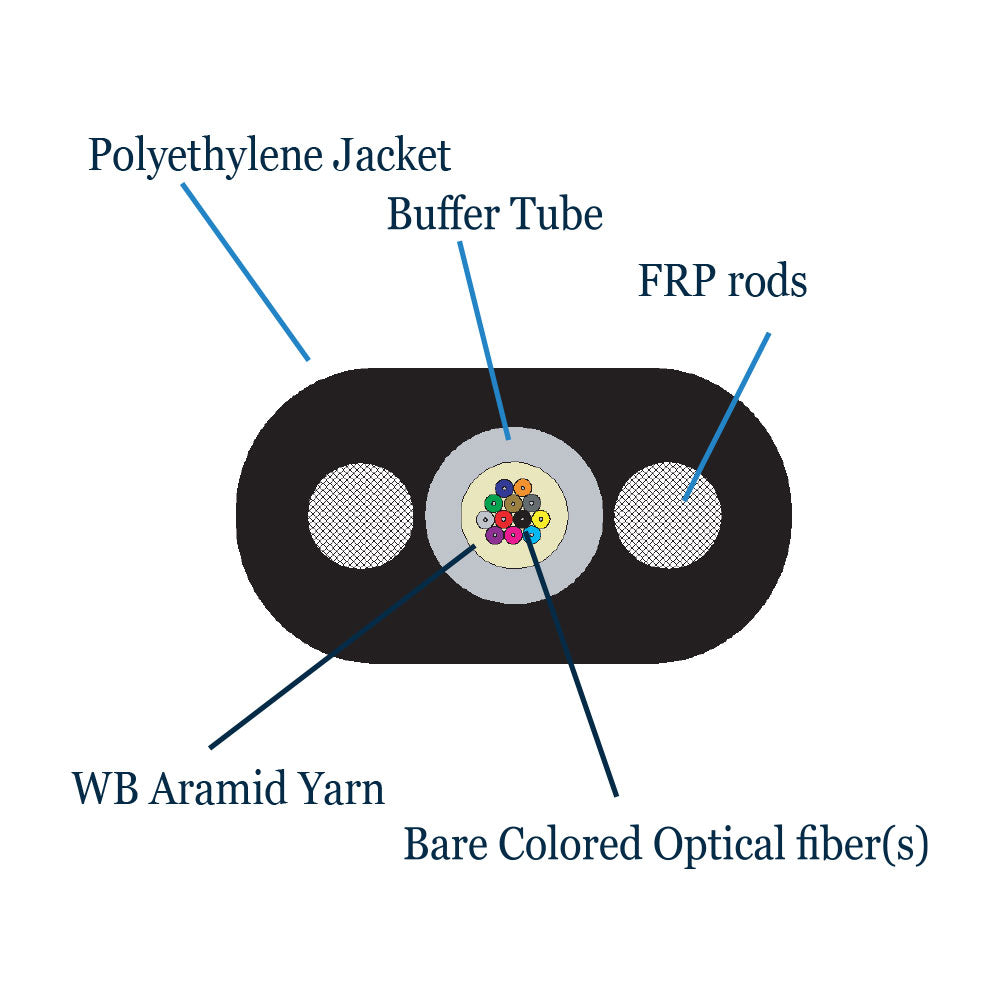

This bulk OS2 singlemode fiber cable is outside plant drop cable with a UV resistant polyethylene jacket and water blocking aramid. The outer jacket encases the buffer tube along with 2 dielectric FRP strength members, perfect for all your Fiber To The Home needs.
Features
- Small, compact design allows for easy Fiber to the Home installations
- Flat Drop cable are all dielectric thus no need for bonding or grounding
- Self/supporting, aerial and direct burial applications
- Loose tube construction allows for compatibility with all standard connector types
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OS2 Singlemode 9 Micron Outdoor Dielectric Dry Flat Drop Cable |
| Fiber Count | 1-Strand / 6-Strand |
| Glass Fiber |
Corning |
| Outer Jacket Material |
UV Resistant Polyethylene |
| Dielectric Strength Member |
Fiberglass Reinforced Plastic (FRP) Diameter: 1.5mm x 2 |
| Central Tube |
Polybutylene Terephthalate (PBT) Diameter : 2.5mm |
| Nominal Diameter |
8.0/4.5mm (1-Strand) 8.0/4.5mm (6-Strand) |
| Bend Radius |
16cm (1-Strand) 16cm (6-Strand) |
| Operating Temperature | -40 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +70 deg C |
| Pull strength (operational) | 300lbs |
| Pull strength (installation) | 1000lbs |
| Maximum unsupported span | 124ft with 1% sag in heavy load zone |
| Performance | |
| Attenuation (Maximum) | 0.4dB/km @1550nm |
| Numerical Aperture |
0.14 |
| Mode-Field Diameter[1310/1550nm] |
9.2/10.4um |
| Certification(s) | |
| EU |
Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USA |
| Packaging Information | |
| Package Quantity | 1 |
| 1-strand | 6-strand |
|---|---|
| 0.030 lbs/m | 0.034 lbs/m |
Spec Sheets
Product Weight
1-strand
BK-F1FD-SM-T
0.08 lb
BK-F1FD-SM-T
0.08 lb
6-strand
BK-F6FD-SM-T
0.08 lb
BK-F6FD-SM-T
0.08 lb
